Hummer H2. Manual - part 2240

610

Reverse Input Clutch Spring Retainer Ring

611

Reverse Input Clutch Plate - Belleville

612a

Reverse Input Clutch Turbulator Plate - Steel

612b

Reverse Input Clutch Plate Assembly - Fiber

613

Reverse Input Clutch Backing Plate - Selective

614

Reverse Input Clutch Retaining Ring

615

Stator Shaft/Selective Washer Bearing Assembly

616

Thrust Washer - Selective

617

Check Valve Retainer and Ball Assembly

618

O-Ring Seal - Location Model Dependent

619

Oil Seal Ring - Solid

620

Retainer and Checkball Assembly

621

Input Housing and Shaft Assembly - Model Dependent

622

O-Ring Input to Forward Clutch Housing Seal

623

3rd and 4th Clutch Piston

625

3rd and 4th Clutch Ring - Apply

626

3rd and 4th Clutch Spring Assembly

627

Forward Clutch Housing Retainer and Ball Assembly

628

Forward Clutch Housing

630

Forward Clutch Piston

632

Overrun Clutch Piston

633

Overrun Clutch Ball

634

Overrun Clutch Spring Assembly

635

Overrun Clutch Spring Retainer Snap Ring

636

Input Housing to Output Shaft Seal

637

Input Sun Gear Bearing Assembly

638

Overrun Clutch Hub Retaining Snap Ring

639

Overrun Clutch Hub

640

Forward Sprag Clutch Inner Race and Input Sun Gear Assembly

642

Forward Sprag Assembly

643

Sprag Assembly Retainer Ring

643

Sprag Assembly Retainer Ring

644

Forward Clutch Race - Outer

645a

Overrun Clutch Plate - Steel

645b

Overrun Clutch Plate Assembly - Fiber

646

Forward Clutch Plate - Apply

648

Forward Clutch Plate - Waved

649a

Forward Clutch Plate - Steel

649b

Forward Clutch Plate Assembly - Fiber

650

Forward Clutch Backing Plate - Selective

651

Forward Clutch Backing Plate Retainer Ring



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



653

3rd and 4th Clutch Apply Plate - Stepped

653

3rd and 4th Clutch Apply Plate - Stepped

653

3rd and 4th Clutch Apply Plate - Stepped

654a

3rd and 4th Clutch Plate Assembly - Fiber - Quantity Model Dependent 5, 6 or 7 Plates

654a

3rd and 4th Clutch Plate Assembly - Fiber - Quantity Model Dependent 5, 6 or 7 plates

654a

3rd and 4th Clutch Plate Assembly - Fiber - Quantity Model Dependent 5, 6 or 7 plates

654b

3rd and 4th Clutch Plate - Steel - Quantity Model Dependent

654b

3rd and 4th Clutch Plate - Steel - Quantity Model Dependent

654b

3rd and 4th Clutch Plate - Steel - Quantity Model Dependent

655

3rd and 4th Clutch Backing Plate - Selective - Model Dependent

655

3rd and 4th Clutch Backing Plate - Selective - Model Dependent

655

3rd and 4th Clutch Backing Plate - Selective - Model Dependent

656

3rd and 4th Clutch Backing Plate Retainer Ring

657

Input Sun Gear Front Bushing

659

Input Sun Gear Rear Bushing

688

Cup Plug

698

Orificed Cup Plug



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



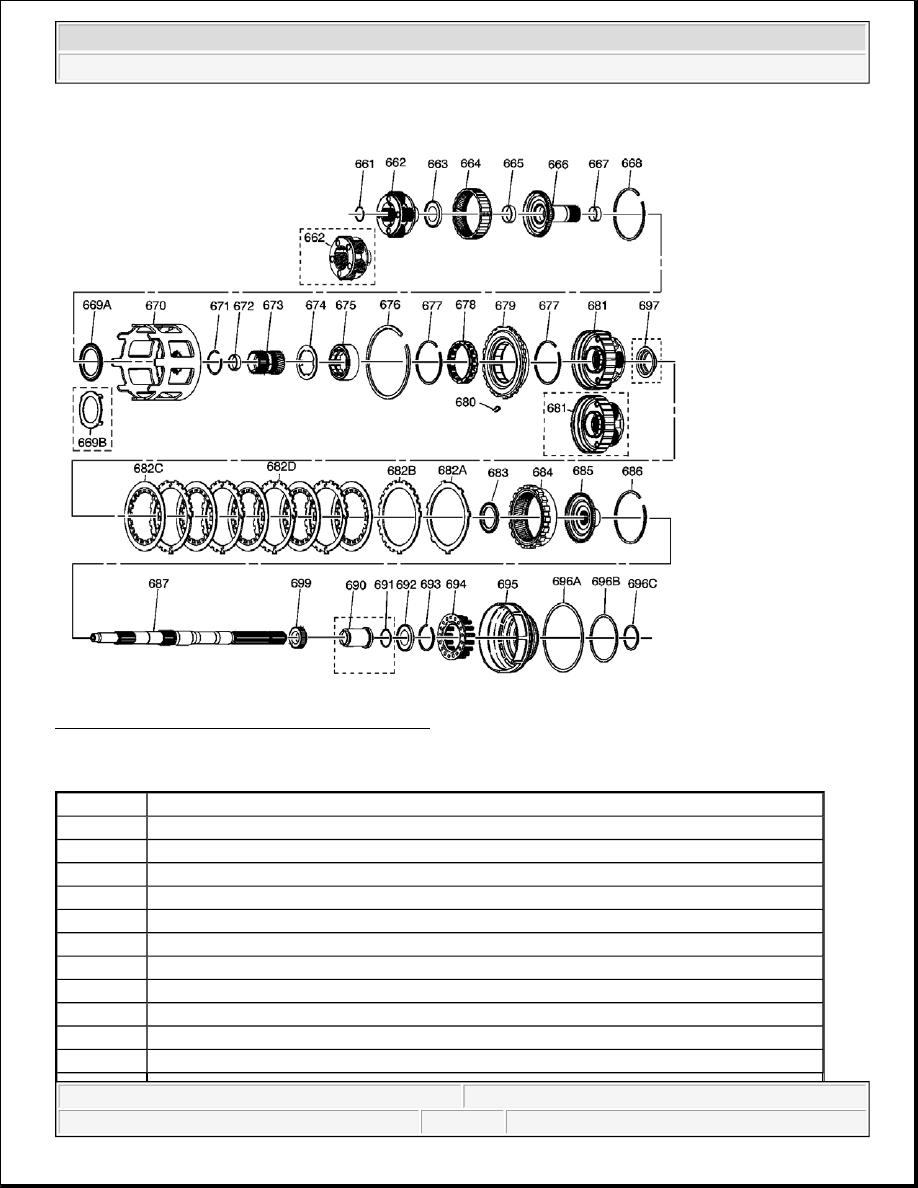

Fig. 17: Internal Parts Component Views (2 of 2)
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 17

Callout

Component Name

661

Output Shaft to Input Carrier Retainer

662

Input Carrier Assembly - 4 or 5 Pinion-Model Dependent

662

Input Carrier Assembly

663

Thrust Bearing Assembly - Input Carrier to Reaction Shaft

664

Input Internal Gear

665

Reaction Carrier Shaft Front Bushing

666

Reaction Carrier Shaft

667

Reaction Carrier Shaft Rear Bushing

668

Reaction Shaft/Internal Gear Retainer Ring

669a

Thrust Bearing Assembly - Reaction Shaft Shell

669b

Thrust Bearing Assembly - Reaction Shaft Shell - Some Models



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



670

Reaction Sun Shell

671

Reaction Sun Gear Retainer Ring

672

Reaction Sun Bushing

673

Reaction Sun Gear

674

Thrust Washer - Race/Reaction Shell

675

Low and Reverse Roller Clutch Race

676

Low and Reverse Support to Case Retainer Ring

677

Low and Reverse Roller Assembly Retainer Ring - Cam

677

Low and Reverse Roller Assembly Retainer Ring - Cam

678

Low and Reverse Roller Clutch Assembly

679

Low and Reverse Clutch Support Assembly

680

Low and Reverse Clutch Support Retainer Spring

681

Reaction Carrier Assembly - 4 or 5 Pinion-Model Dependent

681

Reaction Carrier Assembly - 4 or 5 Pinion-Model Dependent

682a

Low and Reverse Clutch Plat - Waved

682b

Spacer Low and Reverse Clutch Plate - Selective

682c

Low and Reverse Clutch Plate Assembly - Fiber

682d

Low and Reverse Clutch Turbulator Plate - Steel

683

Thrust Bearing Assembly - Reaction Carrier/Support

684

Internal Reaction Gear

685

Internal Reaction Gear Support

686

Reaction Gear/Support Retainer Ring

687

Output Shaft

690

Output Shaft Sleeve - Model Dependent 2WD only

691

Output Shaft Seal - Model Dependent 2WD only

692

Reaction Gear Support to Case Bearing

693

Low and Reverse Clutch Retainer Ring

694

Low and Reverse Clutch Spring Assembly

695

Low and Reverse Clutch Piston

696a

Low and Reverse Clutch Seal - Outer

696b

Low and Reverse Clutch Seal - Center

696c

Low and Reverse Clutch Seal - Inner

697

Oil Deflector - High Output Models Only

699

Internal Transmission Speed Sensor Rotor
