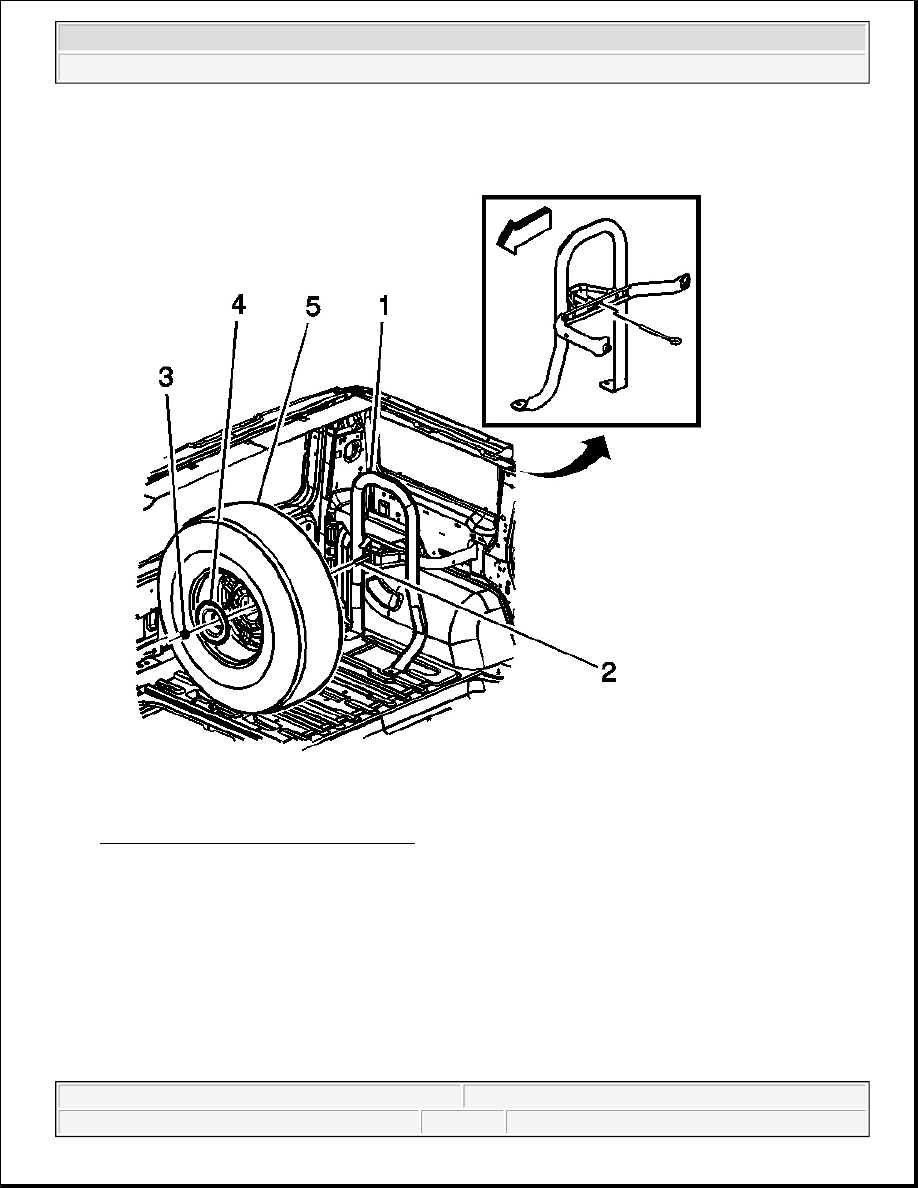

Fig. 12: Spare Tire & Spare Tire Carrier
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2004 SUSPENSION Tires and Wheels - Hummer H2

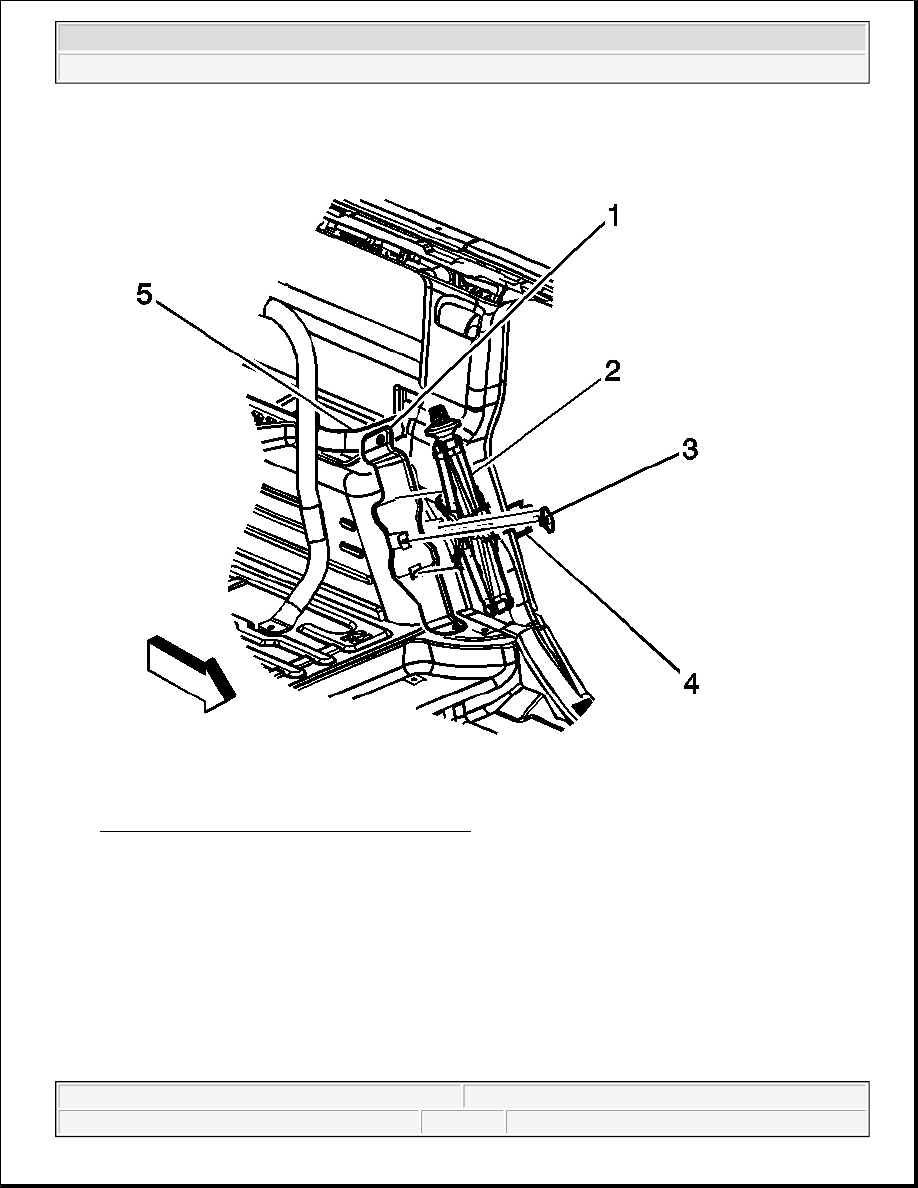

Fig. 13: Jack & Jack Stowage Bracket Assembly
Courtesy of GENERAL MOTORS CORP.

4. Remove the jack retainer nut (3) and bracket (4).

5. Remove the jack (2) from the jack stowage bracket assembly (1).



2004 Hummer H2

2004 SUSPENSION Tires and Wheels - Hummer H2

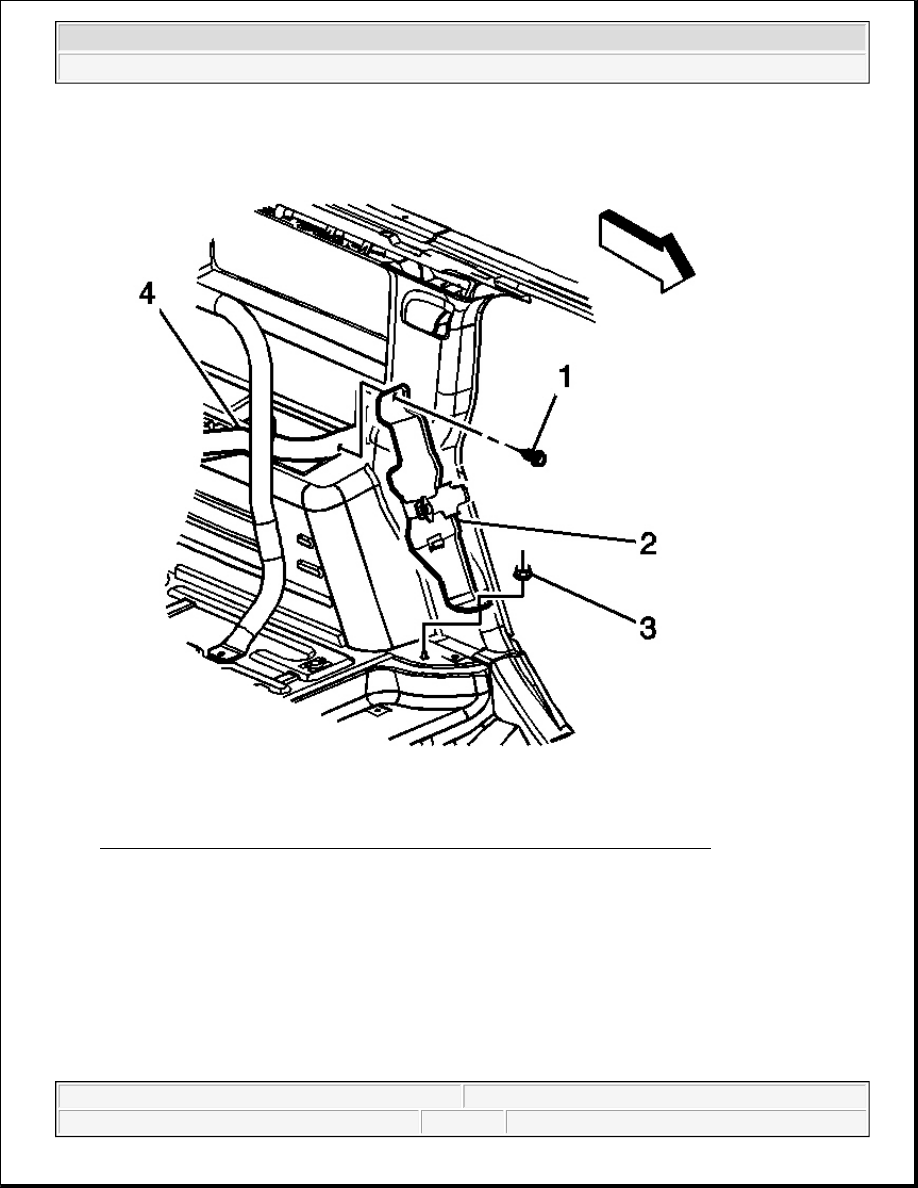

Fig. 14: Screw Securing Jack Stowage Bracket Assembly To Spare Tire Carrier
Courtesy of GENERAL MOTORS CORP.

6. Remove the screw (1) securing the jack stowage bracket assembly (2) to the spare tire carrier (4).



2004 Hummer H2

2004 SUSPENSION Tires and Wheels - Hummer H2

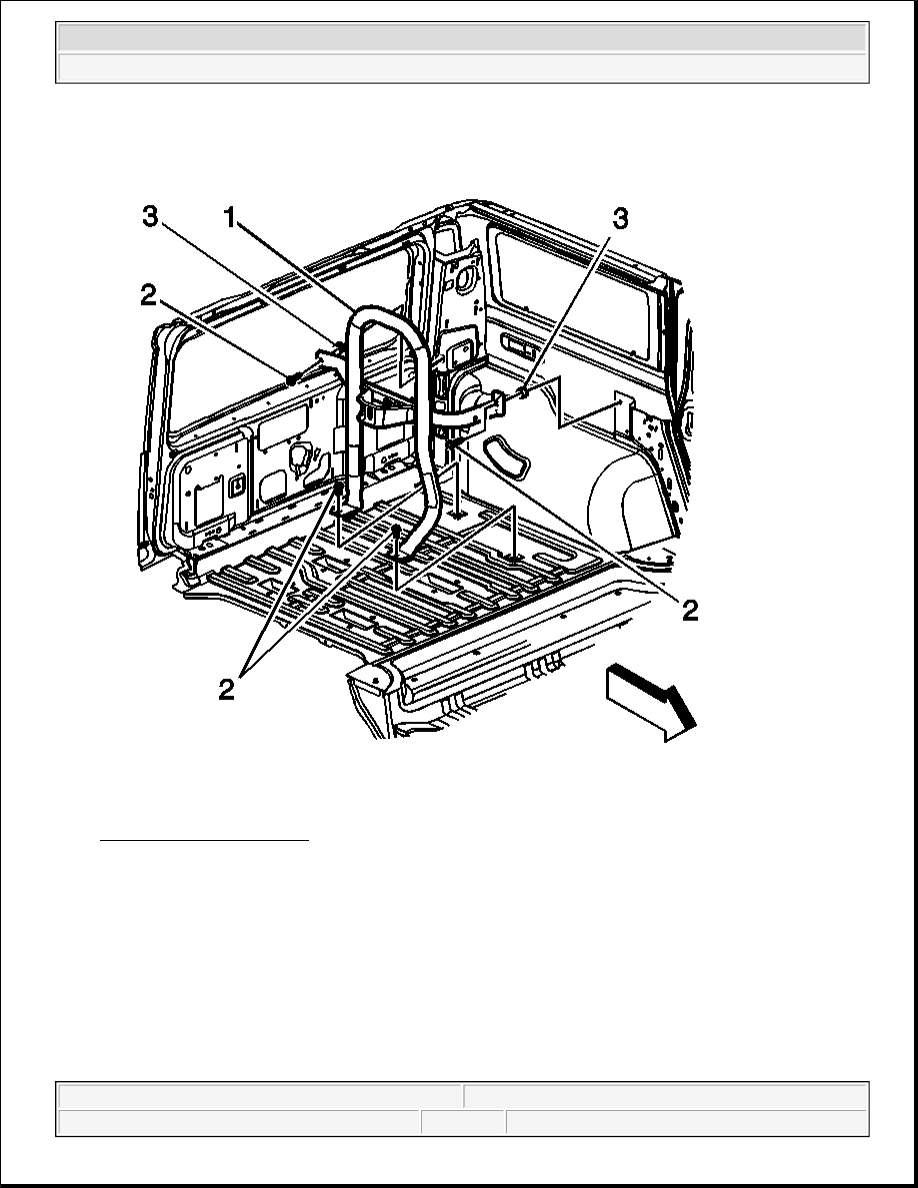

Fig. 15: Spare Tire Carrier
Courtesy of GENERAL MOTORS CORP.

7. Remove the spare tire carrier mounting bolts (2) and spacers (3).

8. Remove the spare tire carrier (1) from the vehicle.
