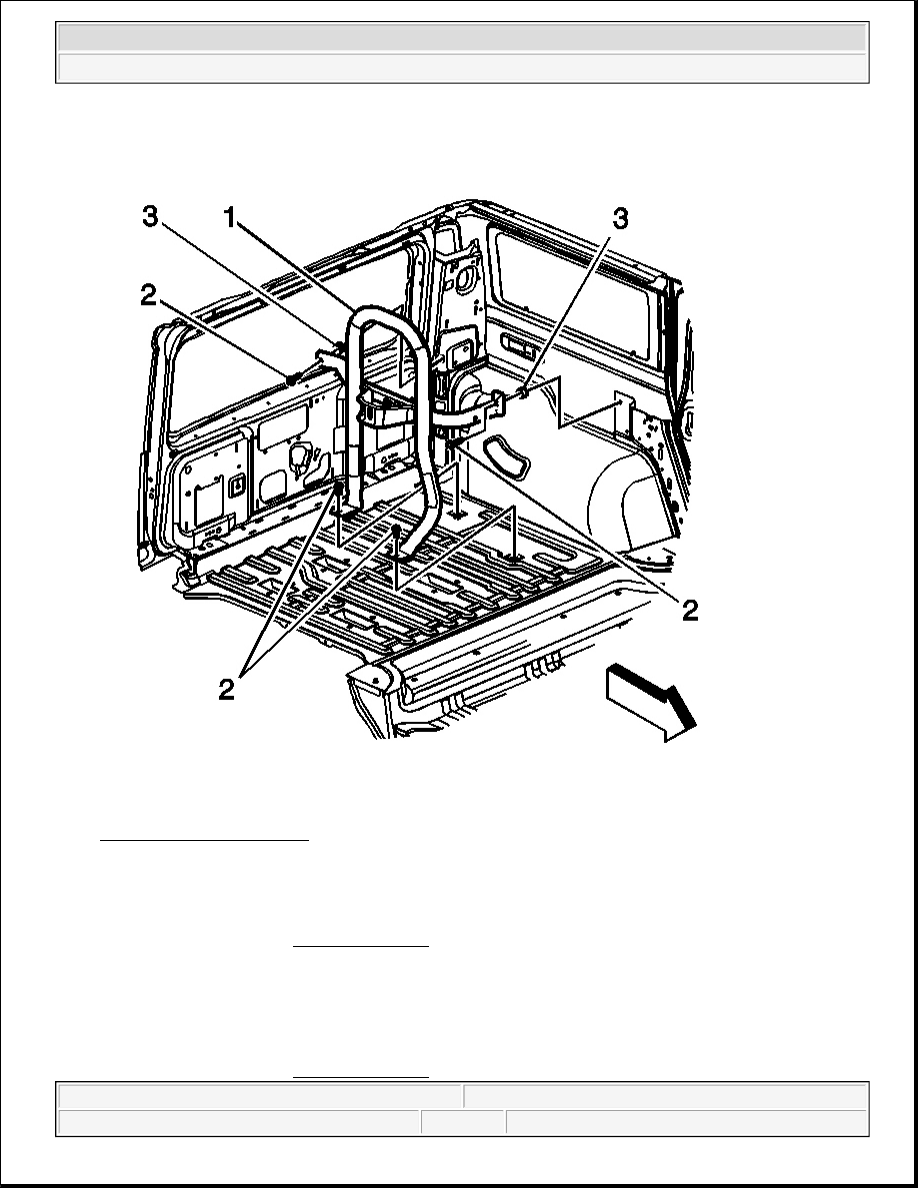

Fig. 16: Spare Tire Carrier
Courtesy of GENERAL MOTORS CORP.

1. Install the spare tire carrier (1) to the vehicle.

2. Install spacers (3) and the spare tire carrier mounting bolts (2).

Tighten: Tighten the spare tire carrier mounting bolts to 85 N.m (63 lb ft).

NOTE:

Refer to Fastener Notice in Cautions and Notices.

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 SUSPENSION Tires and Wheels - Hummer H2

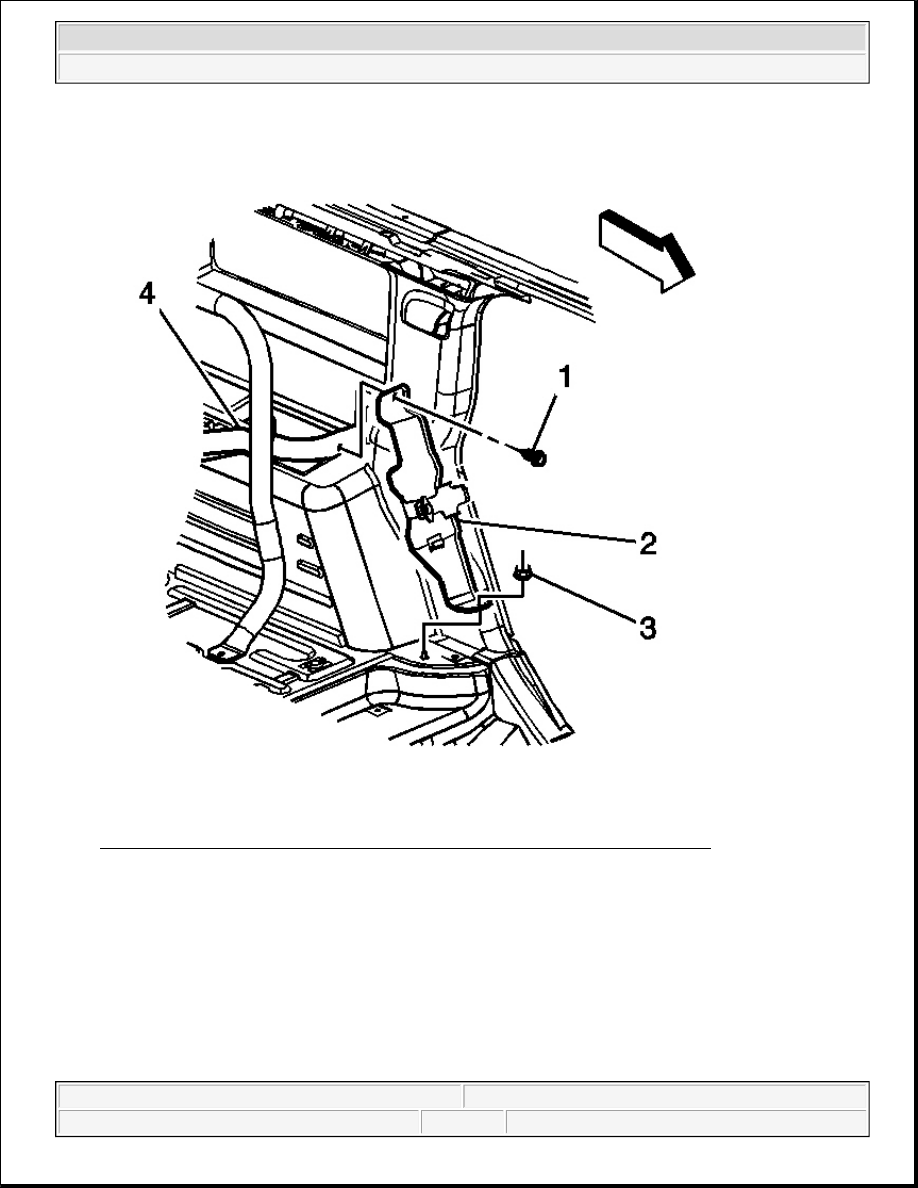

Fig. 17: Screw Securing Jack Stowage Bracket Assembly To Spare Tire Carrier
Courtesy of GENERAL MOTORS CORP.

3. Install the screw (1) securing the jack stowage bracket assembly (2) to the spare tire carrier (4).

Tighten: Tighten the screw to 25 N.m (18 lb ft).



2004 Hummer H2

2004 SUSPENSION Tires and Wheels - Hummer H2

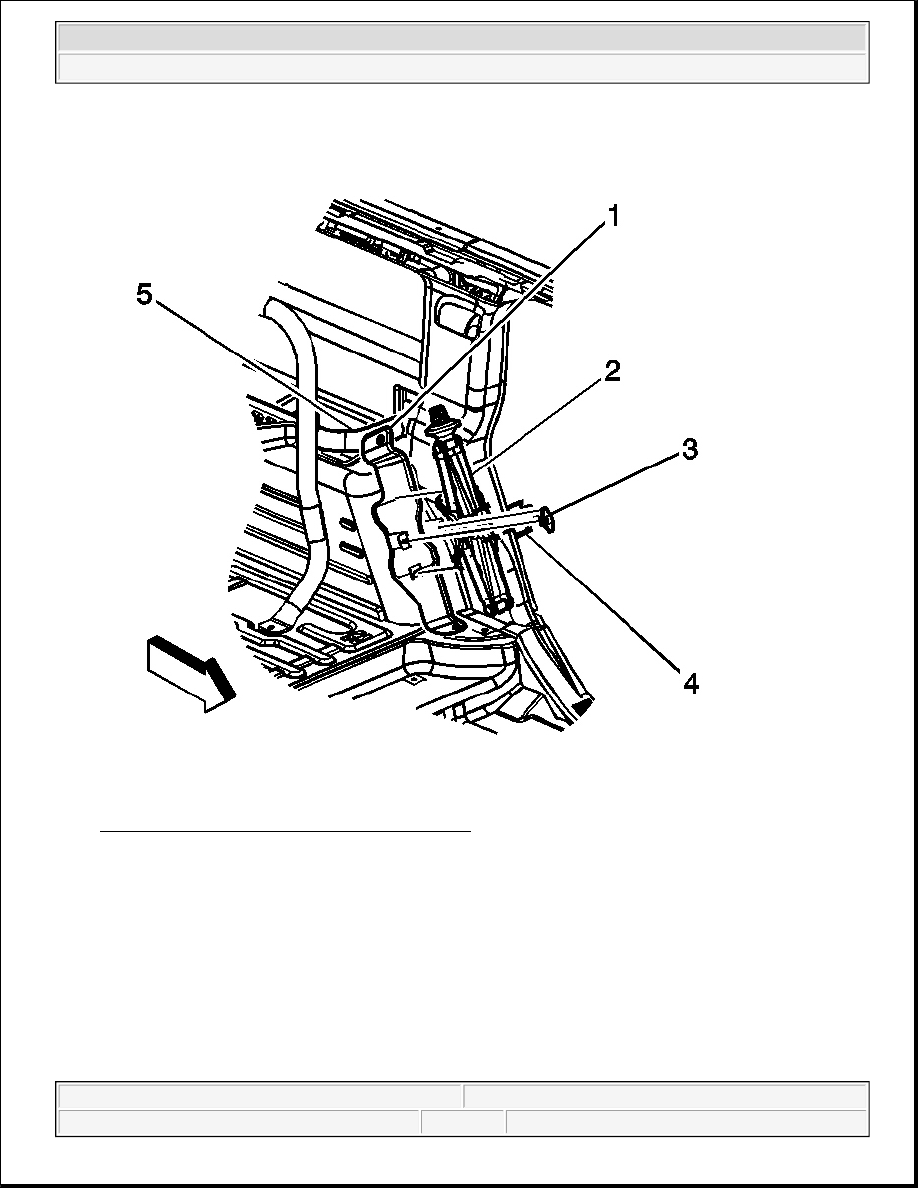

Fig. 18: Jack & Jack Stowage Bracket Assembly
Courtesy of GENERAL MOTORS CORP.

4. Install the jack (2) to the jack stowage bracket assembly (1).

5. Install the jack bracket (4) and the nut (3).

6. Raise the jack after it is installed in the bracket to ensure that it is secure.



2004 Hummer H2

2004 SUSPENSION Tires and Wheels - Hummer H2

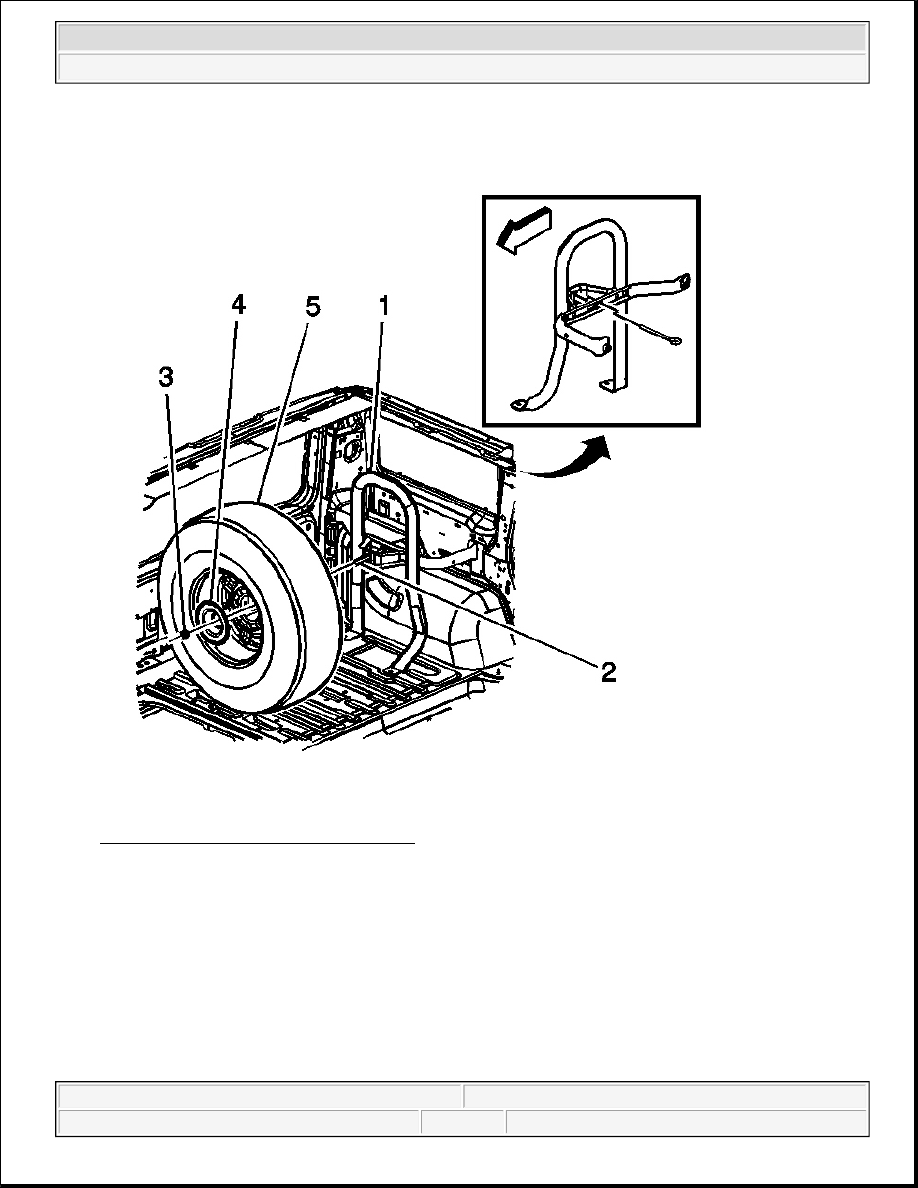

Fig. 19: Spare Tire & Spare Tire Carrier
Courtesy of GENERAL MOTORS CORP.

7. Install the spare tire (5) to the spare tire carrier (1), inserting the stud (2) through the center of the spare

tire.

8. Install the mounting plate (4), washer, and mounting nut (3).

Tighten: Tighten the spare tire mounting nut to 85 N.m (63 lb ft).

9. Install the spare tire cover.

DESCRIPTION AND OPERATION
