REPAIR INSTRUCTIONS

INTERMEDIATE STEERING SHAFT REPLACEMENT - UPPER

Tools Required

J 42640 Steering Column Lock Pin

Removal Procedure

9

Replacement .
Did you complete the replacement?

Go to

Step 13

-

10

Tighten the support screws to specifications. Refer to Fastener
Tightening Specifications .
Did you complete the repair?

Go to

Step 13

-

11

Tighten or replace the intermediate shaft as needed. Refer to
Intermediate Steering Shaft Replacement - Upper and
Intermediate Steering Shaft Replacement - Lower .
Did you complete the repair?

Go to

Step 13

-

12

Repair or replace the tilt head, support and pivot pins as
necessary. Refer to Steering Column Tilt Head Housing
Replacement .
Did you complete the replacement?

Go to

Step 13

-

13

Operate the system in order to verify the repair.
Did you correct the condition?

System

OK

Go to Step 3

NOTE:

Once the steering column is removed from the vehicle, the column is extremely
susceptible to damage. Dropping the column assembly on the end could
collapse the steering shaft or loosen the plastic injections, which maintain
column rigidity. Leaning on the column assembly could cause the jacket to
bend or deform. Any of the above damage could impair the columns collapsible
design. Do NOT hammer on the end of the shaft, because hammering could
loosen the plastic injections, which maintain column rigidity. If you need to
remove the steering wheel, refer to the Steering Wheel Replacement procedure
in this section.



2004 Hummer H2

2004 STEERING Steering Wheel and Column - Hummer H2

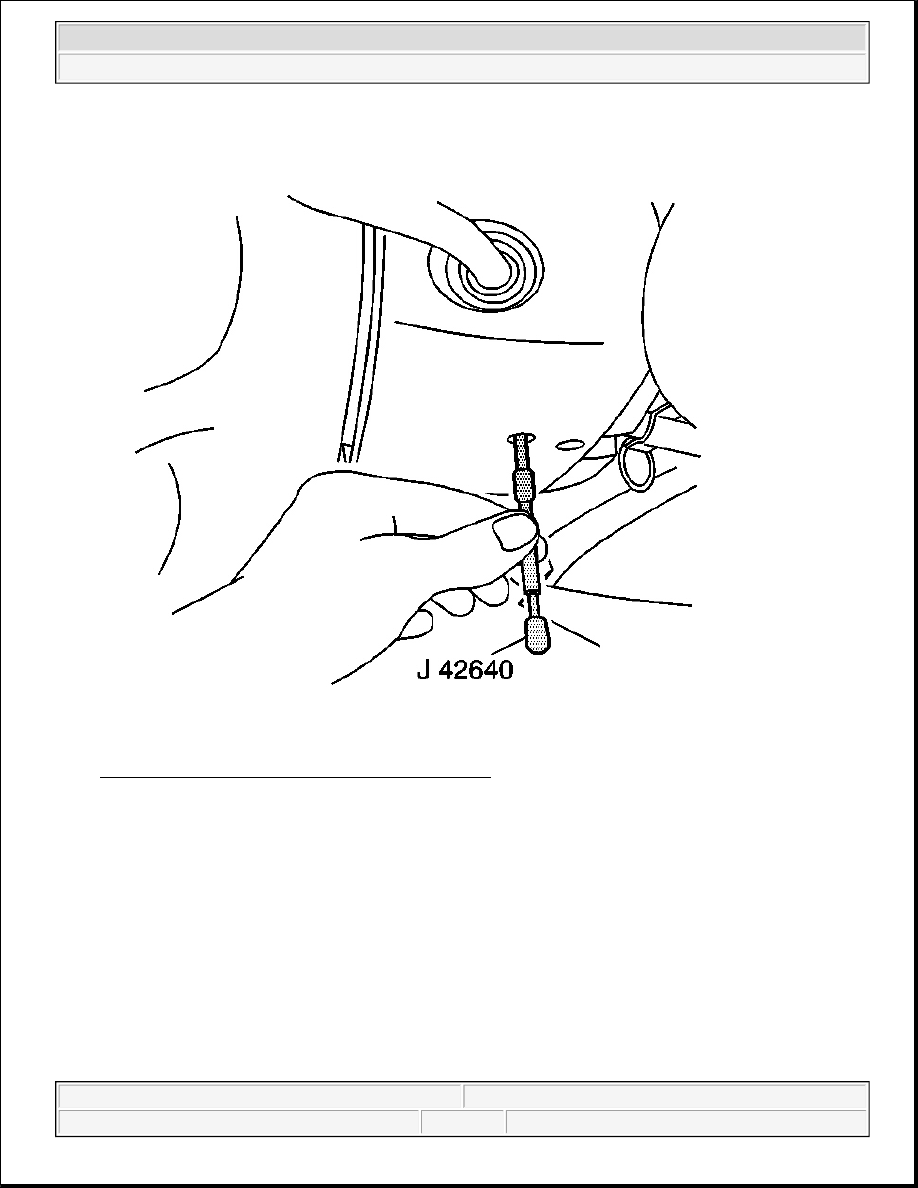

Fig. 5: Inserting J 42640 To Lock Steering Column
Courtesy of GENERAL MOTORS CORP.

1. Turn the steering wheel so that the front wheels are pointing straight ahead.

2. Turn the ignition switch to the lock position and remove the key.

3. Lock the steering column through the access hole in the lower steering column trim cover using J 42640 .

NOTE:

The front wheels of the vehicle must be maintained in the straight ahead
position and the steering column must be in the LOCK position before
disconnecting the steering column or intermediate shaft. Failure to follow
these procedures will cause improper alignment of some components
during installation and result in damage to the SIR coil assembly.



2004 Hummer H2

2004 STEERING Steering Wheel and Column - Hummer H2

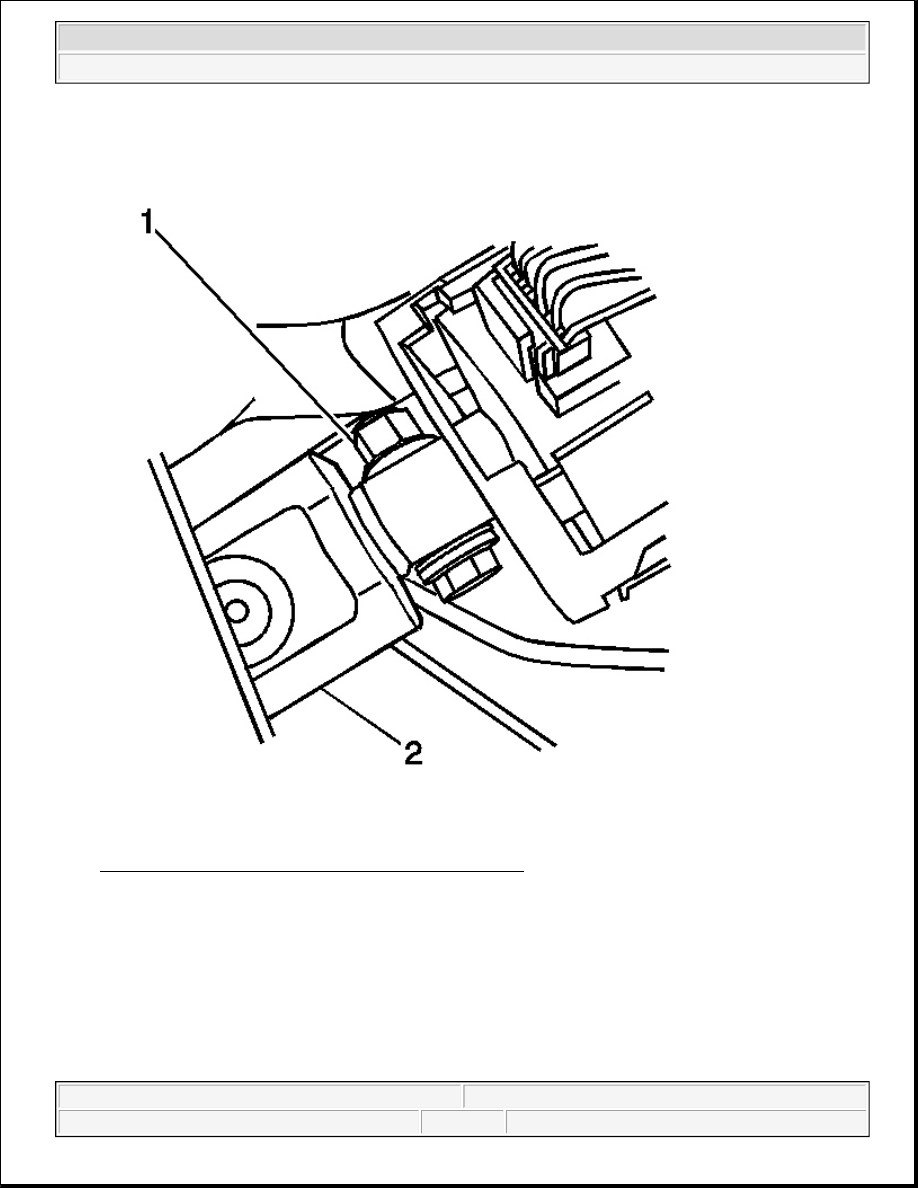

Fig. 6: Nut & Bolt To Upper Shaft To Steering Column
Courtesy of GENERAL MOTORS CORP.

4. From inside the vehicle remove the upper intermediate shaft to steering column shaft pinch bolt.



2004 Hummer H2

2004 STEERING Steering Wheel and Column - Hummer H2

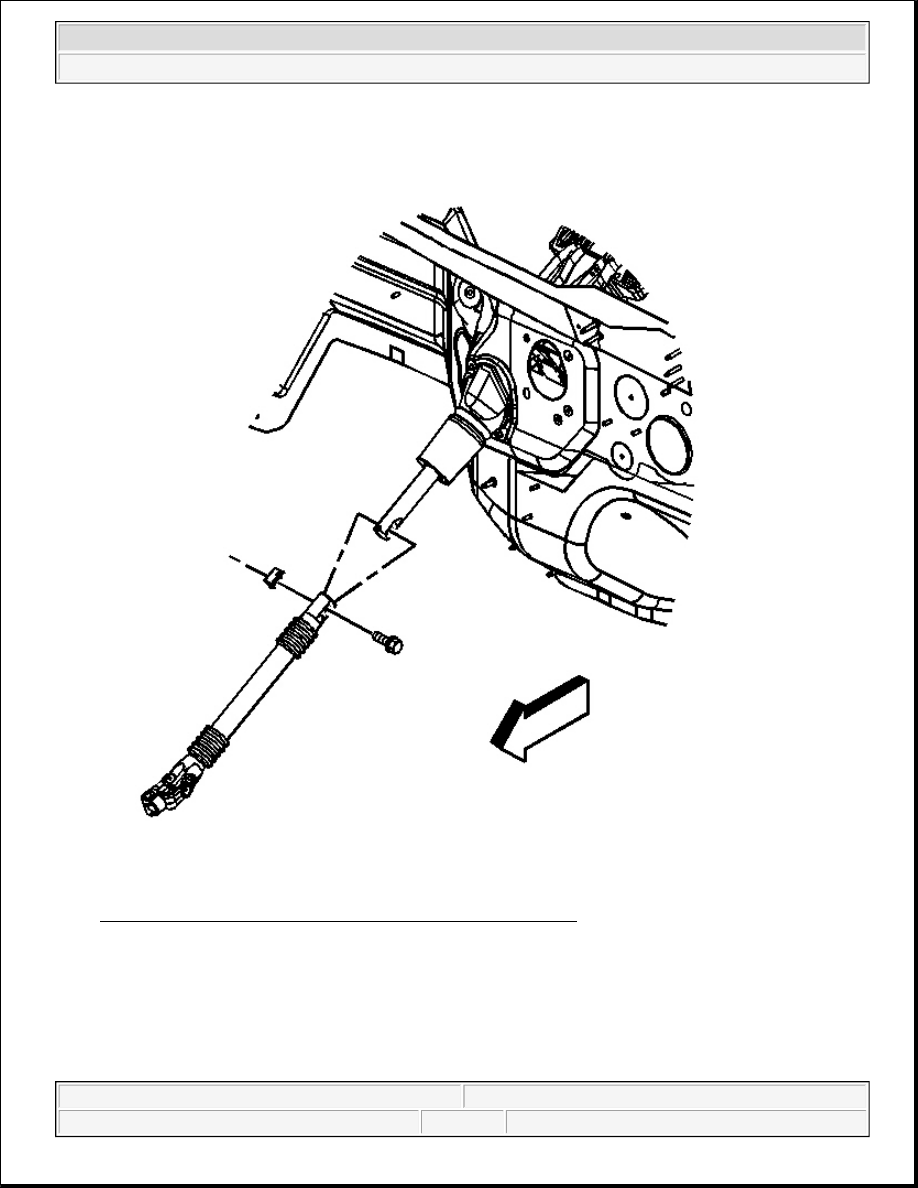

Fig. 7: Upper Intermediate Shaft & Lower Intermediate Shaft
Courtesy of GENERAL MOTORS CORP.

5. Remove the upper intermediate shaft to the lower intermediate shaft pinch bolt.

IMPORTANT: Note the direction of upper intermediate shaft to steering column pinch

bolt for installation. The bolt must be installed in the same direction it was
removed.
