6. Disconnect the upper intermediate shaft from the lower intermediate shaft.

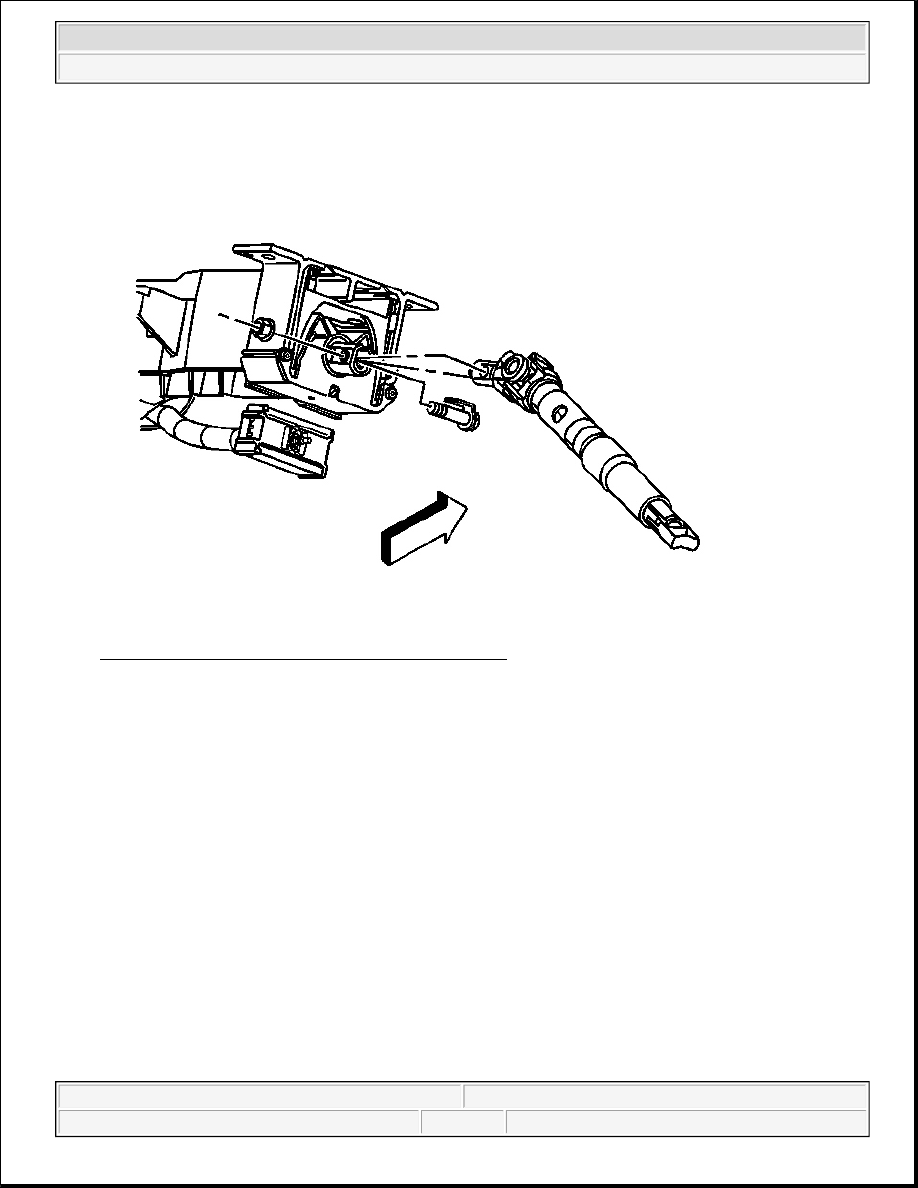

Fig. 8: Steering Column & Upper Intermediate Shaft
Courtesy of GENERAL MOTORS CORP.

7. Disconnect the upper intermediate shaft from the steering column.

8. Remove the upper intermediate shaft from the vehicle.

Installation Procedure



2004 Hummer H2

2004 STEERING Steering Wheel and Column - Hummer H2



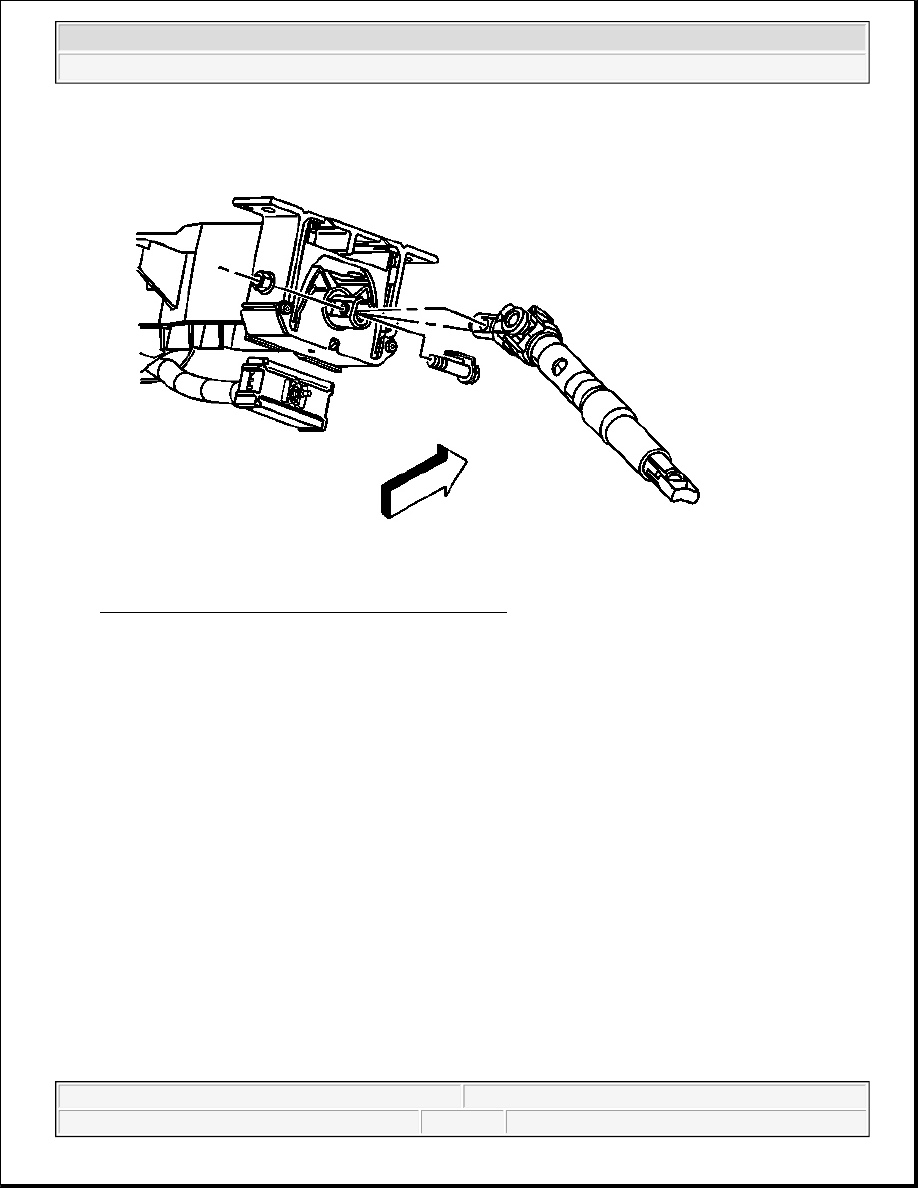

Fig. 9: Steering Column & Upper Intermediate Shaft
Courtesy of GENERAL MOTORS CORP.

1. Install the upper intermediate shaft to the vehicle.

2. Connect the upper intermediate shaft to the steering column.



2004 Hummer H2

2004 STEERING Steering Wheel and Column - Hummer H2



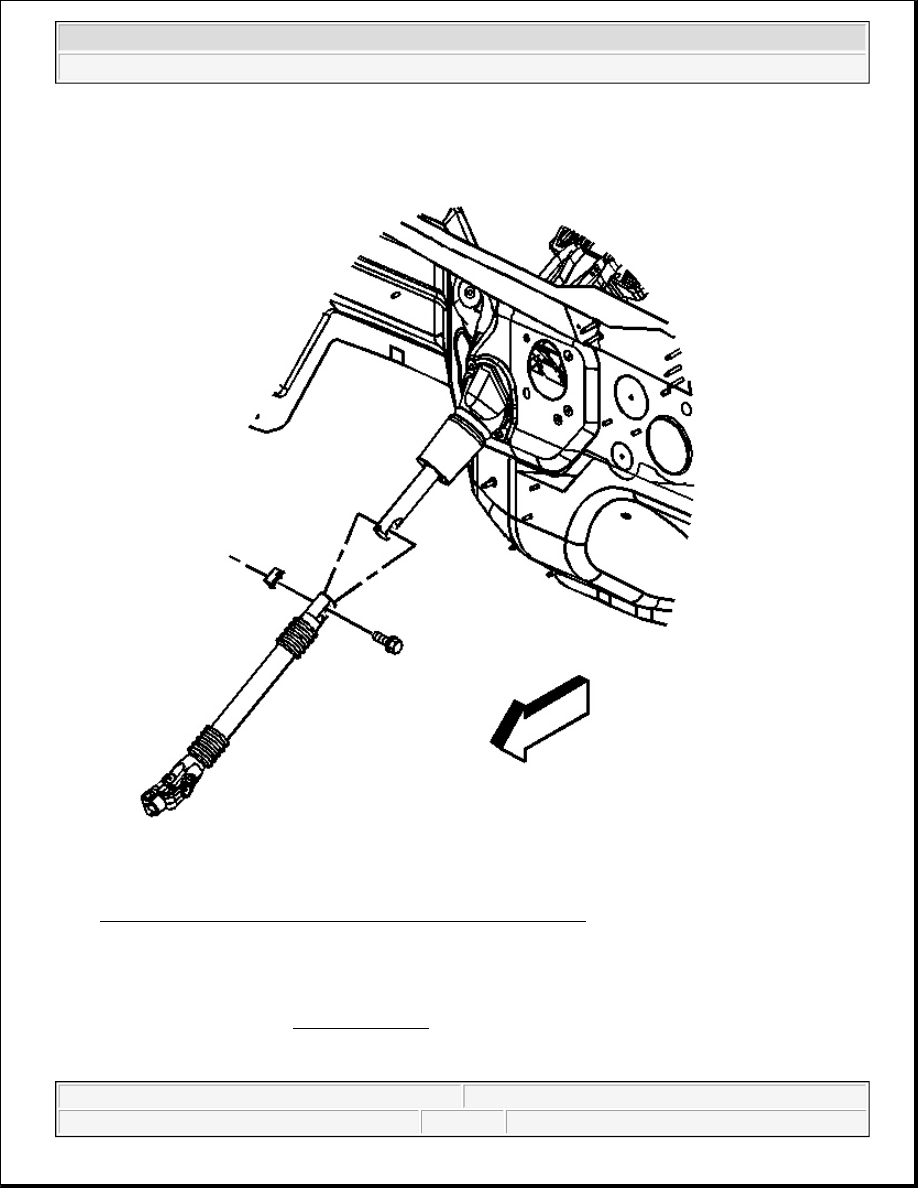

Fig. 10: Upper Intermediate Shaft & Lower Intermediate Shaft
Courtesy of GENERAL MOTORS CORP.

3. Connect the upper intermediate shaft to the lower intermediate shaft.

4. Install the upper intermediate shaft to the lower intermediate shaft pinch bolt.

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 STEERING Steering Wheel and Column - Hummer H2



Tighten: Tighten the upper intermediate shaft pinch bolt to 50 N.m (37 lb ft).

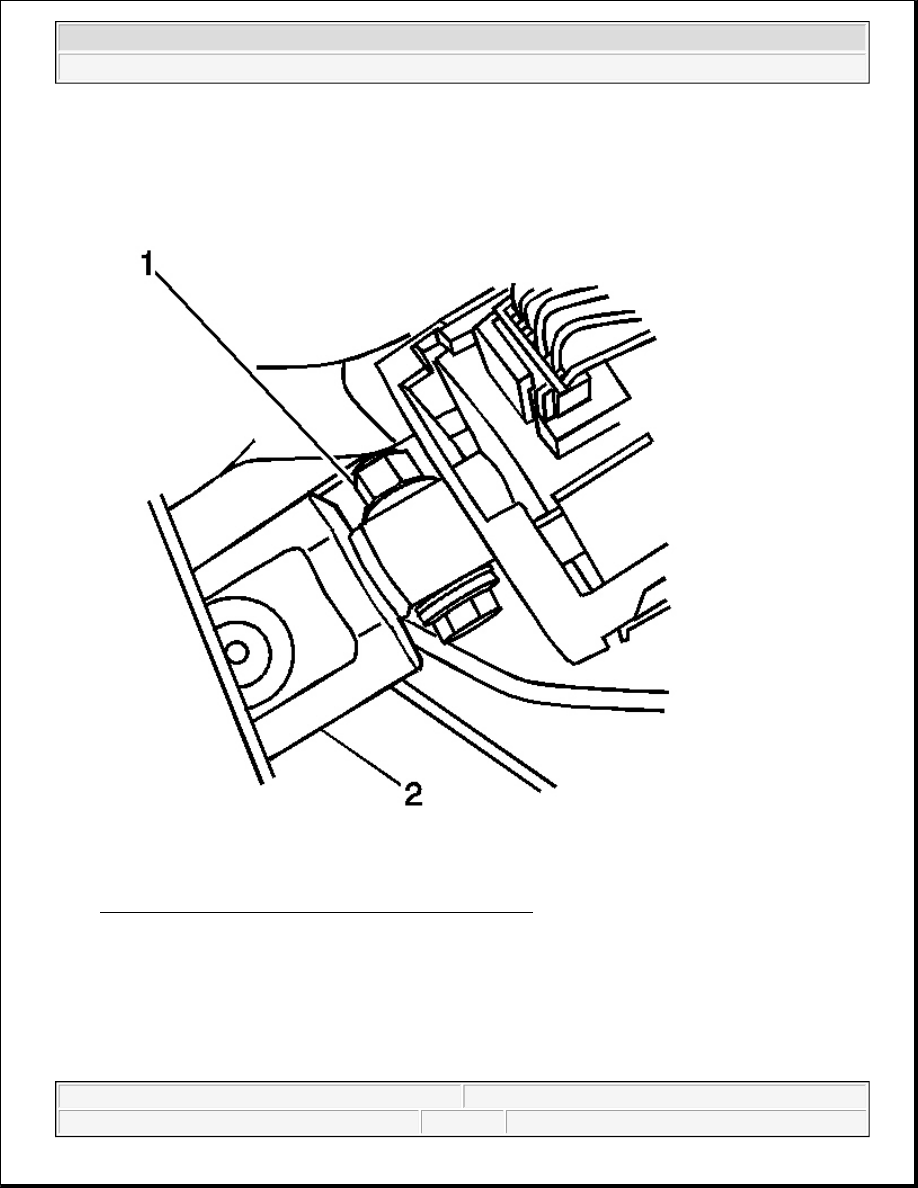

Fig. 11: Nut & Bolt To Upper Shaft To Steering Column
Courtesy of GENERAL MOTORS CORP.

5. Install the upper intermediate shaft to the steering column pinch bolt and nut.

IMPORTANT: The upper intermediate shaft to the steering column pinch bolt must be

installed in the same direction it was removed or the pinch bolt will
contact the steering column housing.
