Ignition Lock Cylinder Control Terminal Identification Actuator

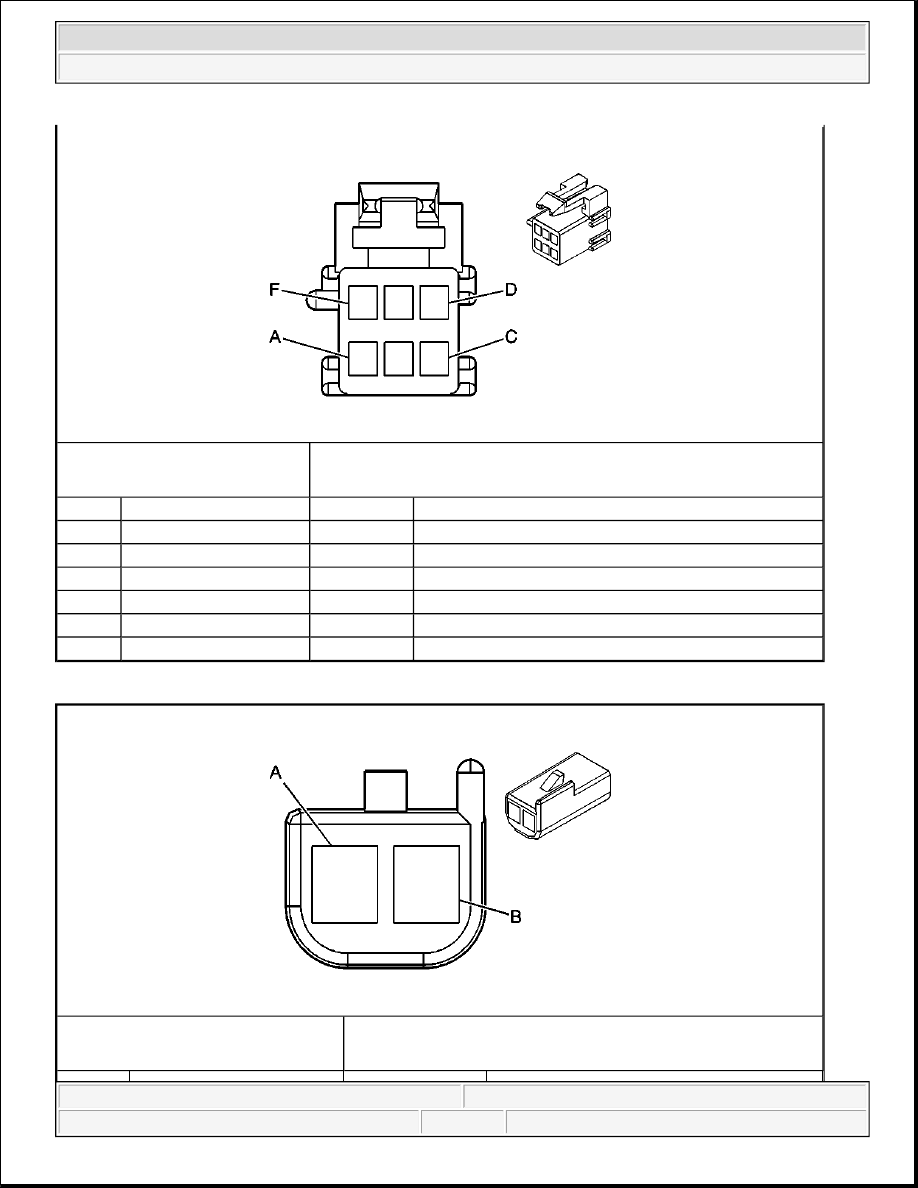

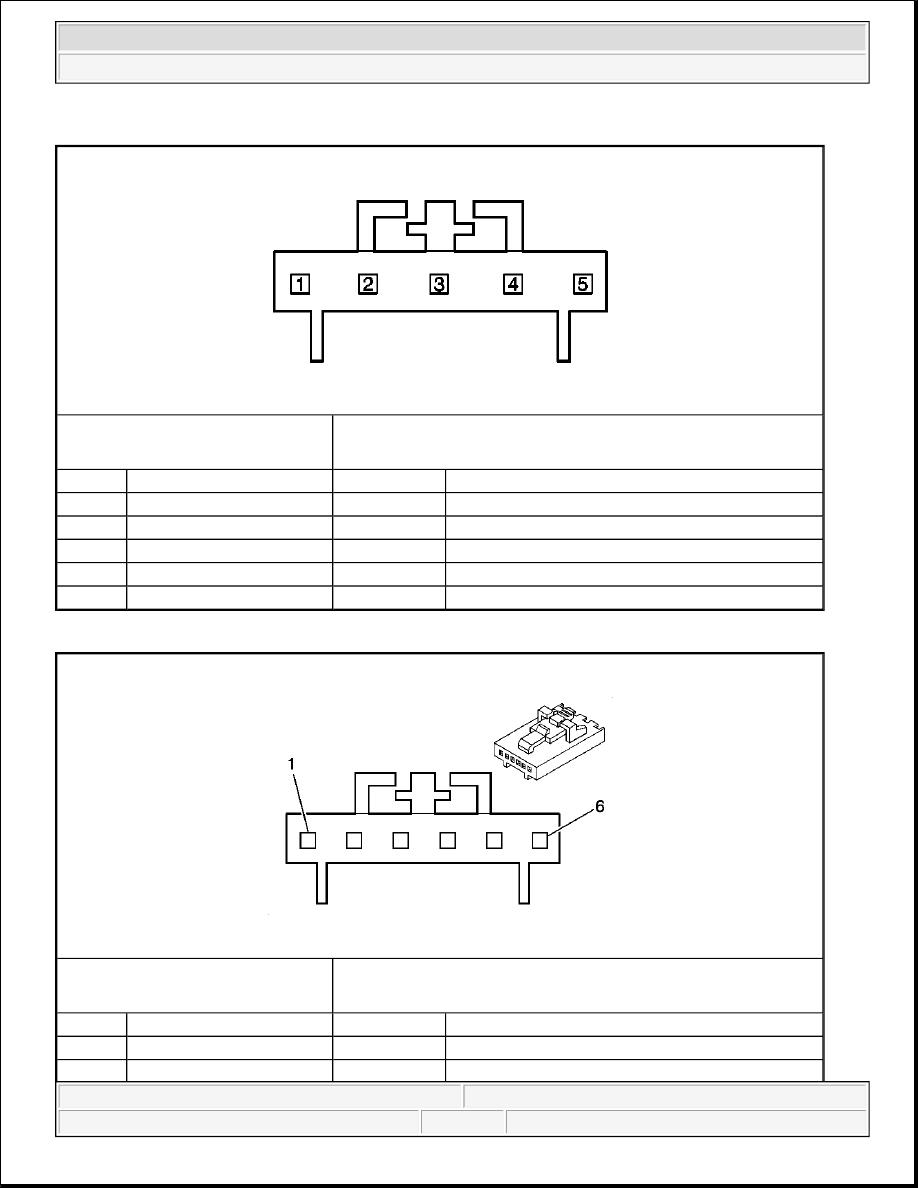

Connector Part Information

z

12064762

z

6-Way F Metri-Pack 150 Series (GY)

Pin

Wire Color

Circuit No.

Function

A

BK

1050

Ground

B

L-GN/BK

584

A/T Shift Lock Control Switch Supply Voltage

C

YE

1996

Remote Shift Selector Signal

D

-

-

Not Used

E

D-GN/WH

1135

A/T Shift Lock Control Solenoid Supply Voltage

F

PK

1020

Off/Run/Crank Voltage

Connector Part Information

z

12047662

z

2-Way F Metri-Pack 150 Series (BK)



2004 Hummer H2

2004 STEERING Steering Wheel and Column - Hummer H2



Ignition Terminal Identification Switch

Steering Wheel Controls Terminal Identification - Left Lower (Fuel/Trip)

Pin

Wire Color

Circuit No.

Function

A

YE

1996

Remote Shift Selector Signal

B

BK

1851

Ground

Connector Part Information

z

10400853490

z

7-Way F Kostal N Series (BK)

Pin

Wire Color

Circuit No.

Function

A

BN

4

Accessory Voltage

B

RD/WH

342

Battery Positive Voltage

C

PK

3

Ignition 1 Voltage

D

YE

5

Crank Voltage

E

WH

1390

Off/Run/Crank Voltage

F

RD

142

Battery Positive Voltage

G

OG

300

Ignition 3 Voltage



2004 Hummer H2

2004 STEERING Steering Wheel and Column - Hummer H2



Steering Wheel Controls Terminal Identification - Right Lower (Personalization/Select)

Connector Part Information

z

50579404

z

4-Way F Molex (BK)

Pin

Wire Color

Circuit No.

Function

1

BN

230

Steering Wheel Switch Dimming Control

2

YE

1327

DIC Fuel Signal

3

D-BU

894

DIC Toggle Switch Signal

4

BK

1851

Ground

Connector Part Information

z

50579405

z

5-Way F Molex (BK)

Pin

Wire Color

Circuit No.

Function

1

BN

230

Steering Wheel Switch Dimming Control

2

D-GN

1358

DIC Switch Signal

3

OG

1816

DIC Set/Reset Switch Signal

4

BK

1851

Ground

5

-

-

Not Used



2004 Hummer H2

2004 STEERING Steering Wheel and Column - Hummer H2



Steering Wheel Controls Terminal Identification - Left Upper (Radio-Program/Source)

Steering Wheel Controls Terminal Identification - Right Upper (Radio-Seek/Volume)

Connector Part Information

z

50579405

z

5-Way F Molex (BK)

Pin

Wire Color

Circuit No.

Function

1

L-GN

1011

Remote Radio Control Signal

2

BN

230

Steering Wheel Switch Dimming Control

3

BK

1851

Ground

4

-

-

Not Used

5

L-GN

1011

Remote Radio Control Signal

Connector Part Information

z

50579406

z

6-Way F Molex (BK)

Pin

Wire Color

Circuit No.

Function

1

WH

2283

12 Volt Reference

2

L-GN

1011

Remote Radio Control Signal
