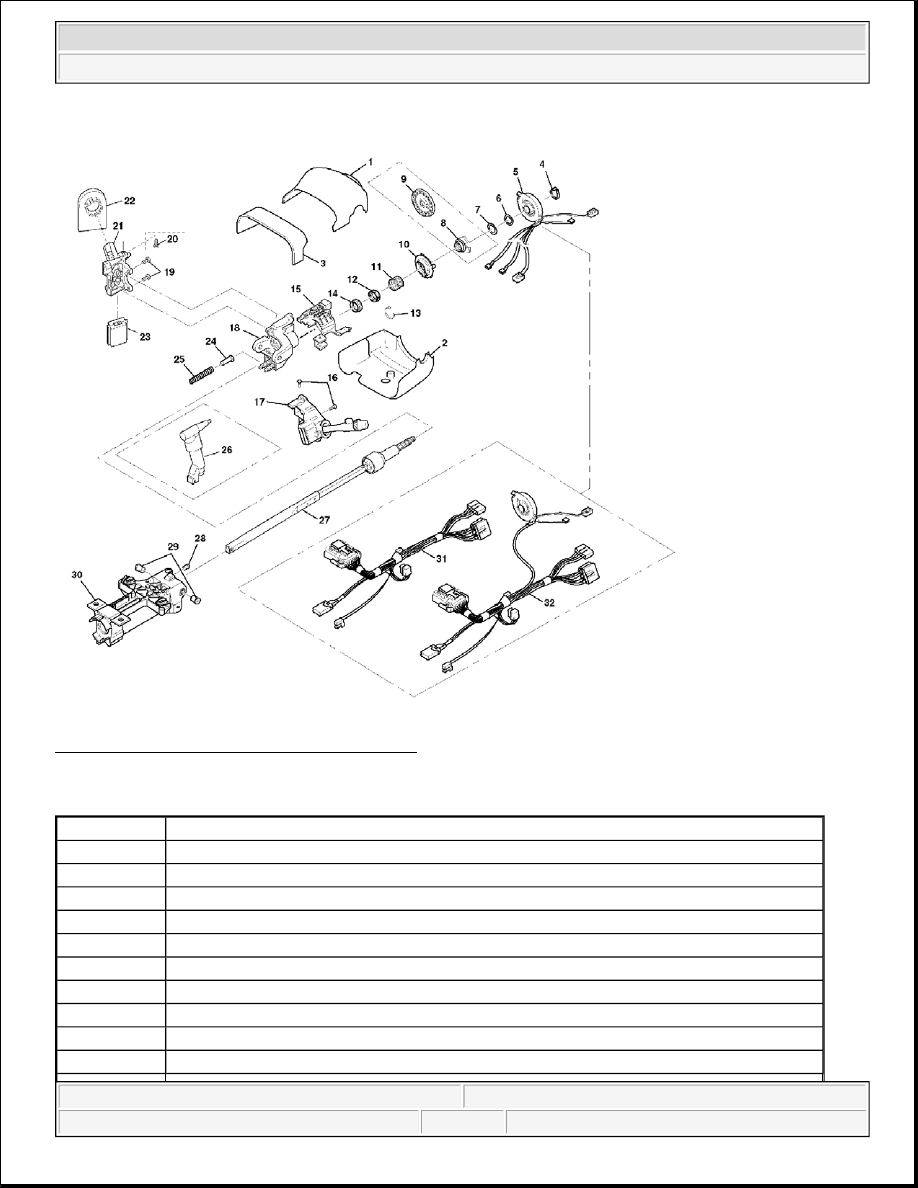

Fig. 2: Tilt Steering Column Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 2

Callout

Component Name

1

Upper Trim Cover

2

Lower Trim Cover

3

Steering Column Closeout Trim Cover

4

Retaining Ring

5

SIR Coil

6

Wave Washer

7

Bearing Retainer

8

Cam Orientation Plate

9

Shaft Lock Shield Assembly

10

Turn Signal Cancel Cam Assembly



2004 Hummer H2

2004 STEERING Steering Wheel and Column - Hummer H2



STEERING WHEEL AND COLUMN COMPONENT VIEWS

11

Upper Bearing Spring

12

Upper Bearing Inner Race Seat

13

Wire Harness Strap

14

Inner Race

15

Signal Switch Housing

16

Pan Head Tapping Screws

17

Turn Signal and Multifunction Switch Assembly

18

Steering Column Tilt Head Assembly

19

Pan Head Tapping Screws

20

TORX(R) Head Screw

21

Ignition Lock Cylinder Case

22

Theft Deterrent Control Module

23

Ignition Switch Assembly

24

Spring Guide

25

Tilt Spring

26

Theft Deterrent Control Module Electric Park Lock

27

Steering Shaft Assembly

28

Tilt Bumper

29

Pivot Pins

30

Steering Column Support Assembly

31

Coil Wire Harness Assembly

32

Coil Wire Harness Assembly (Export)



2004 Hummer H2

2004 STEERING Steering Wheel and Column - Hummer H2



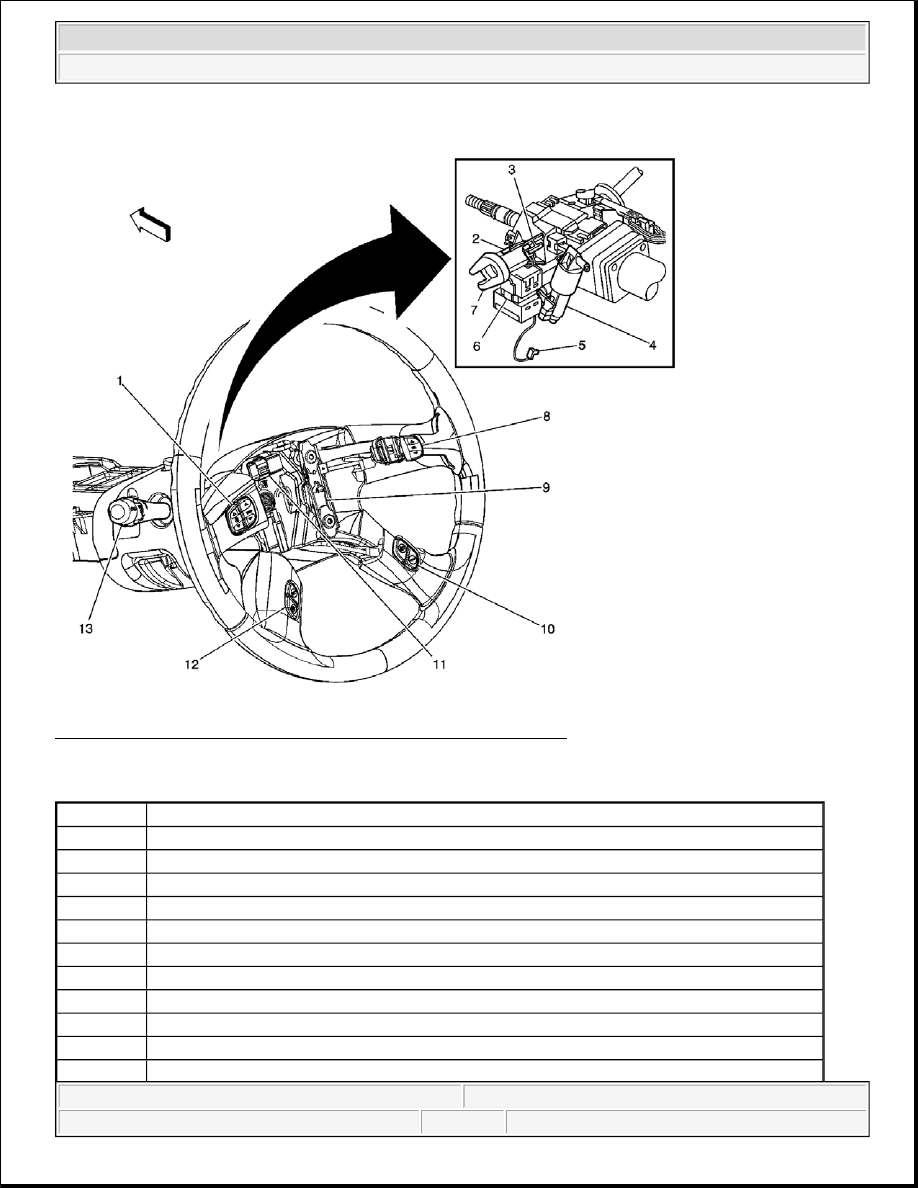

Fig. 3: Steering Wheel and Column Sub-System Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 3

Callout

Component Name

1

Steering Wheel Audio Controls - Left

2

Passlock Sensor Connector

3

Ignition Key Alarm Switch

4

Ignition Lock Cylinder Control Actuator

5

Ignition Lock Cylinder Control Actuator Connector

6

Ignition Switch

7

Ignition Key Cylinder

8

Steering Wheel Audio Controls - Right

9

Horn Switch

10

Steering Wheel Driver Information (DIC) Controls - Right

11

C277



2004 Hummer H2

2004 STEERING Steering Wheel and Column - Hummer H2



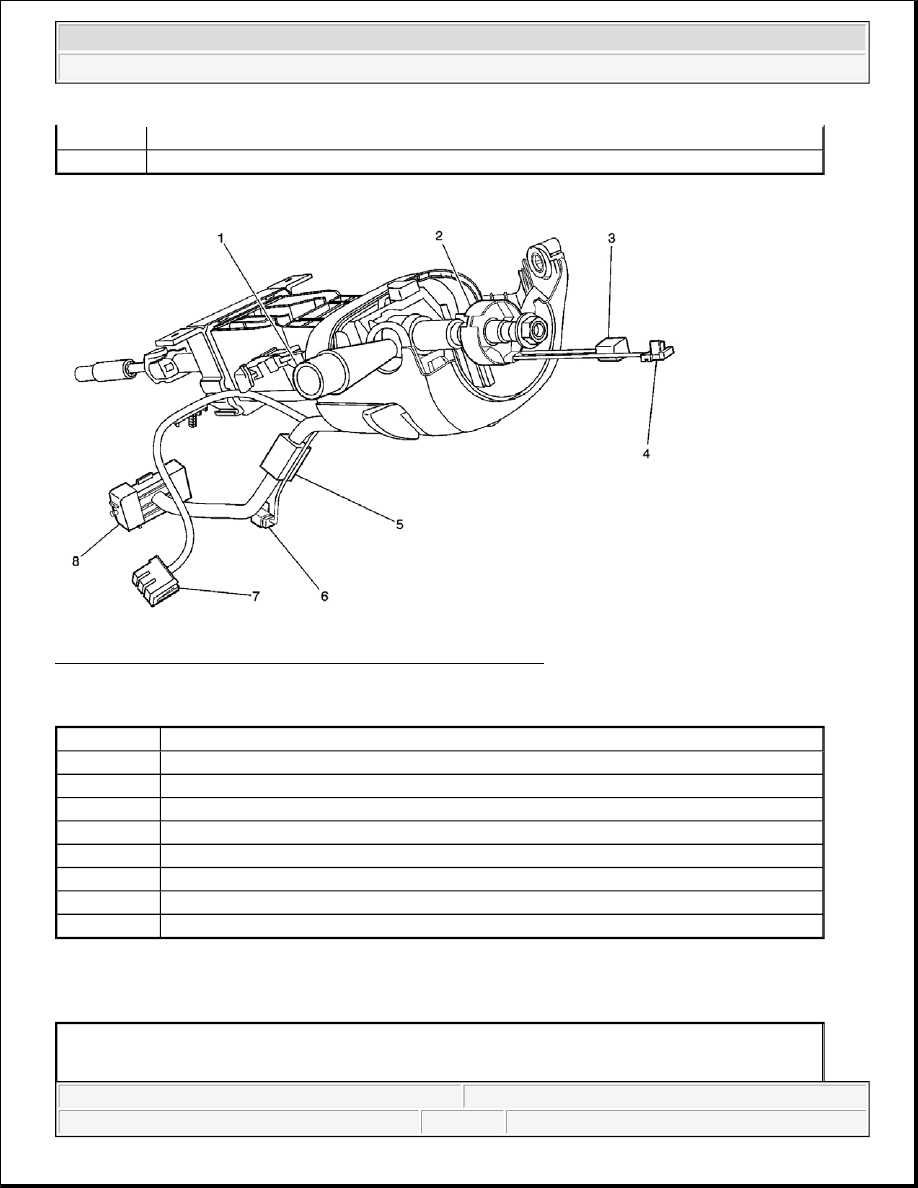

Fig. 4: Steering Column Harness Connectors Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 4

STEERING WHEEL AND COLUMN CONNECTOR END VIEWS

Floor Shift Terminal Identification Assembly

12

Steering Wheel Driver Information Center (DIC) Controls - Left

13

Turn Signal/Multifunction Switch

Callout

Component Name

1

Multifunction Switch

2

Inflatable Restraint Steering Wheel Module Coil

3

C277 (8 Cavity)

4

Inflatable Restraint Steering Wheel Module Connector

5

Steering Wheel Controls Backlight Fuse

6

C203 (2 Cavity)

7

Fuse Block - I/P C2 (6 Cavity)

8

C202 (52 Cavity)
