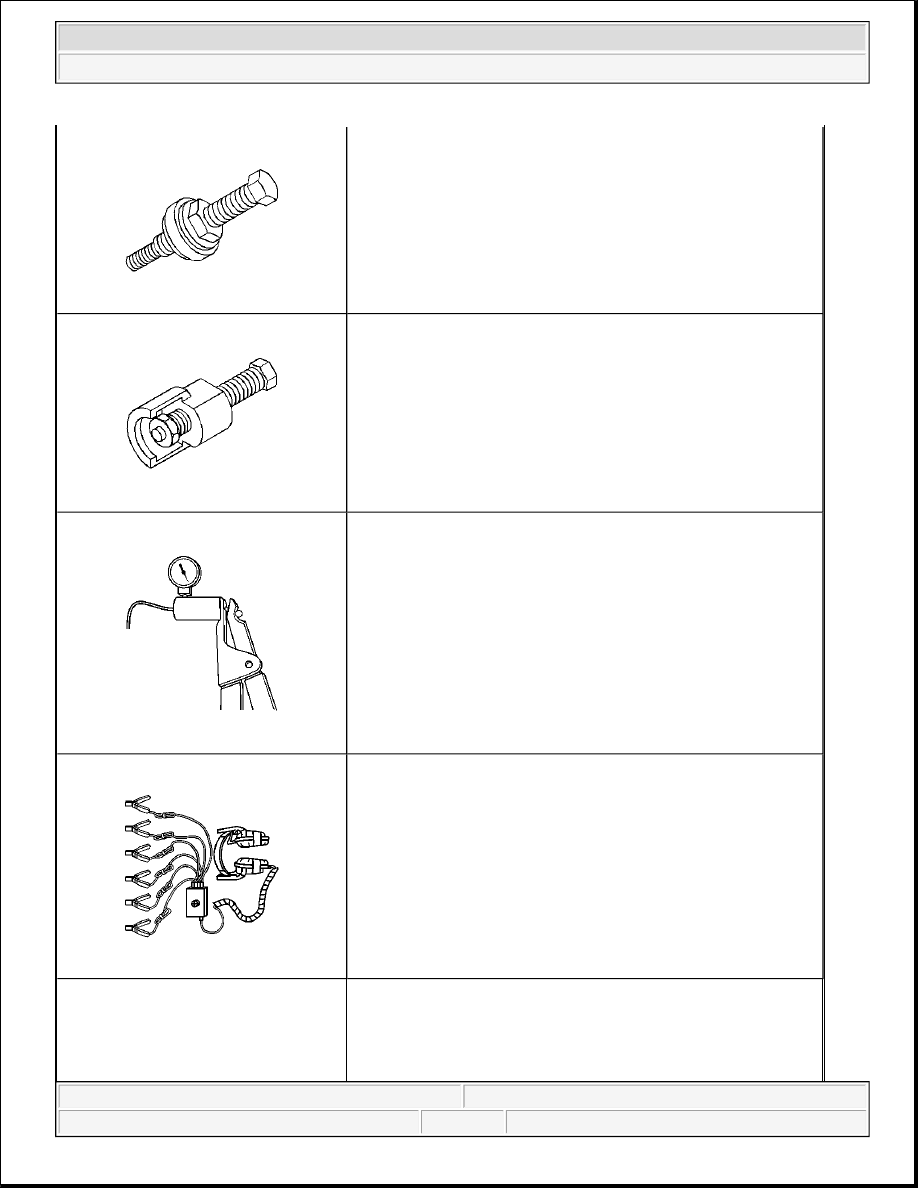

Power Steering Pump Pulley Installer

J 25034-C

Power Steering Pump Pulley Remover

J 35555

Mity Vac

J 39570

Chassis Ear



2004 Hummer H2

2004 STEERING Power Steering System - Hummer H2



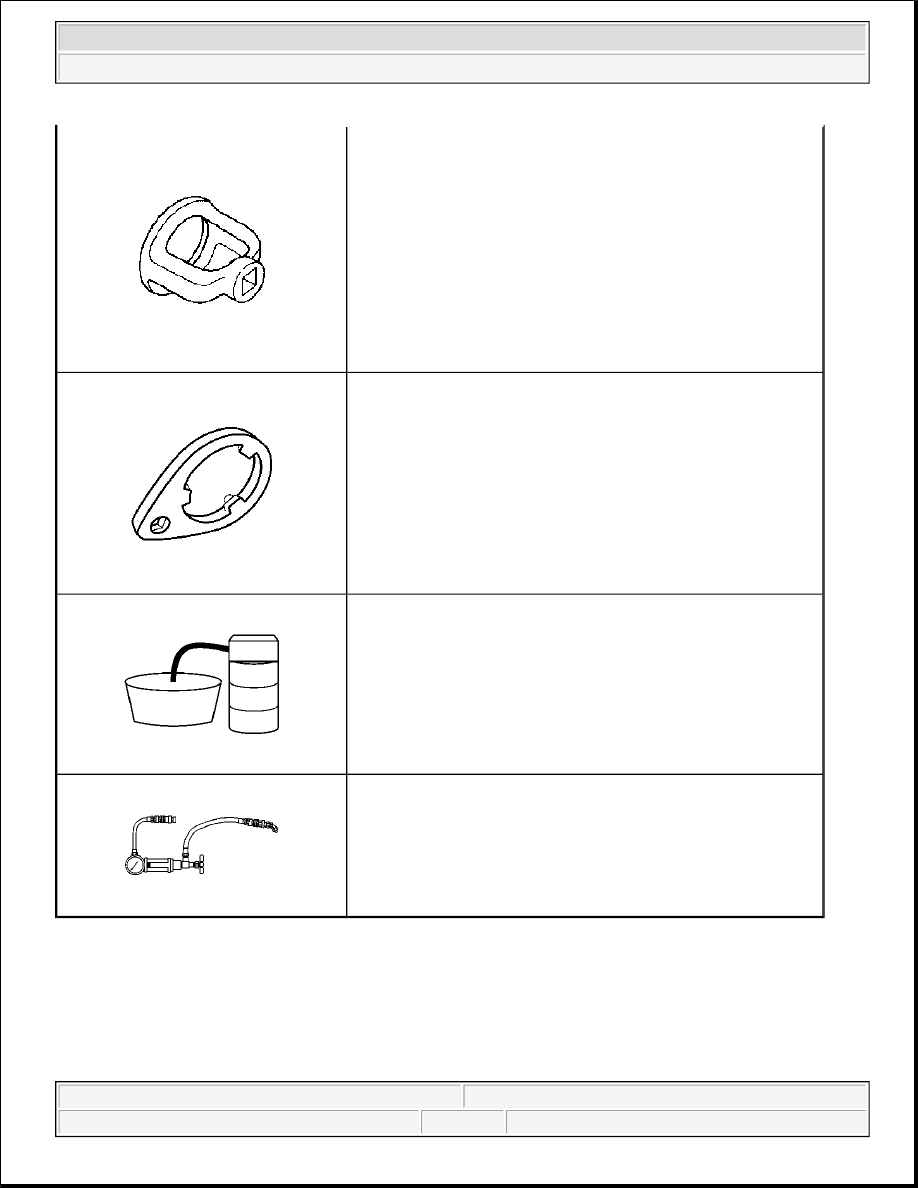

J 42882

Adjuster Nut Socket

J 43435

Adjuster Lock Nut Wrench

J 43485

Power Steering Bleeder Adaptor

J 44721

Power Steering System Analyzer



2004 Hummer H2

2004 STEERING Power Steering System - Hummer H2



2004 STEERING

Steering Wheel and Column - Hummer H2

SPECIFICATIONS

FASTENER TIGHTENING SPECIFICATIONS

Fastener Tightening Specifications

SCHEMATIC AND ROUTING DIAGRAMS

COLUMN/IGNITION LOCK SCHEMATICS

Application

Specification

Metric

English

Horn Contact Plate Screws

5.5 N.m

49 lb in

Ignition Lock Cylinder Case Screws

7 N.m

62 lb in

Intermediate Shaft to the Steering Column Pinch Bolt

62 N.m

46 lb ft

Intermediate Shaft to the Steering Gear Pinch Bolt

47 N.m

35 lb ft

Steering Column Electrical Connector Screw

6 N.m

53 lb in

Steering Column Mounting Nuts

27 N.m

20 lb ft

Steering Column Trim Cover Screws Lower

3.5 N.m

31 lb in

Steering Column Trim Cover Screws Upper

1 N.m

9 lb in

Steering Wheel Nut

41 N.m

30 lb ft

Steering Wheel Shroud Retaining Screws

2 N.m

18 lb in

Turn Signal Multifunction Switch Screws Side

7 N.m

62 lb in

Turn Signal Multifunction Switch Screws Top

3 N.m

27 lb in

Upper Intermediate Shaft to Lower Intermediate Shaft Pinch Bolt

50 N.m

37 lb ft



2004 Hummer H2

2004 STEERING Steering Wheel and Column - Hummer H2





2004 Hummer H2

2004 STEERING Steering Wheel and Column - Hummer H2



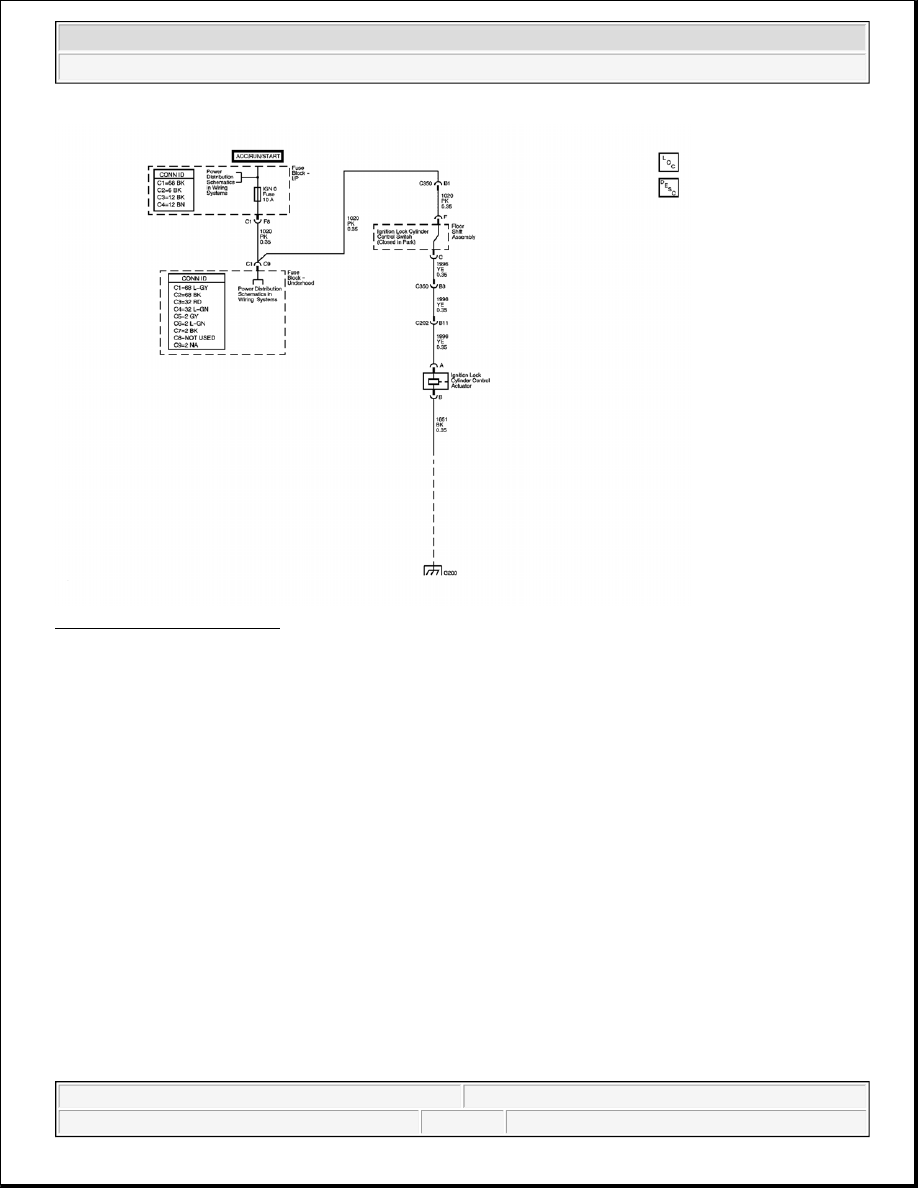

Fig. 1: Column/Ignition Lock
Courtesy of GENERAL MOTORS CORP.

COMPONENT LOCATOR

STEERING COLUMN COMPONENT VIEWS
