Tighten: Tighten the jam nut to 68 N.m (50 lb ft).

TIE ROD REPLACEMENT - INNER

Tools Required

J 34028 Inner Tie Rod Wrench. See Special Tools and Equipment .

Removal Procedure

1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.

2. Remove the engine protection shield. Refer to Engine Protection Shield Replacement in Frame and

Underbody.

3. Remove the outer tie rod ends. Refer to Tie Rod Replacement - Outer .

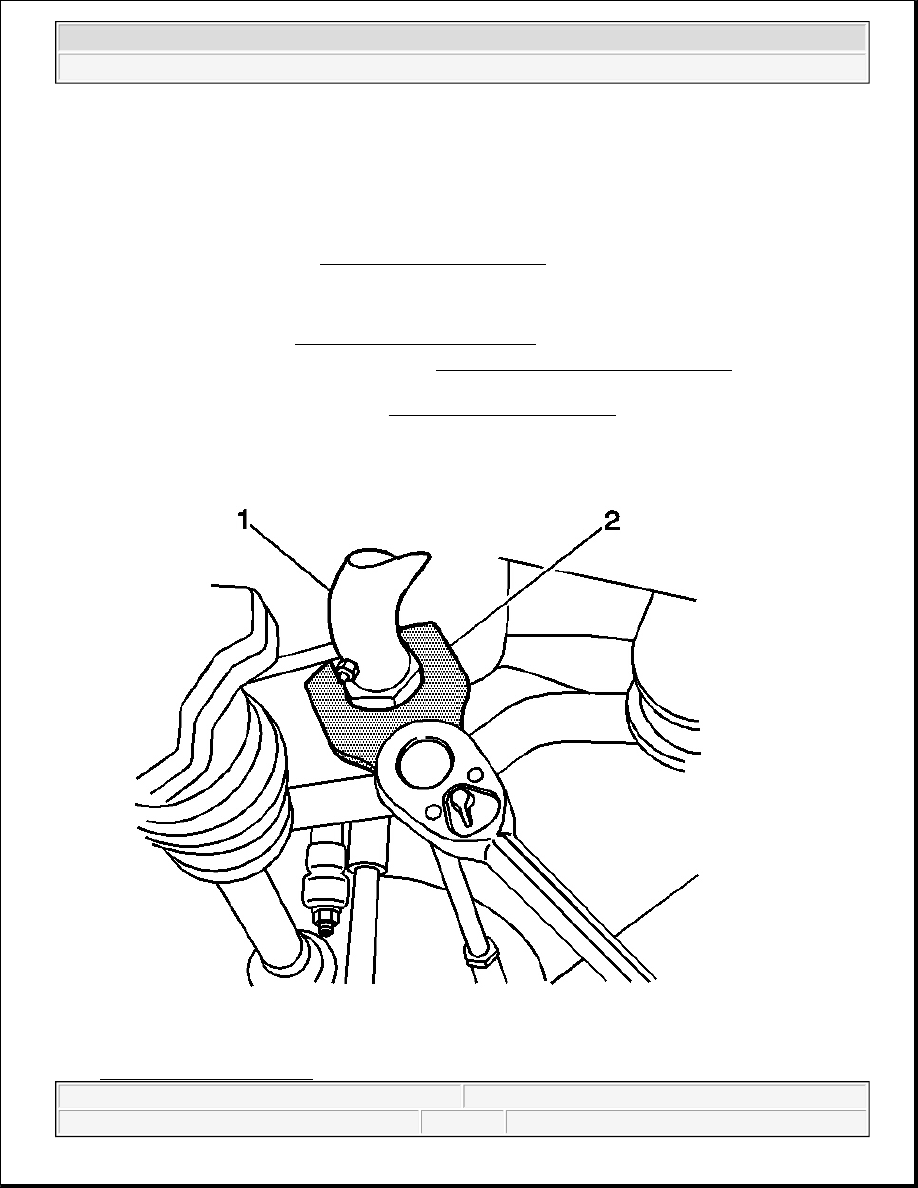

Fig. 7: Inner Tie Rods Ends



2004 Hummer H2

2004 STEERING Steering Linkage (Non-Rack & Pinion) - Hummer H2



Courtesy of GENERAL MOTORS CORP.

4. Remove the inner tie rod ends using theJ 34028 . See Special Tools and Equipment .

Installation Procedure

z

Remove all traces of the oil, grease, or other contaminants.

z

Clean the threads of the tie rod with denatured alcohol or the equivalent and allow to dry.

z

Apply Threadlocker GM P/N 12345493 or Canadian P/N 10953488 to the threads of the tie rod.

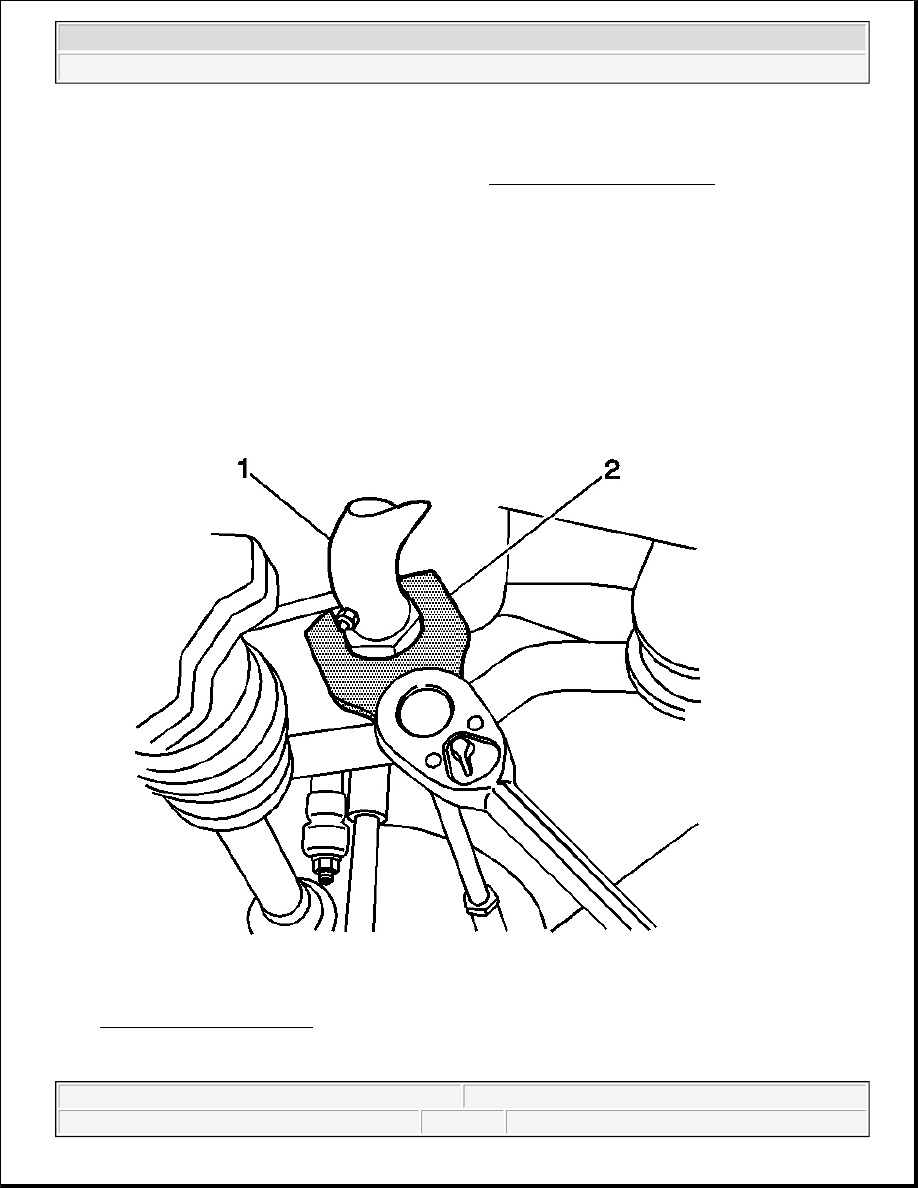

Fig. 8: Inner Tie Rods Ends
Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Perform the following procedure before installing the new tie rod ends.



2004 Hummer H2

2004 STEERING Steering Linkage (Non-Rack & Pinion) - Hummer H2



1. Install the inner tie rod to the relay rod.

Tighten: Using theJ 34028 tighten the tie rod to 100 N.m (74 lb ft). See Special Tools and Equipment .

2. Install the outer tie rod assemblies. Refer to Tie Rod Replacement - Outer .

3. Install the engine protection shield. Refer to Engine Protection Shield Replacement in Frame and

Underbody.

4. Lower the vehicle.

5. Verify the wheel alignment. Refer to Wheel Alignment Specifications in Wheel Alignment.

IDLER ARM REPLACEMENT

Tools Required

z

J 24319-B Universal Steering Linkage Puller. See Special Tools and Equipment .

z

J 29193 Steering Linkage Installer (12 mm). See Special Tools and Equipment .

z

J 29194 Steering Linkage Installer (14 mm). See Special Tools and Equipment .

Removal Procedure

1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.

2. Remove the engine protection shield. Refer to Engine Protection Shield Replacement in Frame and

Underbody.

3. Remove the idler arm ball stud nut.

Do not reuse the idler arm ball stud nut.

4. Remove the idler arm from the relay rod using the J 24319-B . See Special Tools and Equipment

NOTE:

Refer to Fastener Notice in Cautions and Notices.

NOTE:

Do not attempt to free the ball stud by using a pickle fork or wedge type tool,
because seal or bushing damage could result. Use the proper tool to separate
all ball joints.



2004 Hummer H2

2004 STEERING Steering Linkage (Non-Rack & Pinion) - Hummer H2



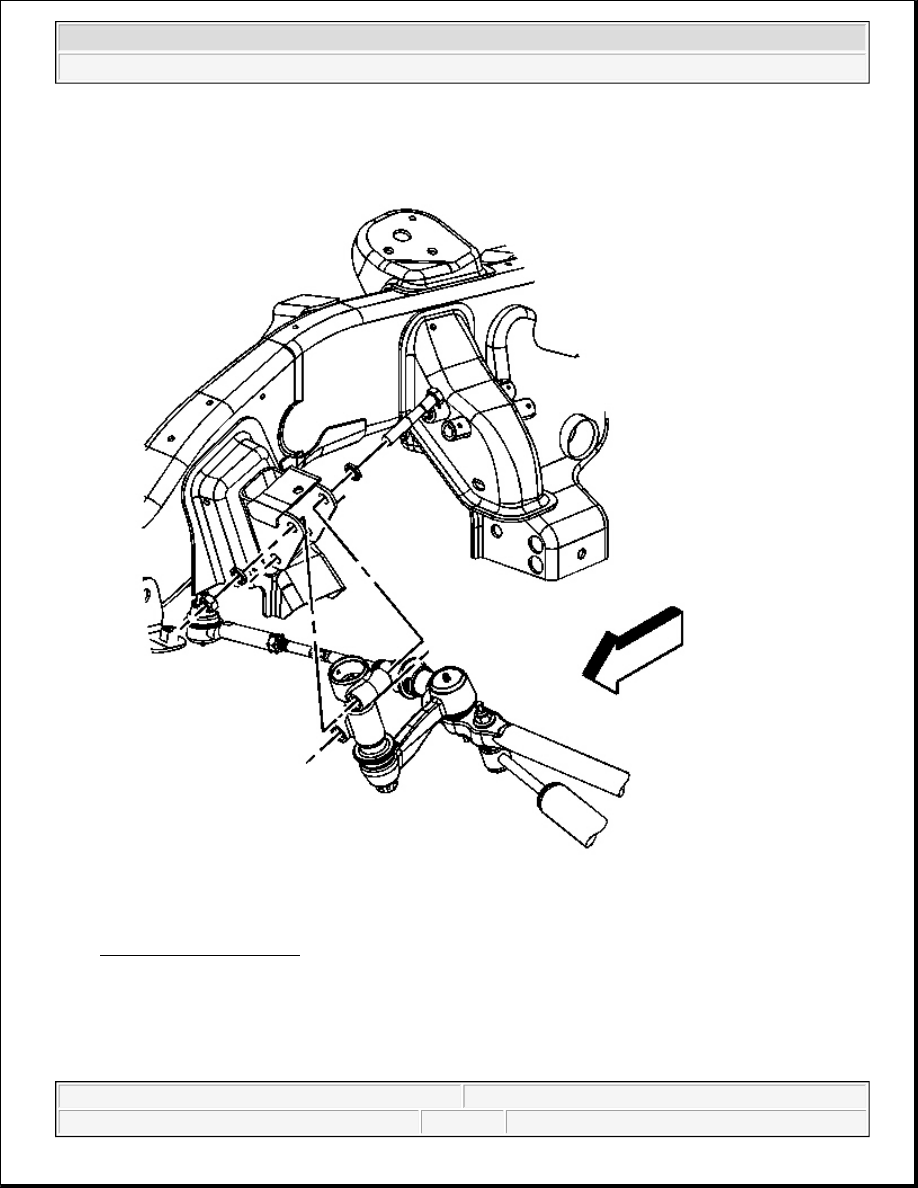

Fig. 9: View Of Idler Arm
Courtesy of GENERAL MOTORS CORP.

5. Remove the idler arm frame bolts and the nuts.

6. Remove the idler arm from the vehicle.

Installation Procedure



2004 Hummer H2

2004 STEERING Steering Linkage (Non-Rack & Pinion) - Hummer H2
