2004 STEERING

Steering Linkage (Non-Rack & Pinion) - Hummer H2

SPECIFICATIONS

FASTENER TIGHTENING SPECIFICATIONS

Fastener Tightening Specifications

REPAIR INSTRUCTIONS

STEERING LINKAGE INSPECTION

1. Raise and suitably support the vehicle on safety stands. Refer to Lifting and Jacking the Vehicle in

General Information.

2. Turn the ignition switch to the ON position.

3. With the aid of an assistant, move the tire back and forth.

4. Inspect for excessive vertical or lateral movement and/or looseness in the pivot joints.

z

Tie rod ends

z

Idler arm

z

Pitman arm

5. Inspect for bent, damaged, or loose components.

6. Replace any worn or damaged pivot joints.

TIE ROD REPLACEMENT - OUTER

Tools Required

z

J 24319-B Universal Steering Linkage Puller. See Special Tools and Equipment .

z

J 29193 Steering Linkage Installer (12 mm). See Special Tools and Equipment .

Application

Specification

Metric

English

Idler Arm to Frame Nut

120 N.m

89 lb ft

Idler Arm to Relay Rod Nut

60 N.m

44 lb ft

Inner Tie Rod to Relay Rod

100 N.m

74 lb ft

Pitman Arm to Relay Rod Nut

60 N.m

44 lb ft

Pitman Arm to Steering Gear Nut

250 N.m

184 lb ft

Steering Dampener to Frame Bracket Nut

40 N.m

30 lb ft

Steering Dampener to Relay Rod Nut

40 N.m

30 lb ft

Outer Tie Rod Jam Nut

68 N.m

50 lb ft

Tie Rod to Steering Knuckle Nut

60 N.m

44 lb ft



2004 Hummer H2

2004 STEERING Steering Linkage (Non-Rack & Pinion) - Hummer H2





2004 Hummer H2

2004 STEERING Steering Linkage (Non-Rack & Pinion) - Hummer H2



Removal Procedure

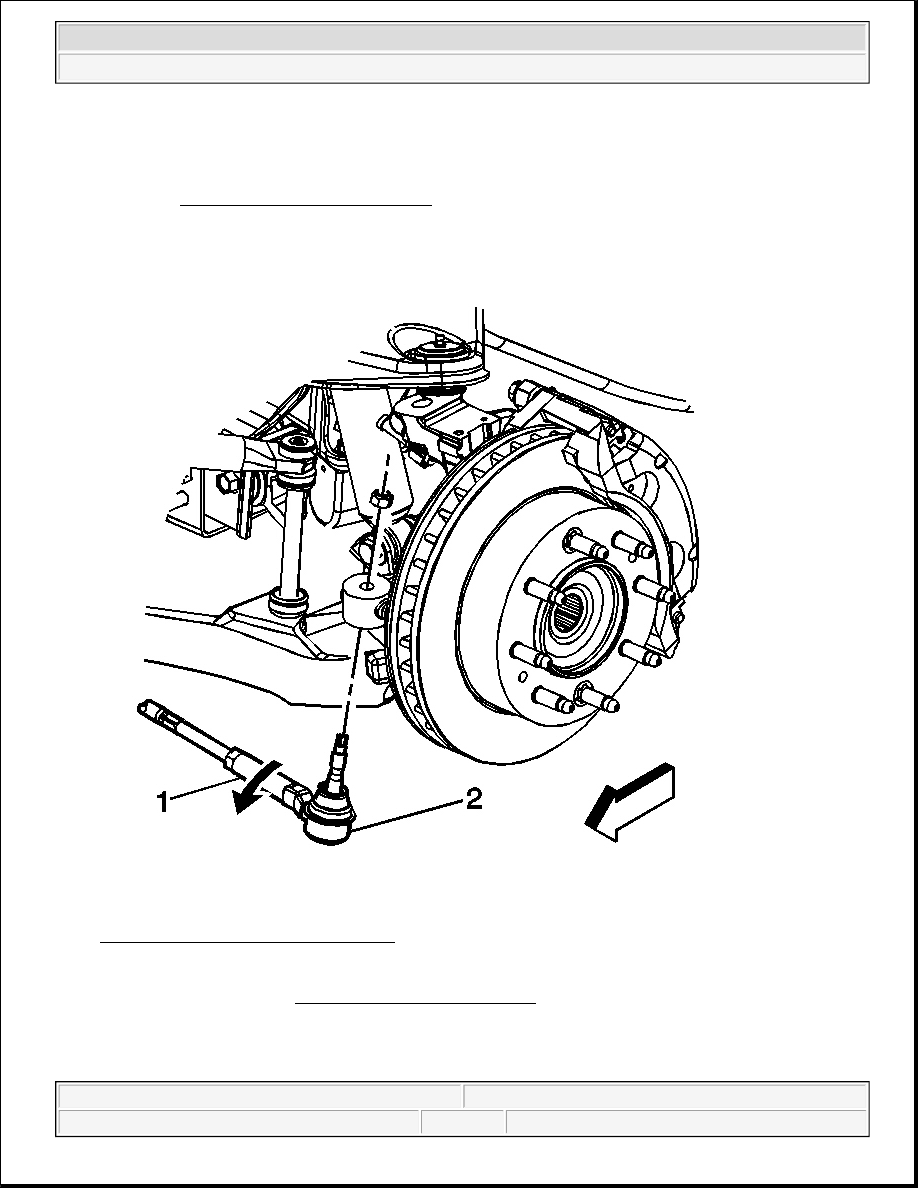

Fig. 1: Outer Tie Rod Ball Stud & Nut
Courtesy of GENERAL MOTORS CORP.

1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.

2. Remove the nut from the outer tie rod ball stud (2).

Do not reuse the nut.

IMPORTANT: Use the J 24319-B in order to separate all the tie rods and ball joints. See

Special Tools and Equipment .



2004 Hummer H2

2004 STEERING Steering Linkage (Non-Rack & Pinion) - Hummer H2



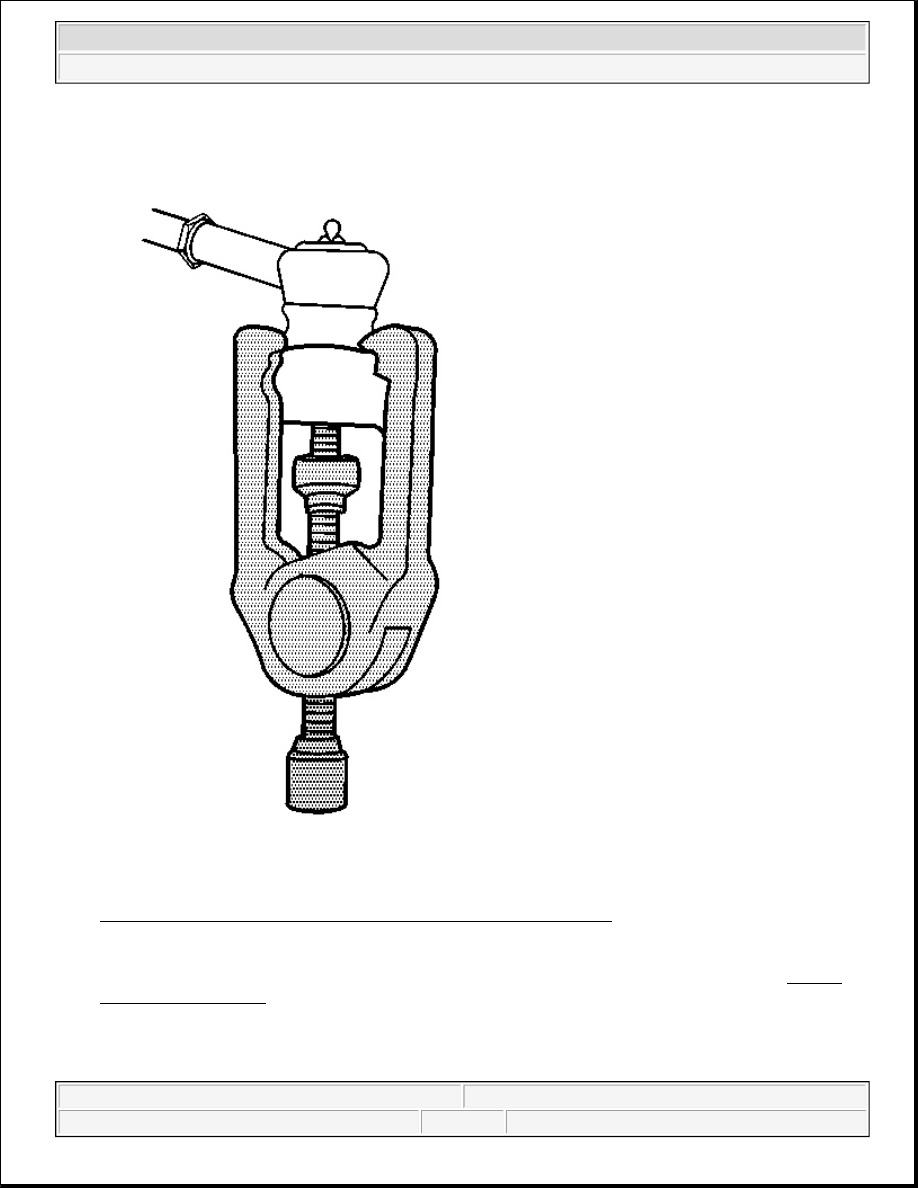

Fig. 2: Removing Outer Tie Rod Assembly From Steering Knuckle
Courtesy of GENERAL MOTORS CORP.

3. Use the J 24319-B in order to remove the outer tie rod ball stud from the steering knuckle. See Special

Tools and Equipment .
