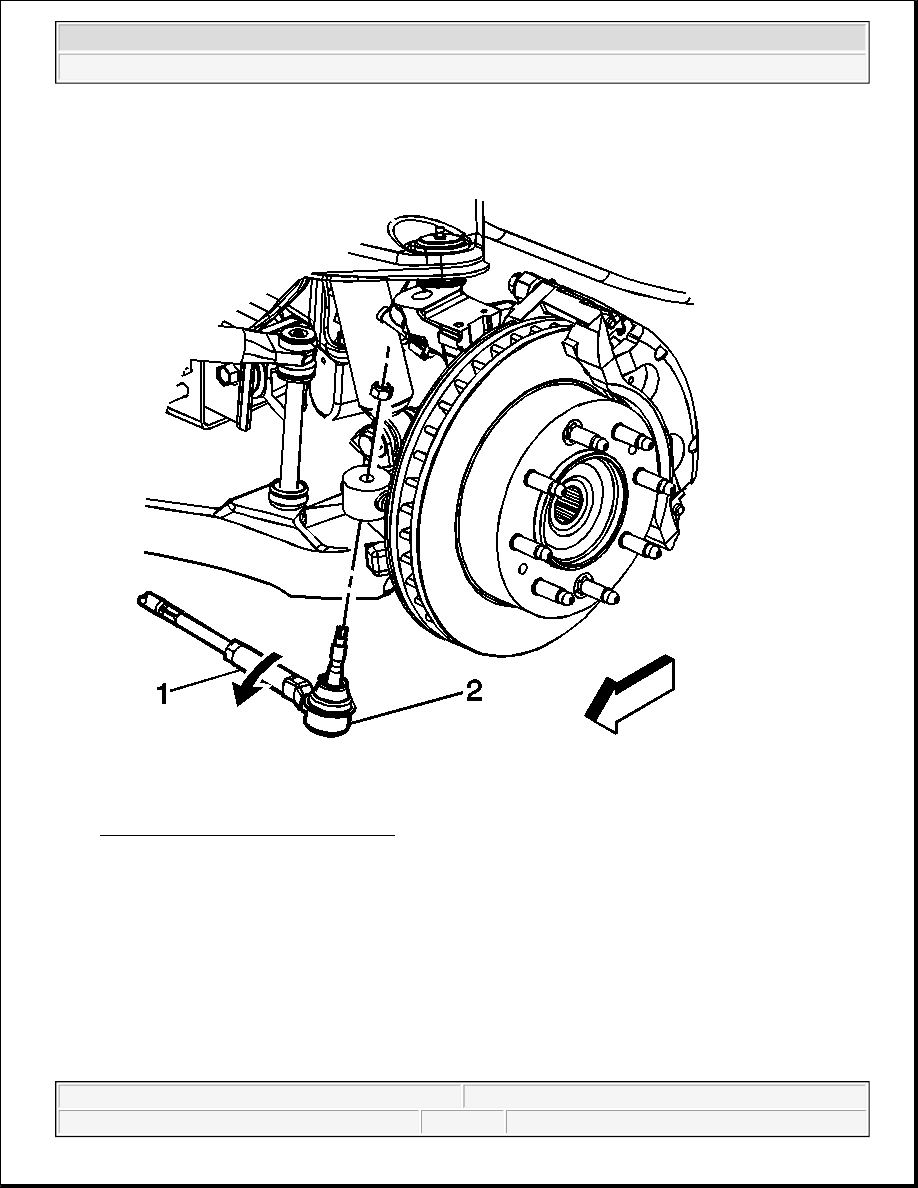

Fig. 3: Outer Tie Rod Ball Stud & Nut
Courtesy of GENERAL MOTORS CORP.

4. Loosen the jam nut (1).

5. Separate the outer tie rod end from the inner tie rod.

6. Inspect the shaft for bent or damaged threads.

7. Clean the tapered surface of the steering knuckle.

Installation Procedure



2004 Hummer H2

2004 STEERING Steering Linkage (Non-Rack & Pinion) - Hummer H2



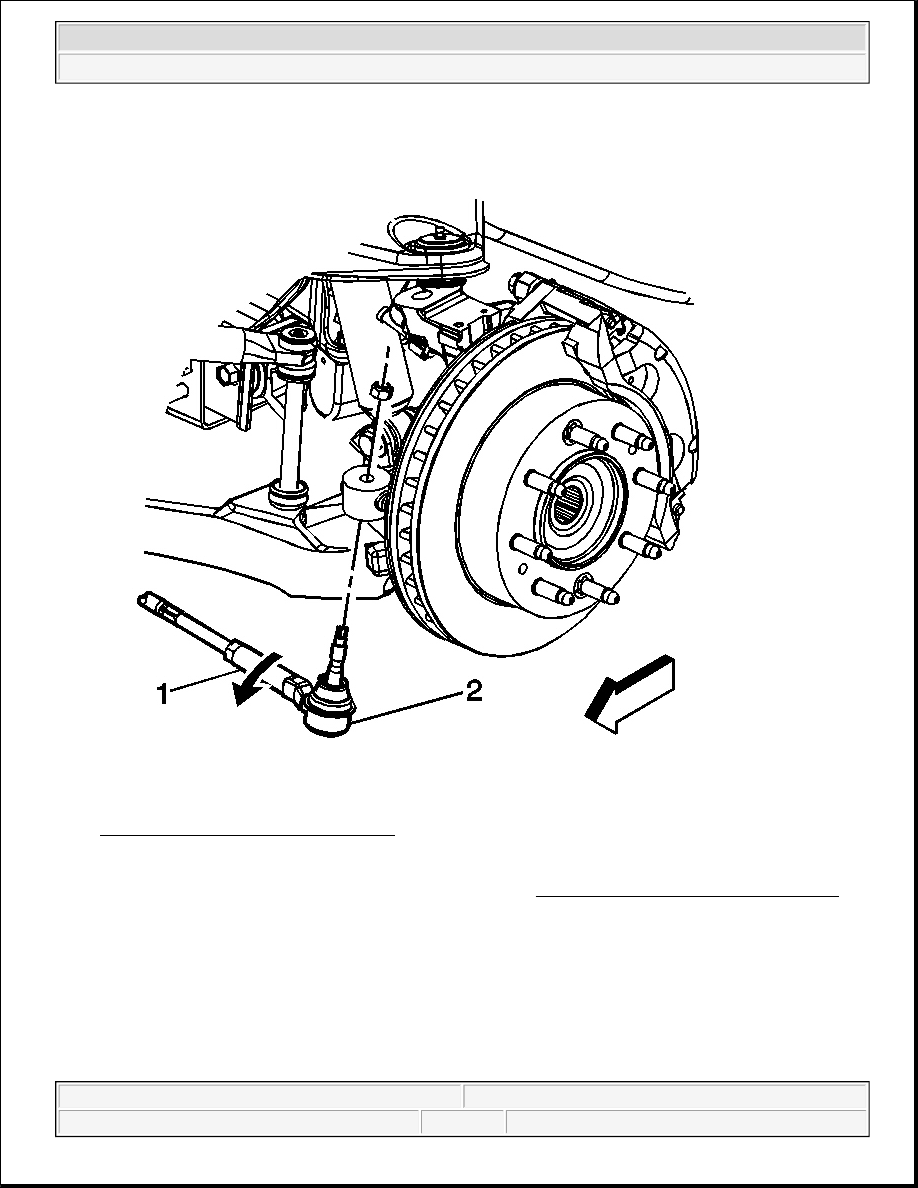

Fig. 4: Outer Tie Rod Ball Stud & Nut
Courtesy of GENERAL MOTORS CORP.

1. Lubricate the tie rod threads with chassis lubricant. Refer to Fluid and Lubricant Recommendations in

Maintenance and Lubrication.

2. Install the outer tie rod end to the inner tie rod.

3. Install the outer tie rod ball stud to the steering knuckle.



2004 Hummer H2

2004 STEERING Steering Linkage (Non-Rack & Pinion) - Hummer H2



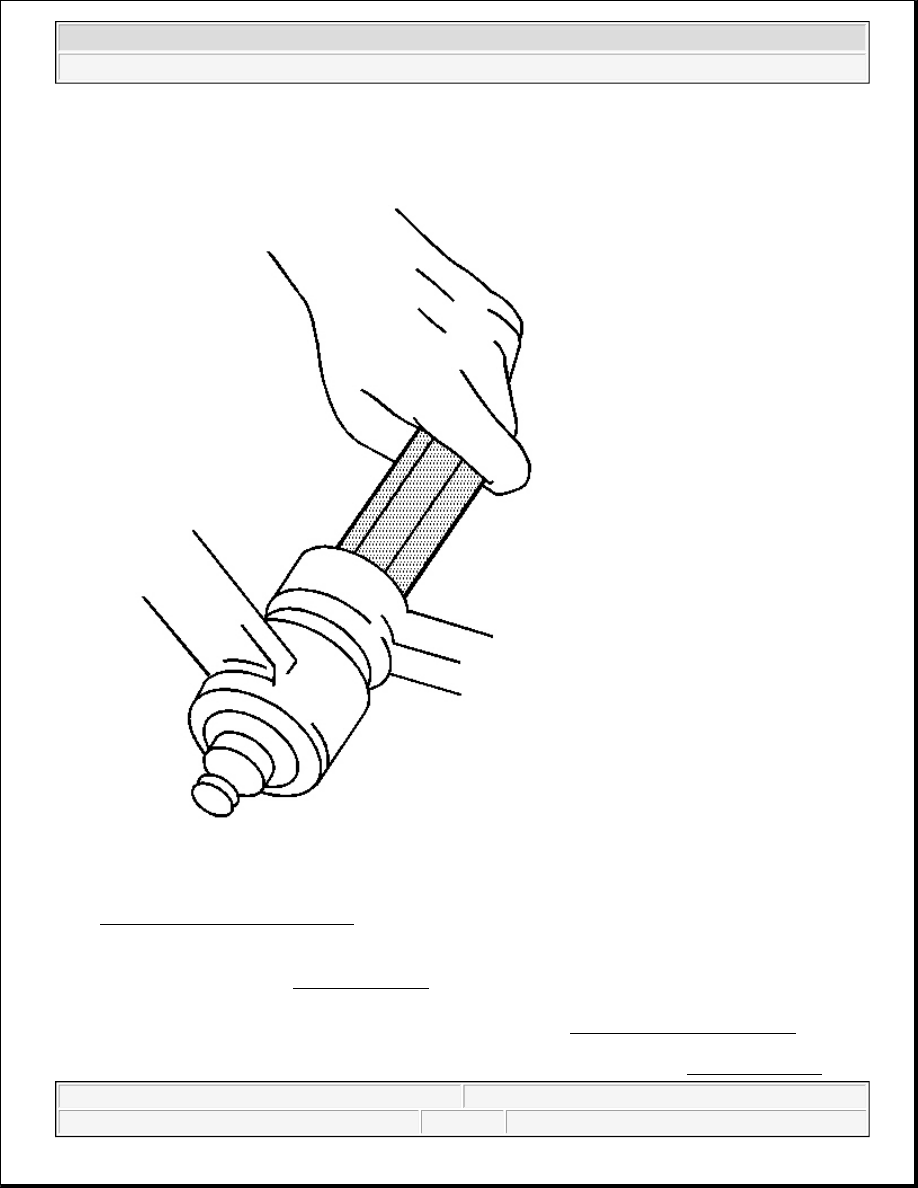

Fig. 5: Seating Relay Rod Tapers
Courtesy of GENERAL MOTORS CORP.

4. Use the J 29193 in order to install the outer tie rod ball stud. See Special Tools and Equipment .

Tighten: Tighten the J 29193 to 54 N.m (40 lb ft) in order to seat the tapers. See Special Tools and

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 STEERING Steering Linkage (Non-Rack & Pinion) - Hummer H2



Equipment .

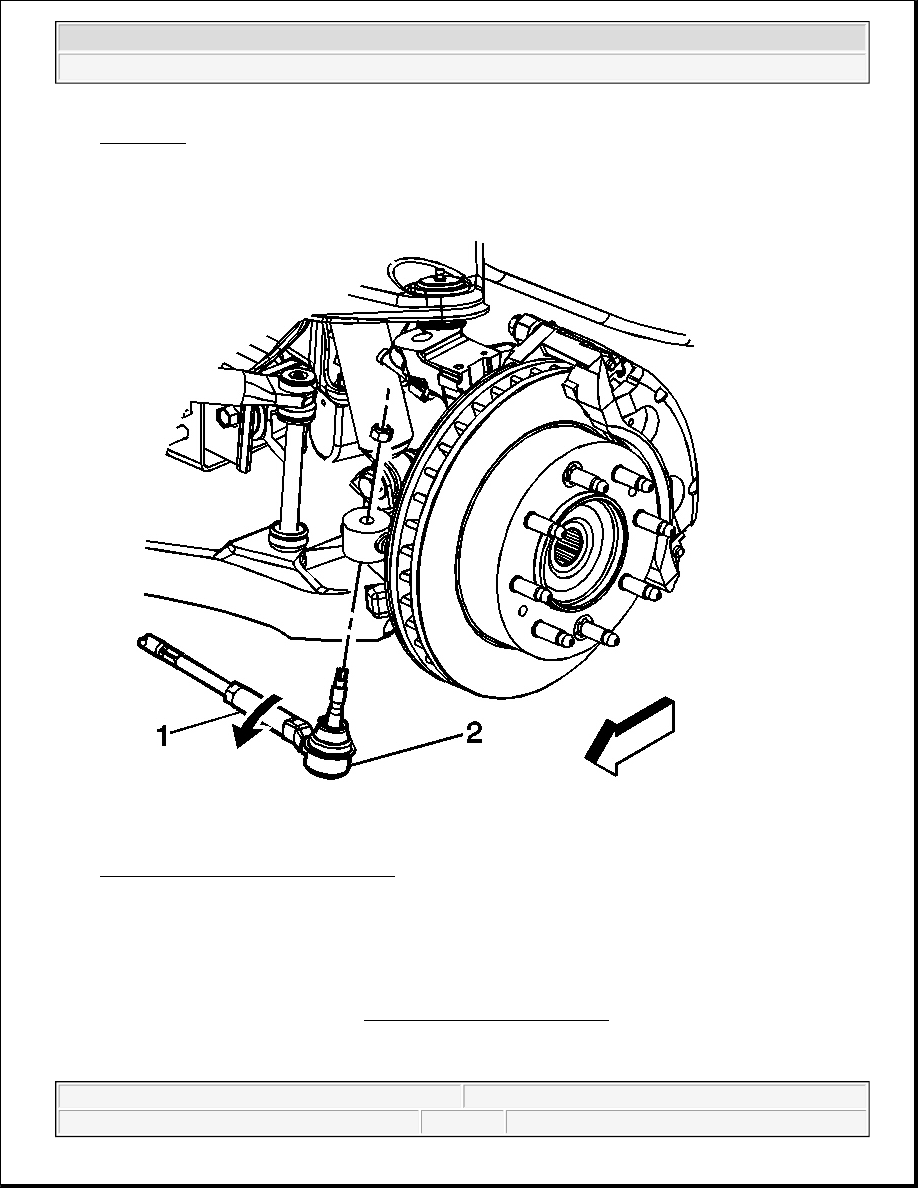

Fig. 6: Outer Tie Rod Ball Stud & Nut
Courtesy of GENERAL MOTORS CORP.

5. Install the new prevailing torque nut to the outer rod ball stud (2).

Tighten: Tighten the new prevailing torque nut to 60 N.m (44 lb ft).

6. Verify the front toe setting. Refer to Wheel Alignment Specifications in Wheel Alignment.

7. Tighten the jam nut.
