Hummer H2. Manual - part 1997

Fig. 96: Air Outlet Duct & Console Support Bracket (Rear Floor)
Courtesy of GENERAL MOTORS CORP.

3. Remove the air outlet duct-rear (3) from the console support bracket (1).

Installation Procedure



2004 Hummer H2

2004 HVAC Heating, Ventilation and Air Conditioning - Hummer H2



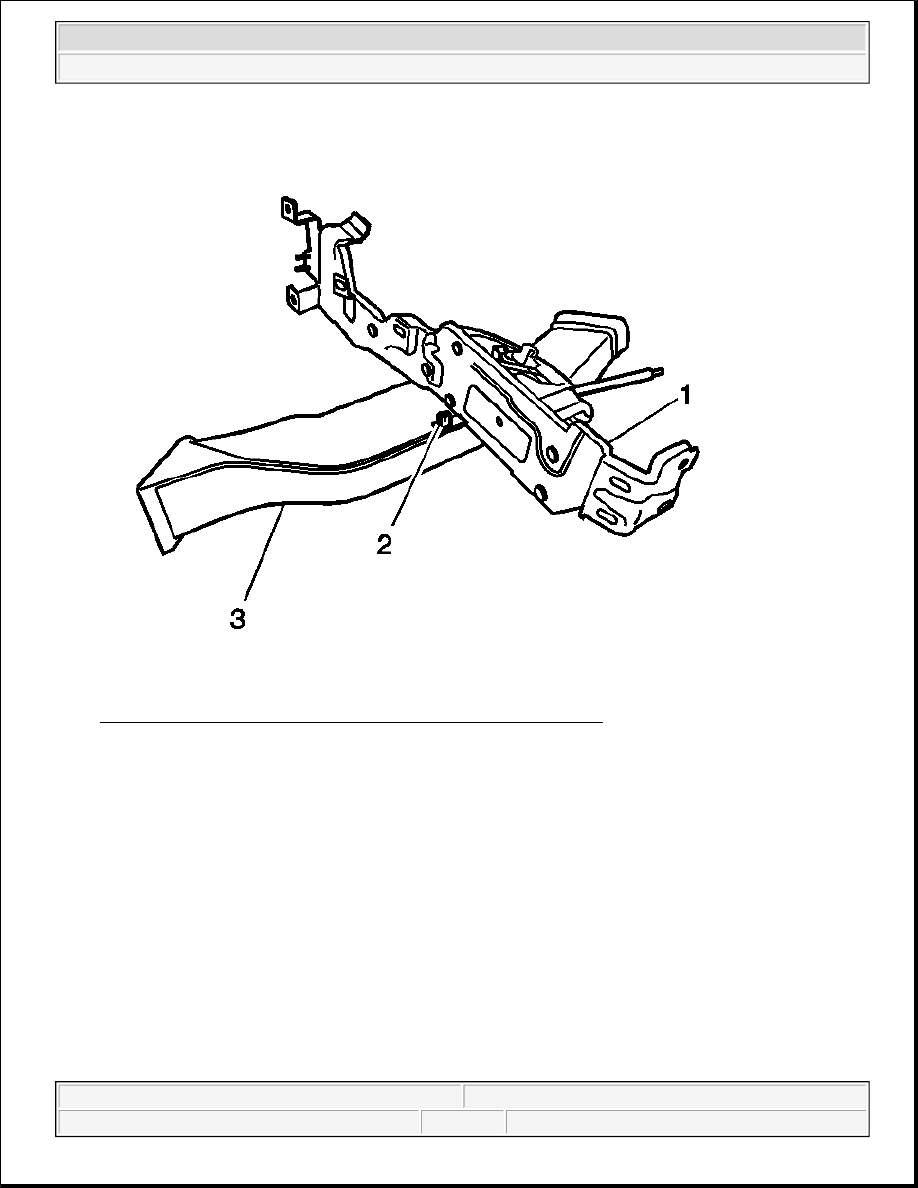

Fig. 97: Air Outlet Duct & Console Support Bracket (Rear Floor)
Courtesy of GENERAL MOTORS CORP.

1. Install the air outlet duct-rear (3) to the console support bracket (1).



2004 Hummer H2

2004 HVAC Heating, Ventilation and Air Conditioning - Hummer H2



Fig. 98: Identifying Push Pin (Rear Floor)
Courtesy of GENERAL MOTORS CORP.

2. Install the push pin (1).

3. Install the console. Refer to Console Replacement in Instrument Panel, Gauges and Console.

AIR OUTLET DUCT REPLACEMENT - FLOOR, LH

Removal Procedure



2004 Hummer H2

2004 HVAC Heating, Ventilation and Air Conditioning - Hummer H2



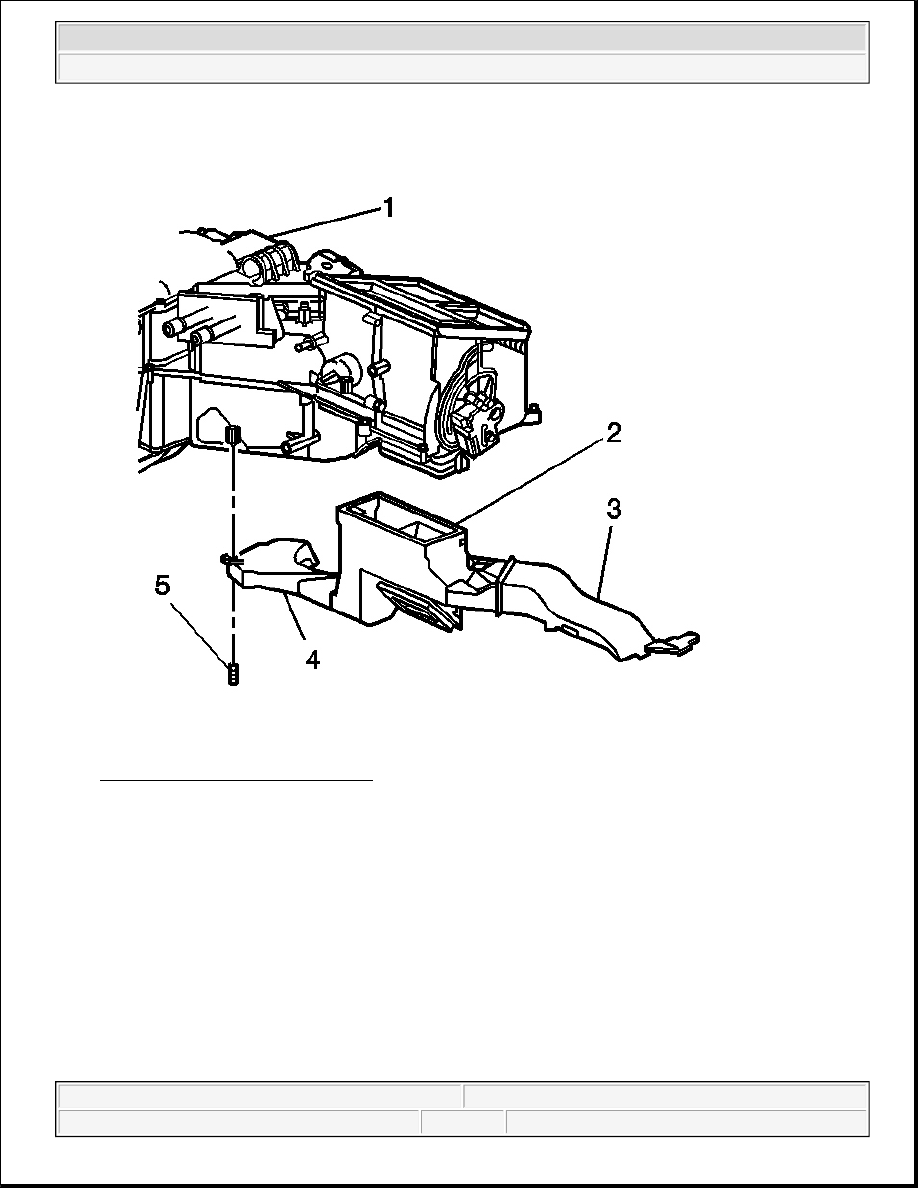

Fig. 99: Floor Air Outlet Duct (LH)
Courtesy of GENERAL MOTORS CORP.

1. Remove the push pin from the left floor air outlet duct (3).

2. Remove the left floor duct (3) from the HVAC module assembly (2).

Installation Procedure



2004 Hummer H2

2004 HVAC Heating, Ventilation and Air Conditioning - Hummer H2
