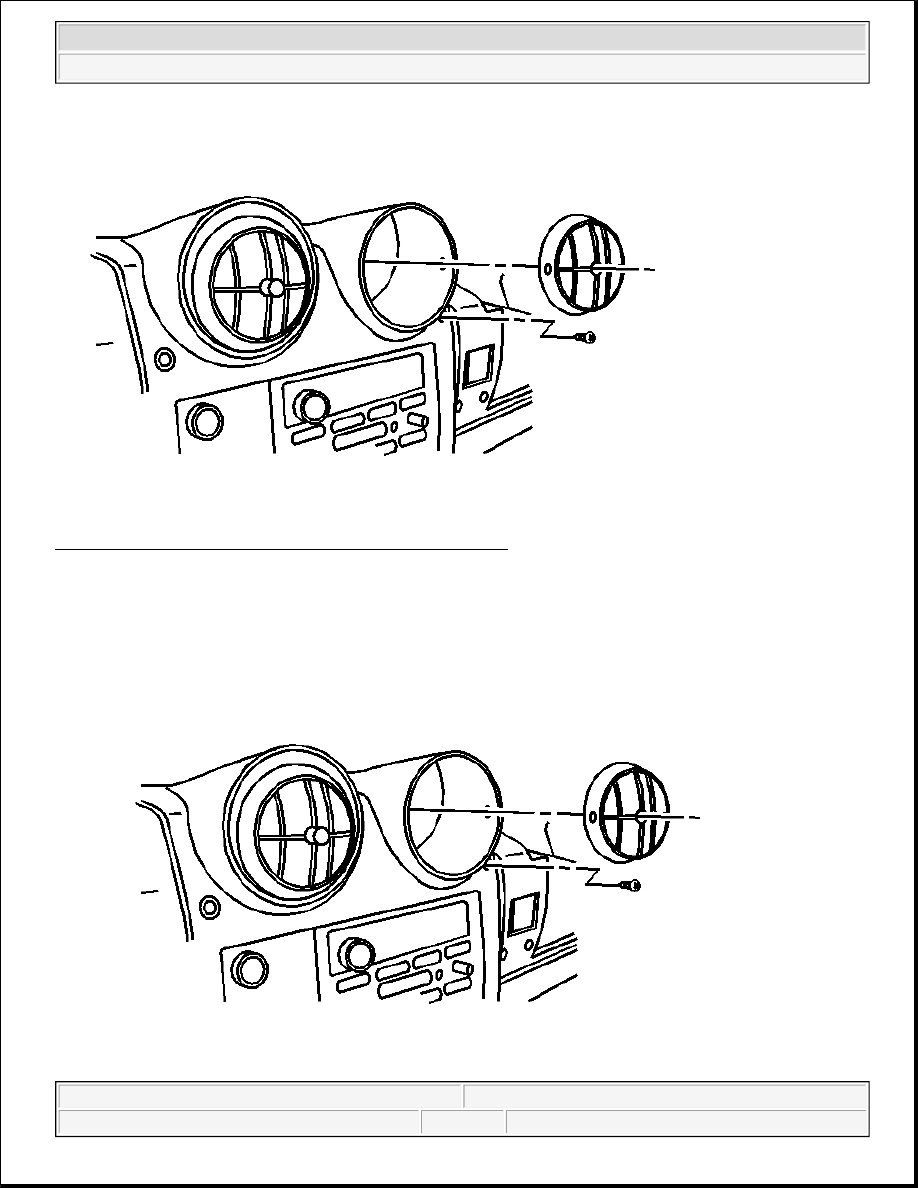

Fig. 91: Air Deflector Louver & Instrument Panel (Center)
Courtesy of GENERAL MOTORS CORP.

Using a flat bladed tool, remove the air deflector louver from the instrument panel.

Installation Procedure



2004 Hummer H2

2004 HVAC Heating, Ventilation and Air Conditioning - Hummer H2



Fig. 92: Air Deflector Louver & Instrument Panel (Center)
Courtesy of GENERAL MOTORS CORP.

1. Align the air deflector into the opening in the trim panel I/P center.

2. Push the air outlet into the trim panel until the deflector snaps into place.

DEFLECTOR REPLACEMENT - INSTRUMENT PANEL AIR - RIGHT

Removal Procedure

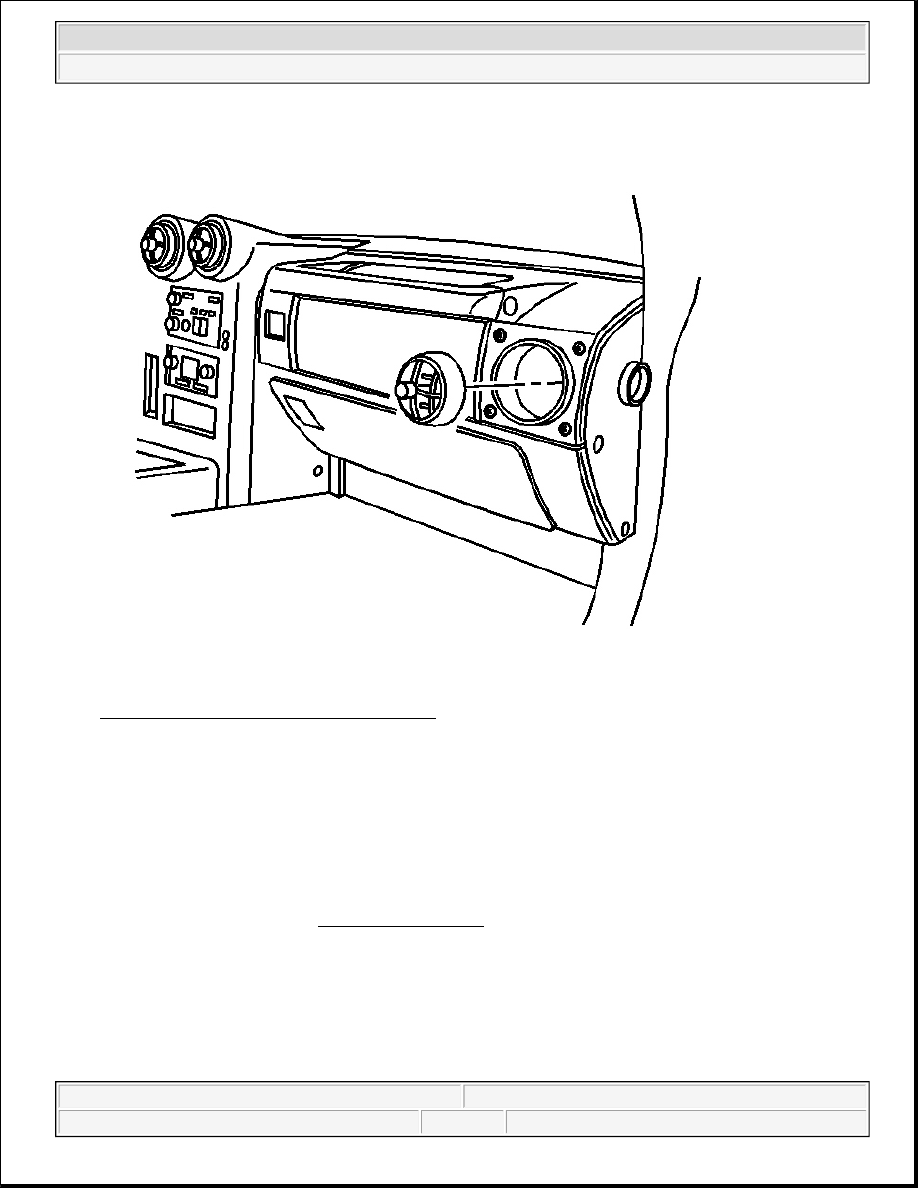

Fig. 93: Air Reflector Louver & Trim Panel
Courtesy of GENERAL MOTORS CORP.

1. Use a flat bladed tool in order to remove the air deflector from the trim panel.

2. Remove the air reflector louver.

Installation Procedure



2004 Hummer H2

2004 HVAC Heating, Ventilation and Air Conditioning - Hummer H2

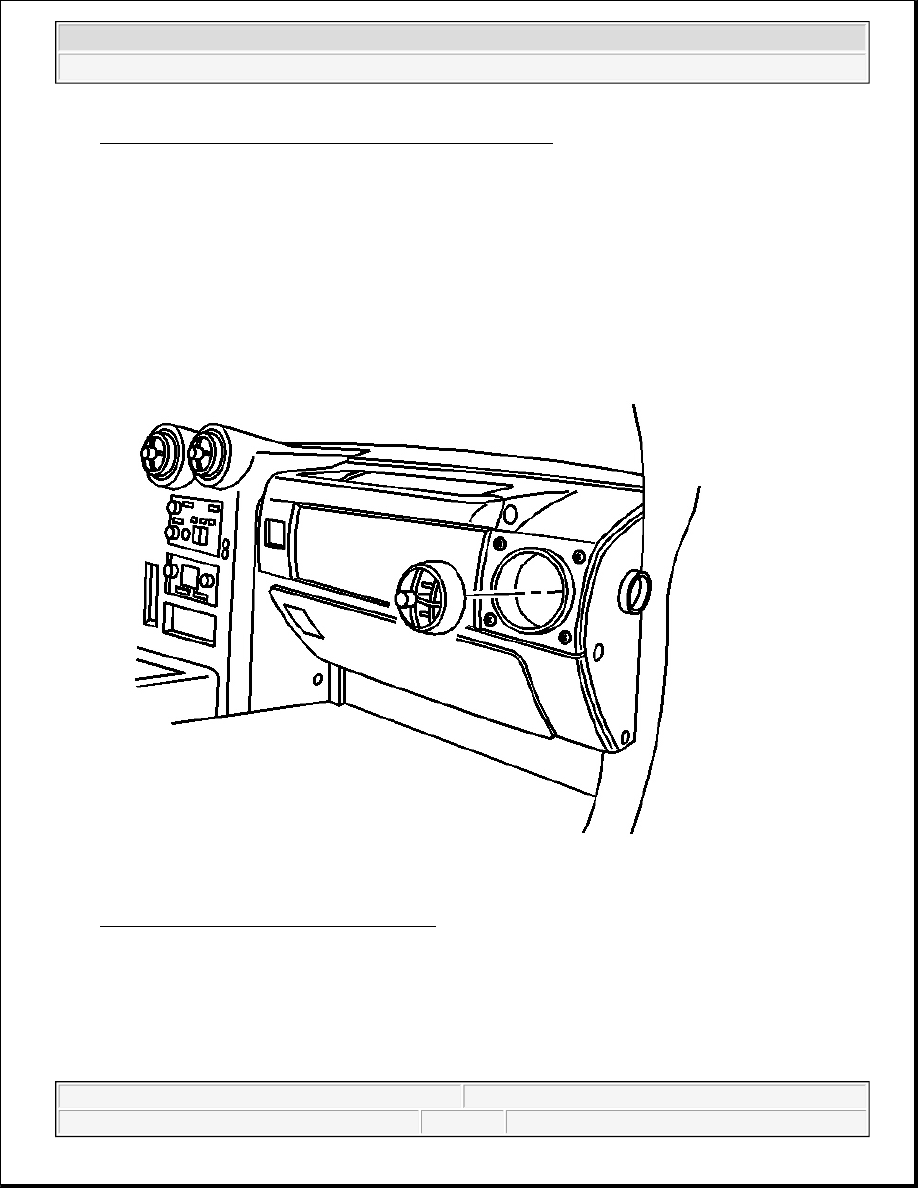

Fig. 94: Air Reflector Louver & Trim Panel
Courtesy of GENERAL MOTORS CORP.

1. Align the air deflector into the opening in the trim panel accessory right.

2. Push the air outlet into the trim panel until the deflector snaps into place.

AIR OUTLET REPLACEMENT - REAR FLOOR

Removal Procedure

1. Remove the console. Refer to Console Replacement in Instrument Panel, Gauges and Console.



2004 Hummer H2

2004 HVAC Heating, Ventilation and Air Conditioning - Hummer H2

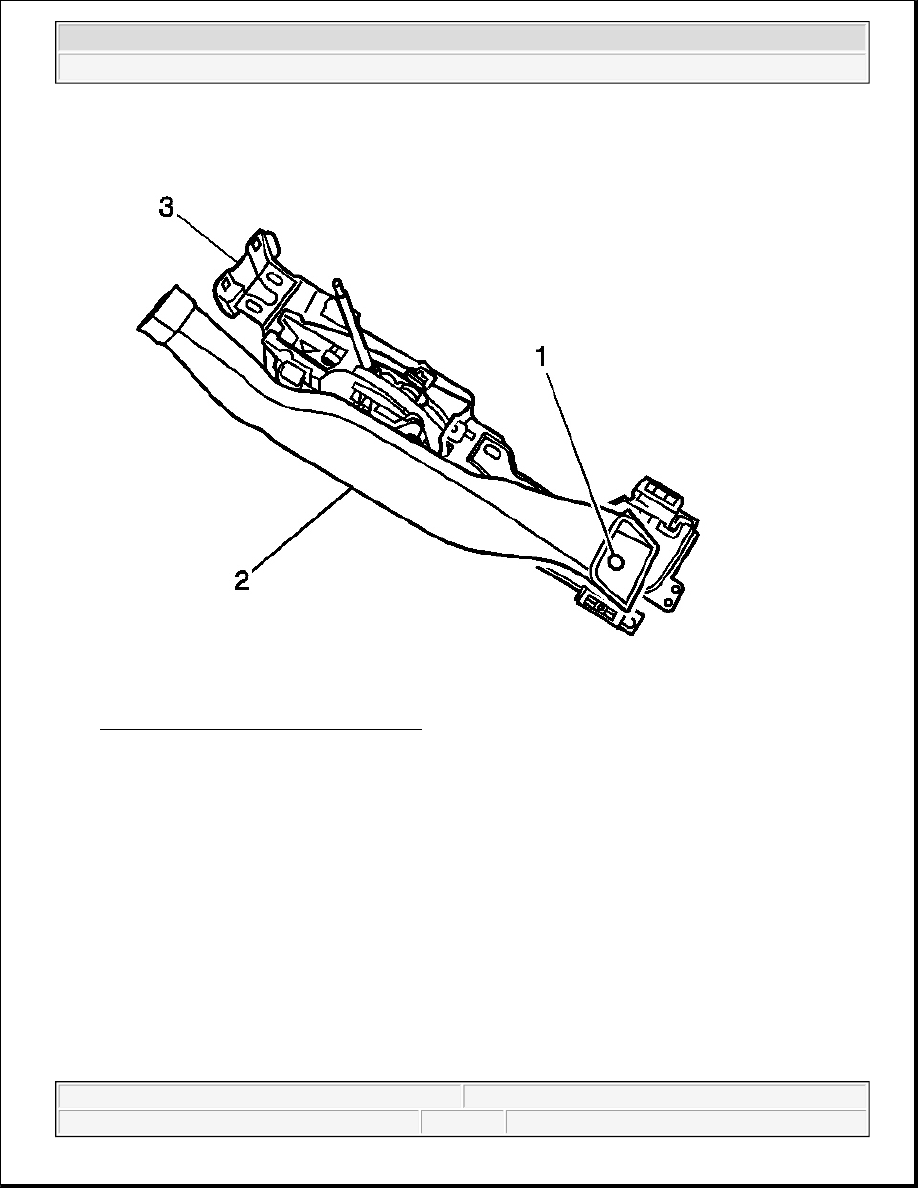

Fig. 95: Identifying Push Pin (Rear Floor)
Courtesy of GENERAL MOTORS CORP.

2. Remove the push pin (1).
