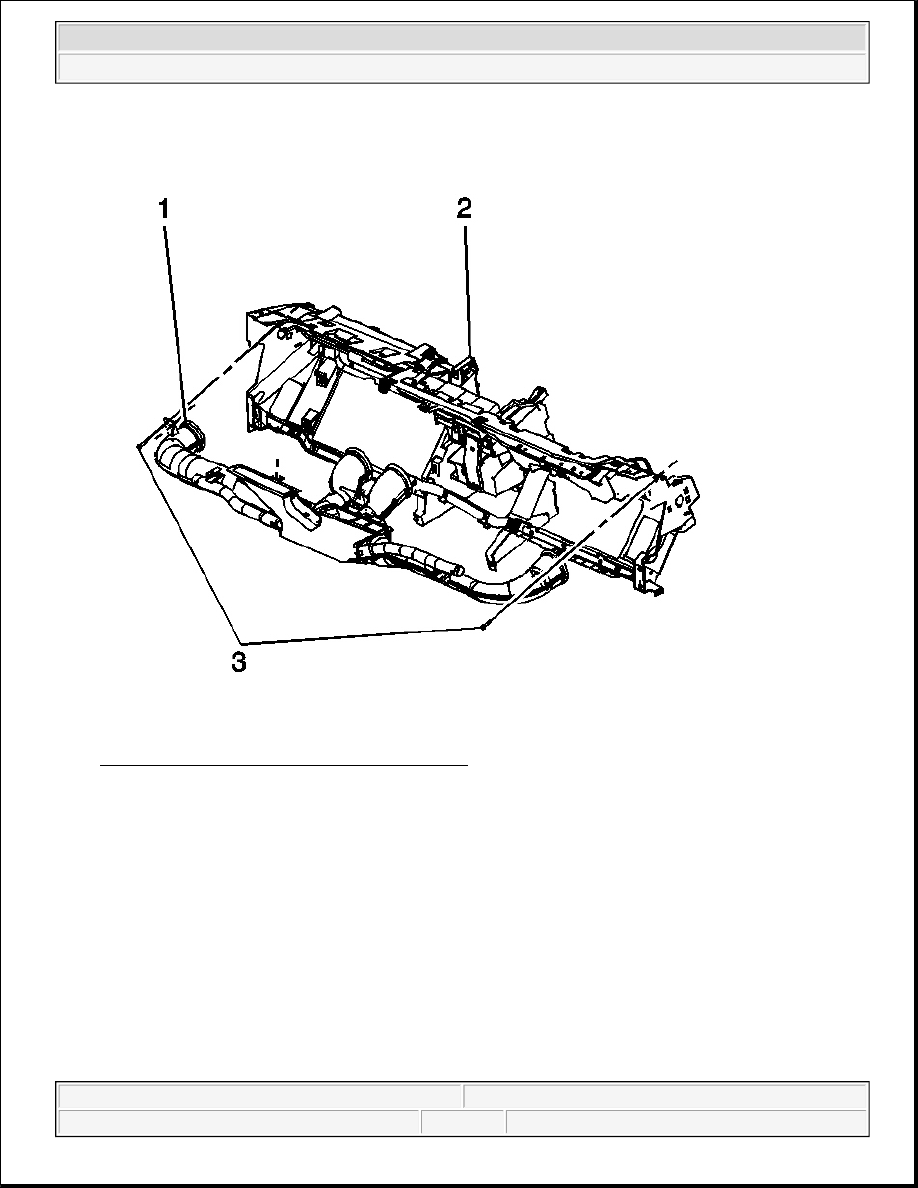

Fig. 87: Air Distribution Duct & I/P Trim Panel
Courtesy of GENERAL MOTORS CORP.

1. Install the air distribution duct (1) to the I/P trim Panel (2).

2. Install the screws (3) to the air distribution duct (1).

Tighten: Tighten the screws to 2 N.m (18 lb in).

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 HVAC Heating, Ventilation and Air Conditioning - Hummer H2



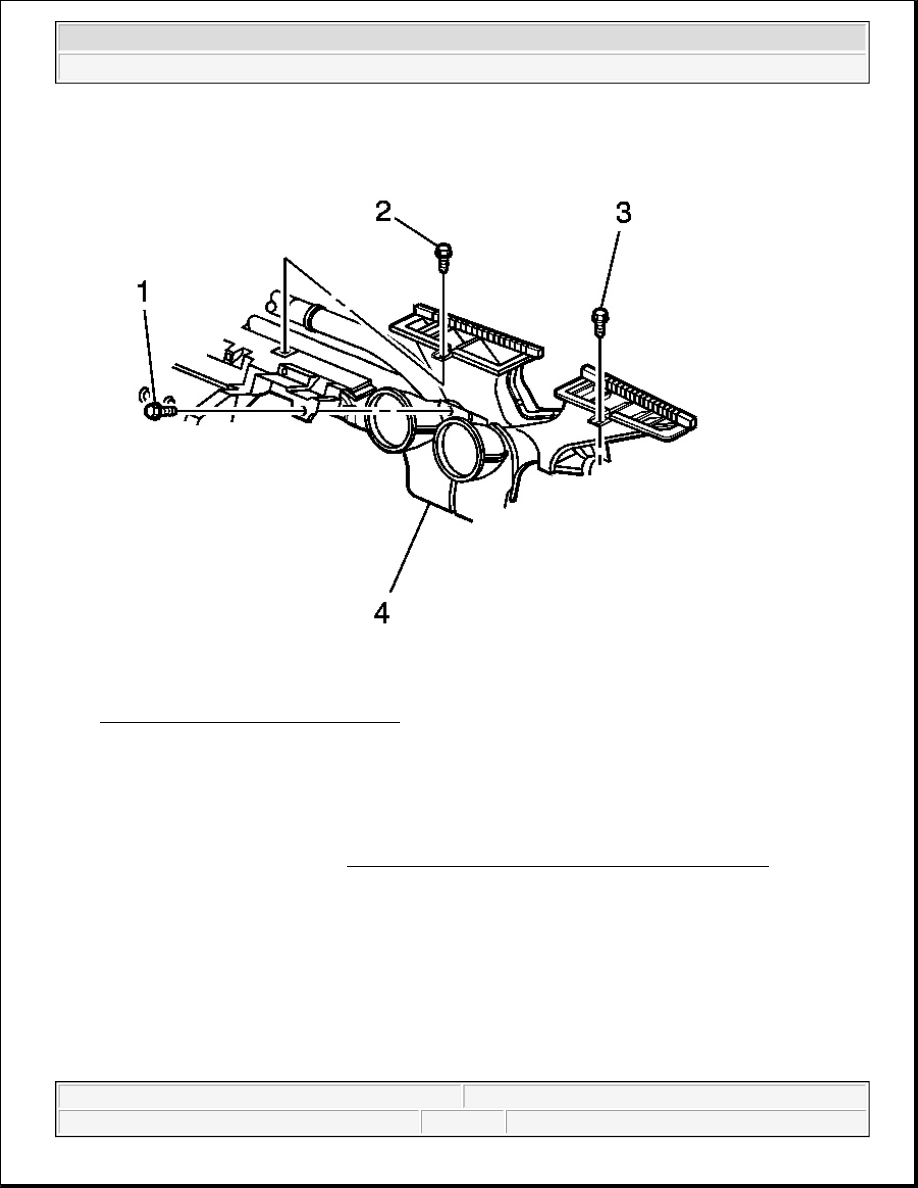

Fig. 88: Screw & Air Distribution Duct
Courtesy of GENERAL MOTORS CORP.

3. Install the screw (1) to the air distribution duct (4).

Tighten: Tighten the screws to 2 N.m (18 lb in).

4. Install the I/P trim panel. Refer to Trim Pad Replacement - Instrument Panel (I/P) Upper in

Instrument Panel, Gauges and Console.

DEFLECTOR REPLACEMENT - INSTRUMENT PANEL AIR - LEFT

Removal Procedure



2004 Hummer H2

2004 HVAC Heating, Ventilation and Air Conditioning - Hummer H2



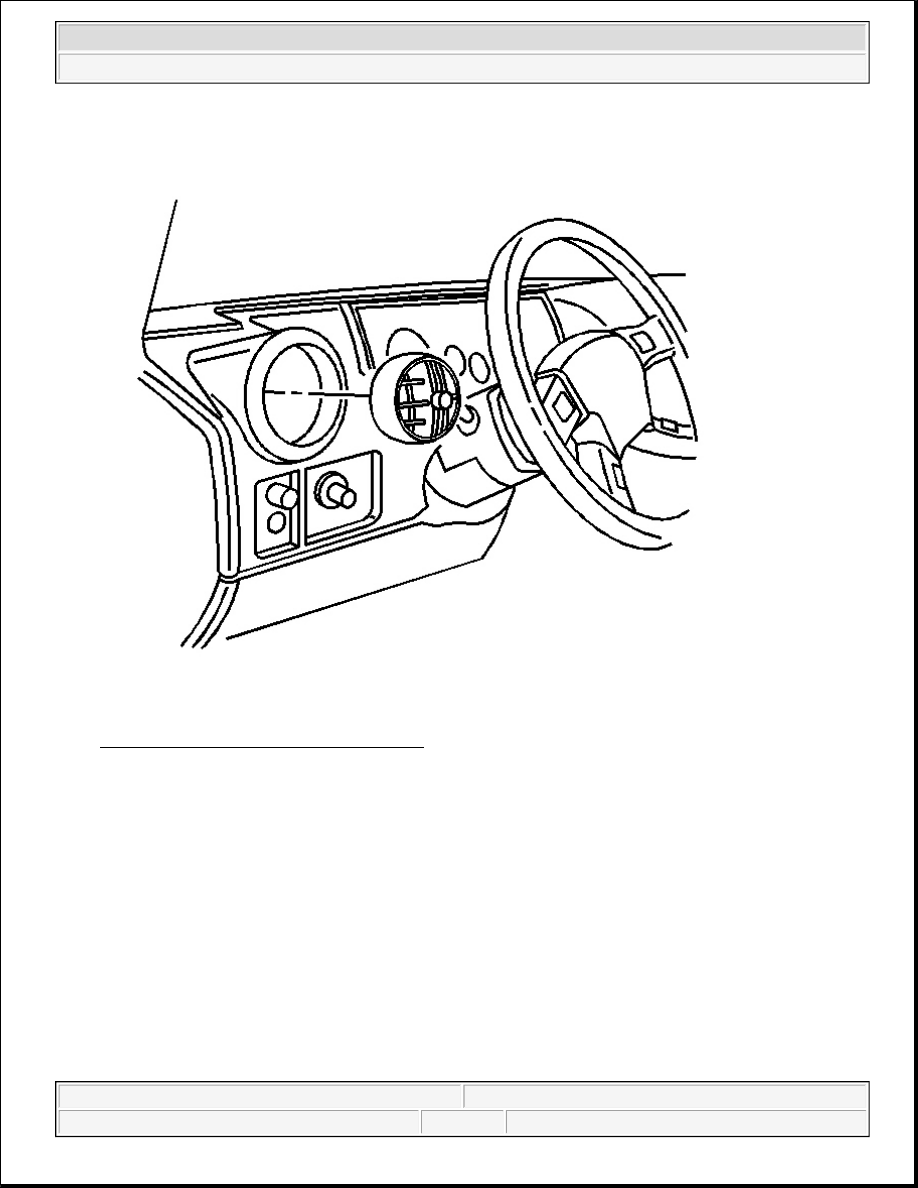

Fig. 89: Air Deflector & Trim Panel (Left)
Courtesy of GENERAL MOTORS CORP.

1. Use a flat bladed tool in order to remove the air deflector from the trim panel.

2. Remove the air reflector.

Installation Procedure



2004 Hummer H2

2004 HVAC Heating, Ventilation and Air Conditioning - Hummer H2



Fig. 90: Air Deflector & Trim Panel (Left)
Courtesy of GENERAL MOTORS CORP.

1. Align the air deflector into the opening in the trim panel accessory left.

2. Push the air outlet into the trim panel until the deflector snaps into place.

DEFLECTOR REPLACEMENT - INSTRUMENT PANEL AIR - CENTER

Removal Procedure



2004 Hummer H2

2004 HVAC Heating, Ventilation and Air Conditioning - Hummer H2
