1. Connect the electrical connectors to the receptacle.

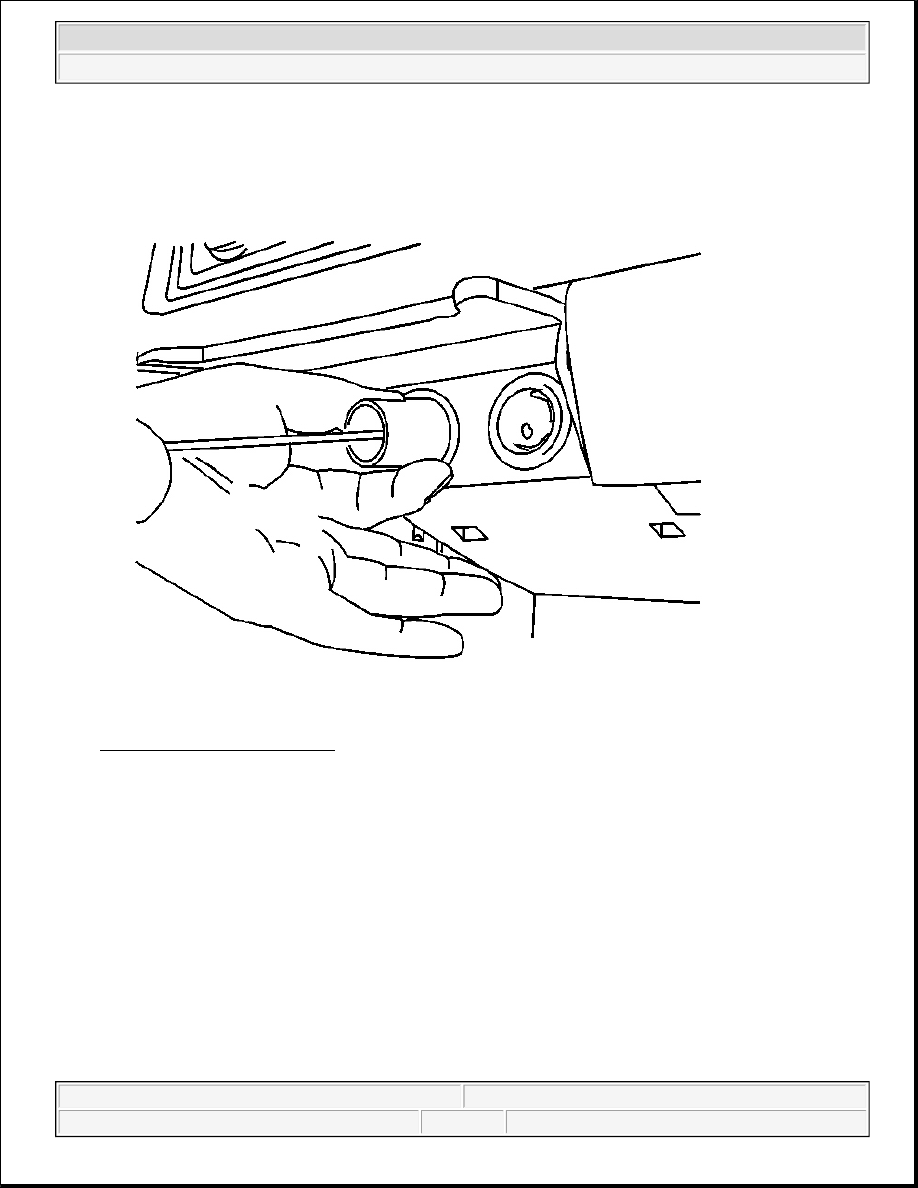

Fig. 8: Receptacle & Assembly
Courtesy of GENERAL MOTORS CORP.

2. Insert the plastic ring into the opening and snap the plastic ring into place.

3. Insert the receptacle through the plastic ring and gently turn by hand until the receptacle ring is sealed.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Power Outlets - Hummer H2



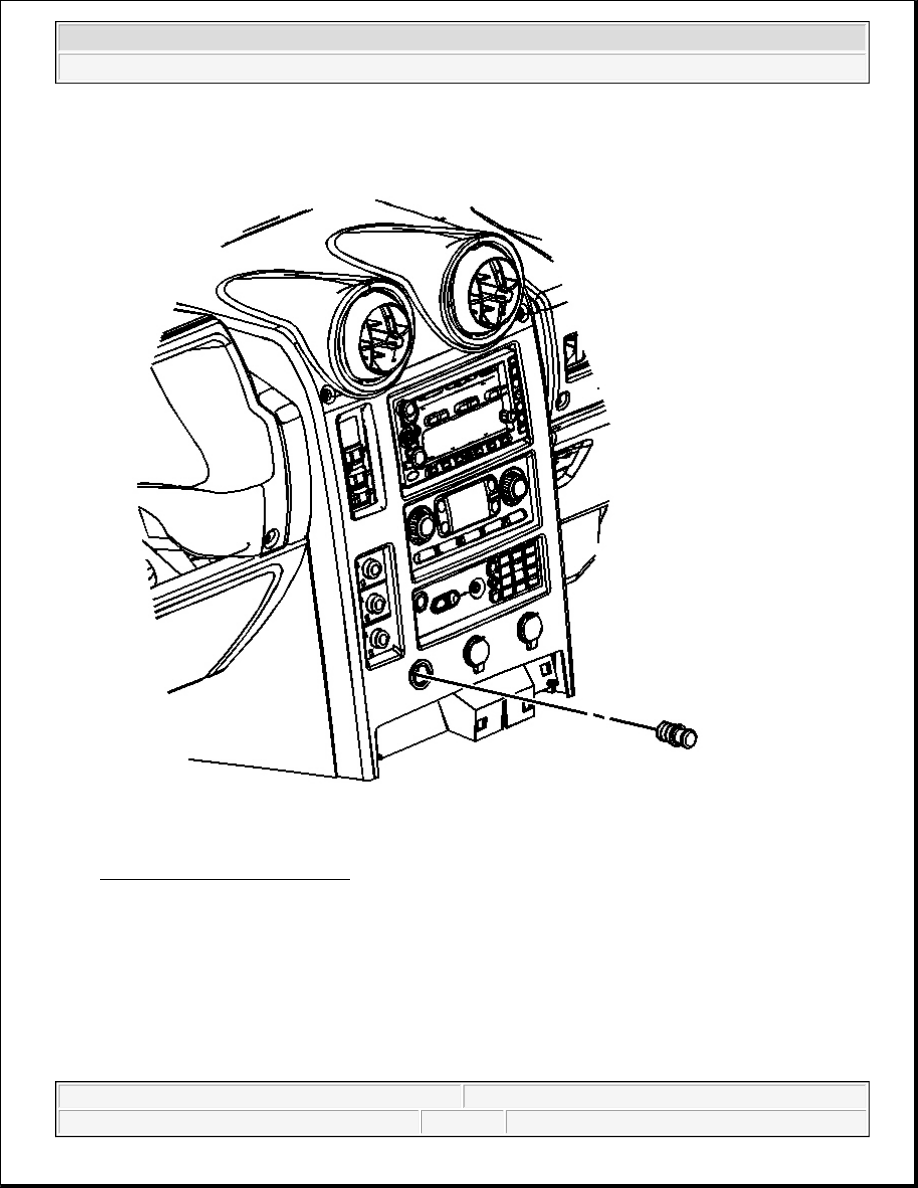

Fig. 9: Identifying Cigar Lighter
Courtesy of GENERAL MOTORS CORP.

4. Close receptacle covers or insert the cigar lighter.

5. Install the power port/lighter socket fuse.

SPECIAL TOOLS AND EQUIPMENT

SPECIAL TOOLS



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Power Outlets - Hummer H2



Special Tools

Illustration

Tool Number/Description

J 42059

Cigar Lighter Socket Remover



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Power Outlets - Hummer H2



2004 ACCESSORIES & EQUIPMENT

Retained Accessory Power - Hummer H2

SCHEMATIC AND ROUTING DIAGRAMS

RETAINED ACCESSORY POWER (RAP) SCHEMATICS

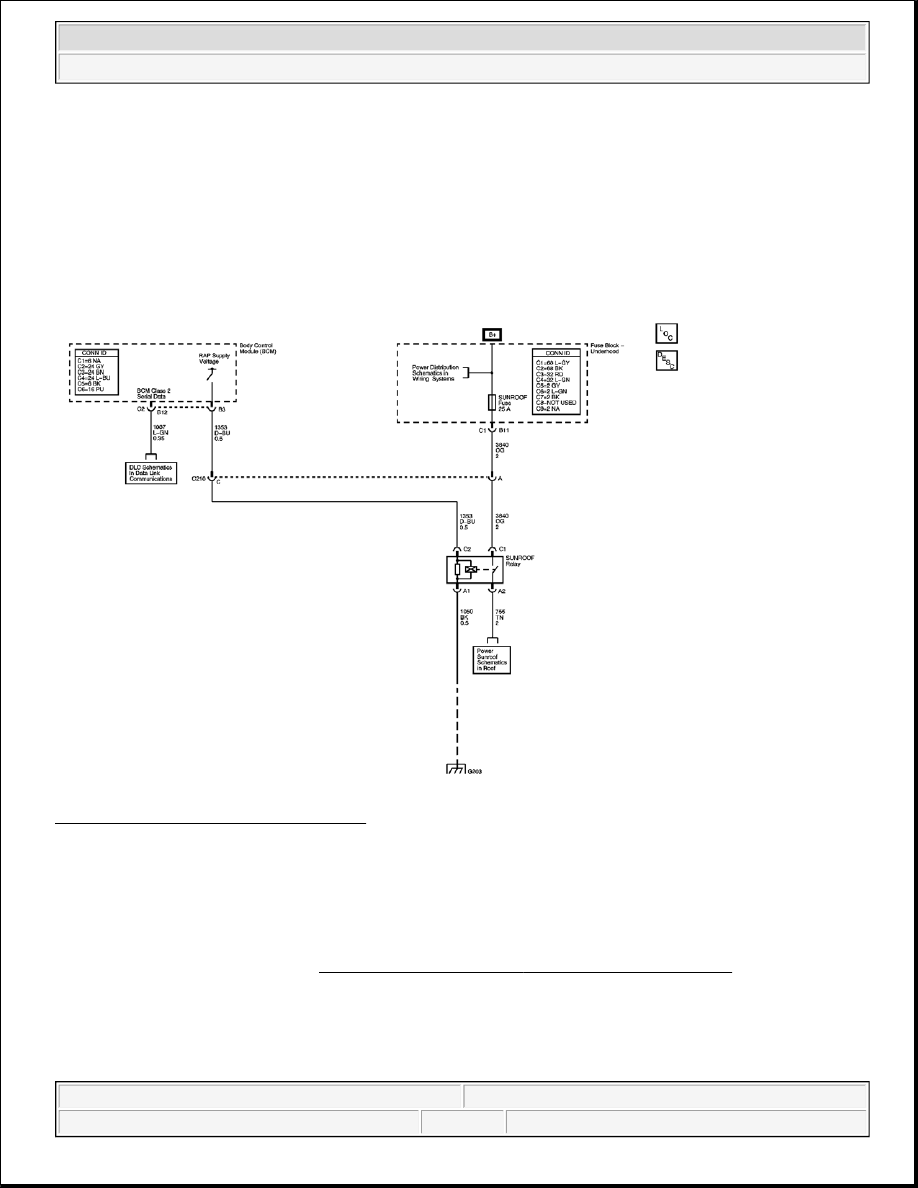

Fig. 1: Retained Accessory Power (RAP)
Courtesy of GENERAL MOTORS CORP.

DIAGNOSTIC INFORMATION AND PROCEDURES

DIAGNOSTIC STARTING POINT - RETAINED ACCESSORY POWER

Begin the system diagnosis with the Diagnostic System Check - Retained Accessory Power . The diagnostic
system check will provide the following information:

z

The identification of the control modules which command the system

z

The ability of the control modules to communicate through the serial data circuit
