Hummer H2. Manual - part 195

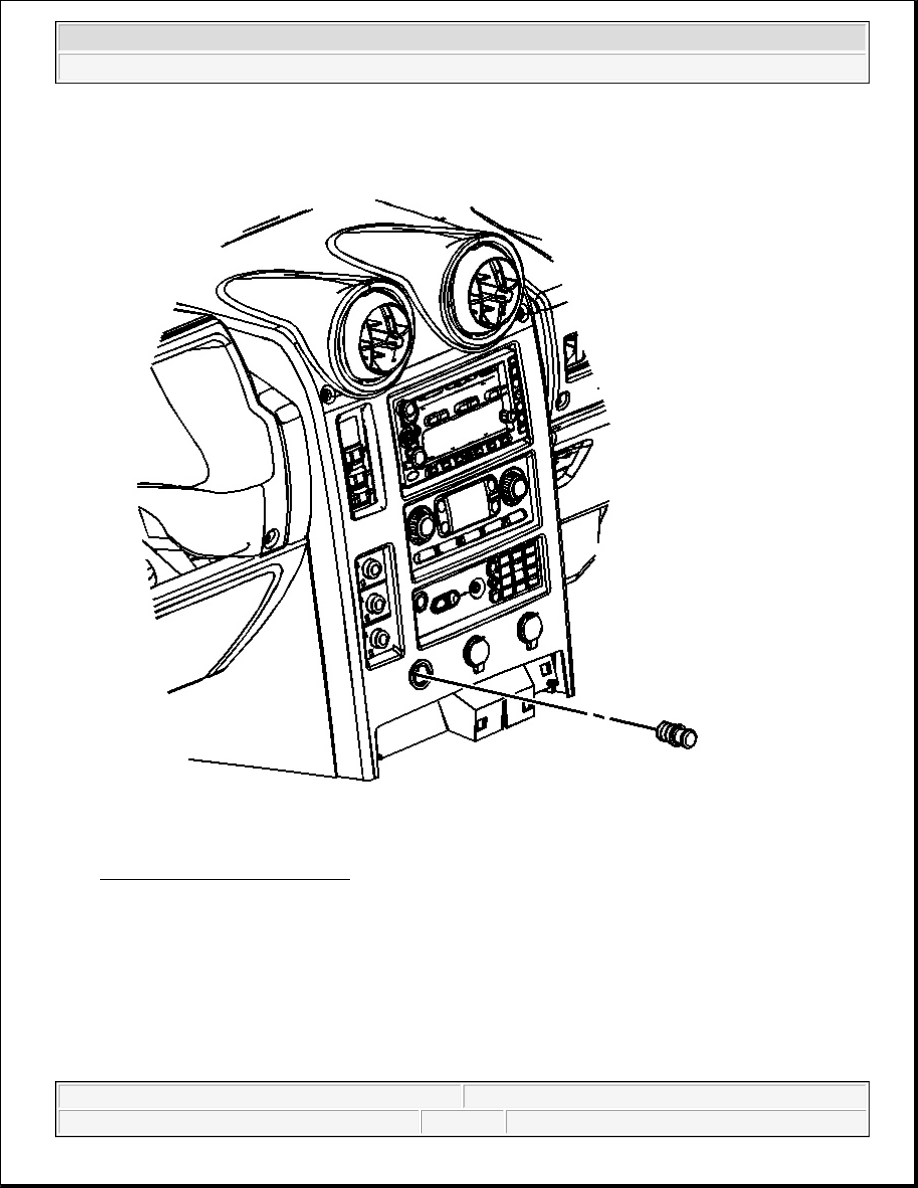

Fig. 4: Identifying Cigar Lighter
Courtesy of GENERAL MOTORS CORP.

2. Lift up the front cover of the power receptacle or remove the cigar lighter.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Power Outlets - Hummer H2



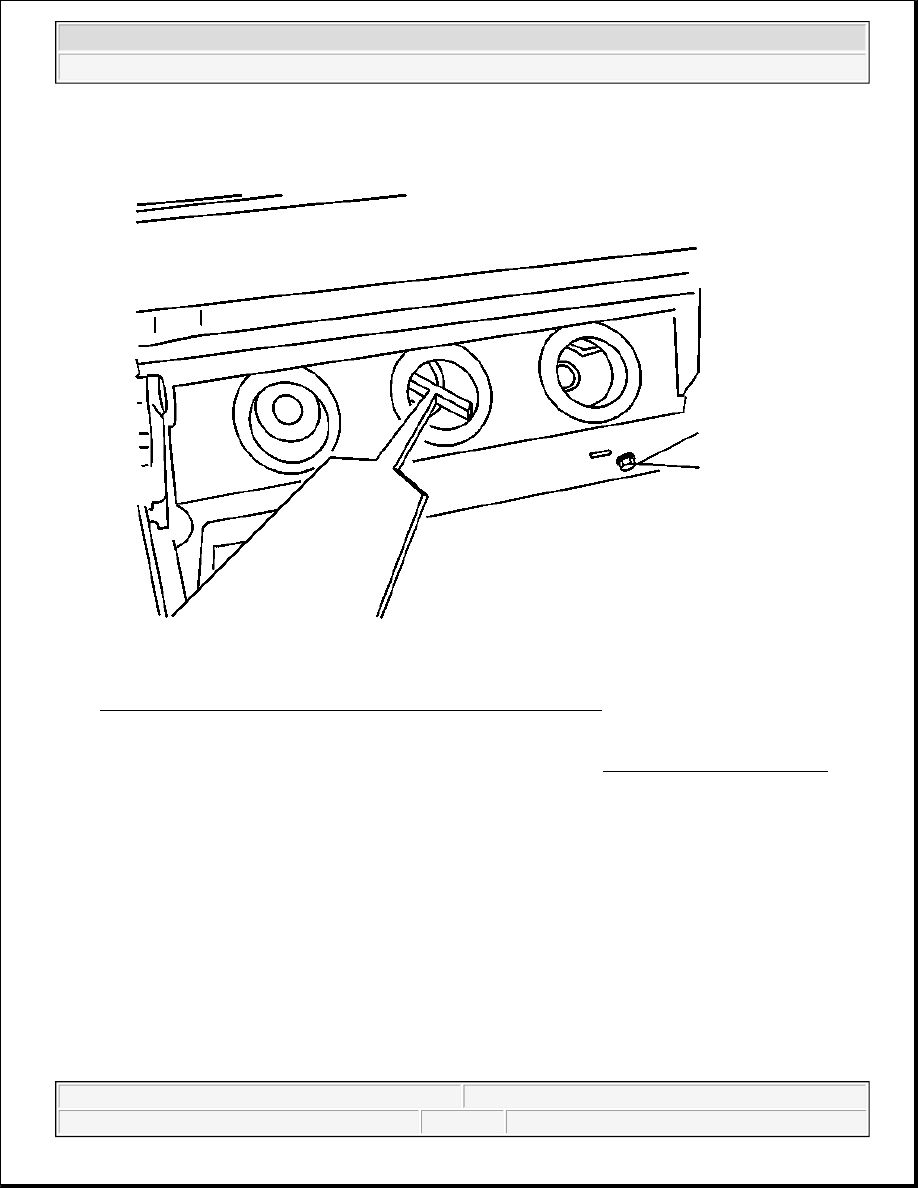

Fig. 5: Inserting J 42059 Into Slots On Sides Of Receptacle Sleeve
Courtesy of GENERAL MOTORS CORP.

3. Insert J 42059 into the slots on the sides of the receptacle sleeve. See Special Tools and Equipment .



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Power Outlets - Hummer H2



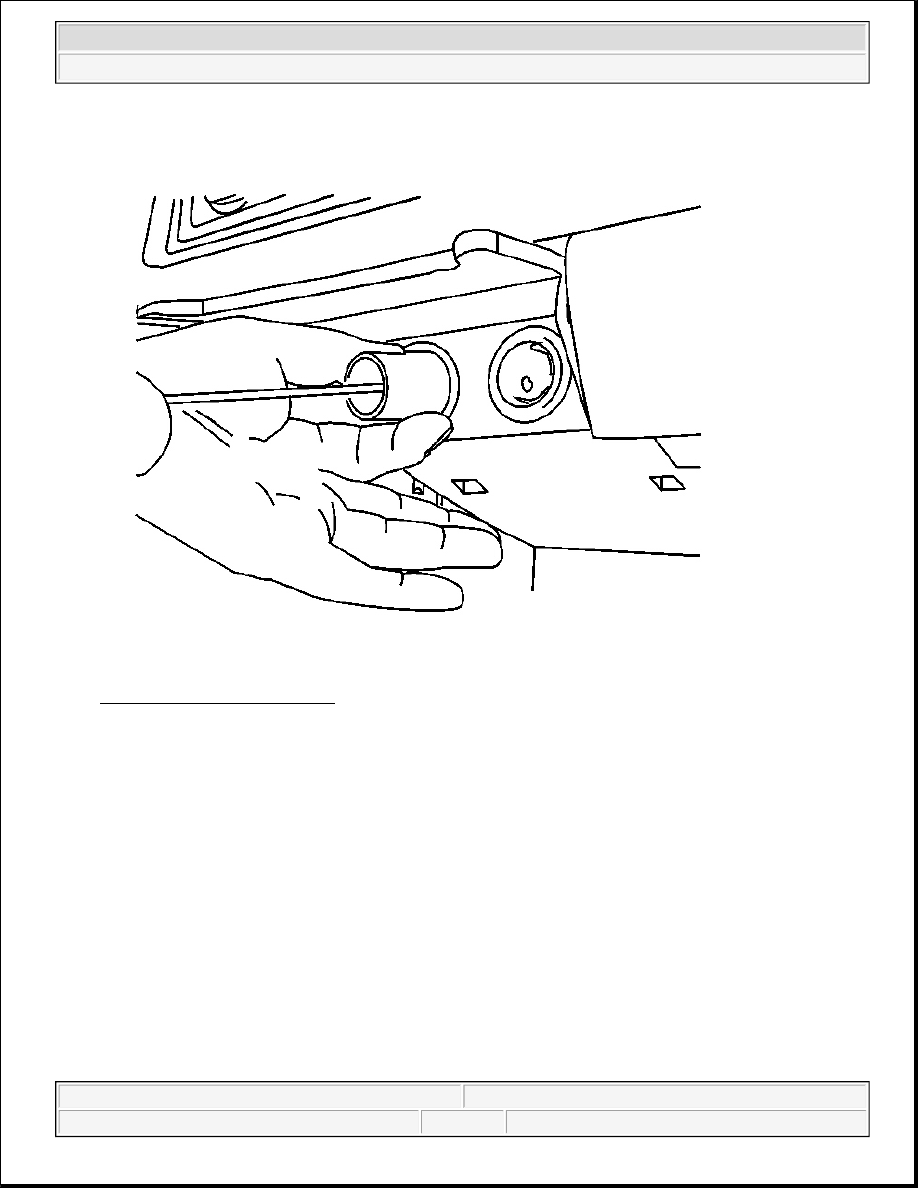

Fig. 6: Receptacle & Assembly
Courtesy of GENERAL MOTORS CORP.

4. Hold the plastic ring in place. Pull the receptacle out of the assembly in order to remove the outlet.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Power Outlets - Hummer H2



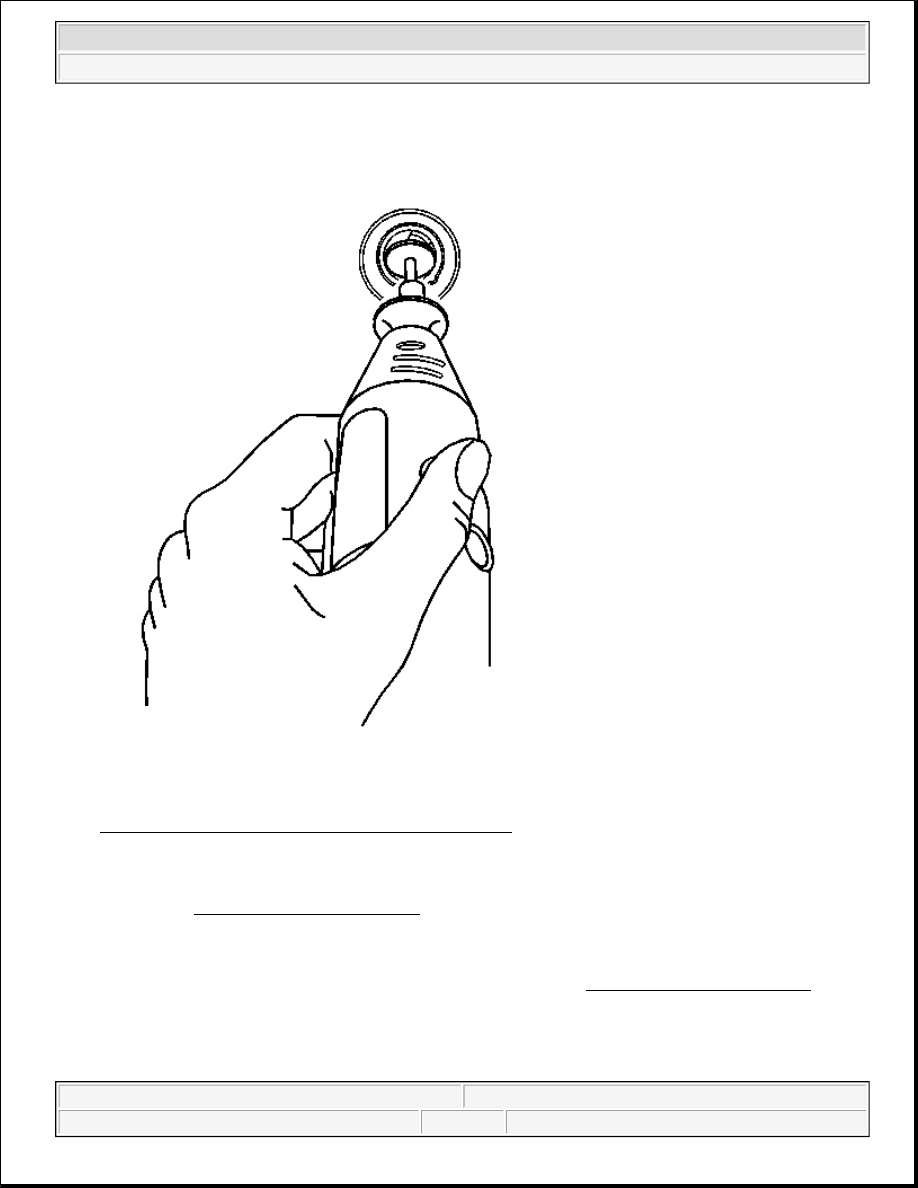

Fig. 7: Removing Cigar Housing Using Grinding Tool
Courtesy of GENERAL MOTORS CORP.

5. If J 42059 tool fails to release the lighter socket from the retainer, perform the following alternate

method: See Special Tools and Equipment .

1. Insert a small grinding tool with a cutoff wheel into the socket.

2. Remove the plastic latches in the 3 mm (0.11 in) square windows.

3. Use the J 42059 as directed above to remove the socket. See Special Tools and Equipment .

6. Remove the electrical connector from the socket.

Installation Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Power Outlets - Hummer H2
