To erase programmed channels, hold down the 2 outside buttons until the light on the GDO transmitter begins
to flash. Individual channels cannot be erased, but can be reprogrammed using the Garage Door Opener
Programming and the Training GDO for Rolling Code Receivers procedures.

Non-Compatible Garage Door Openers

DESCRIPTION AND OPERATION

GARAGE DOOR OPENER DESCRIPTION AND OPERATION

The garage door opener is located in the overhead console. The valet switch provides battery voltage to the
garage door opener. If battery voltage is lost due to a condition such as a dead battery, the garage door opener
unit relies on the non-servicable internal power backup supply. The unit is programmed using the customer's
hand-held transmitters for the garage doors, electric entrance gates, or lighting and security systems.

The garage door opener is rolling code capable. Rolling code is a system that allows the code that the customers
receiver receives from the garage door opener to change every time the garage door opener is used within
operating range of the receiver. When the receiver and the garage door opener are initially programmed
together, a code is established, a new code is created for every new transmission. The software in the receiver
recognizes the garage door opener and accepts the new code.

The garage door opener is compatible with most, but not all types and brands of transmitters. If a problem
should occur with a compatibility conflict with a transmitter, call HomeLink(tm) at 1-800-355-3515.

The garage door opener is a transmitter operating between 288-399 MHz. The power and range of the
transmitter is limited to comply with laws governing the generation of radio frequency interference (RFI). The

Manufacturer

Model Number

Chamberlain

G-3467

Click Card

ATDG-90

Genie

AR-55

Genie

AR-30

Linear

Code Red

Linear

Moore-o-matic

Linear

DX Format

Micom

Safeway

Pulsar/Allister

20

Skylink

Skylink

Stanley

1048

Stanley

1054

Stanley

1064

Telectron

T-22A

Telectron

T-80

Telectron

T-80G

Telectron

TP-21



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Garage Door Opener - Hummer H2



transmitter is programmed by the user to accept the signal generated by the user's transmitters, refer to Garage
Door Opener Programming - Universal .

The garage door opener has 3 buttons that may be programmed for individual transmitter/receiver combinations
to control up to 3 garage door openers, security gates, and lighting systems. Each button represents a transmitter
code section of the transmitter, which operates separately from any other button, and may be considered a
separate transmitter. Operation consists of simply pressing a button to activate the corresponding transmitter.

Battery voltage is provided to the garage door opener from the IGN SEN fuse in the IP fuse block. The garage
door opener is grounded through G400. Inadvertent power is supplied from the body control module (BCM).

SPECIAL TOOLS AND EQUIPMENT

SPECIAL TOOLS

Special Tools

Illustration

Tool Number/Description

J 41540

HomeLink Tester



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Garage Door Opener - Hummer H2



2004 ACCESSORIES & EQUIPMENT

Power Outlets - Hummer H2

SCHEMATIC AND ROUTING DIAGRAMS

CIGAR LIGHTER/AUXILIARY OUTLETS SCHEMATICS

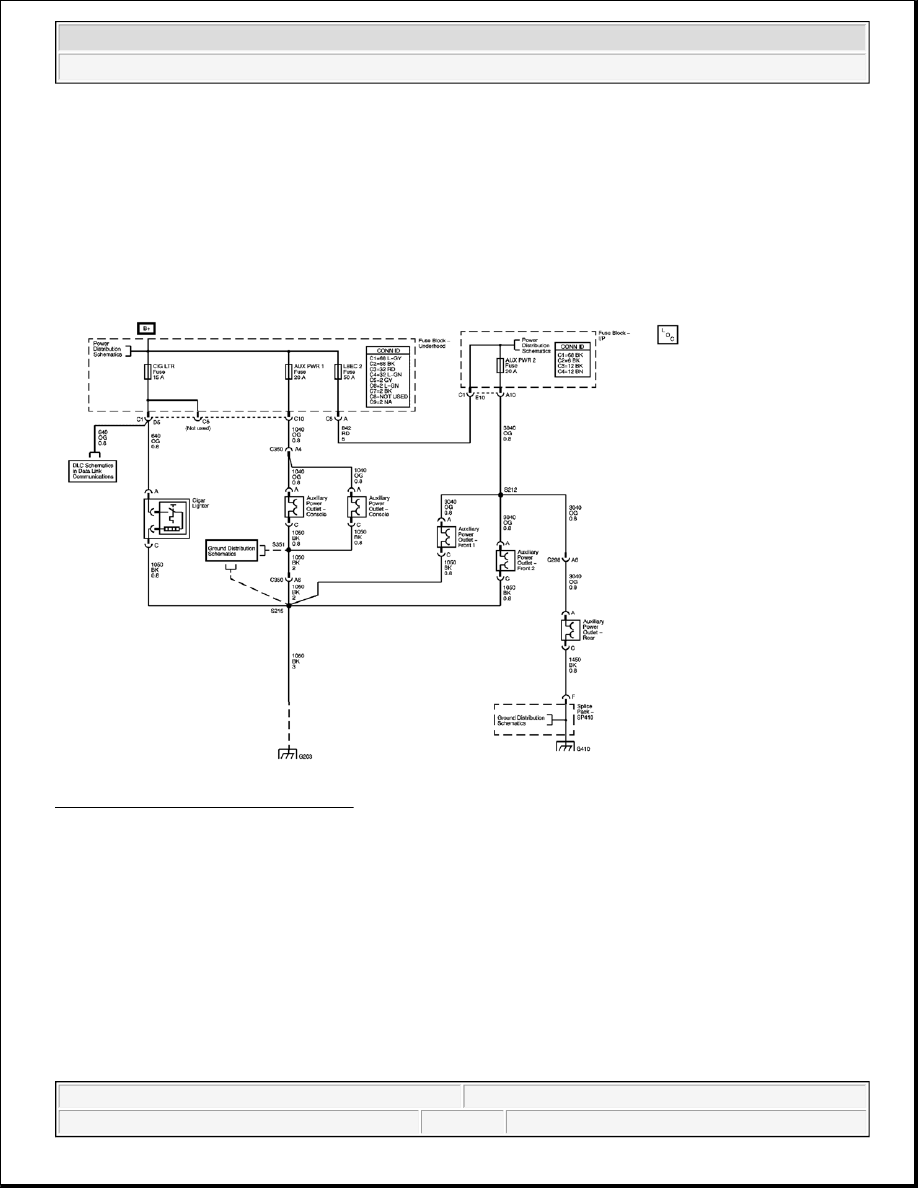

Fig. 1: Cigar Lighter/Auxiliary Outlets
Courtesy of GENERAL MOTORS CORP.

COMPONENT LOCATOR

POWER OUTLET COMPONENT VIEWS



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Power Outlets - Hummer H2





2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Power Outlets - Hummer H2



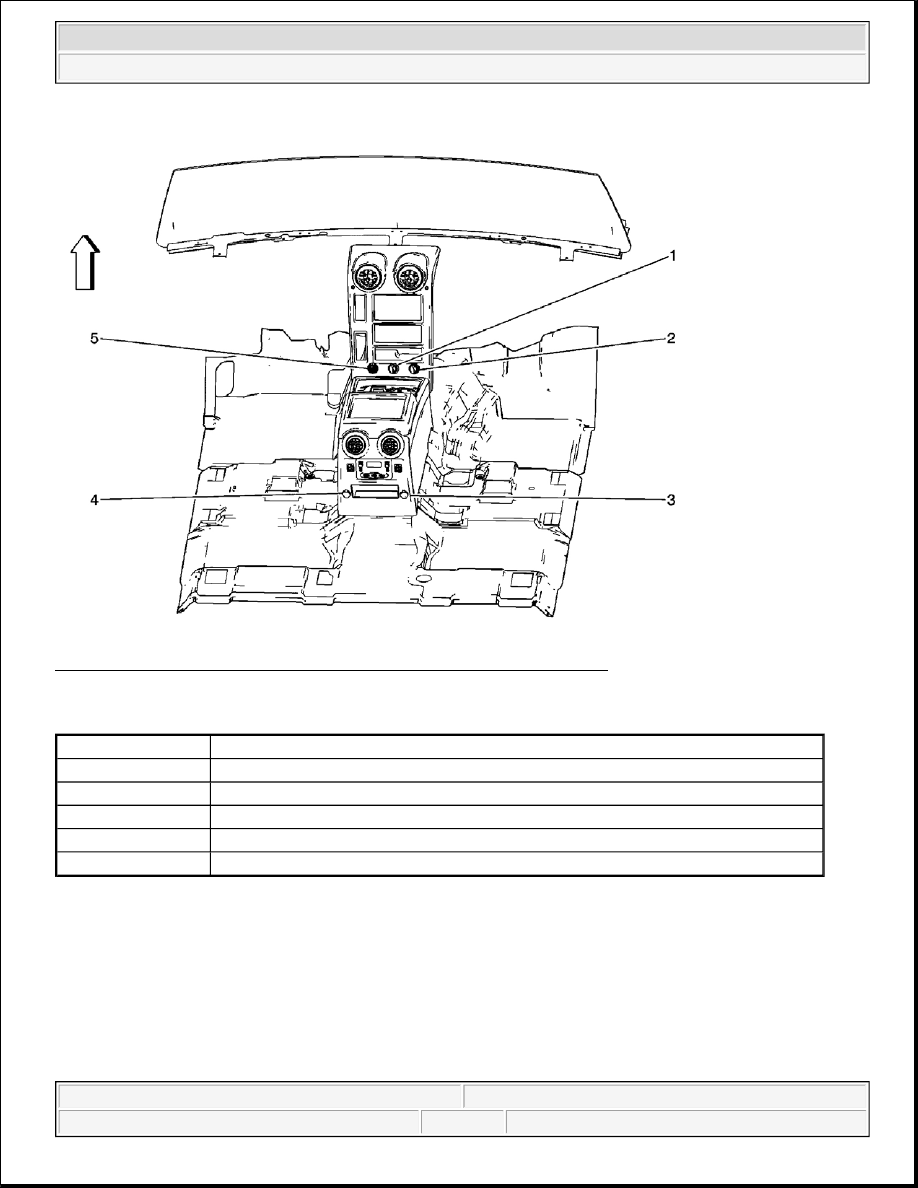

Fig. 2: Auxiliary Power Outlets - Front/Rear Console Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 2

Callout

Component Name

1

Auxiliary Power Outlet - Front 1

2

Auxiliary Power Outlet - Front 2

3

Auxiliary Power Outlet - Console

4

Auxiliary Power Outlet - Console

5

Cigar Lighter



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Power Outlets - Hummer H2
