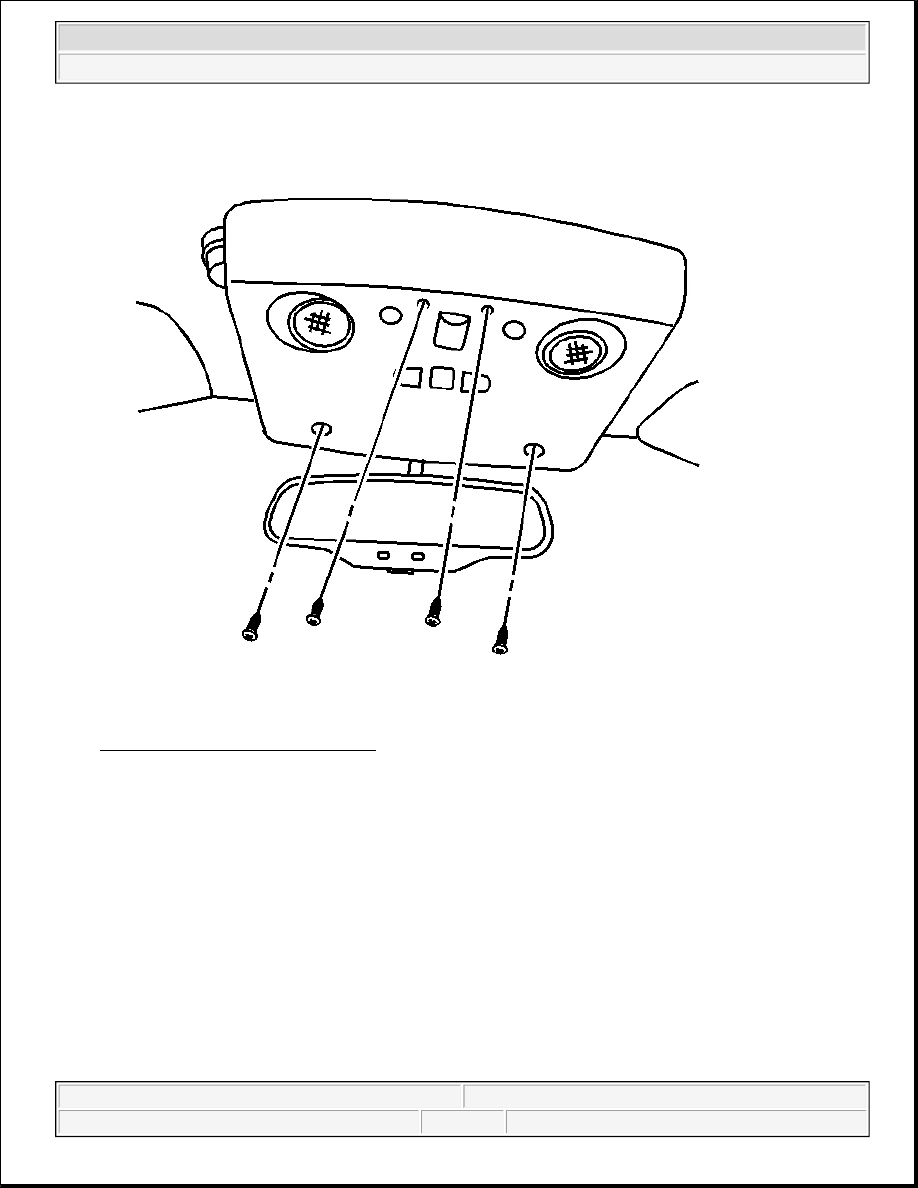

Fig. 3: Removing Overhead Console To Expose Garage Door Opener Panel
Courtesy of GENERAL MOTORS CORP.

1. Remove the overhead console to expose the garage door opener panel.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Garage Door Opener - Hummer H2



Fig. 4: Garage Door Module Screws
Courtesy of GENERAL MOTORS CORP.

2. Remove the screws from the garage door module.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Garage Door Opener - Hummer H2



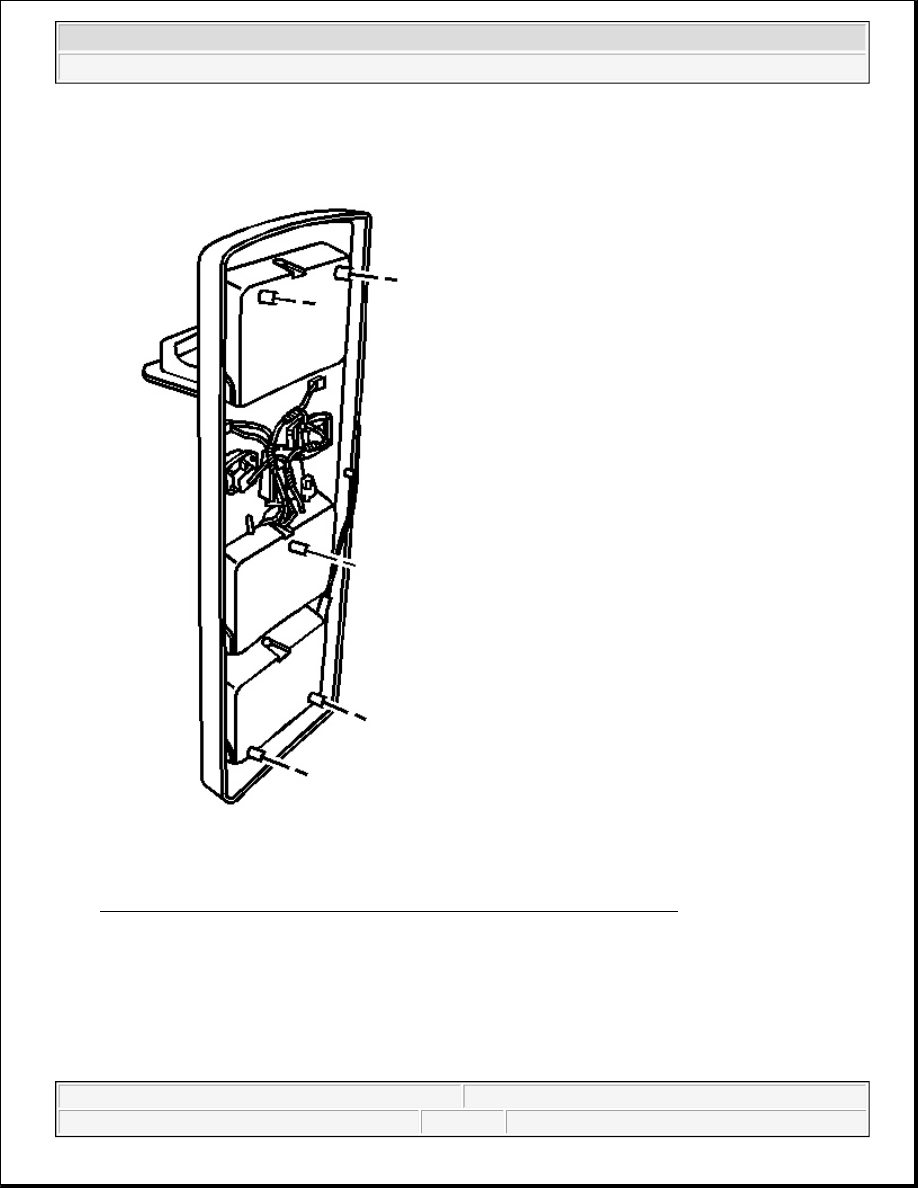

Fig. 5: Button & Module Assembly
Courtesy of GENERAL MOTORS CORP.

3. Disconnect the electrical connector from the garage door opener.

4. Remove the button and module assembly from the over head console.

Installation Procedure

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Garage Door Opener - Hummer H2

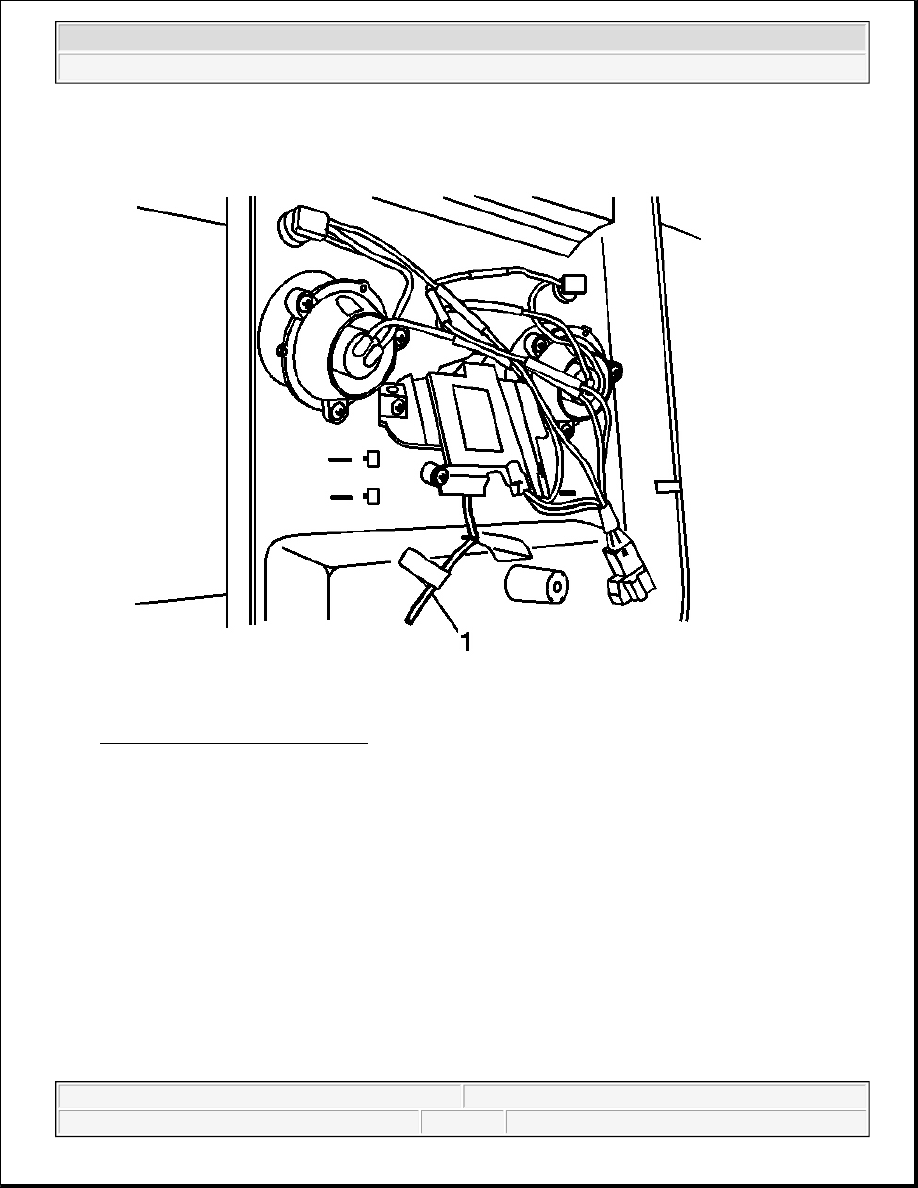

Fig. 6: Button & Module Assembly
Courtesy of GENERAL MOTORS CORP.

1. Install the button and module assembly to the overhead console (1).



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Garage Door Opener - Hummer H2
