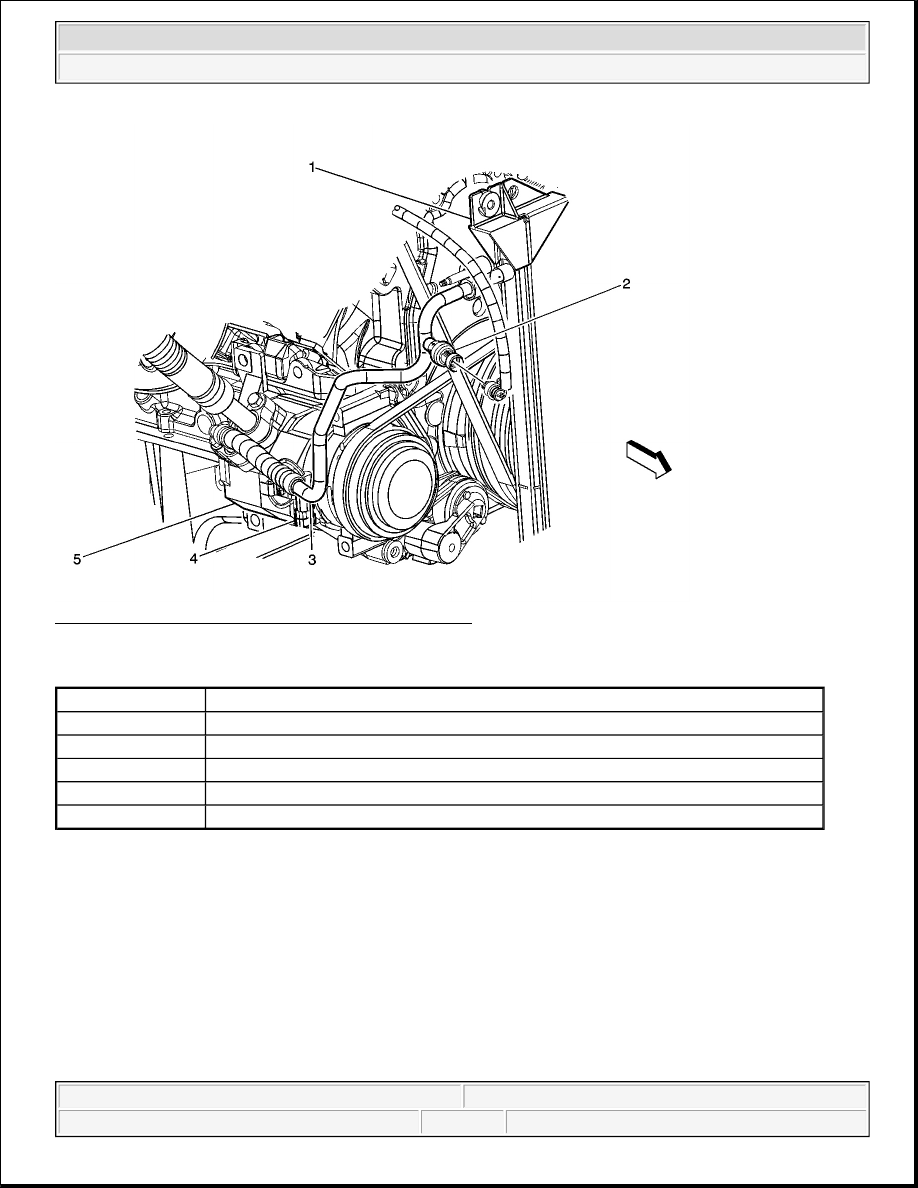

Fig. 7: Lower Right Side Of Engine Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 7

Callout

Component Name

1

A/C Condenser

2

A/C Refrigerant Pressure Sensor

3

A/C Condenser Hose

4

A/C Compressor Clutch Connector

5

A/C Compressor



2004 Hummer H2

2004 HVAC HVAC Systems - Automatic - Hummer H2



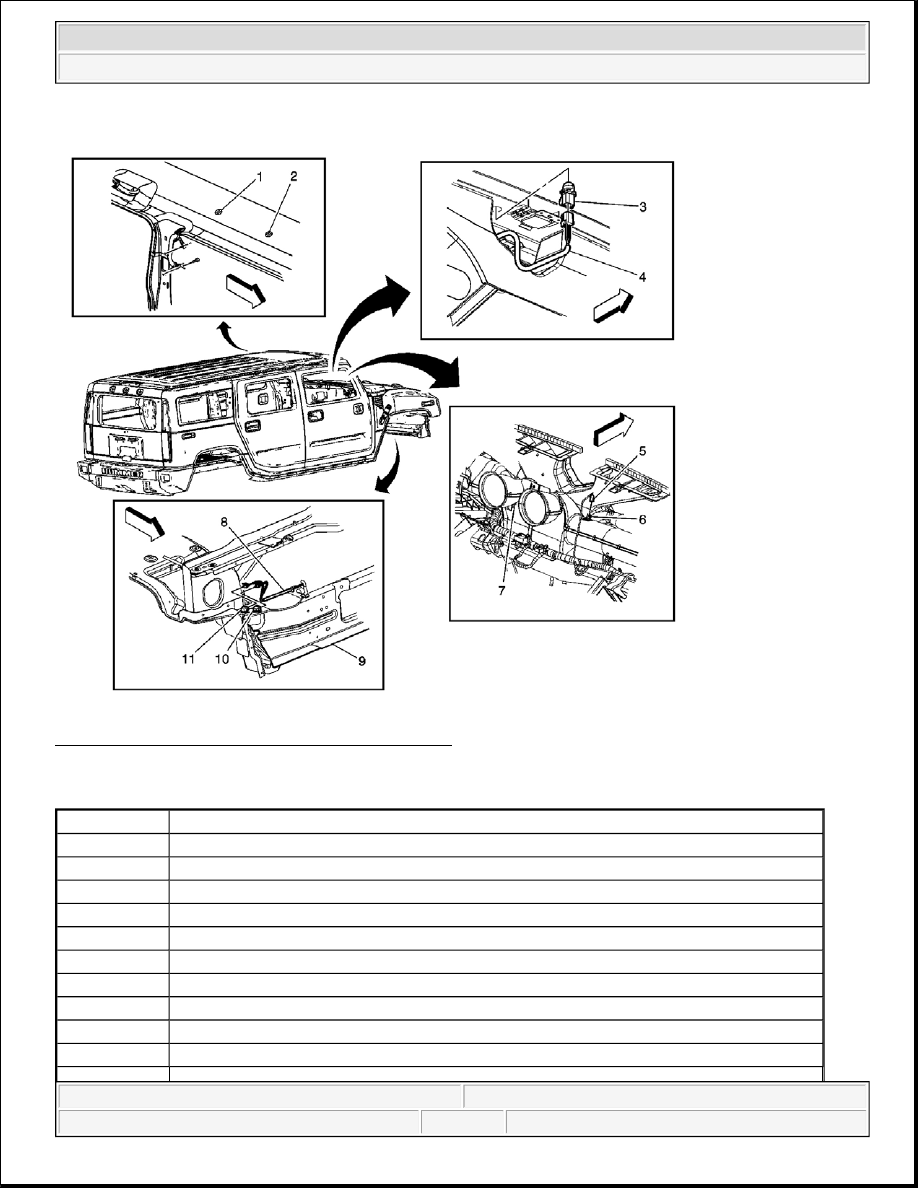

Fig. 8: HVAC Subsystem Component Views (1 of 2)
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 8

Callout

Component Name

1

Air Temperature Sensor - Inside

2

Cellular Telephone Microphone

3

Ambient Light/Sunload Sensor Assembly

4

I/P Harness

5

Air Temperature Sensor Connector - Upper Right

6

Air Temperature Sensor - Upper Right

7

Air Temperature Sensor - Upper Left

8

Forward Lamp Harness

9

Radiator Support

10

Ambient Air Temperature Sensor - HVAC



2004 Hummer H2

2004 HVAC HVAC Systems - Automatic - Hummer H2



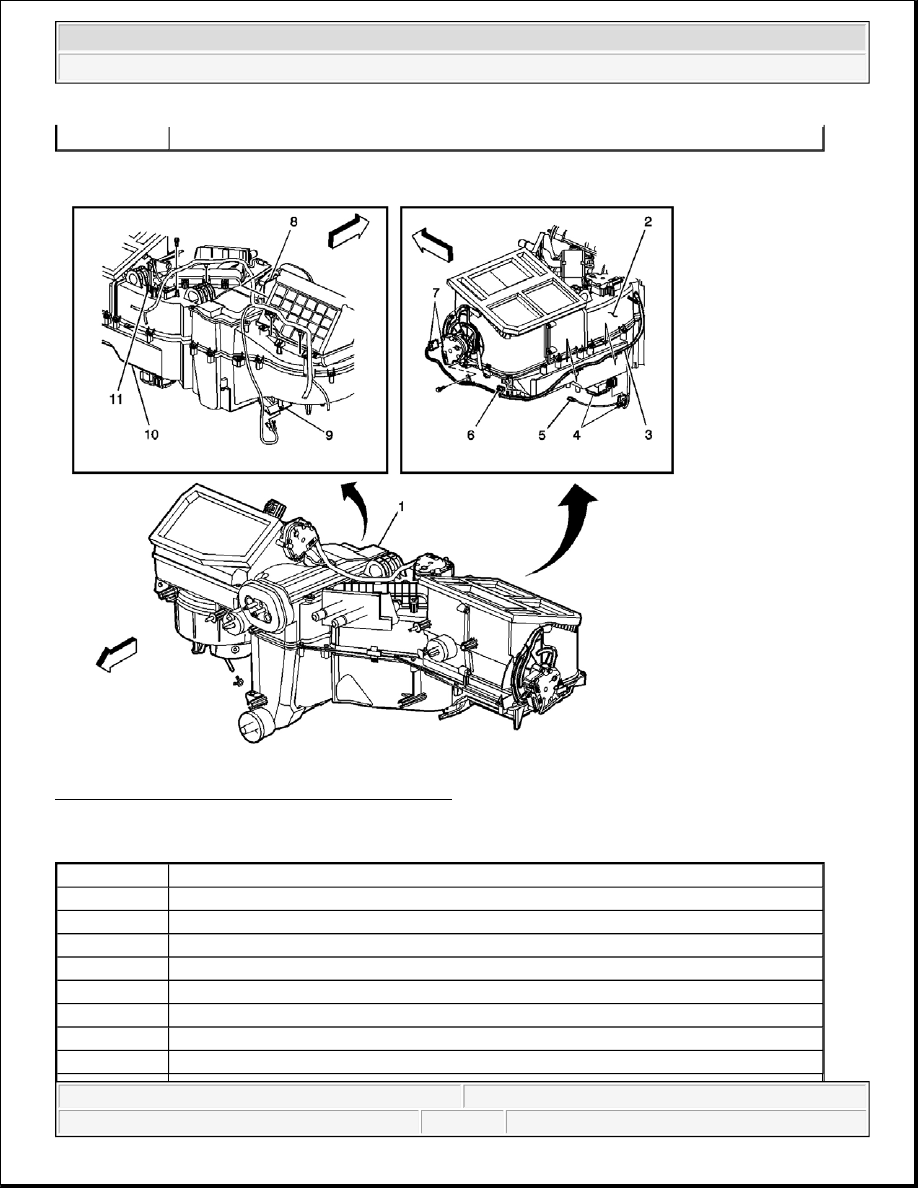

Fig. 9: HVAC Subsystem Component Views (2 of 2)
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 9

11

Ambient Air Temperature Sensor - Mirror

Callout

Component Name

1

HVAC Control Module

2

HVAC Control Module

3

HVAC Harness

4

Air Temperature Actuator - Left

5

Air Temperature Sensor Connector - Lower Right

6

Air Temperature Sensor Connector - Lower Left

7

Mode Actuator

8

Recirculation Actuator



2004 Hummer H2

2004 HVAC HVAC Systems - Automatic - Hummer H2



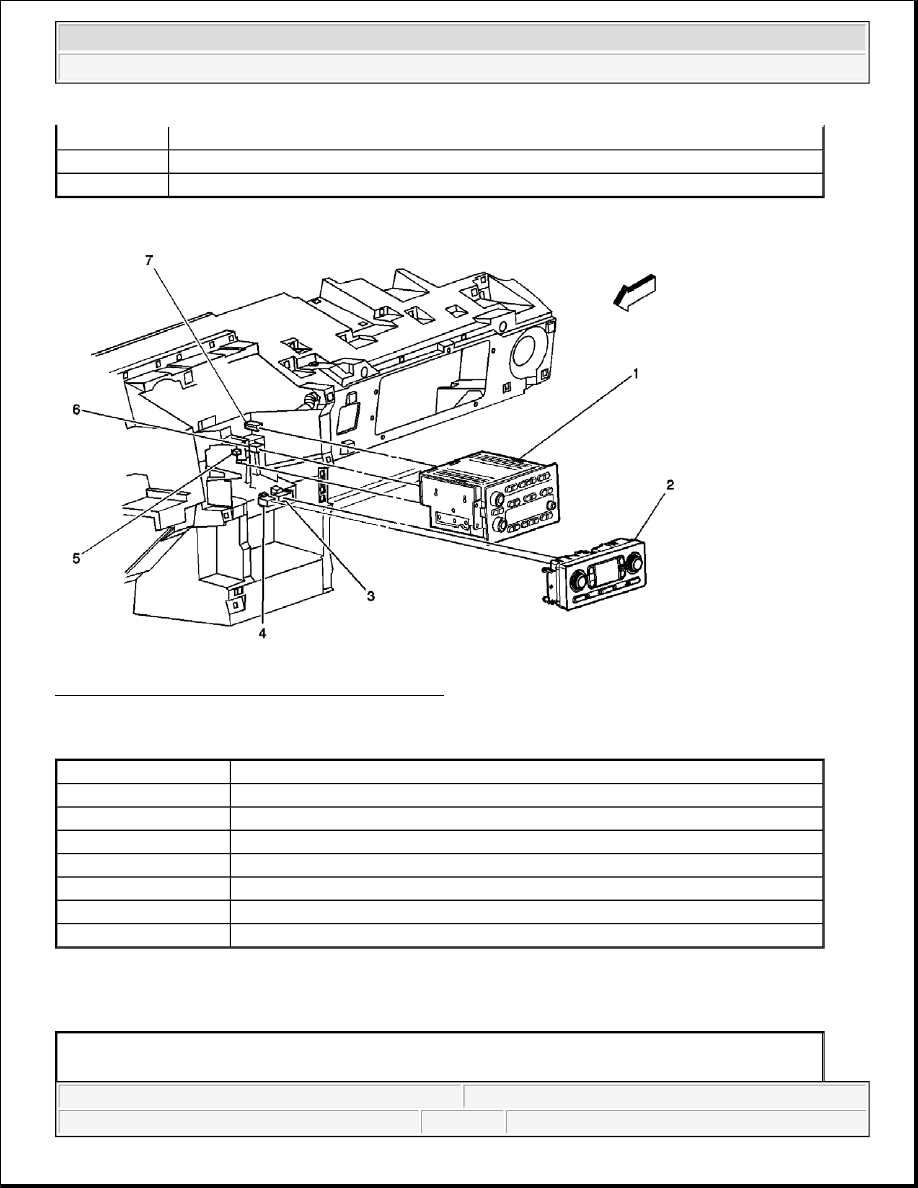

Fig. 10: HVAC Control Module Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 10

HVAC CONNECTOR END VIEWS

A/C Compressor Clutch Terminal Identification

9

Blower Motor Control Processor

10

HVAC Module

11

Air Temperature Actuator - Right

Callout

Component Name

1

Radio

2

HVAC Control Module

3

HVAC Control Module - C1

4

HVAC Control Module - C2

5

Radio - C3 - Not Used

6

Radio - C1

7

Radio - C2
