Fig. 3: Temperature Controls and Sunload Sensors Schematics
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2004 HVAC HVAC Systems - Automatic - Hummer H2



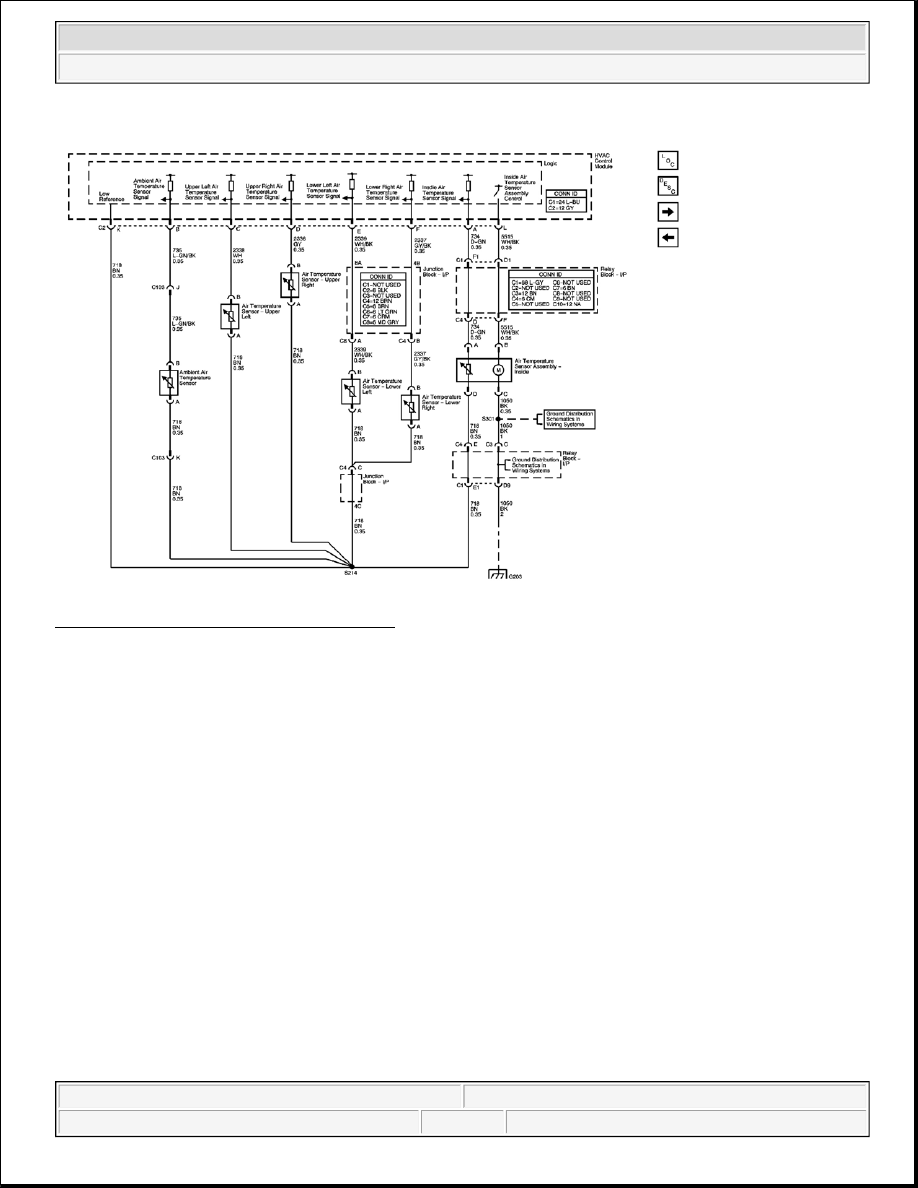

Fig. 4: Air Temperature Sensors Schematics
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2004 HVAC HVAC Systems - Automatic - Hummer H2



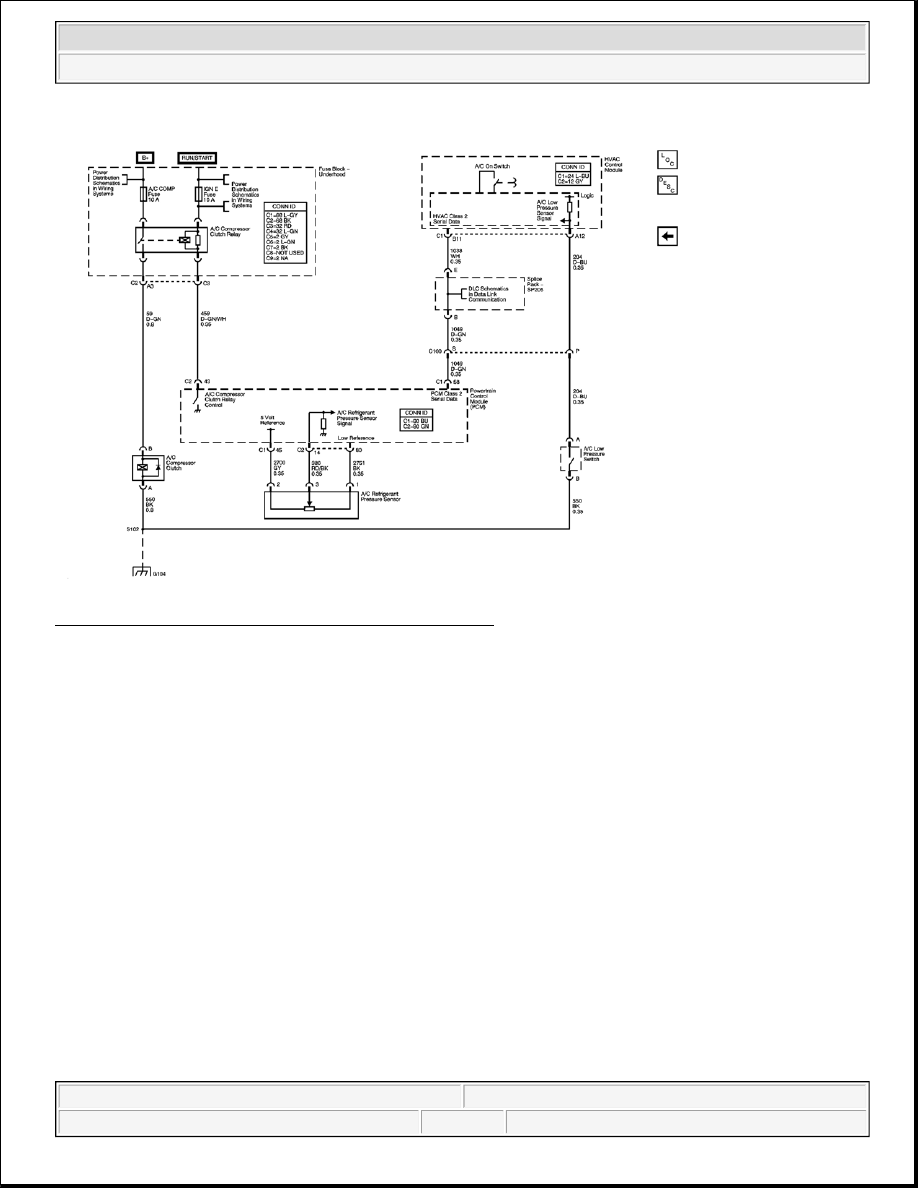

Fig. 5: Air Conditioning Compressor Control Schematics
Courtesy of GENERAL MOTORS CORP.

COMPONENT LOCATOR

HVAC COMPONENT VIEWS



2004 Hummer H2

2004 HVAC HVAC Systems - Automatic - Hummer H2



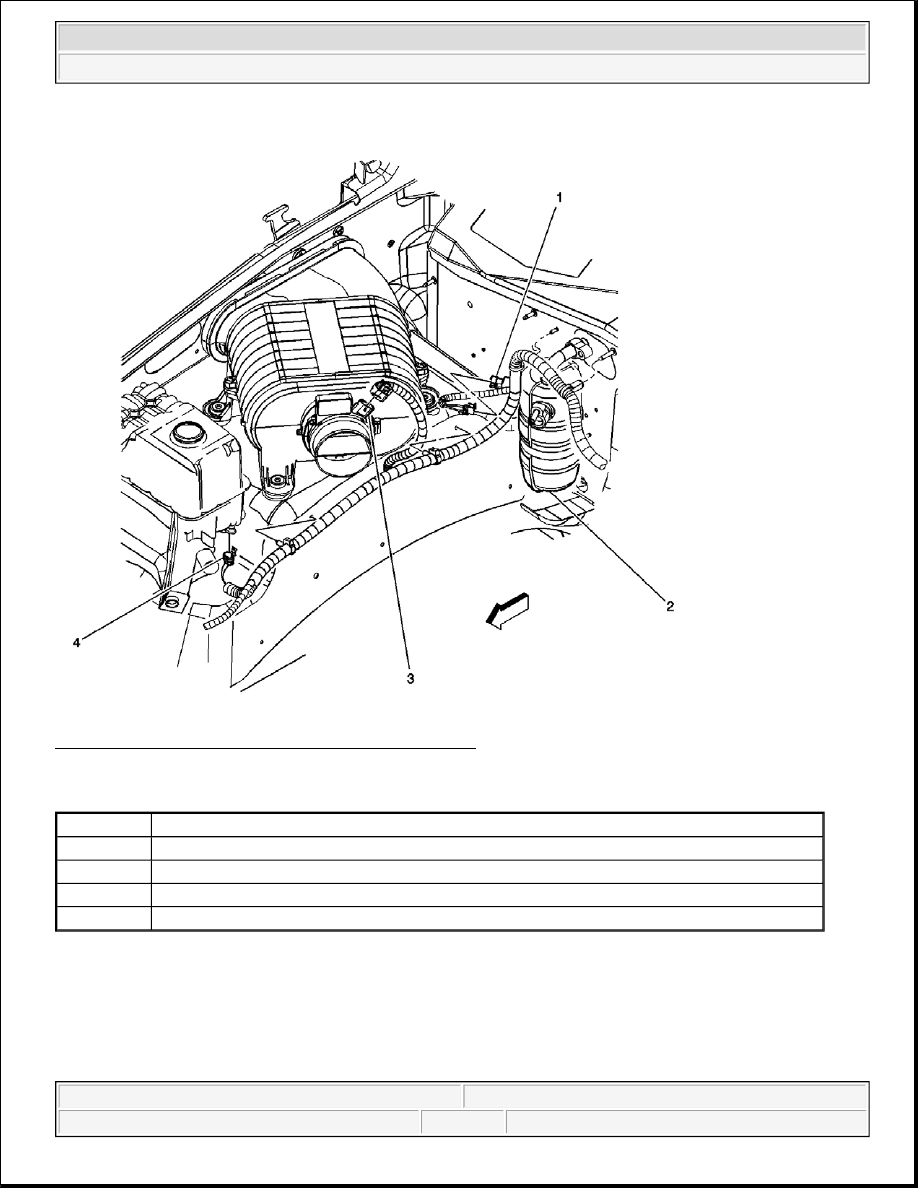

Fig. 6: RR Of Engine Compartment Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 6

Callout

Component Name

1

A/C Low Pressure Switch

2

A/C Accumulator

3

Intake Air Temperature (IAT)/Mass Air Flow (MAF) Sensor

4

Coolant Level Switch (If Equipped)
