2004 HVAC

HVAC Systems - Automatic - Hummer H2

SPECIFICATIONS

FASTENER TIGHTENING SPECIFICATIONS

Fastener Tightening Specifications

SENSOR RESISTANCE TABLE

Sensor Resistance Table

Application

Specification

Metric

English

Air Temperature Actuator Screws

2 N.m

18 lb in

Blower Motor Control Processor Screws

1.6 N.m

14 lb in

Evaporator Core Cover Screws

2 N.m

18 lb in

HVAC Control Module Screws

1.9 N.m

17 lb in

Mode Actuator Screws

2 N.m

18 lb in

Recirculation Actuator Screws

2 N.m

18 lb in

Temperature

Ambient Air Temperature

Sensor Resistance

Inside Air Temperature

Sensor Resistance

° C

° F

Minimum

Resistance

K Ohms

Maximum

Resistance

K Ohms

Minimum Resistance

K Ohms

Maximum Resistance

K Ohms

-40

-40

332.4

334.7

95.80

105.6

-35

-31

240.3

241.8

69.09

75.81

-30

-22

175.6

176.6

50.34

55.00

-25

-13

129.6

130.3

37.04

40.29

-20

-4

96.55

97.07

27.51

29.80

-15

5

72.63

72.99

20.61

22.24

-10

14

55.12

55.38

15.57

16.74

-5

23

42.20

42.38

11.86

12.70

0

32

32.62

32.75

9.108

9.712

5

41

25.34

25.44

7.047

7.492

10

50

19.86

19.94

5.494

5.825

15

59

15.68

15.74

4.326

4.574

20

68

12.46

12.51

3.417

3.602

25

77

9.98

10.02

2.73

2.870

30

86

8.043

8.076

2.185

2.295

35

95

6.517

6.543

1.757

1.843



2004 Hummer H2

2004 HVAC HVAC Systems - Automatic - Hummer H2





2004 Hummer H2

2004 HVAC HVAC Systems - Automatic - Hummer H2



SCHEMATIC AND ROUTING DIAGRAMS

HVAC SCHEMATICS

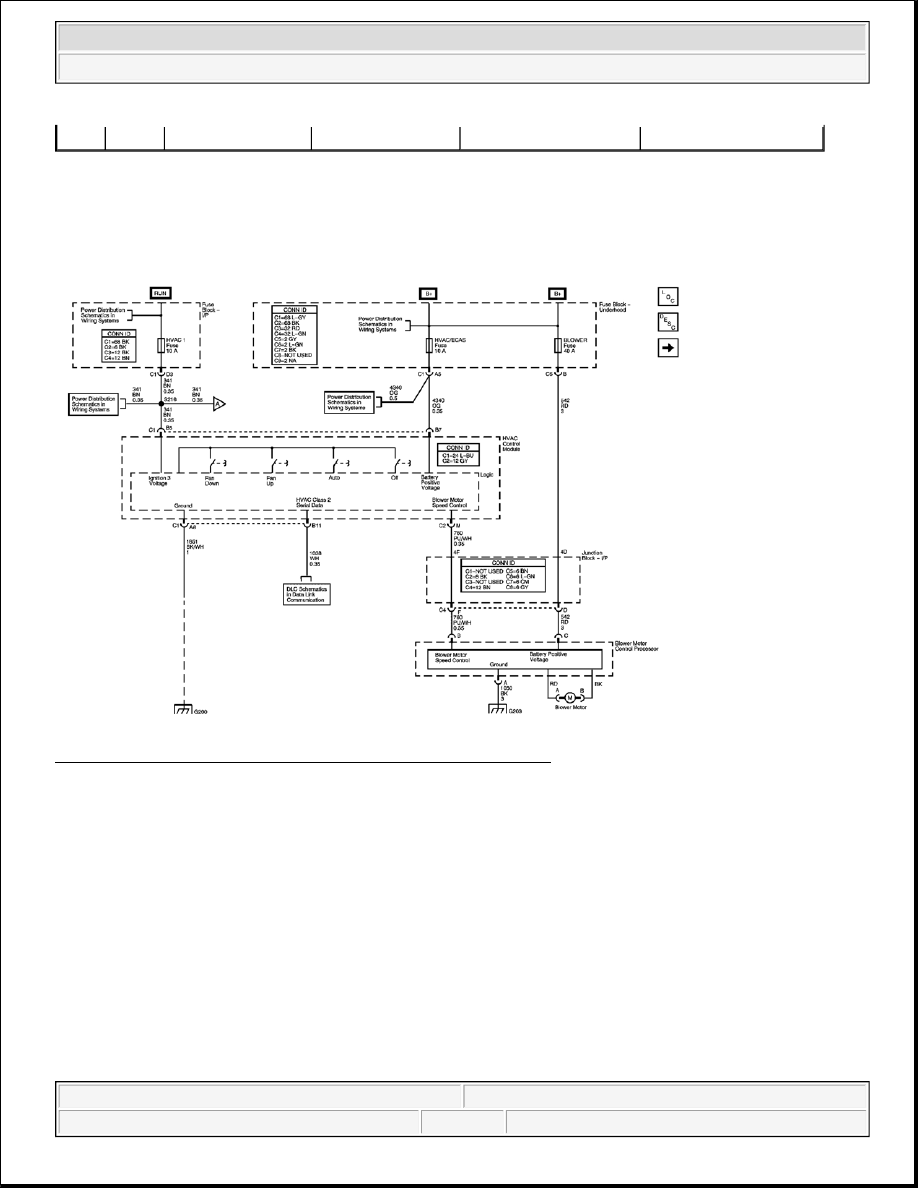

Fig. 1: Power, Grounding, DLC, and Blower Control Schematics
Courtesy of GENERAL MOTORS CORP.

40

104

5.309

5.33

1.425

1.494



2004 Hummer H2

2004 HVAC HVAC Systems - Automatic - Hummer H2

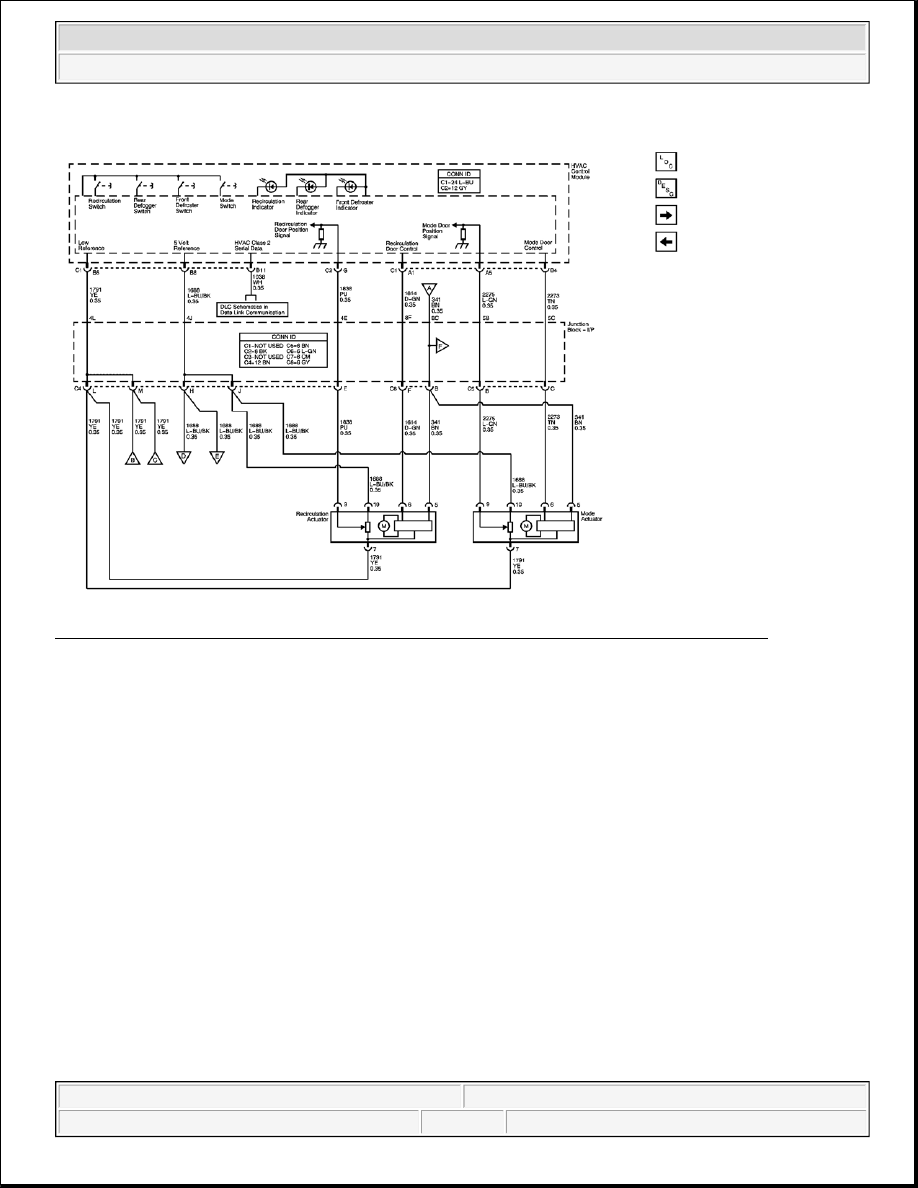

Fig. 2: Mode and Recirculation Controls, Front Defrost and Rear Defog Controls Schematics
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2004 HVAC HVAC Systems - Automatic - Hummer H2
