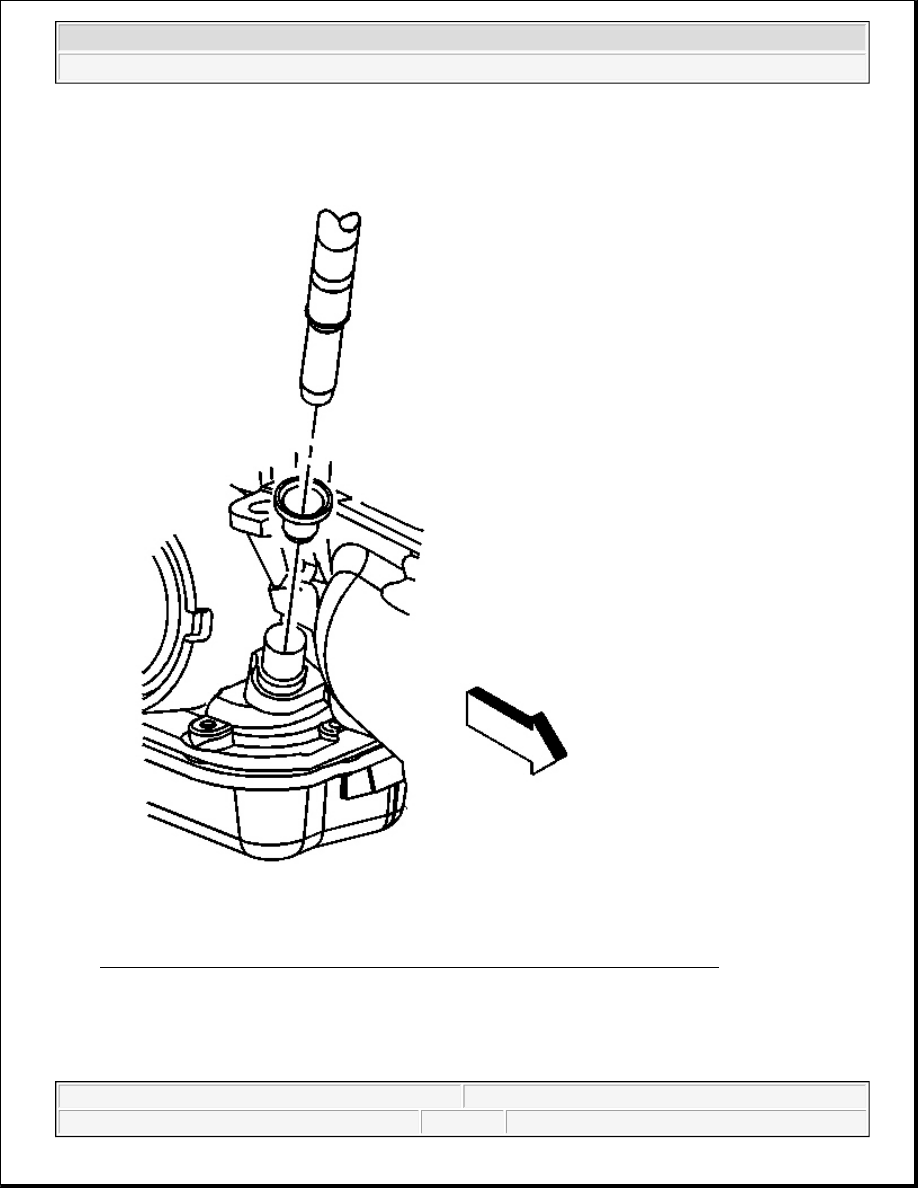

Fig. 236: Automatic Transmission Oil Indicator Tube Nut
Courtesy of GENERAL MOTORS CORP.

49. Remove the transmission oil level indicator tube nut.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



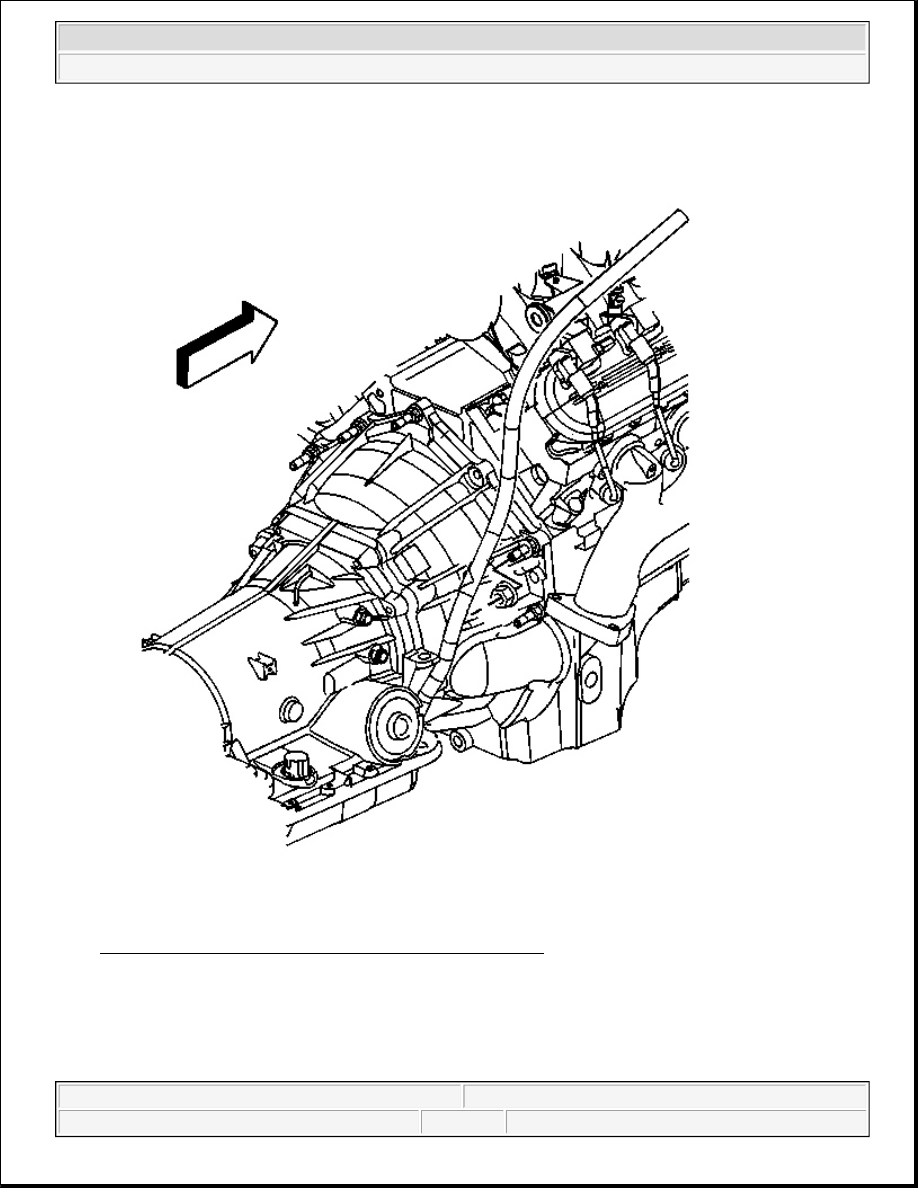

Fig. 237: Automatic Transmission Oil Level Indicator Tube (Without RPO HP2)
Courtesy of GENERAL MOTORS CORP.

50. Remove the transmission oil level indicator tube.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



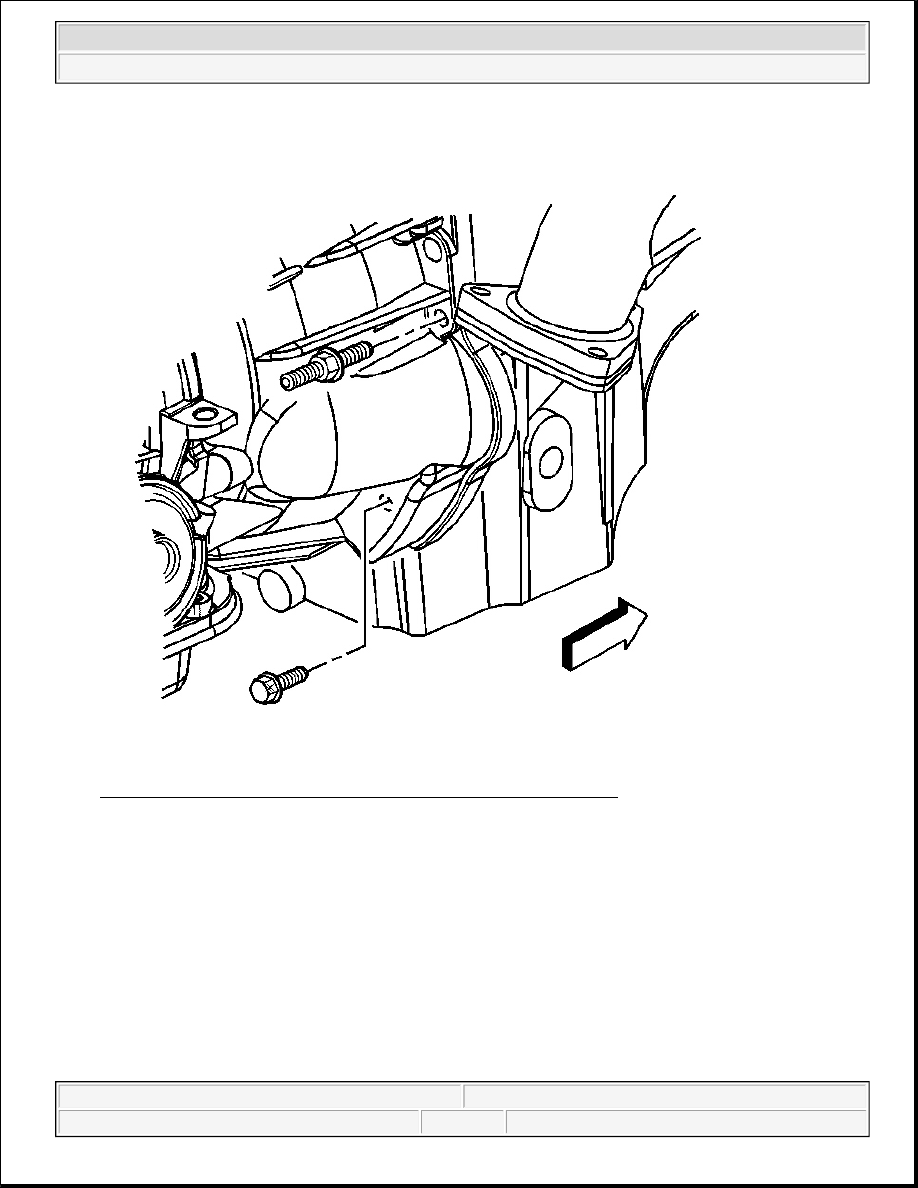

Fig. 238: Identifying Stud & Bolt Securing Transmission To Engine
Courtesy of GENERAL MOTORS CORP.

51. If equipped with the 4L60-E automatic transmission, remove the transmission bolt and stud on the right

side.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



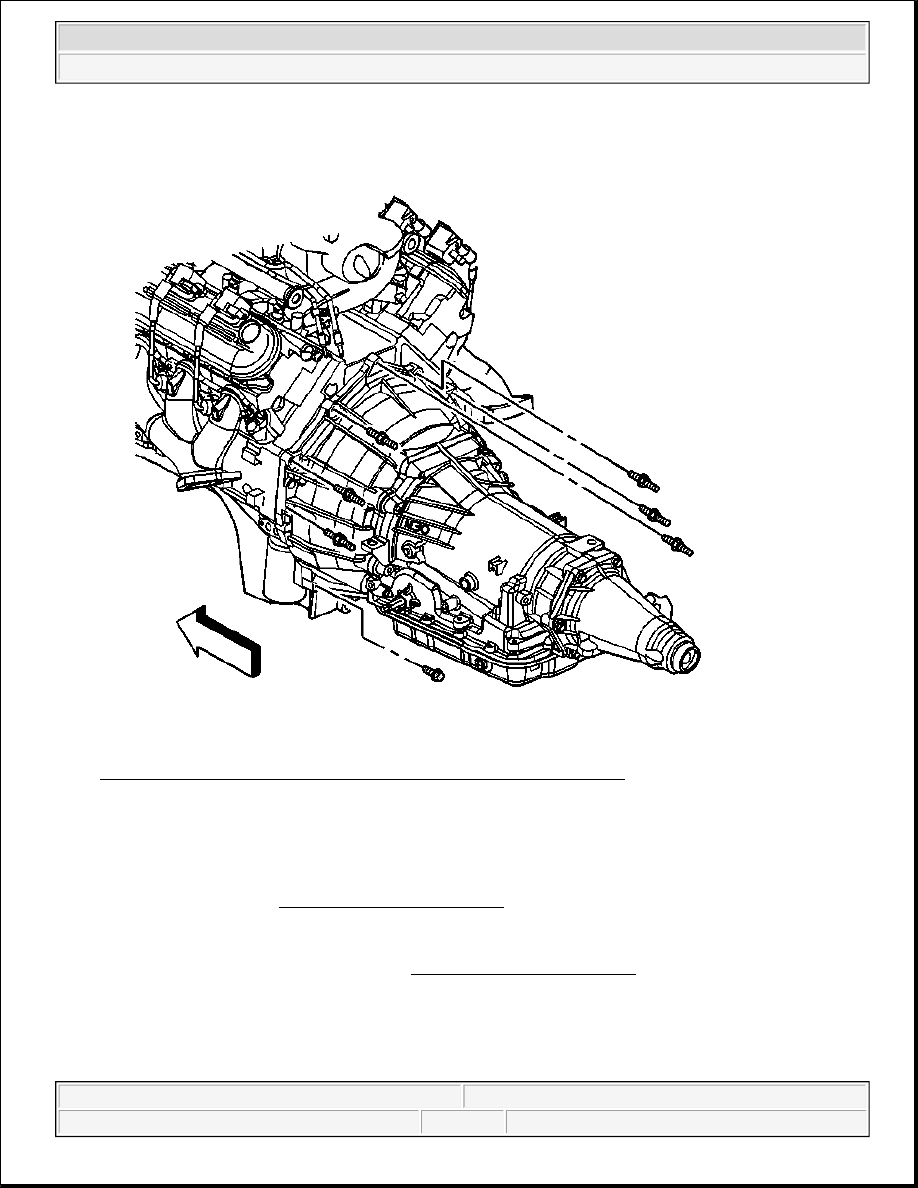

Fig. 239: Identifying Studs & Bolt Securing Transmission To Engine
Courtesy of GENERAL MOTORS CORP.

52. Remove the automatic transmission bolt/studs.

53. Separate the engine from the automatic transmission.

Install the J 21366 . See Special Tools and Equipment .

54. Lower the vehicle.

55. Install an engine hoist to the J 41798 . See Special Tools and Equipment .

56. Install a floor jack under the transmission for support.

NOTE:

Use care while moving the engine assembly in order to avoid breaking the
MAP sensor locating tabs. Broken MAP sensor tabs may result in
