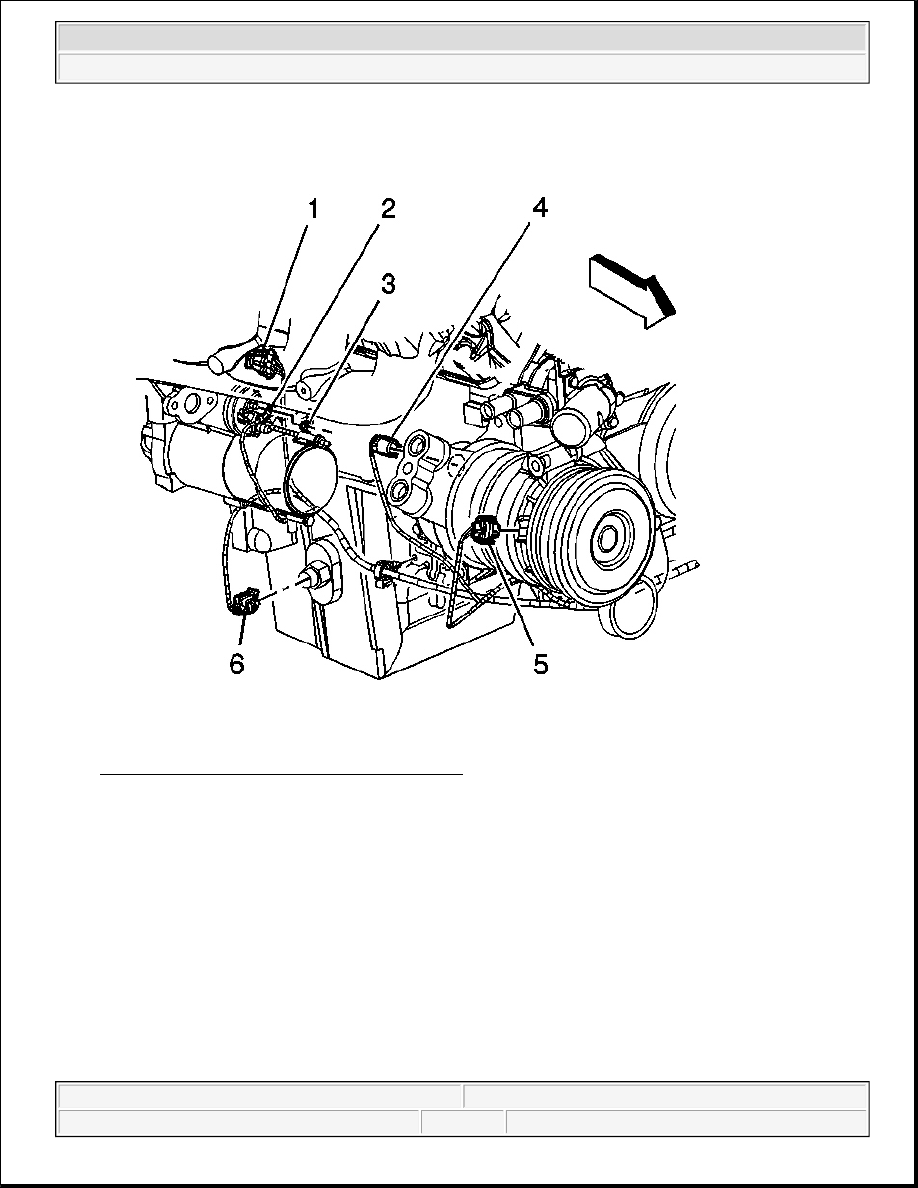

Fig. 228: Oil Level Sensor Electrical Connector
Courtesy of GENERAL MOTORS CORP.

33. Disconnect the following electrical connectors:

z

The crankshaft position (CKP) sensor (1)

z

The engine oil level sensor (6)

z

The coolant heater, if equipped



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2

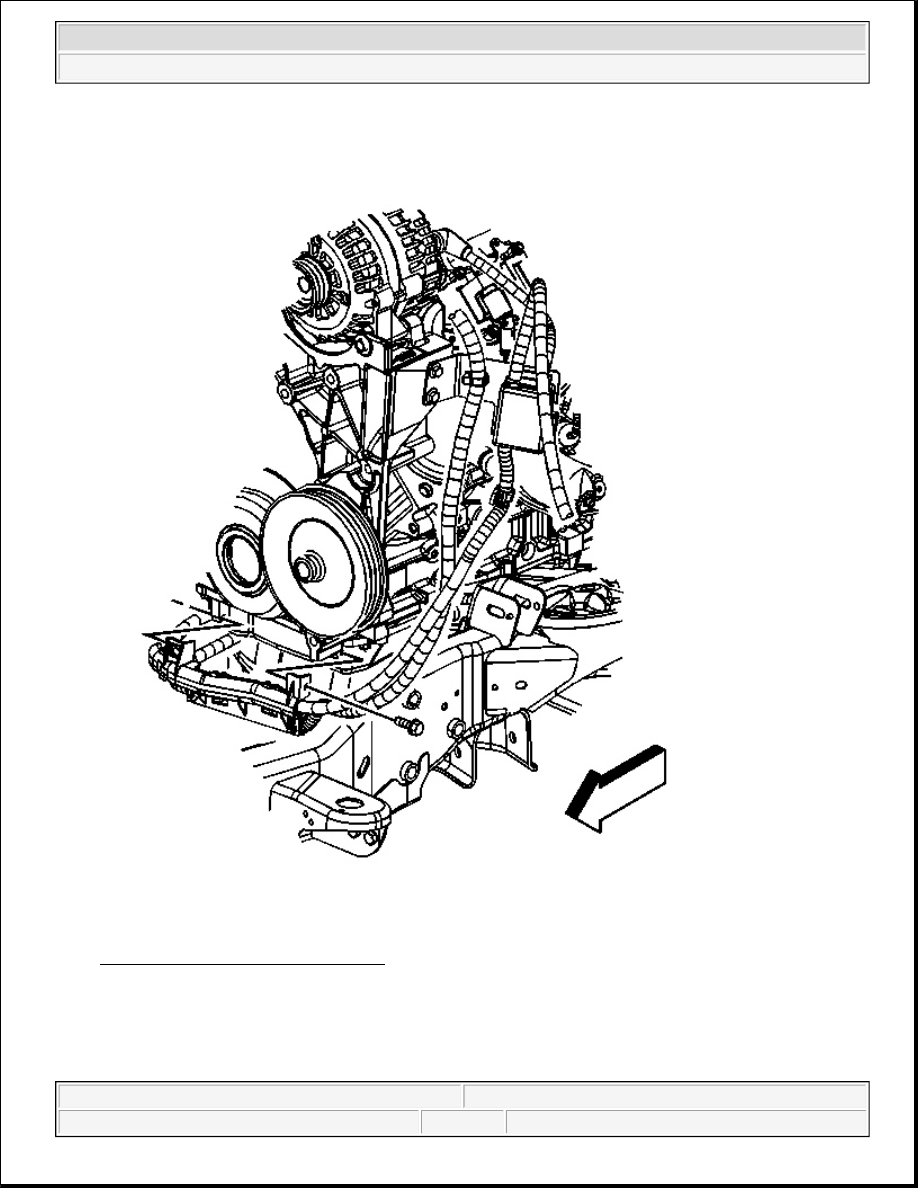

Fig. 229: Battery Cable Channel Bolt
Courtesy of GENERAL MOTORS CORP.

34. Remove the battery cable channel bolt.

35. Slide the channel pin out of the oil pan tab.

36. Gather all branches of the engine wiring harness and reposition off to the side.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



37. Lower the vehicle.

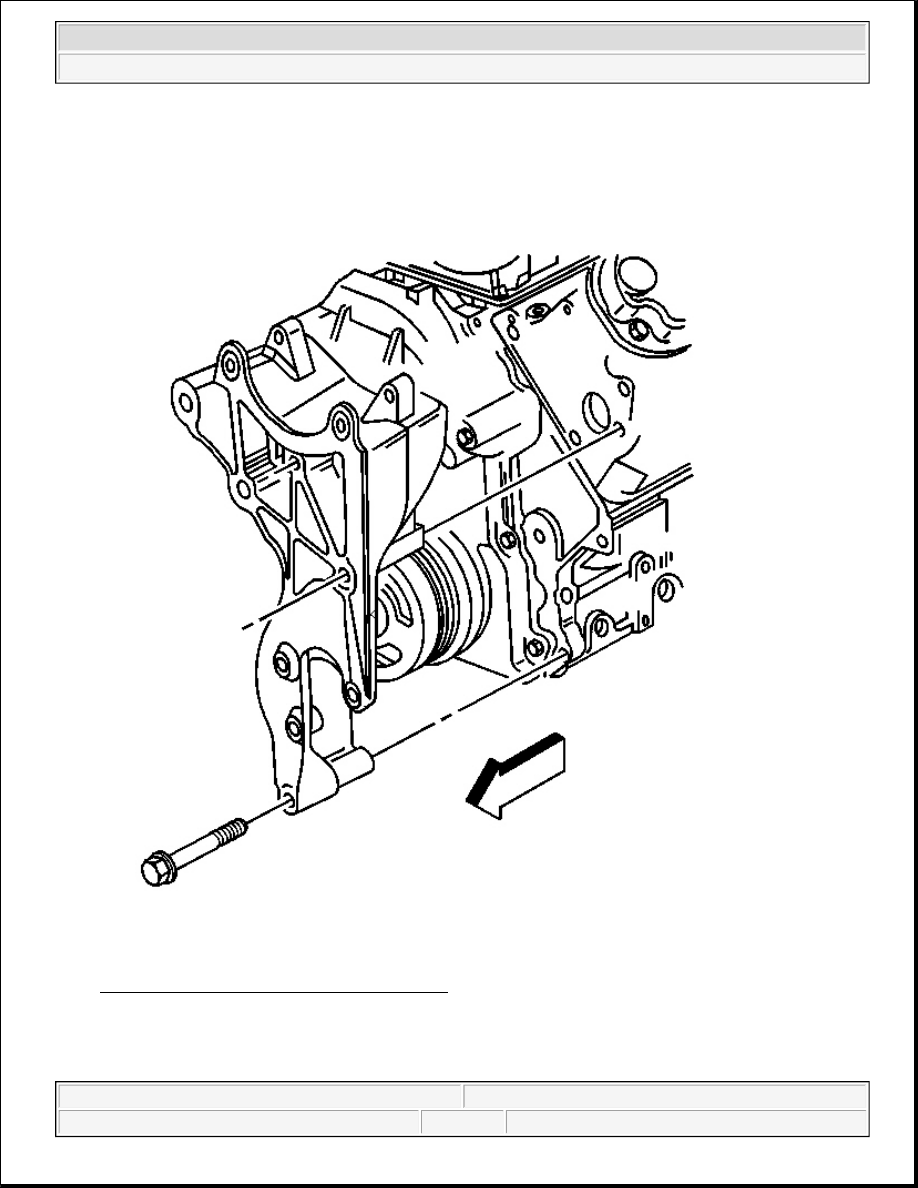

Fig. 230: View Of Generator Bracket & Bolts
Courtesy of GENERAL MOTORS CORP.

38. Remove the rear power steering pump-to-engine block bolt.

39. Remove the generator bracket mounting bolts.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



40. Position the bracket aside.

41. Remove the ignition coil, as required for the proper fit of the J 41798 before lifting the engine. See

Special Tools and Equipment . Refer to Ignition Coil(s) Replacement in Engine Controls - 6.0L.

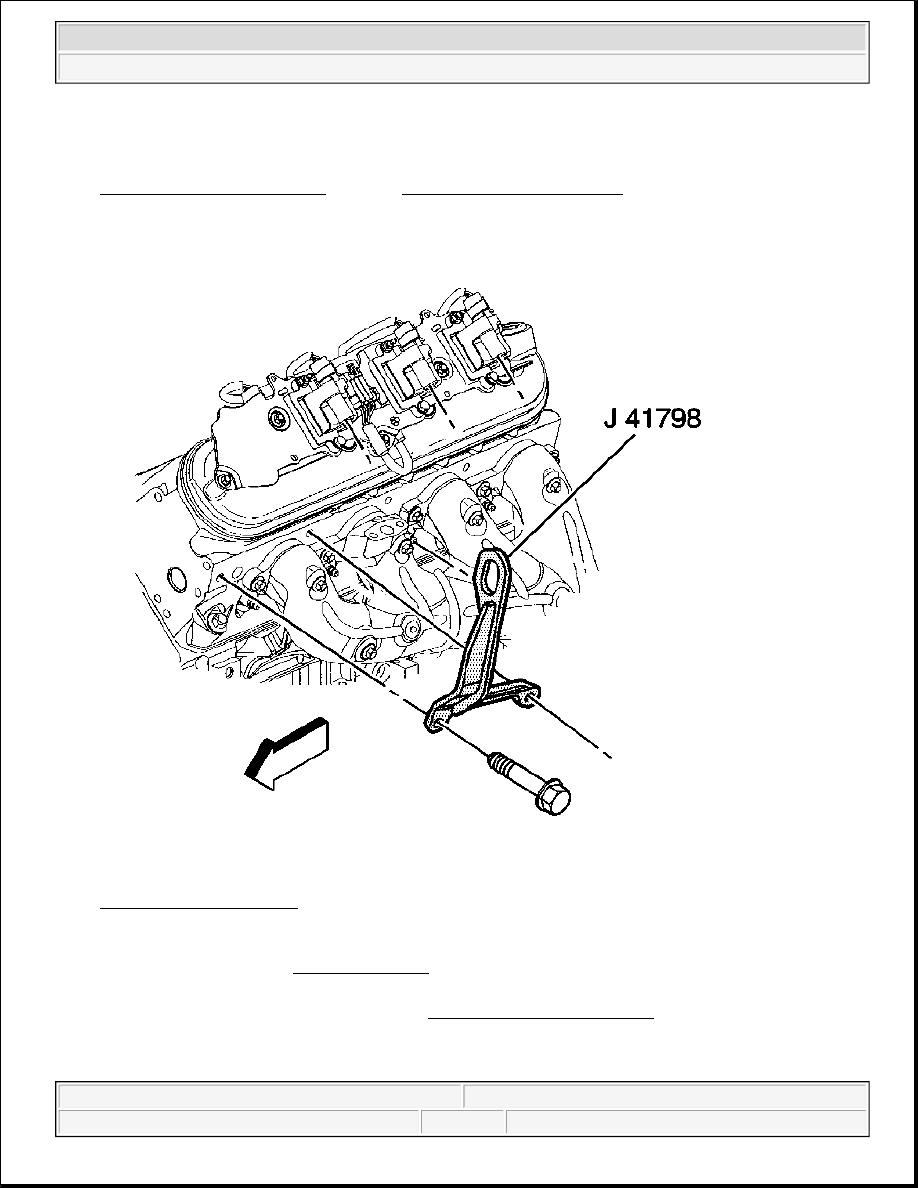

Fig. 231: View Of J 41798
Courtesy of GENERAL MOTORS CORP.

42. Install the J 41798 to the cylinder heads. See Special Tools and Equipment .

Tighten:

NOTE:

Refer to Fastener Notice in Cautions and Notices.
