Tighten the M8 engine lift bracket bolts to 25 N.m (18 lb ft).

z

Tighten the M10 engine lift bracket bolts to 50 N.m (37 lb ft).

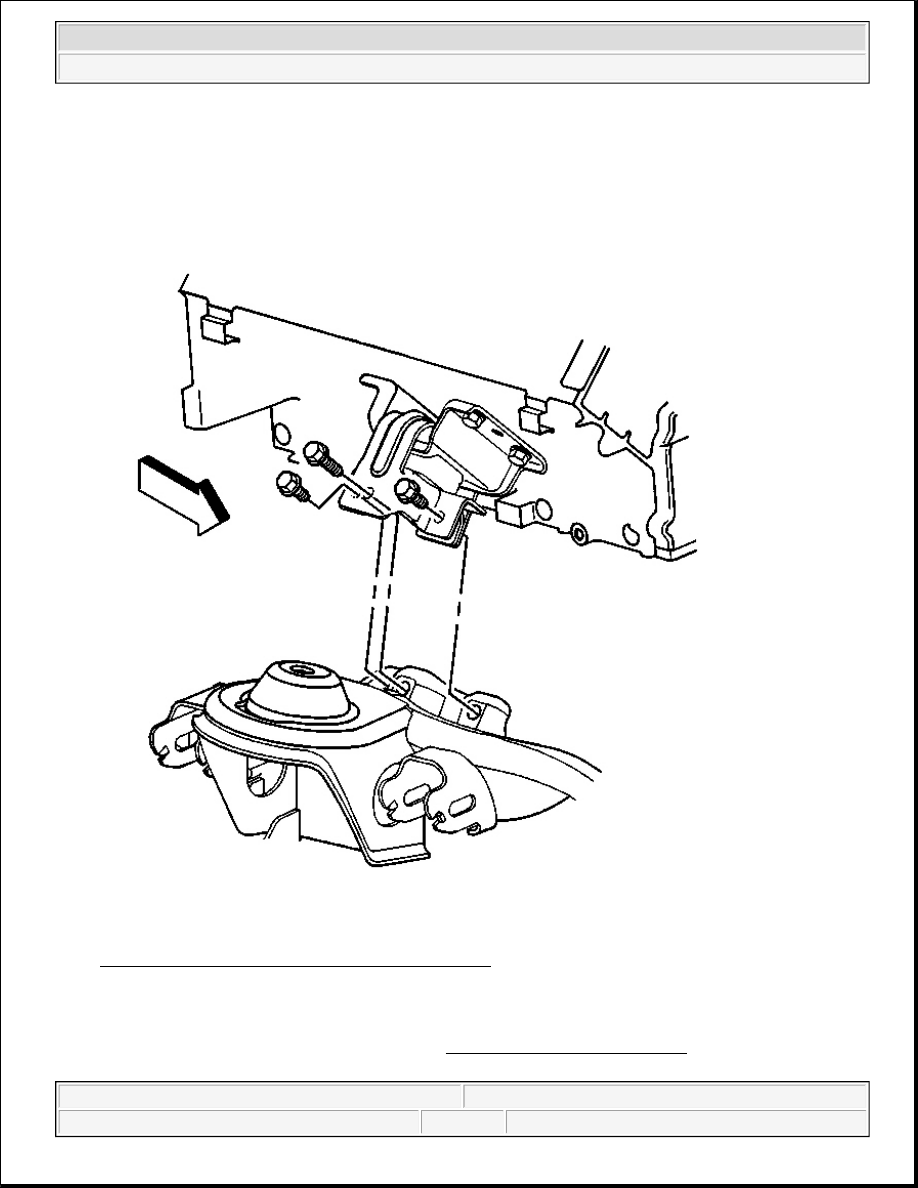

Fig. 232: Engine Mount-To-Engine Mount Bracket
Courtesy of GENERAL MOTORS CORP.

43. Remove the left and right engine mount-to-engine mount bracket bolts.

44. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



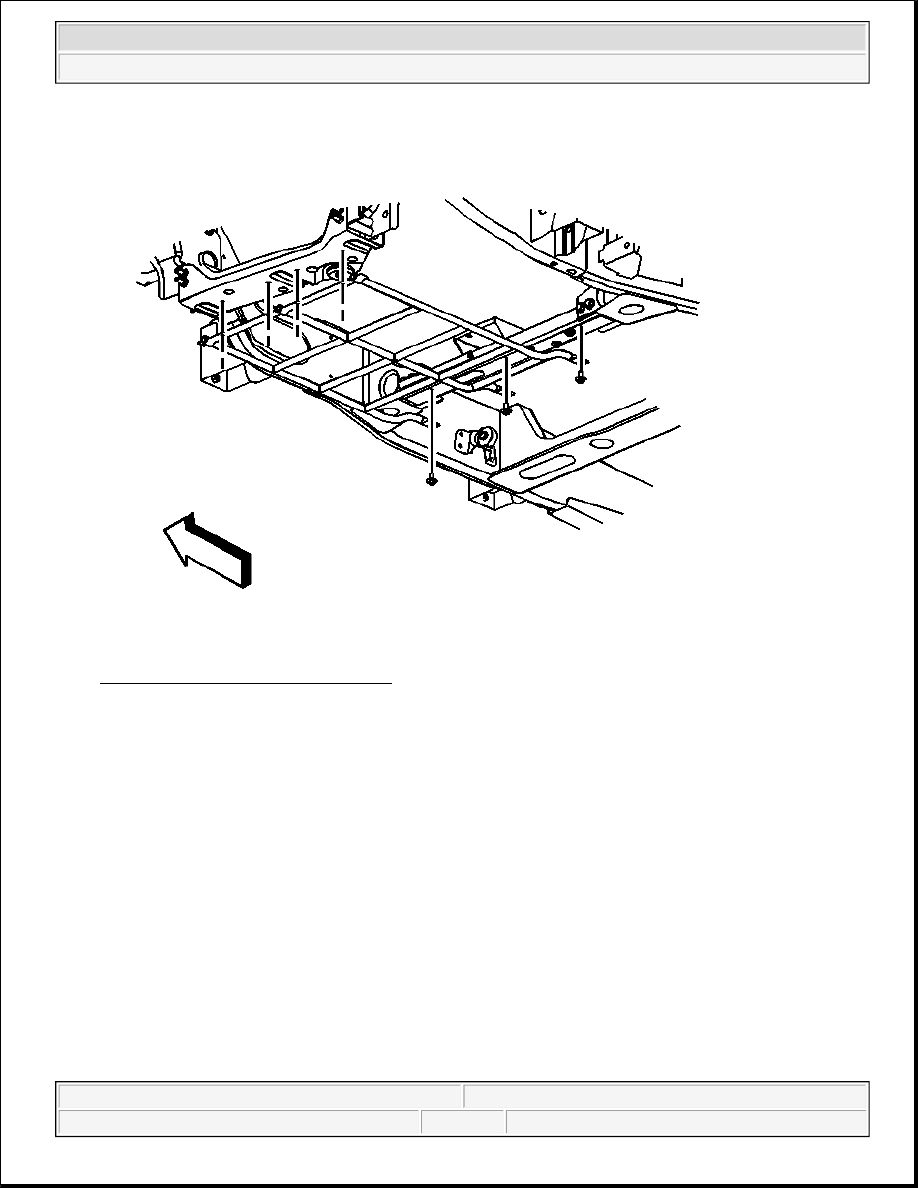

Fig. 233: Engine Shield Bolts
Courtesy of GENERAL MOTORS CORP.

45. Remove the engine shield bolts and shield.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



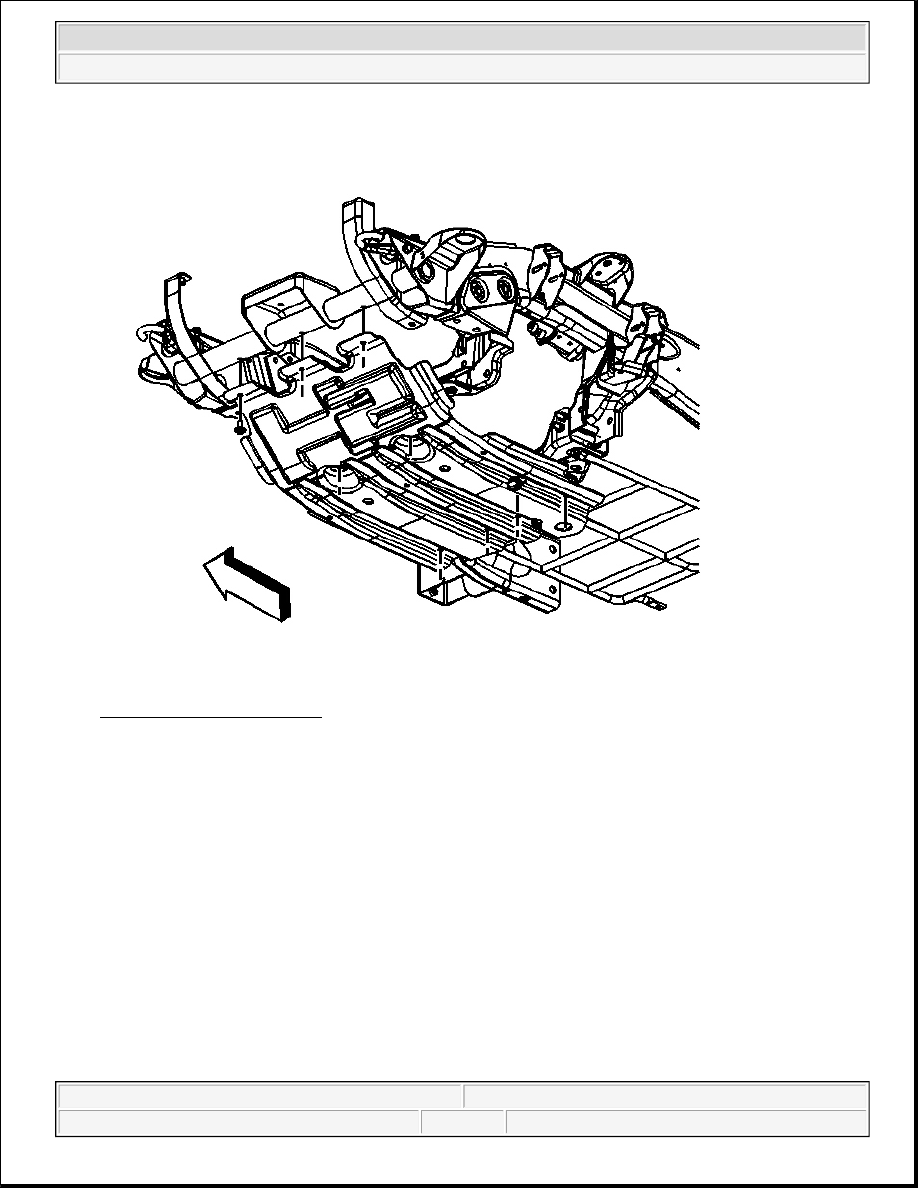

Fig. 234: Ladder Shield, Bolts & Plate
Courtesy of GENERAL MOTORS CORP.

46. Remove the ladder shields bolts and plate.

47. Drain the engine oil.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



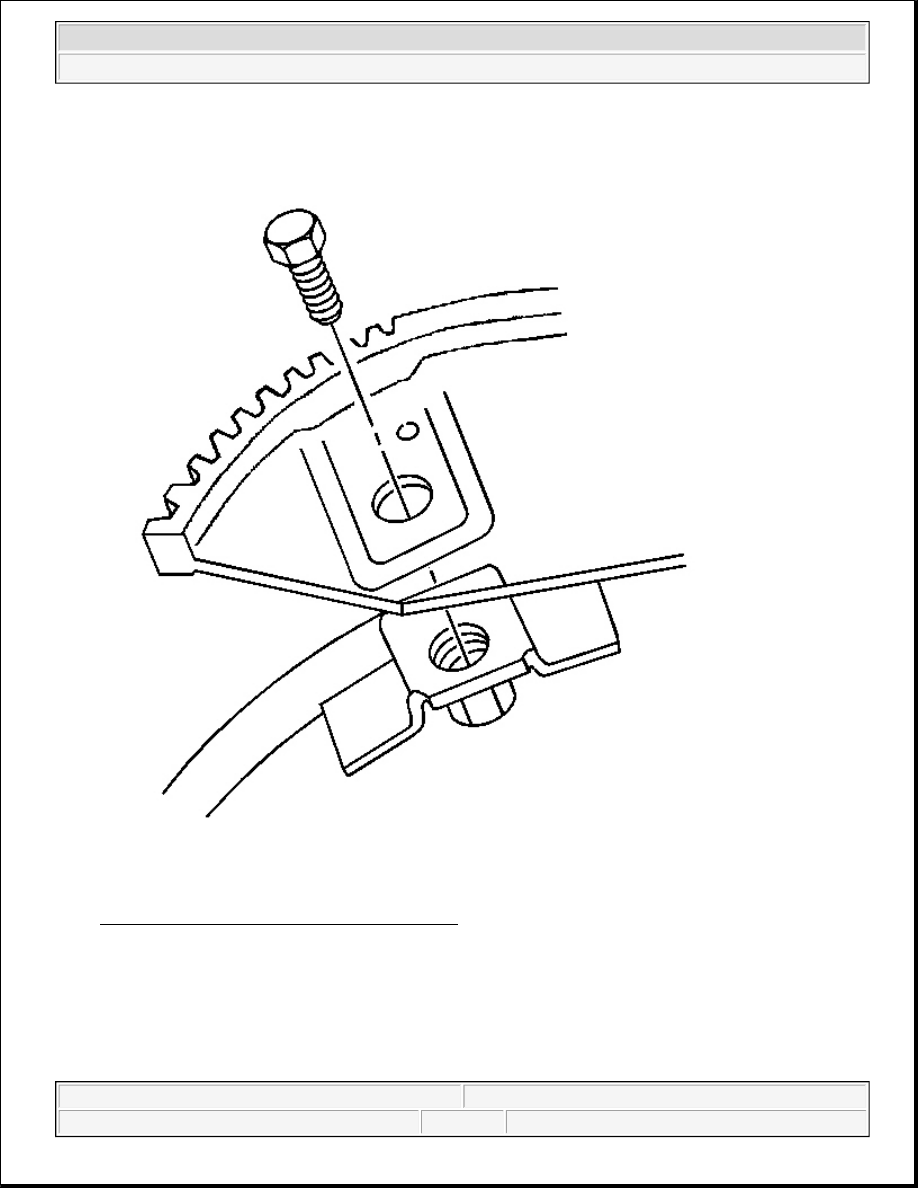

Fig. 235: Flywheel-To-Torque Converter Bolts
Courtesy of GENERAL MOTORS CORP.

48. Remove the flywheel to torque converter bolts.
