2. Disconnect the oil pressure sensor electrical connector (1).

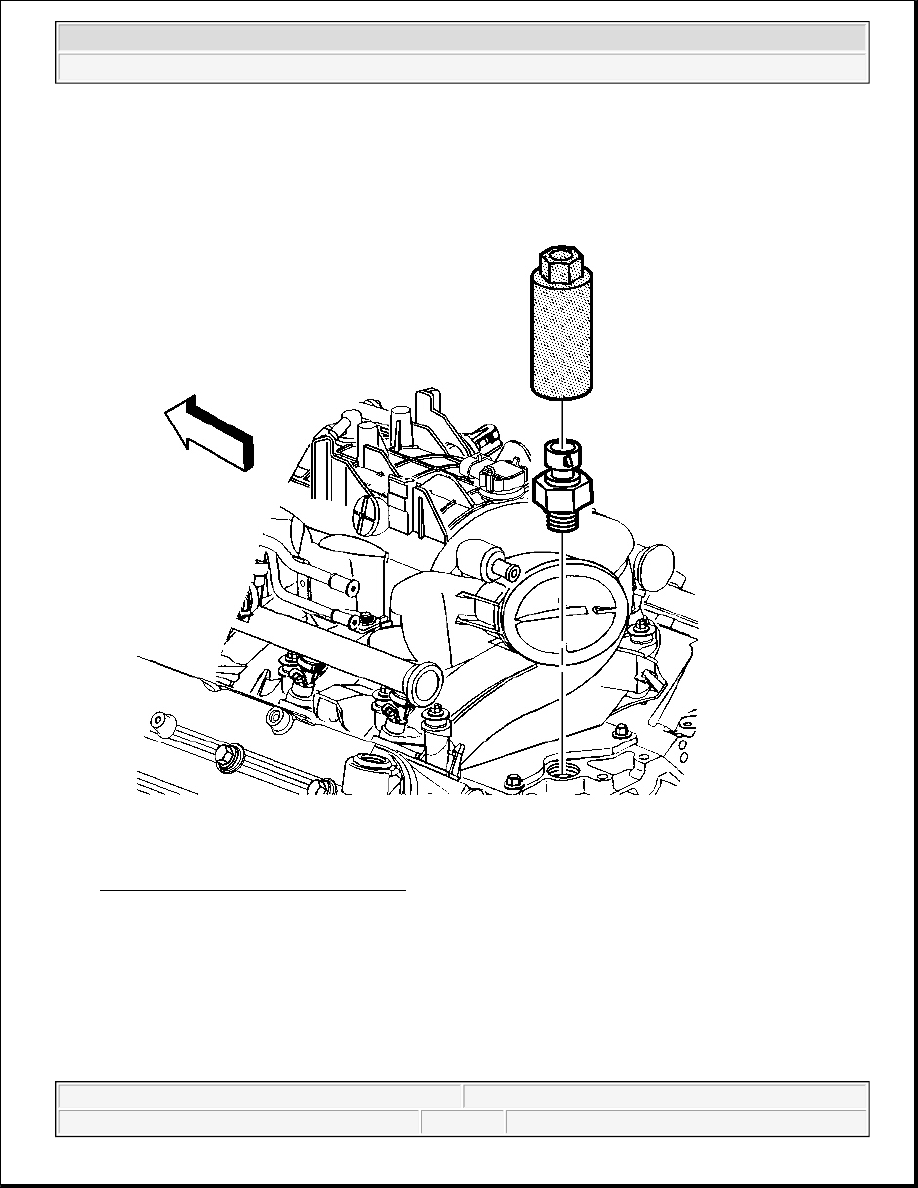

Fig. 178: Oil Pressure Sensor & J 41712
Courtesy of GENERAL MOTORS CORP.

3. Using J 41712 or equivalent, remove the oil pressure sensor.

Installation Procedure



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



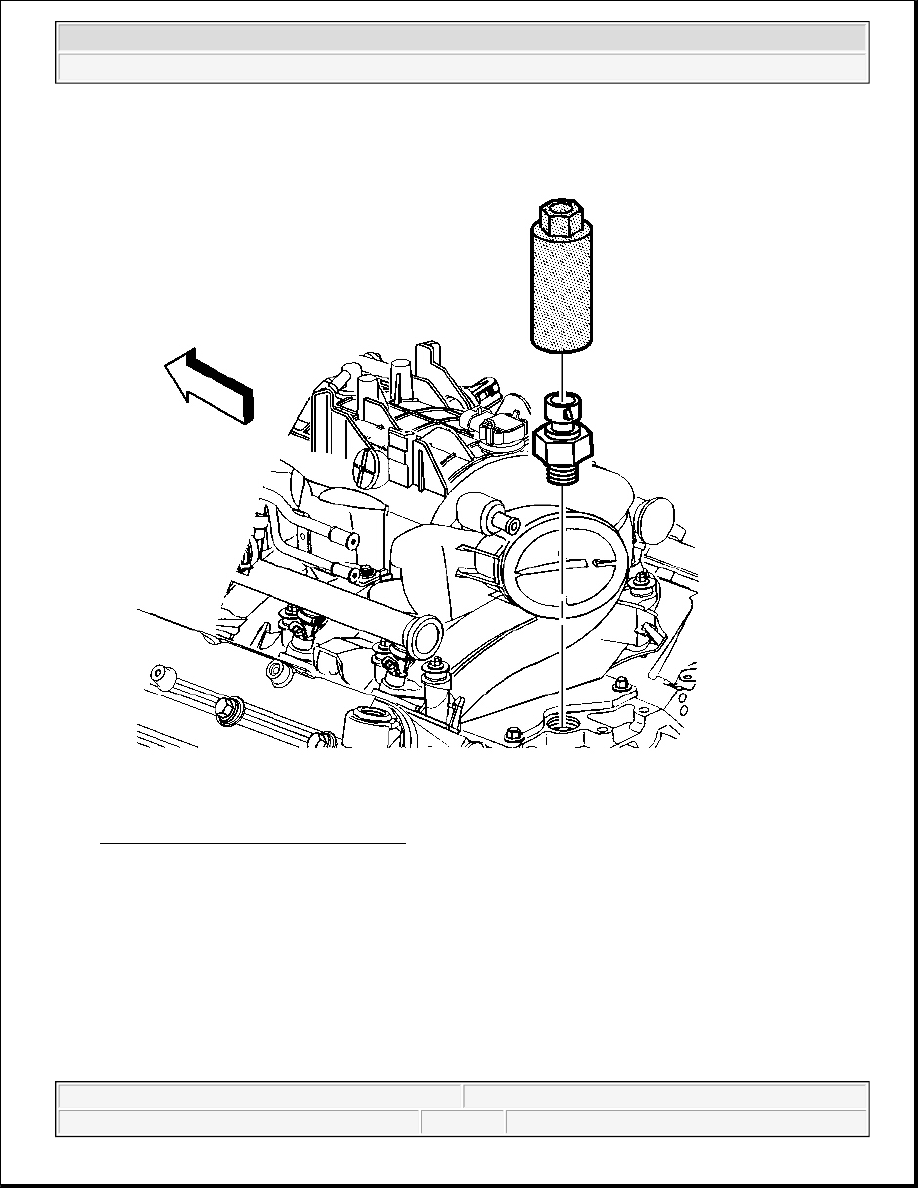

Fig. 179: Oil Pressure Sensor & J 41712
Courtesy of GENERAL MOTORS CORP.

1. Apply sealant GM U.S. P/N 12346004, Canada P/N 10953480, or equivalent, to the threads of the oil

pressure sensor.

2. Using J 41712 or equivalent, install the oil pressure sensor.

Tighten: Tighten the oil pressure sensor to 20 N.m (15 lb ft).

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



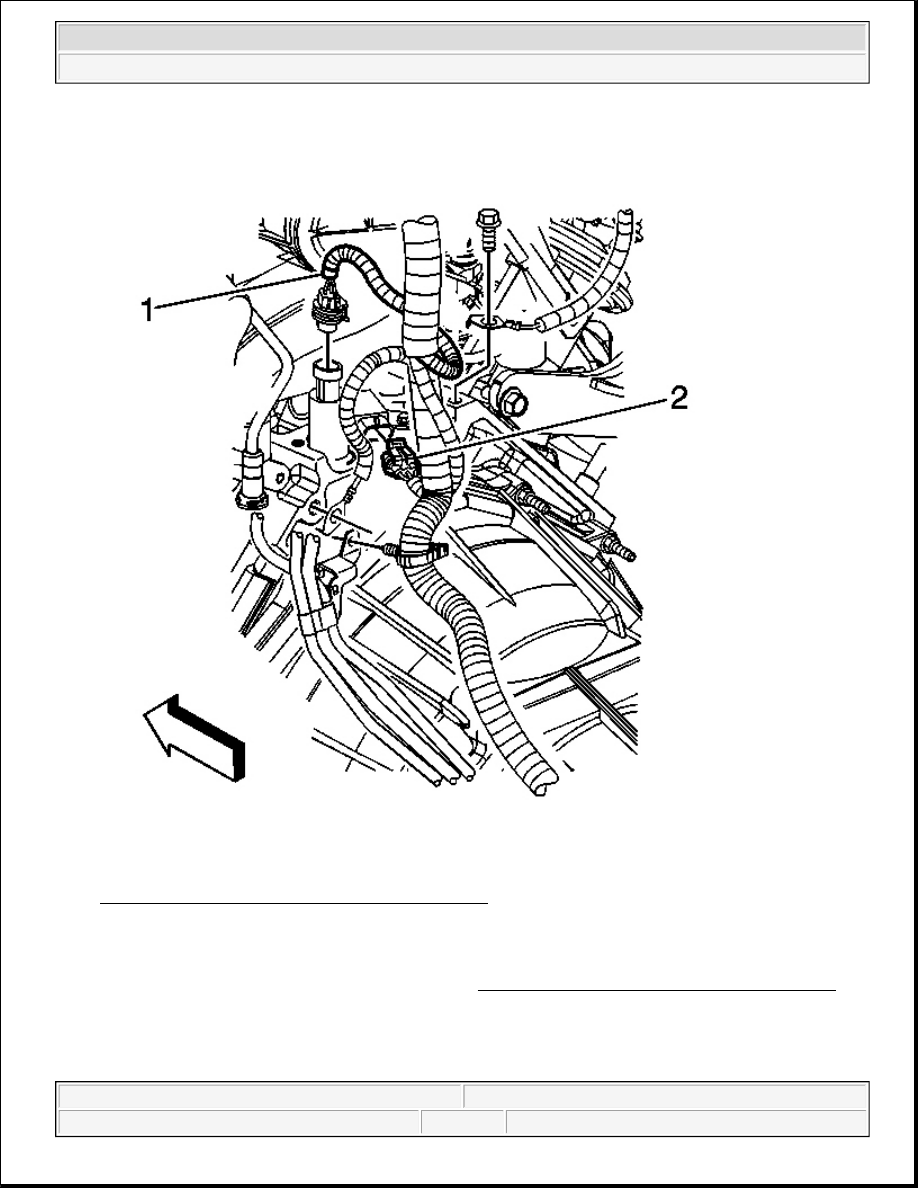

Fig. 180: Oil Pressure Sensor Electrical Connector
Courtesy of GENERAL MOTORS CORP.

3. Connect the oil pressure sensor electrical connector (1).

4. If necessary, install the engine sight shield. Refer to Engine Sight Shield Replacement (6.0L (LQ4)) .

ENGINE OIL LEVEL SENSOR AND/OR SWITCH REPLACEMENT

Removal Procedure



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



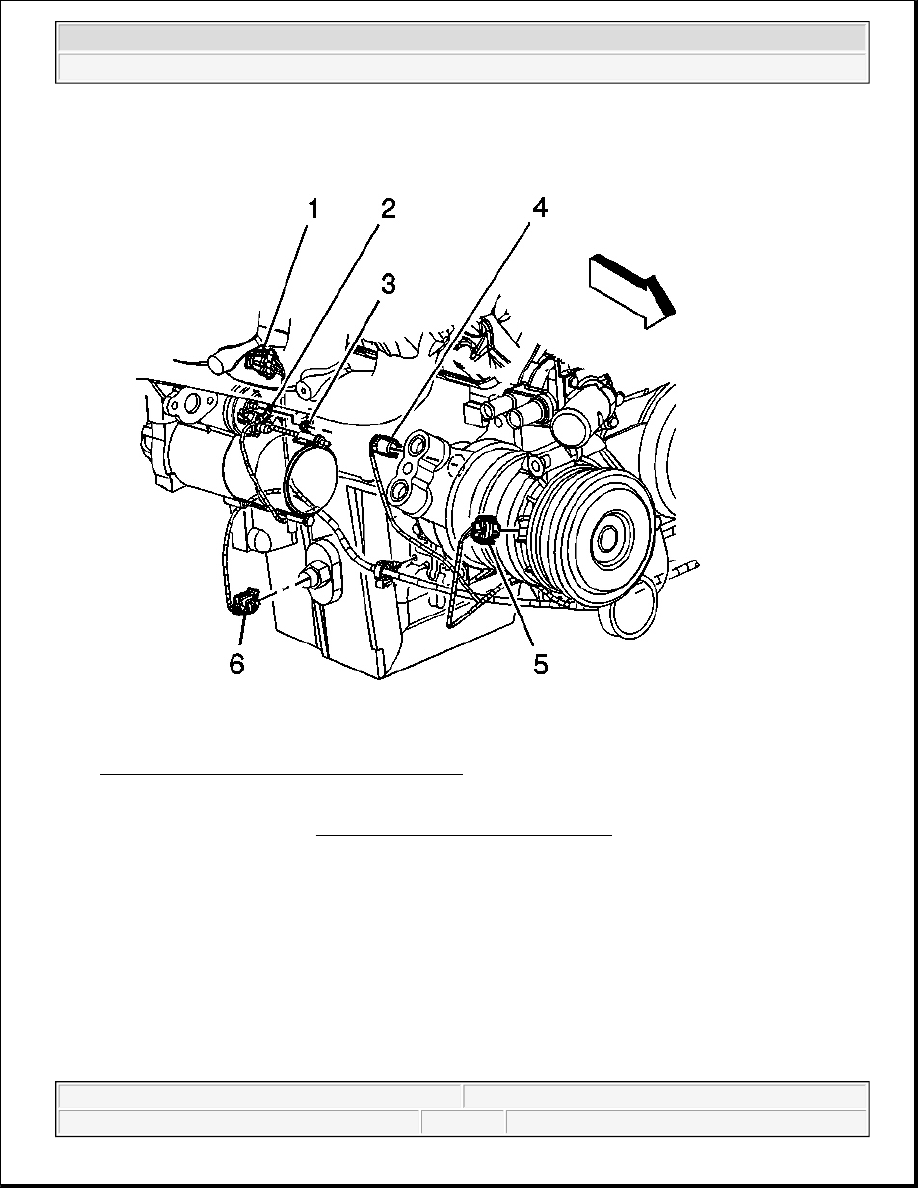

Fig. 181: Oil Level Sensor Electrical Connector
Courtesy of GENERAL MOTORS CORP.

1. Drain the engine oil. Refer to Engine Oil and Oil Filter Replacement .

2. Disconnect the oil level sensor electrical connector (6).
