Tighten: Tighten the battery cable channel bolt to 12 N.m (106 lb in).

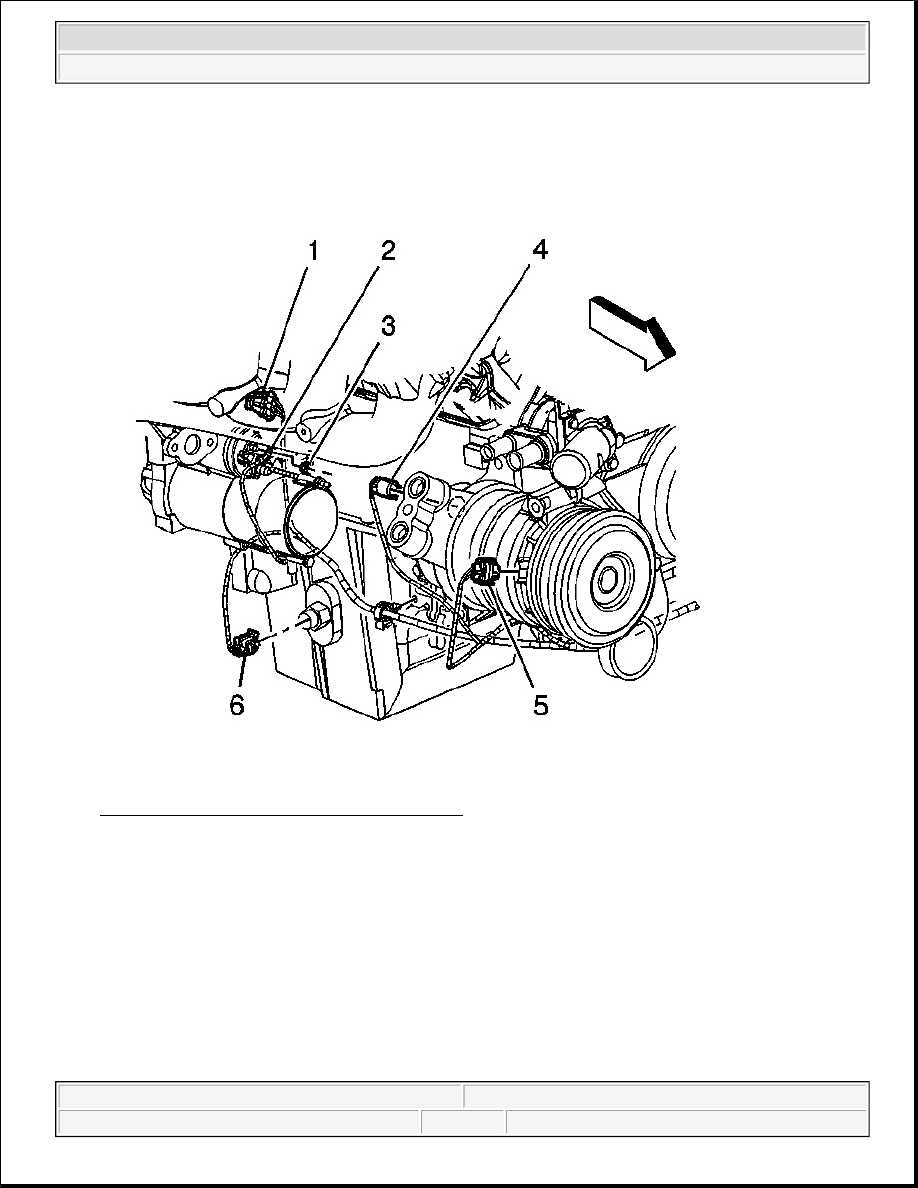

Fig. 174: Oil Level Sensor Electrical Connector
Courtesy of GENERAL MOTORS CORP.

13. Connect the oil level sensor electrical connector (6).



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



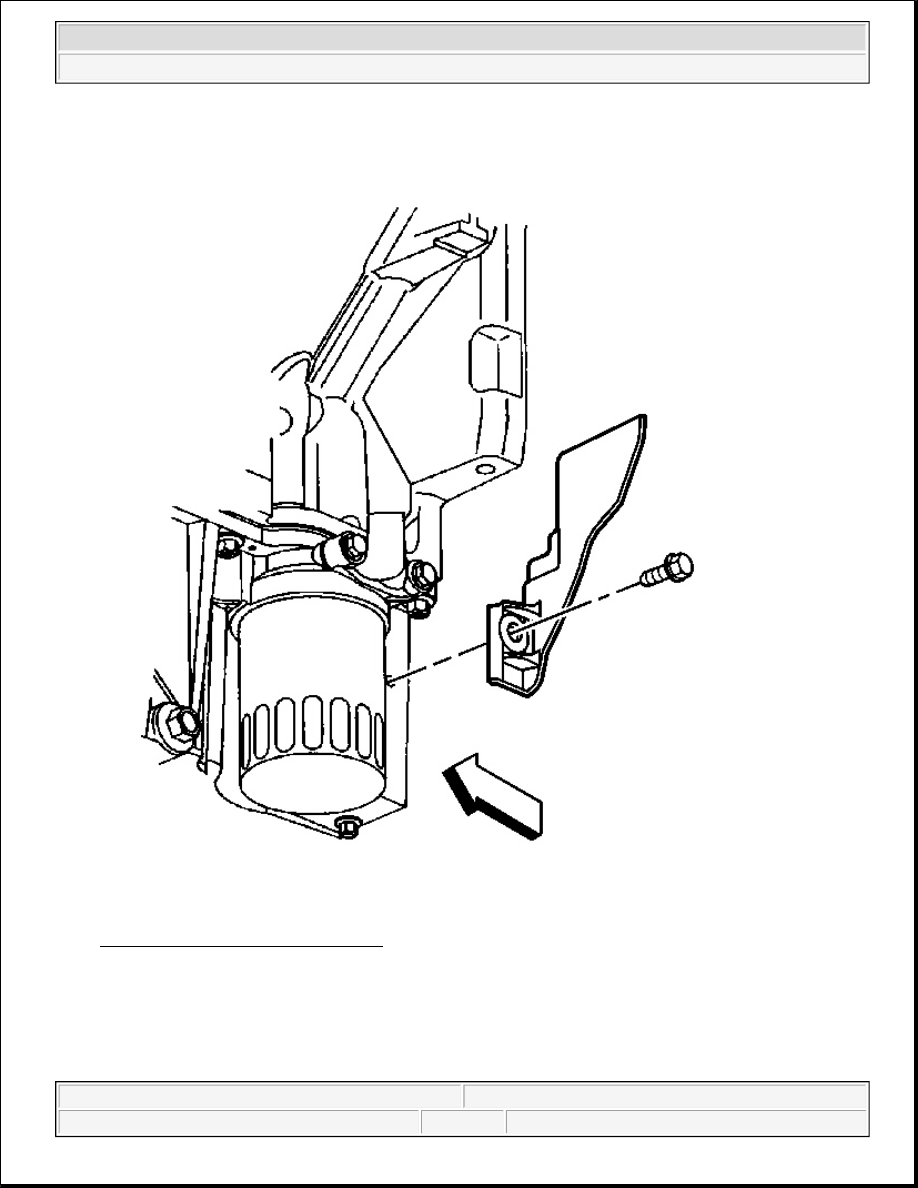

Fig. 175: Left Closeout Cover & Bolt
Courtesy of GENERAL MOTORS CORP.

14. Install the transmission cover and bolt.

Tighten: Tighten the transmission cover bolt to 12 N.m (106 lb in).



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



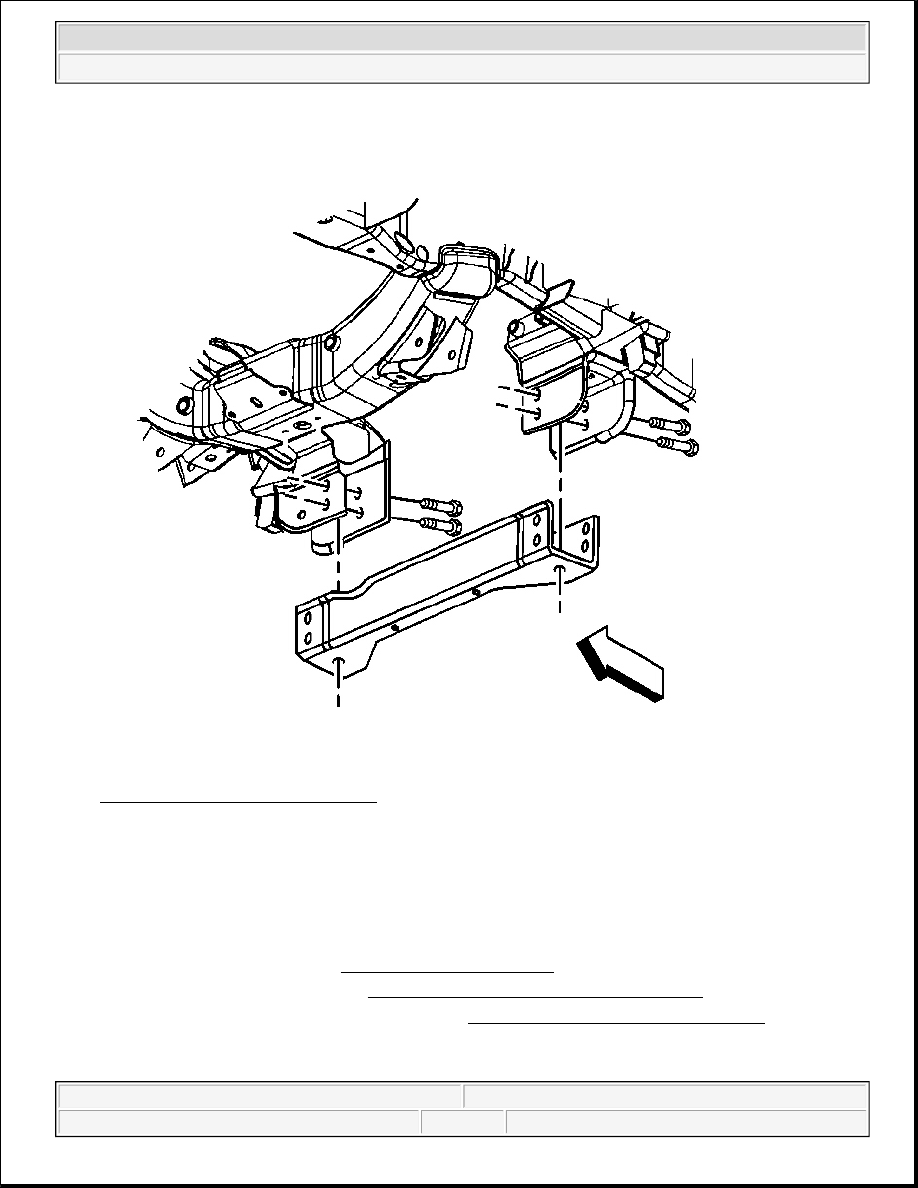

Fig. 176: Crossbar & Engine (2WD)
Courtesy of GENERAL MOTORS CORP.

15. Install the crossbar.

16. Install the crossbar bolts.

Tighten: Tighten the crossbar bolts to 100 N.m (74 lb ft).

17. Install the starter motor. Refer to Starter Motor Replacement in Engine Electrical.

18. Install the front differential. Refer to Differential Carrier Assembly Replacement in Driveline Axle.

19. Install new engine oil and a new oil filter. Refer to Engine Oil and Oil Filter Replacement .

ENGINE OIL PRESSURE SENSOR AND/OR SWITCH REPLACEMENT



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



Tools Required

J 41712 Oil Pressure Sensor Socket

Removal Procedure

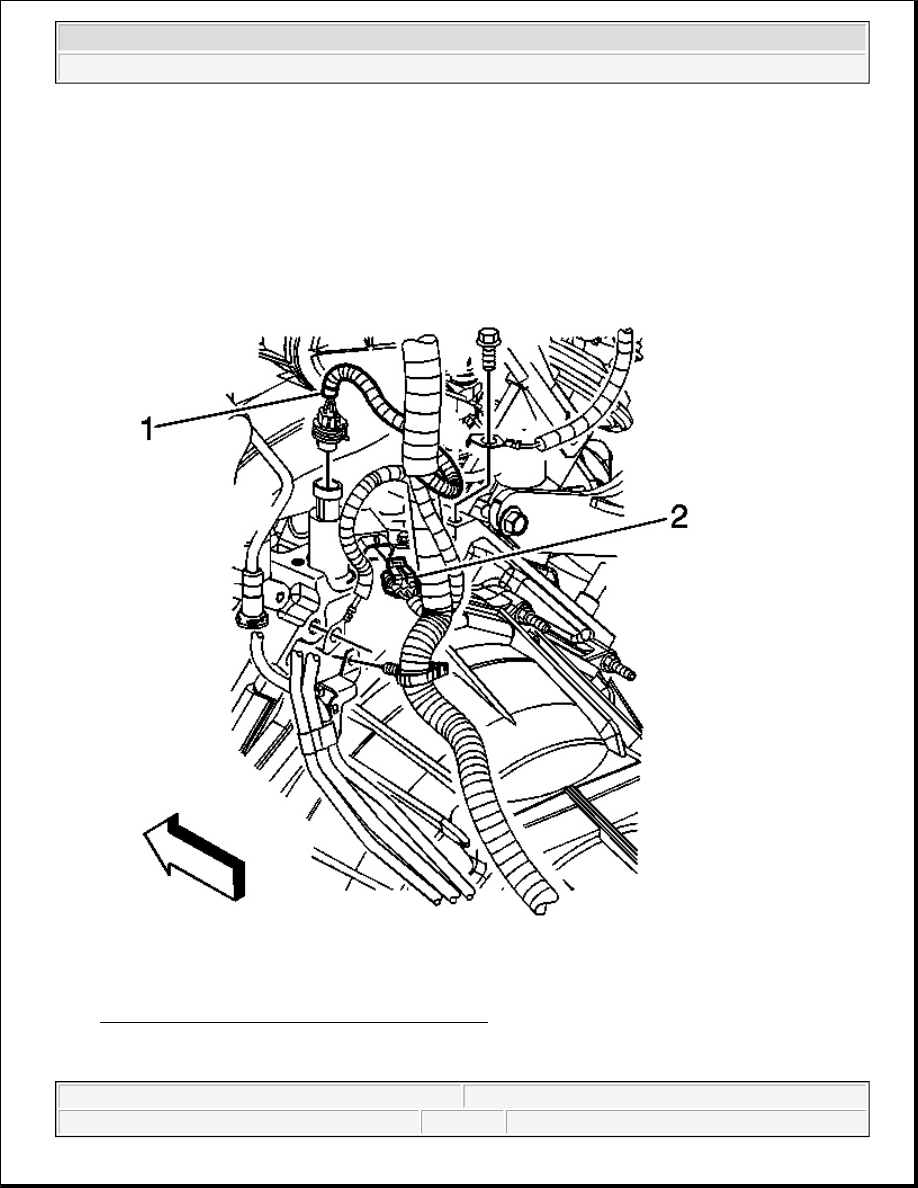

Fig. 177: Oil Pressure Sensor Electrical Connector
Courtesy of GENERAL MOTORS CORP.

1. If necessary, remove the engine sight shield. Refer to Engine Sight Shield Replacement (6.0L (LQ4)) .



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2
