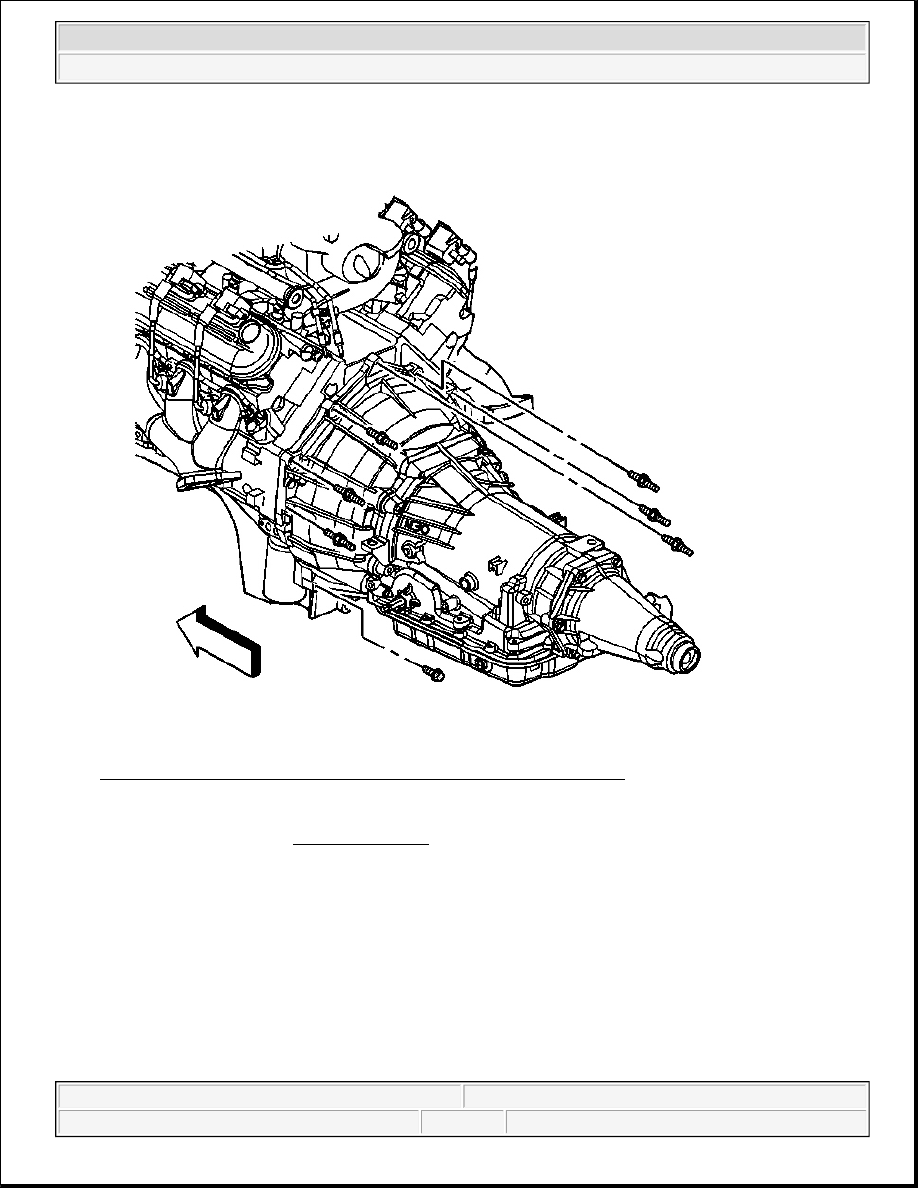

Fig. 170: Identifying Studs & Bolt Securing Transmission To Engine
Courtesy of GENERAL MOTORS CORP.

7. Install the bottom bolt on the left side until snug.

Tighten:

1. Tighten the oil pan and oil pan-to-oil pan front cover bolts to 25 N.m (18 lb ft).

2. Tighten the oil pan-to-rear cover bolts to 12 N.m (106 lb in).

3. Tighten the bellhousing, converter cover, and transmission bolts/stud to 50 N.m (37 lb ft).

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2

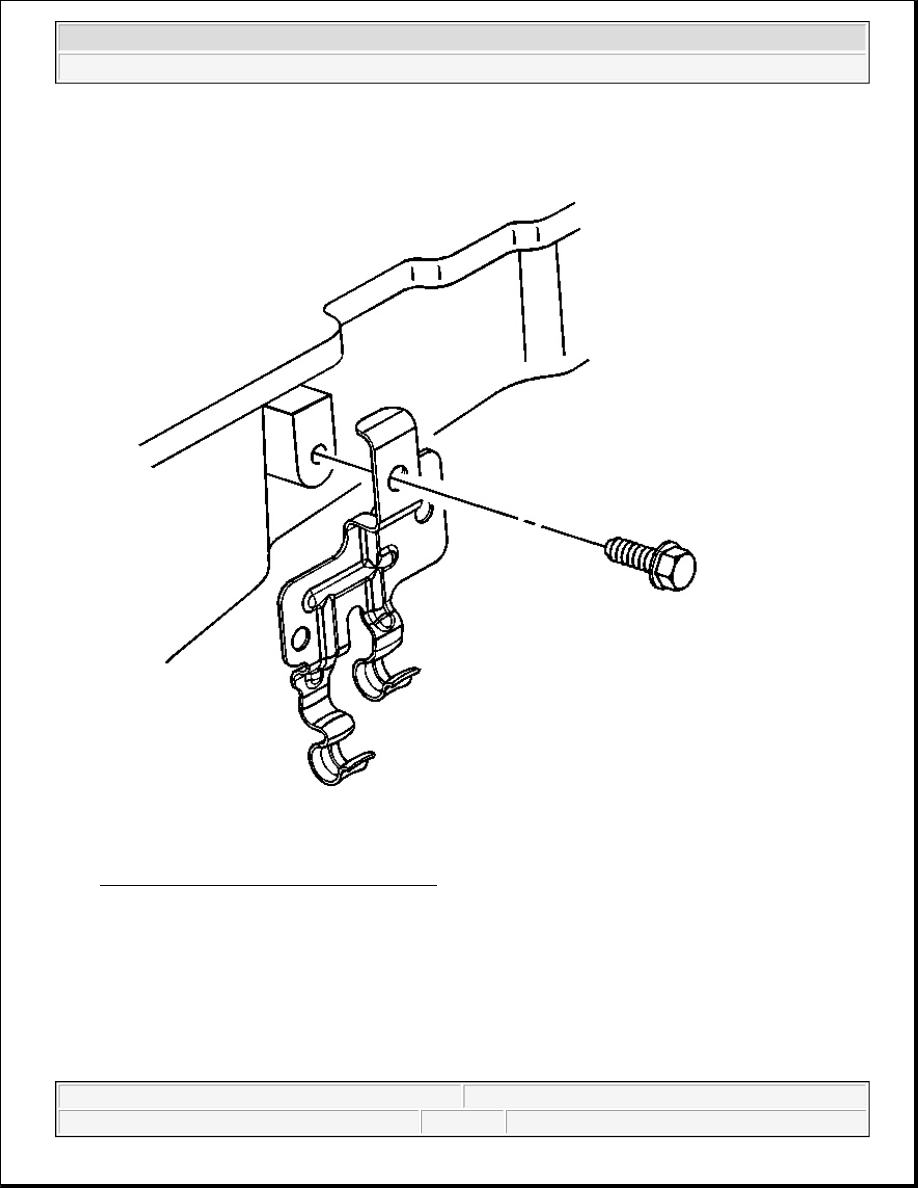

Fig. 171: Positive Battery Cable Clip & Bolt
Courtesy of GENERAL MOTORS CORP.

8. Install the positive battery cable clip and bolt to the oil pan.

Tighten: Tighten the positive battery cable clip bolt to 9 N.m (80 lb in).

9. Install the engine oil cooler lines to the positive battery cable clip.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2

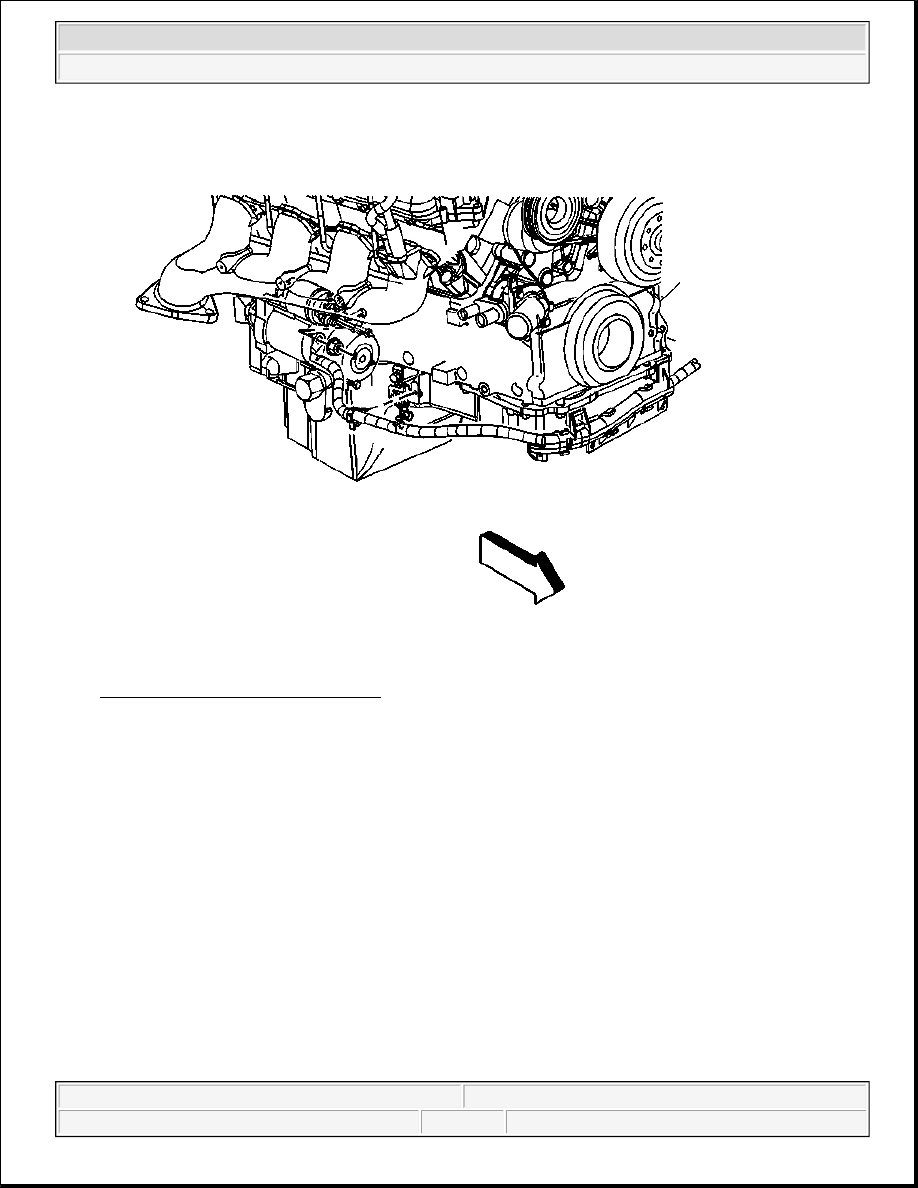

Fig. 172: Positive Battery Cable Clip
Courtesy of GENERAL MOTORS CORP.

10. Install the following to the positive battery cable clip:

z

Engine wiring harness clip

z

Positive battery cable clip



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2

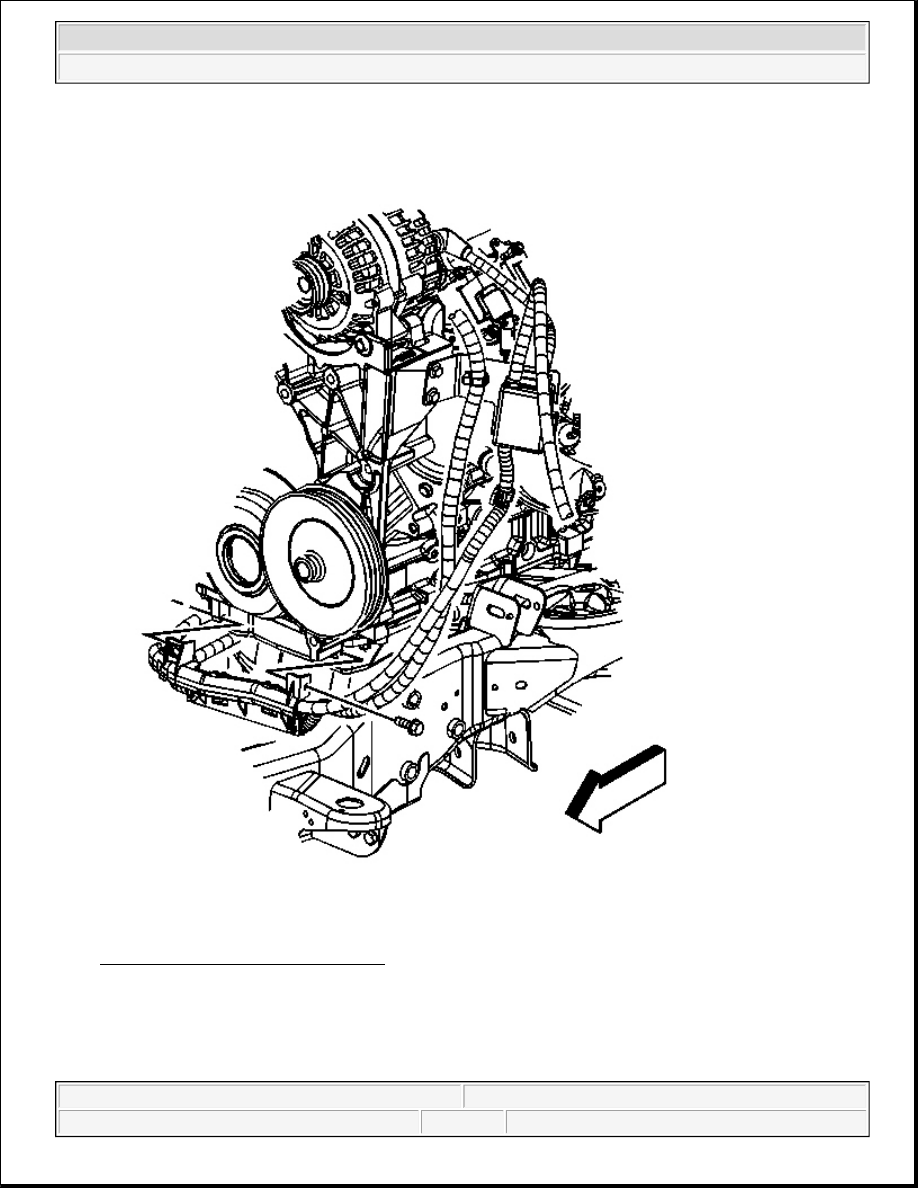

Fig. 173: Battery Cable Channel Bolt
Courtesy of GENERAL MOTORS CORP.

11. Slide the channel pin in to the oil pan tab.

12. Install the battery cable channel bolt.
