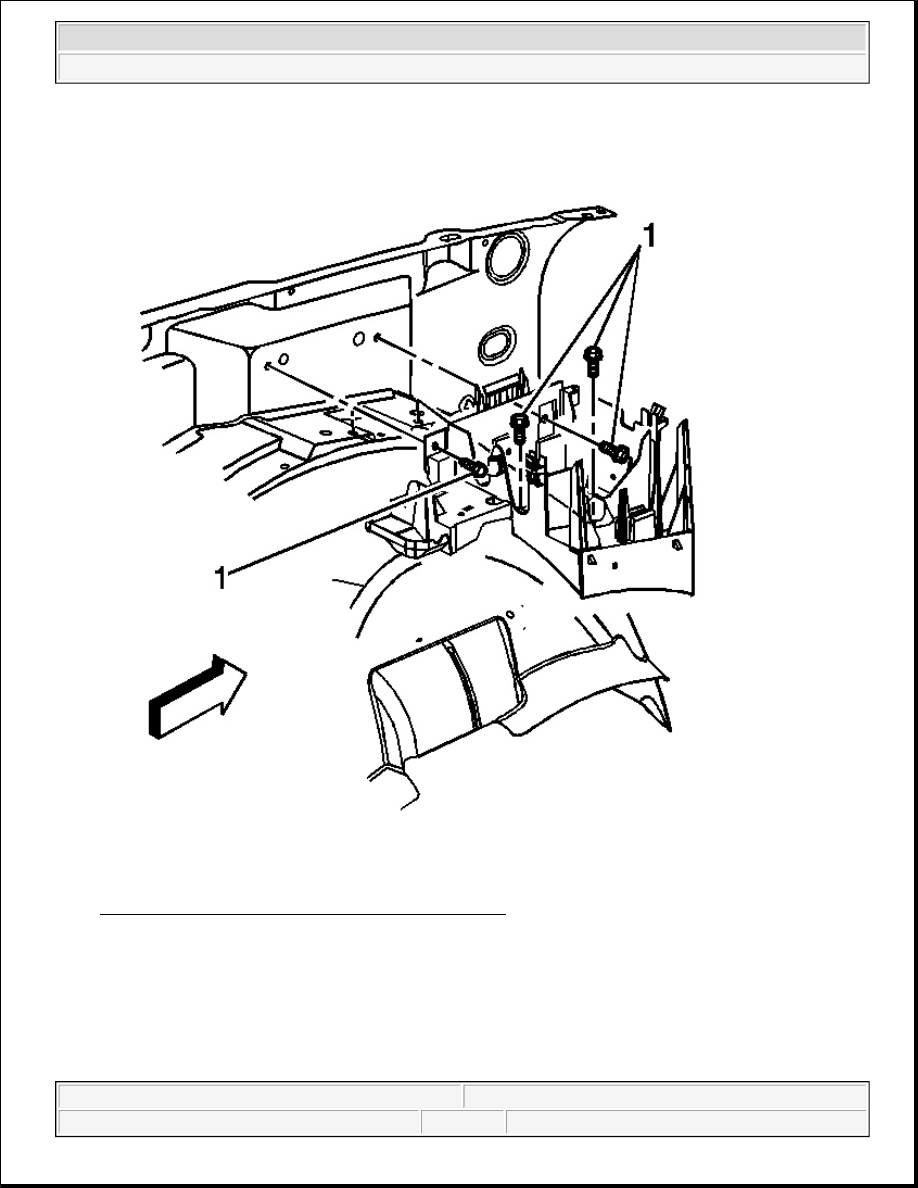

Fig. 119: Engine Electrical Center Bracket Assembly
Courtesy of GENERAL MOTORS CORP.

1. Install the engine electrical center bracket assembly to the front fender.

2. Install the 4 retaining bolts (1).

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



Tighten: Tighten the 4 retaining bolts (1) to 9 N.m (80 lb in).

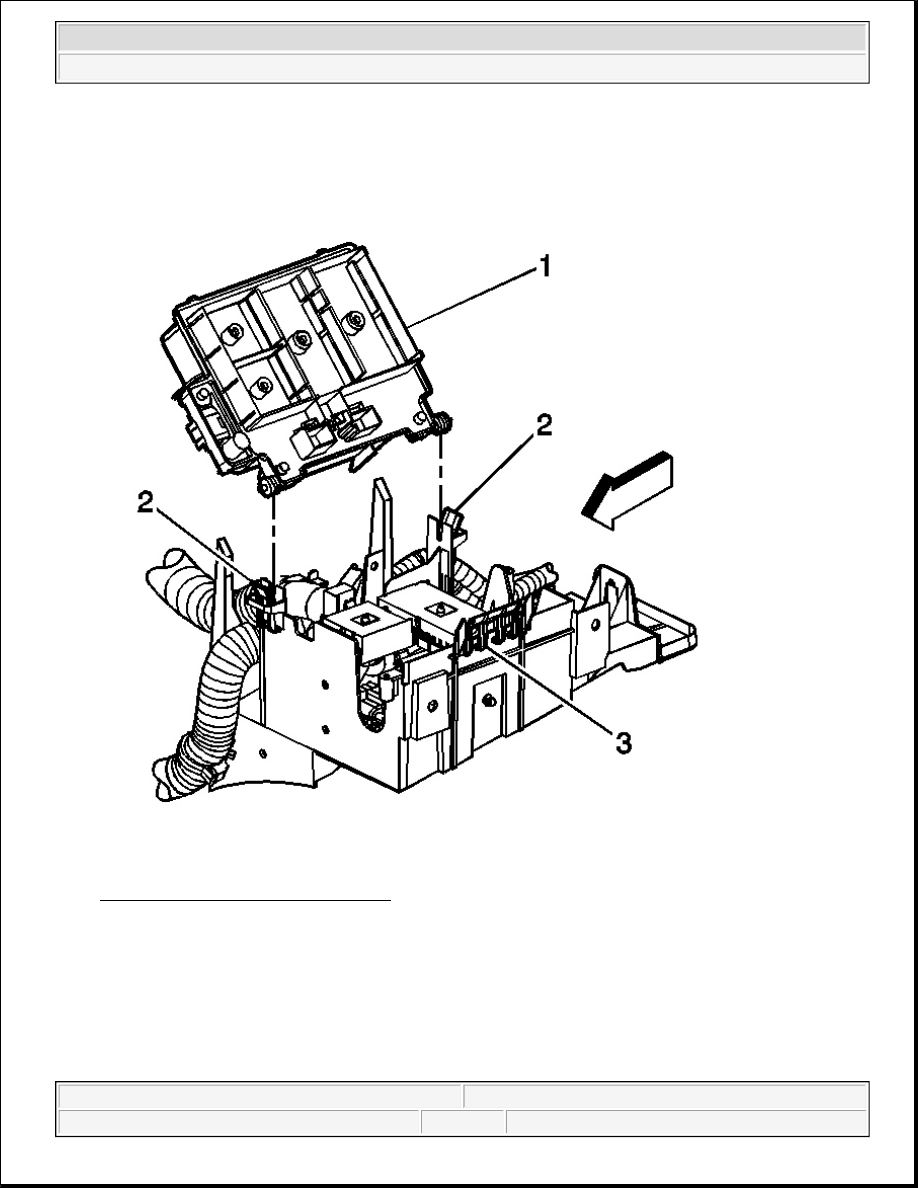

Fig. 120: Electrical Center & Housing
Courtesy of GENERAL MOTORS CORP.

3. Align the electrical center block (1) stubs in the slots so that the tabs (2) retains it in place.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2

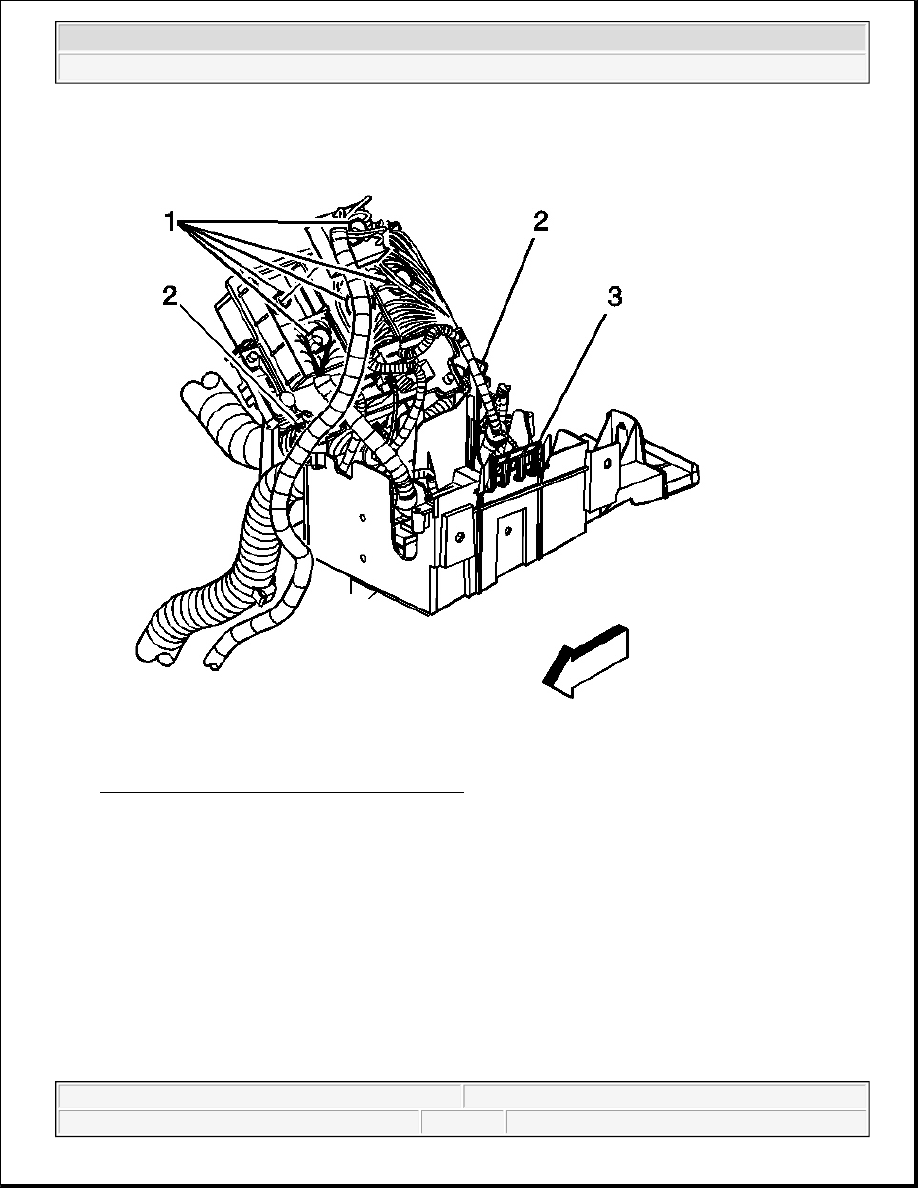

Fig. 121: Connectors & Electrical Center Block
Courtesy of GENERAL MOTORS CORP.

4. Connect the wire connectors to the lower portion of the electrical center block.

5. Connect the wire connectors with the bolts to the electrical center block.

Tighten: Tighten all connector bolts (1) to 9 N.m (80 lb in).

6. Ensure all wire connectors are securely connected.

7. Set the electrical center block in its resting position till the tabs (3) locks in place.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2

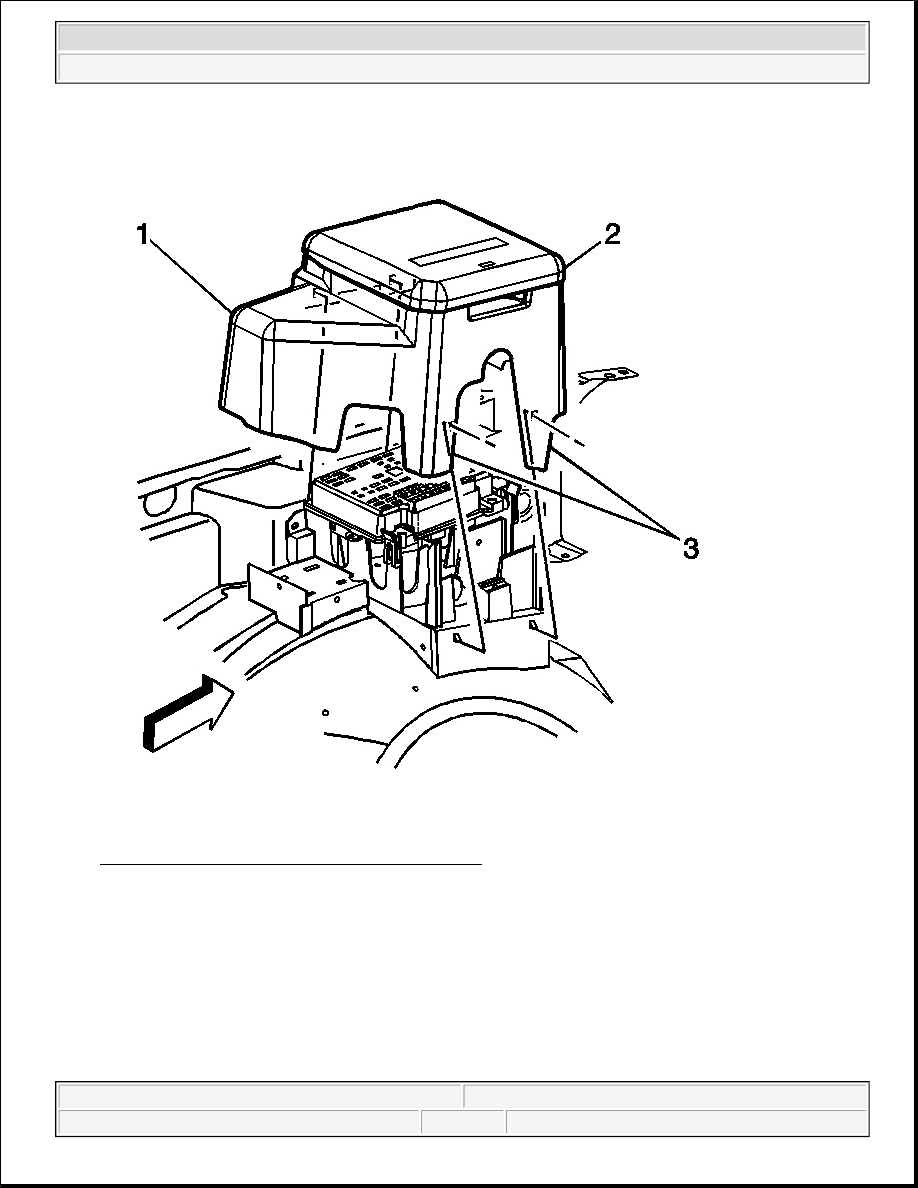

Fig. 122: Electrical Center Brace Cover Assemble
Courtesy of GENERAL MOTORS CORP.

8. Install the lower part of the cover (1).

9. With the cover (2) off, use the fuse location information to install all fuses and relays.

10. Install the cover.
