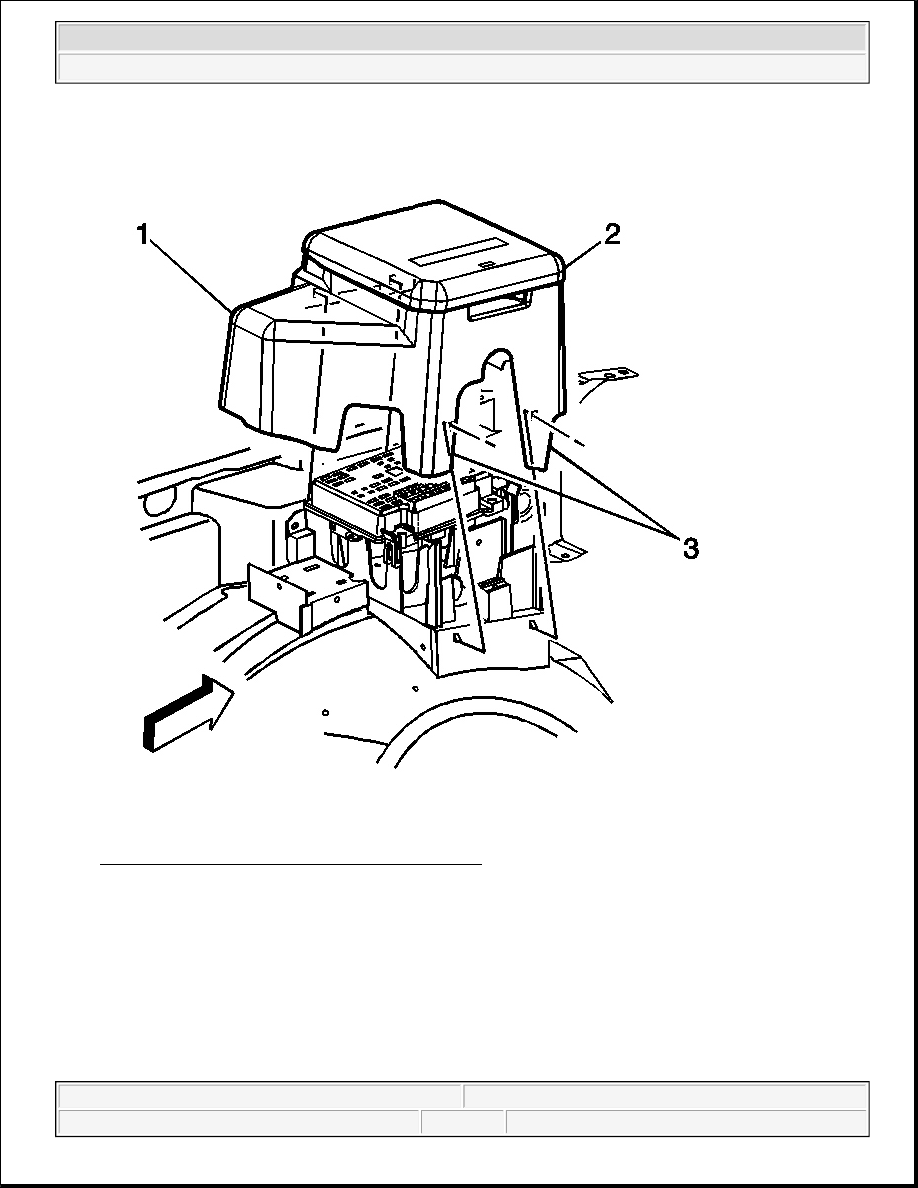

Fig. 115: Electrical Center Brace Cover Assemble
Courtesy of GENERAL MOTORS CORP.

3. Remove the electrical center brace cover assemble by lifting the cover (3) outwards to clear the tabs.

4. Remove all fuses and relays.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



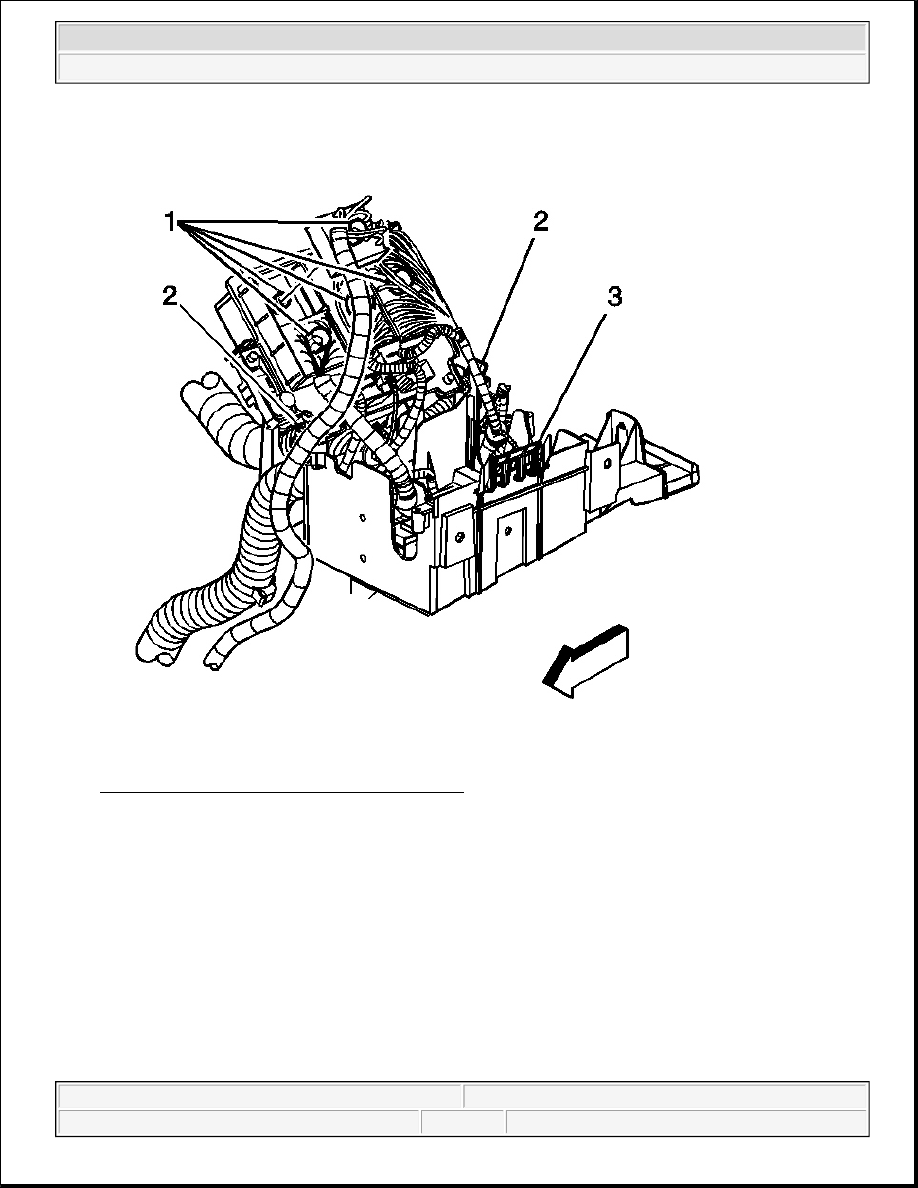

Fig. 116: Connectors & Electrical Center Block
Courtesy of GENERAL MOTORS CORP.

5. Push on the tab (3) so that the electrical center can be rotated on the studs located at (2).

6. Remove all connectors by removing the bolt (1) for each connector.

7. Disconnect all connectors from the electrical center block.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



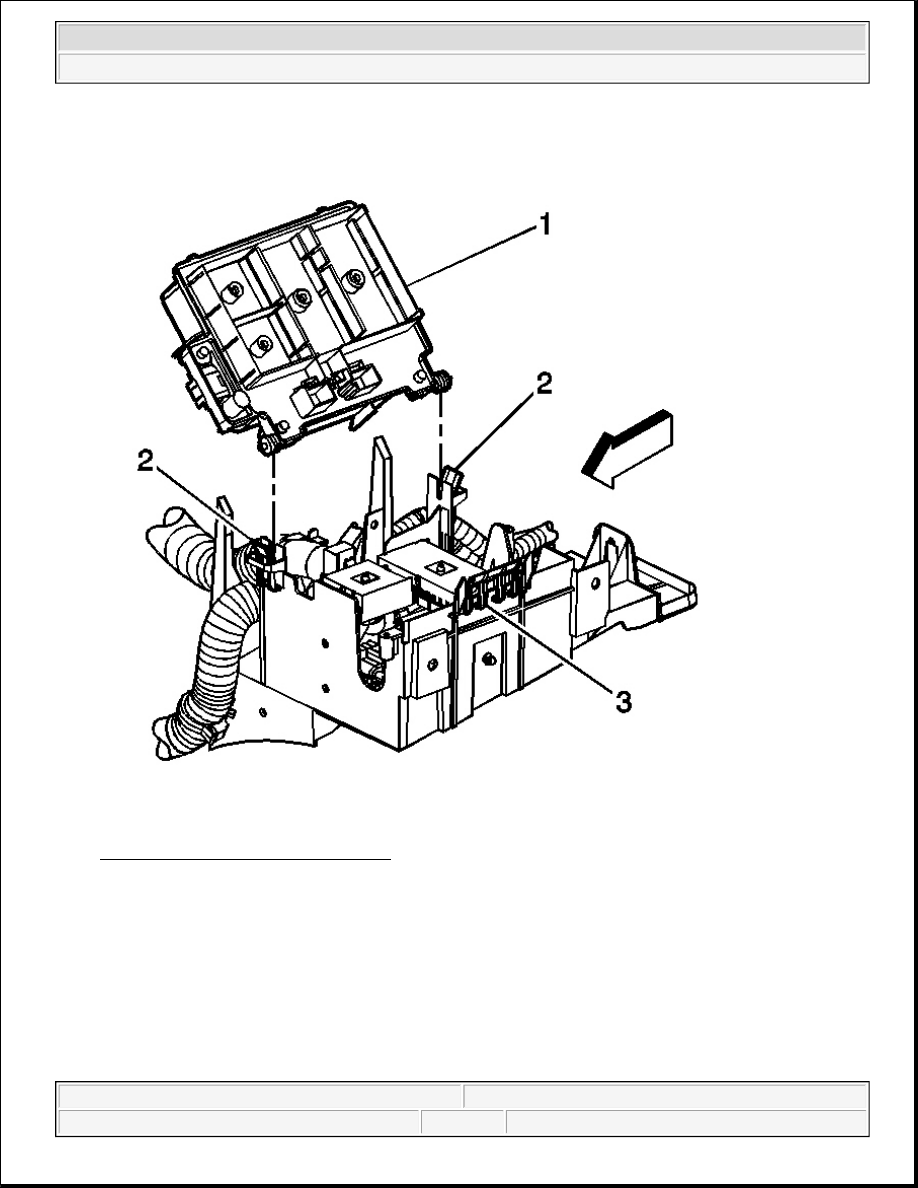

Fig. 117: Electrical Center & Housing
Courtesy of GENERAL MOTORS CORP.

8. Push on the tabs (2) in order to lift the electrical center (1) out of the housing.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



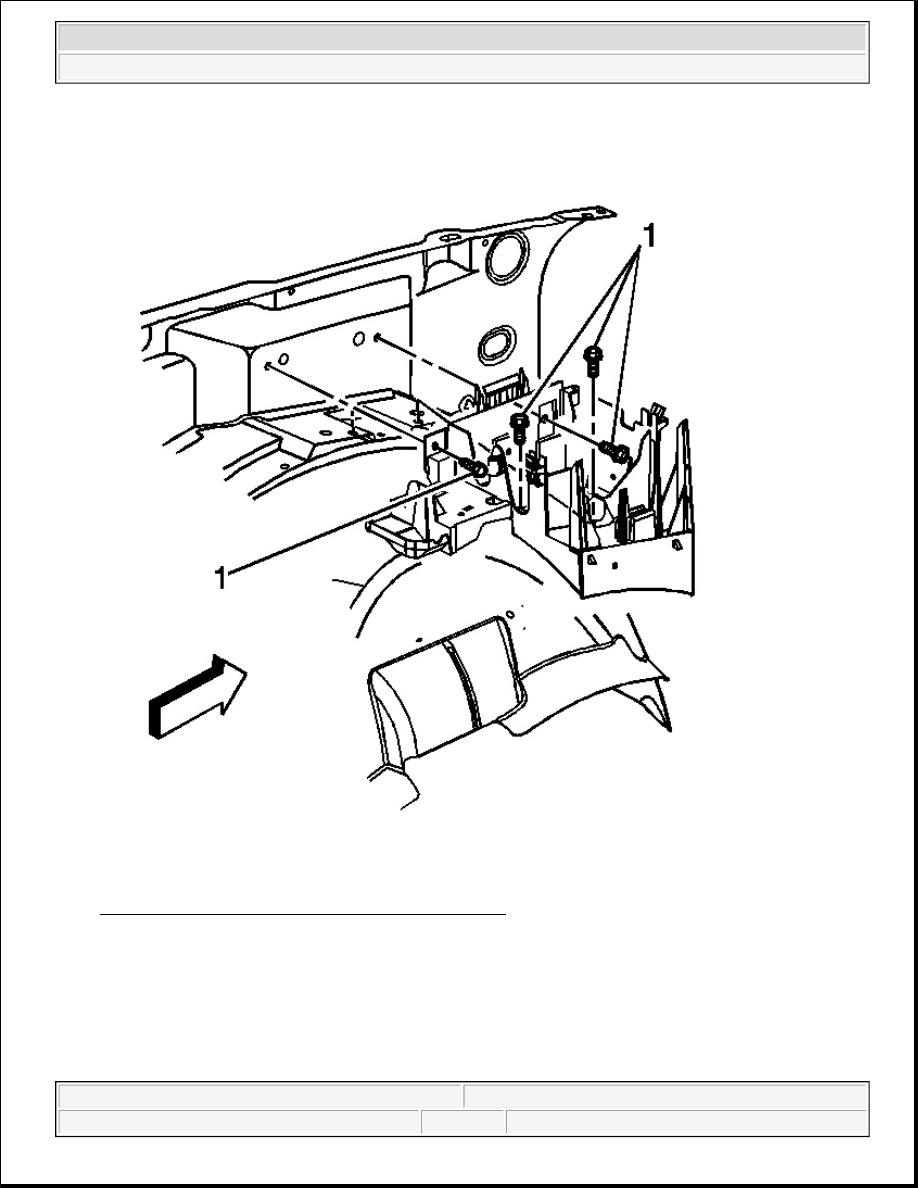

Fig. 118: Engine Electrical Center Bracket Assembly
Courtesy of GENERAL MOTORS CORP.

9. To replace the engine electrical center bracket remove the 4 retaining bolts (1).

10. Remove the engine electrical center bracket assembly from the fender.

Installation Procedure
