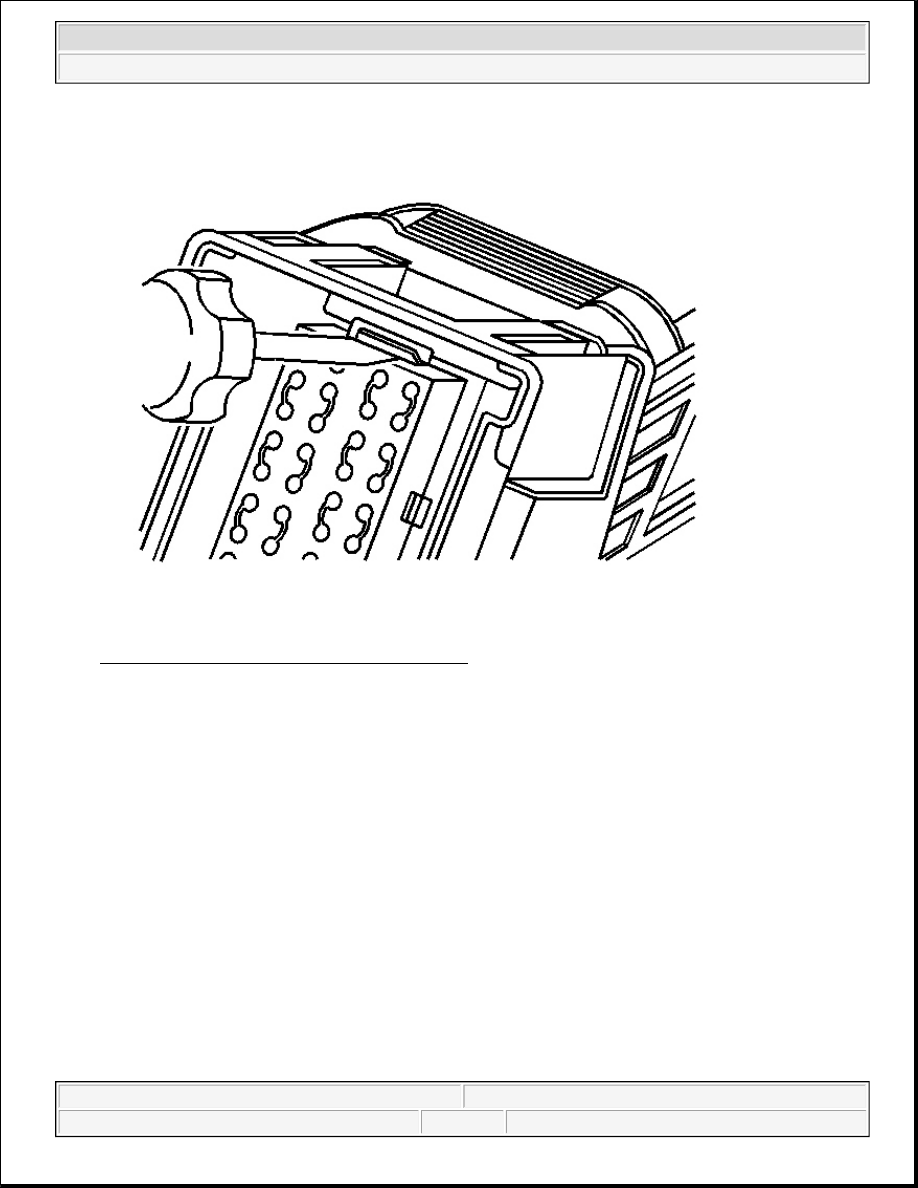

Fig. 32: Removing Terminal Position Assurance
Courtesy of GENERAL MOTORS CORP.

6. Remove the TPA by inserting a small flat-blade tool into the small slot on the TPA and pushing down

until the TPA releases. Gently pry the TPA out of the connector.

IMPORTANT: Always use care when removing a terminal position assurance (TPA) in

order to avoid damaging it.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2

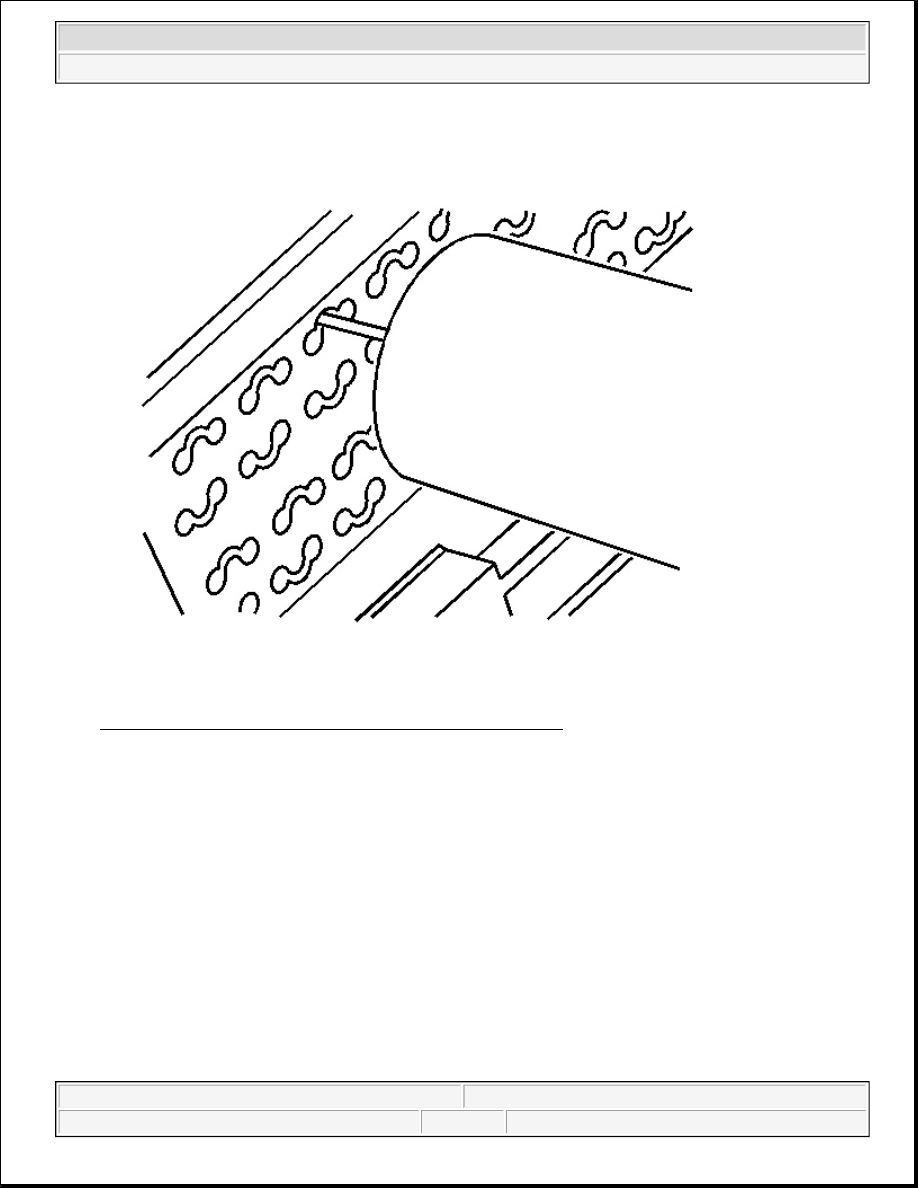

Fig. 33: Inserting J 38125-13A Into Terminal Cavities Canal
Courtesy of GENERAL MOTORS CORP.

7. Insert the J 38125-13A (GM P/N 12031876-1) tool into the round canal between the terminals cavities at

the front of the connector. See the release tool cross reference in the Reference Guide of the Terminal
Repair Kit to ensure that the correct release tool is used.

IMPORTANT: Be careful not to angle or rock the J 38125-13A tool when inserting it into

the connector or the tool may break.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2

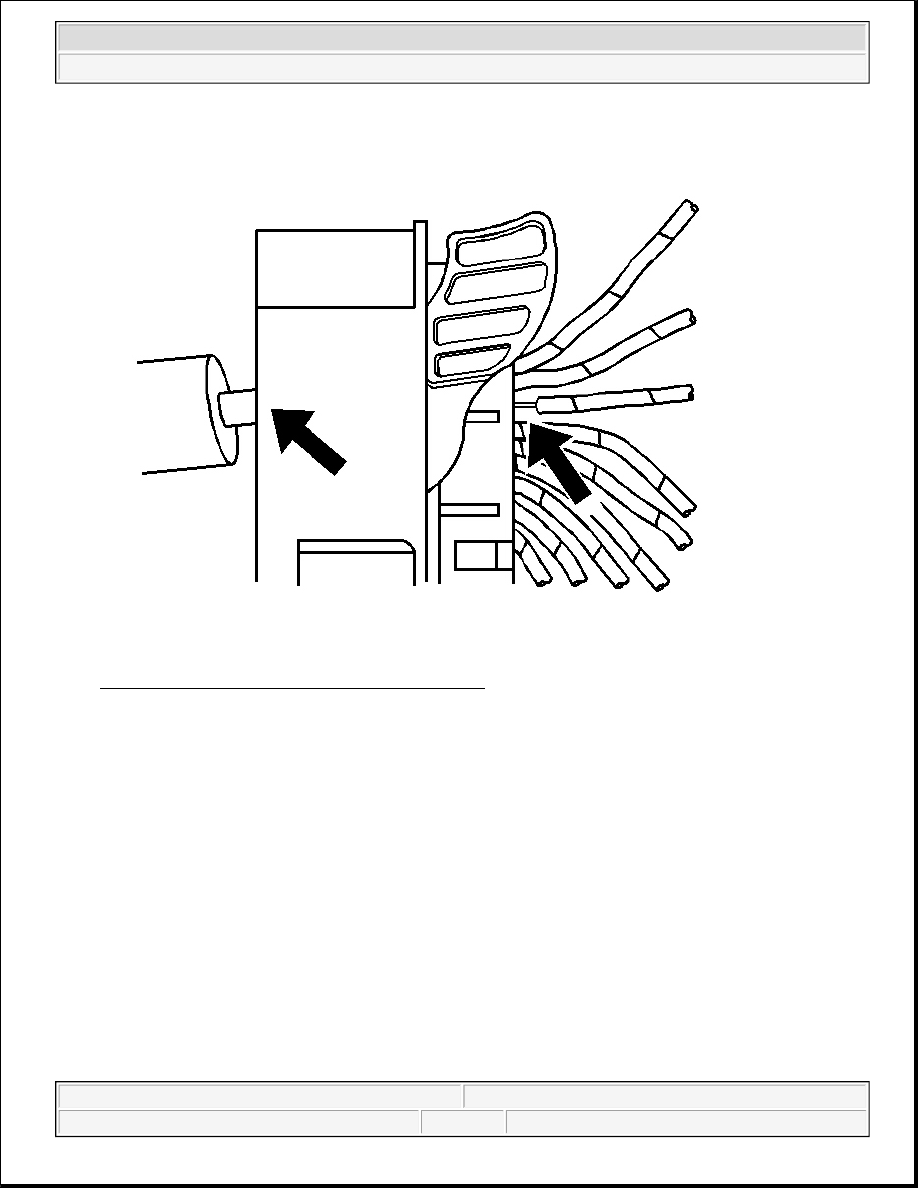

Fig. 34: Removing Wire From Back Of Connector
Courtesy of GENERAL MOTORS CORP.

8. While holding the removal tool in place, gently pull the wire out of the back of the connector. Always

remember never use force when pulling a terminal out of a connector.

Terminal Repair Procedure

Follow the steps below in order to repair Micro 64 connector terminals.

The Micro 64 connectors have small terminals that are difficult to handle and hold when crimping. In order to
aid the technician when crimping these terminals, a new crimping tool was developed. The J 38125-64 (M jaw)
was developed to crimp Micro 64 terminals. The J 38125-64 crimping tool has a terminal holding block that
will hold the terminal in place while the terminal is being crimped. The J 38125-64 crimping tool is also
designed to crimp both the wire and the insulation at the same time.

After the terminal is removed from the connector perform the following procedure in order to repair Micro 64
terminals.

IMPORTANT: After cutting the damaged terminal from the wire, determine if the remaining



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



1. Cut the wire as close to the damaged terminal as possible.

2. Strip 5 mm (3/16 in) of insulation from the wire.

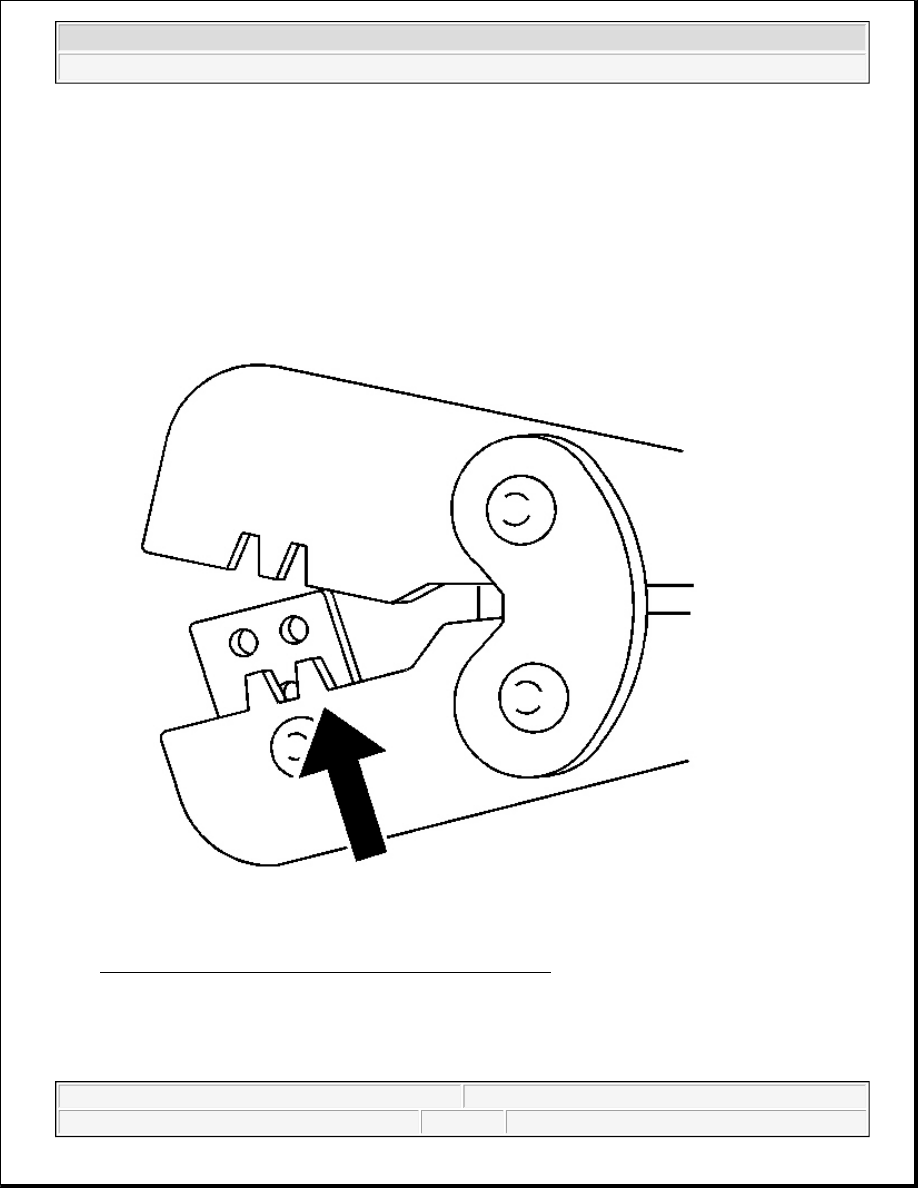

Fig. 35: Identifying Crimping Tool Spring Loaded Locator
Courtesy of GENERAL MOTORS CORP.

3. Depress the spring loaded locator of the crimping tool until the terminal holder is completely visible.

wire is long enough to reach the connector without putting a strain on the wire.
If the wire is not long enough, splice a small length of the same gauge wire to
the existing wire, then crimp the new terminal on the added wire.
