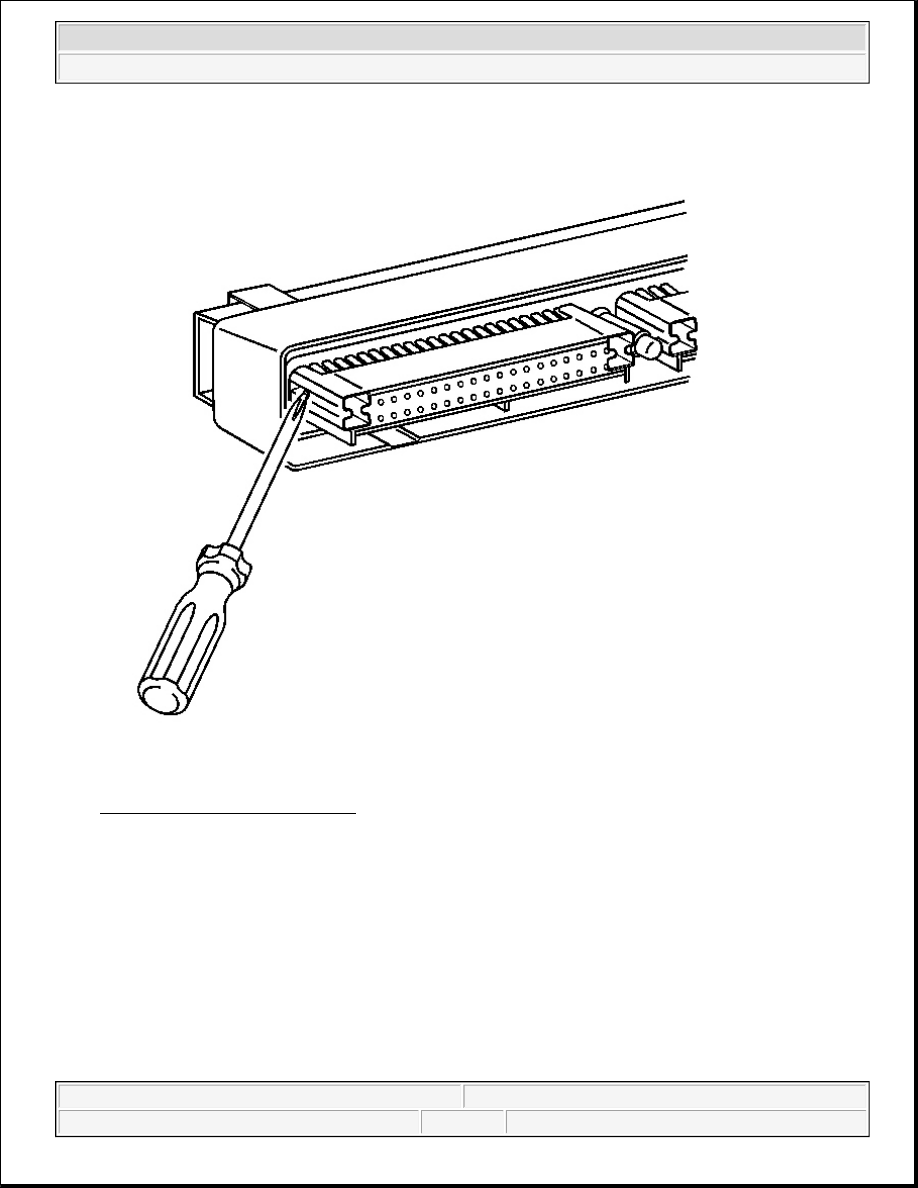

Fig. 24: Pushing In Locking Tabs
Courtesy of GENERAL MOTORS CORP.

3. Use a small flat-bladed tool to push in one of the locking tabs while gently pushing on the same side of

the nose piece.

4. Repeat the procedure for the other locking tab and remove the nose piece.

5. Remove the wire dress cover. The following is a general procedure for wire dress cover removal. Use this

procedure as a guide, some dress cover removal procedures may vary.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



Fig. 25: Squeezing Cover Locking Legs
Courtesy of GENERAL MOTORS CORP.

6. Use fingers to squeeze the 2 locking legs of the cover.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



Fig. 26: Unseating Locking Legs
Courtesy of GENERAL MOTORS CORP.

7. Apply pressure and gently rock the cover until one locking leg is unseated.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



Fig. 27: Removing Wire Dress Cover
Courtesy of GENERAL MOTORS CORP.

8. Continue to apply pressure and rock the cover until the second locking leg is unseated. Repeat procedure

for the other side of the dress cover and remove the cover.
