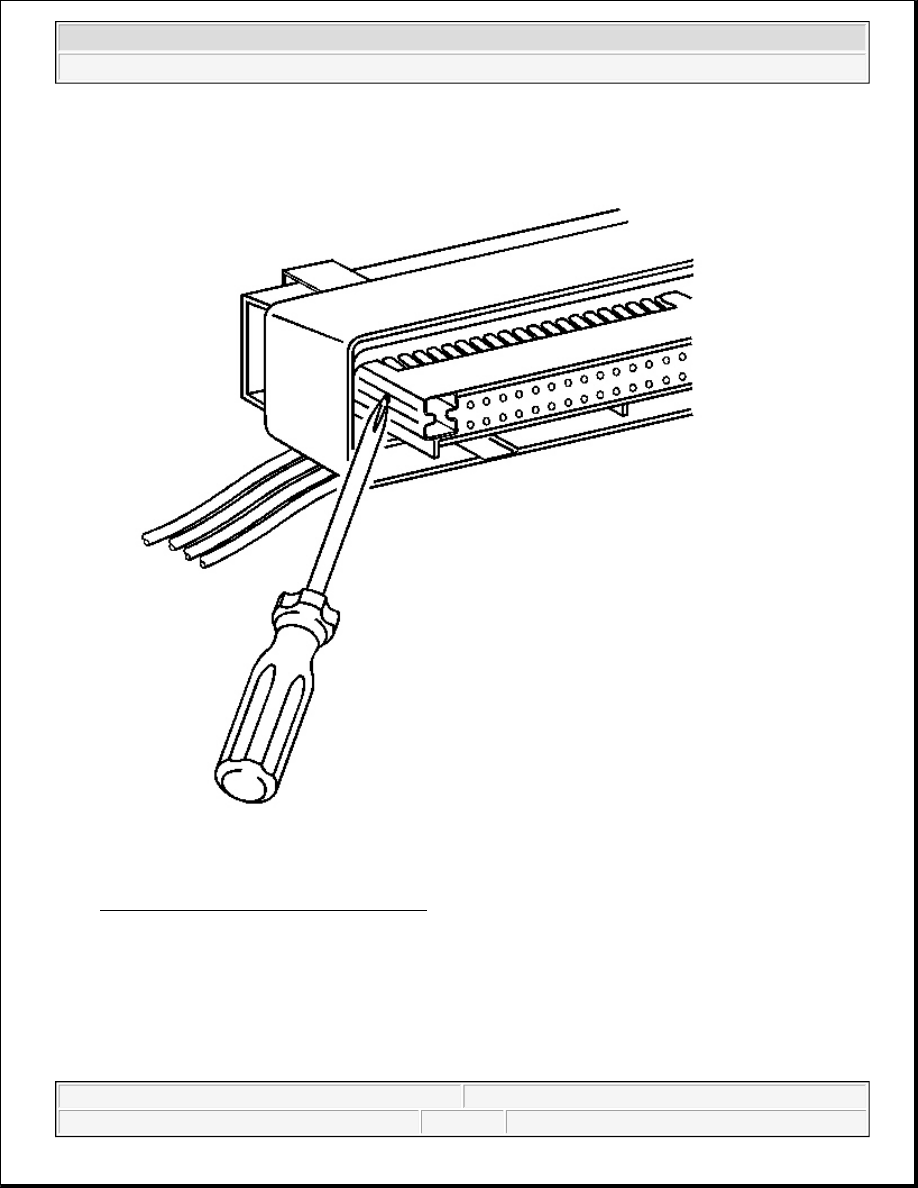

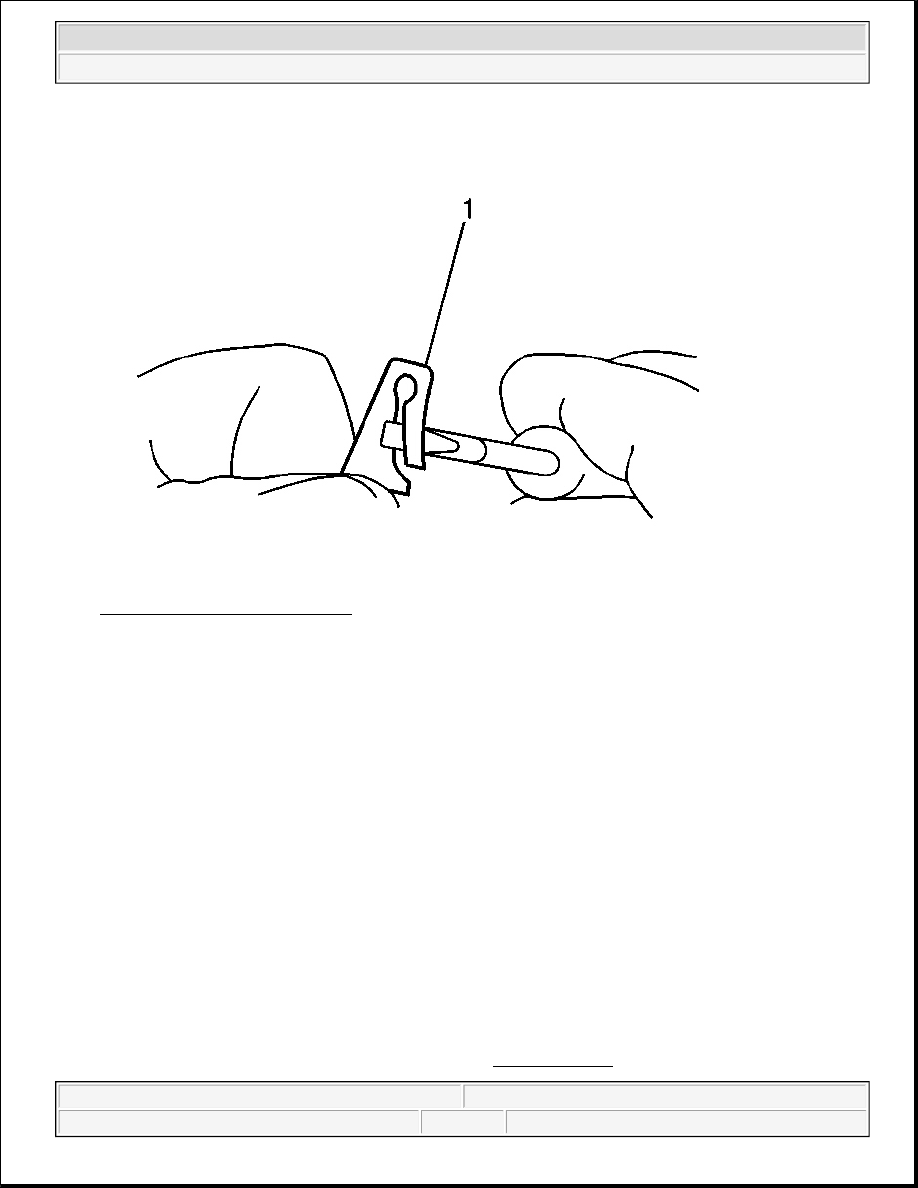

Fig. 21: Aligning Locking Device 5. Re-form the locking device if you are going to reuse the terminal (1). 6. To repair the terminal, refer to Terminal Repair. Terminal Repair 1. Slip the cable seal away from the terminal. 2. Cut the wire as close to the terminal as possible. 3. Slip a new cable seal onto the wire. 4. Strip 5 mm (3/16 in) of insulation from the wire. 5. Crimp a new terminal to the wire. 6. Solder the crimp with rosin core solder. 7. Slide the cable seal toward the terminal. 8. Crimp the cable seal and the insulation. 9. If the connector is outside of the passenger compartment, apply grease to the connector. Reinstalling Terminal 1. In order to reuse a terminal or lead assembly. Refer to Wiring Repairs .
2004 Hummer H2 2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2
|
