1. Install the fuse block onto the IP assembly till it clicks in place.

2. Install the wire harness block to the back of the fuse block.

3. Install the bolt.

Tighten: Tighten the bolt to 6 N.m (53 lb in).

4. Install the turn signal relay to the back of the fuse block.

5. Using the wiring diagram on the cover of the fuse panel, install the fuses.

6. Install the electrical connectors.

7. Install the knee bolster. Refer to Trim Panel Replacement - Knee Bolster in Instrument Panel, Gauges

and Console.

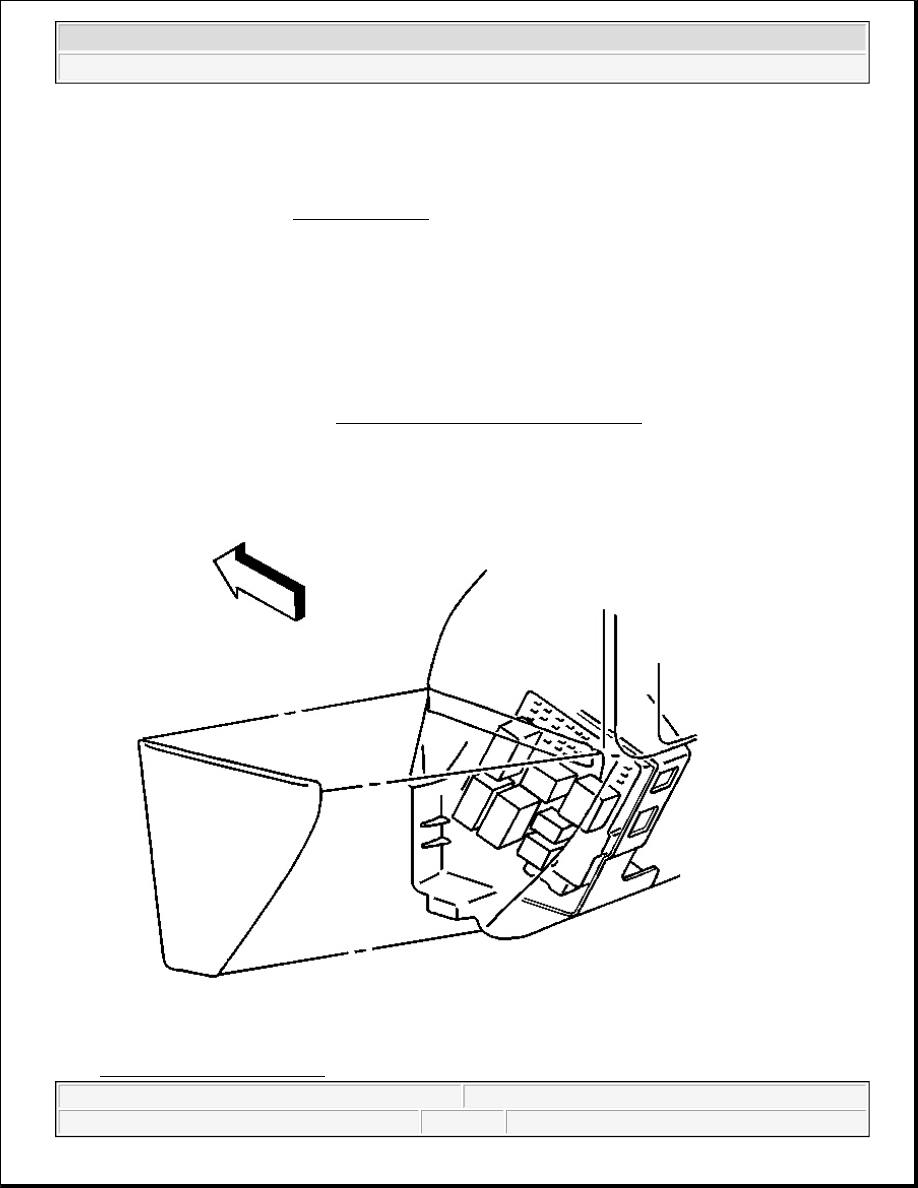

Fig. 125: Left Side End Panel

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



Courtesy of GENERAL MOTORS CORP.

8. Install the left side end panel.

INSTRUMENT PANEL ELECTRICAL CENTER OR JUNCTION BLOCK REPLACEMENT - RIGHT

Removal Procedure

1. Remove the right side end panel.

2. Push in the tabs in order to remove the fuse block.

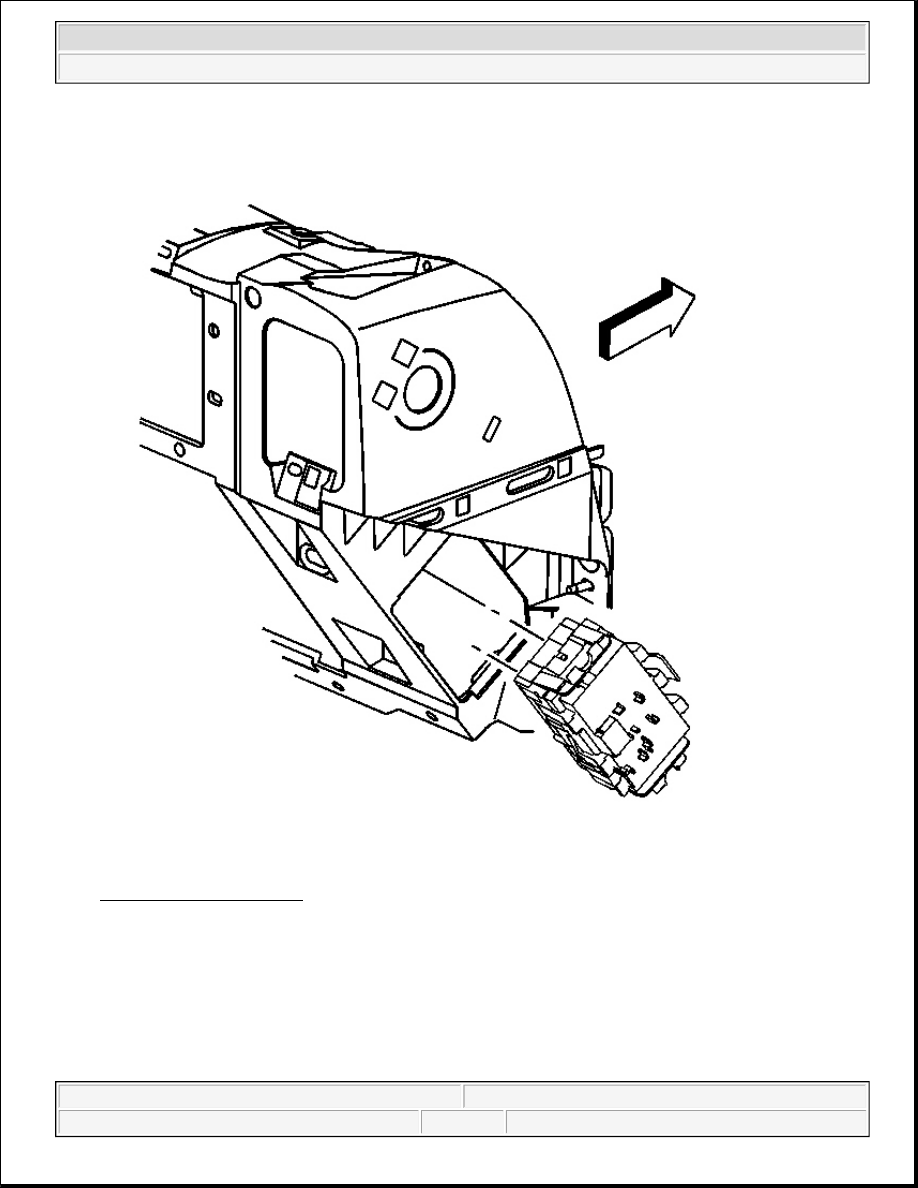

Fig. 126: Fuse Block & I/P
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



3. Pull out the fuse block out of the I/P in order to remove the retaining bolt.

4. Loosen the bolt.

5. Insert a screw driver between the wire harness block and fuse block in order to separate.

6. Separate the fuse block from the I/P harness block.

7. Remove the IP wiring harness block from the vehicle.

Installation Procedure

1. Install the fuse block to the I/P wire harness block.

2. Install the retaining bolt.

Tighten: Tighten the bolt to 6 N.m (53 lb in)

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



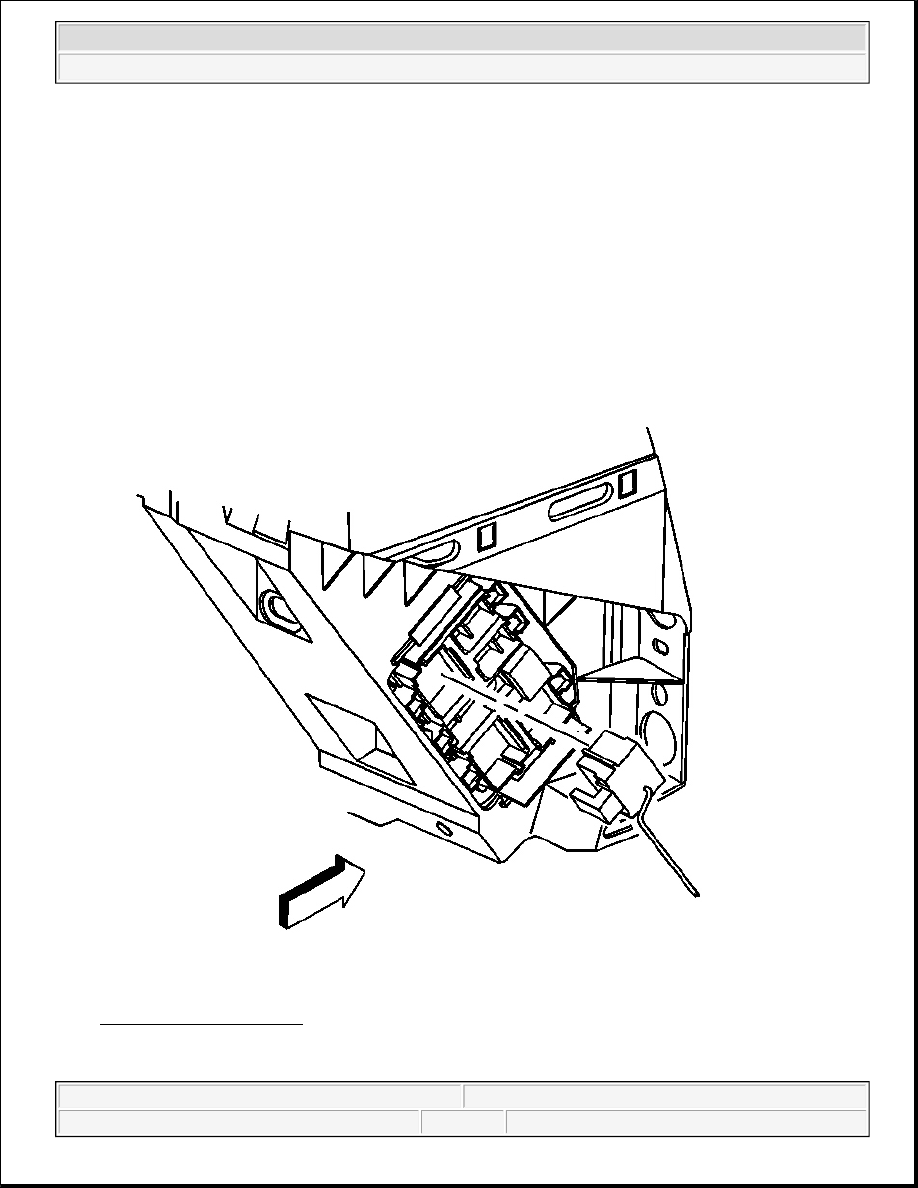

Fig. 127: Fuse Block & I/P
Courtesy of GENERAL MOTORS CORP.

3. Install the fuse block to the I/P till it clicks in place.
