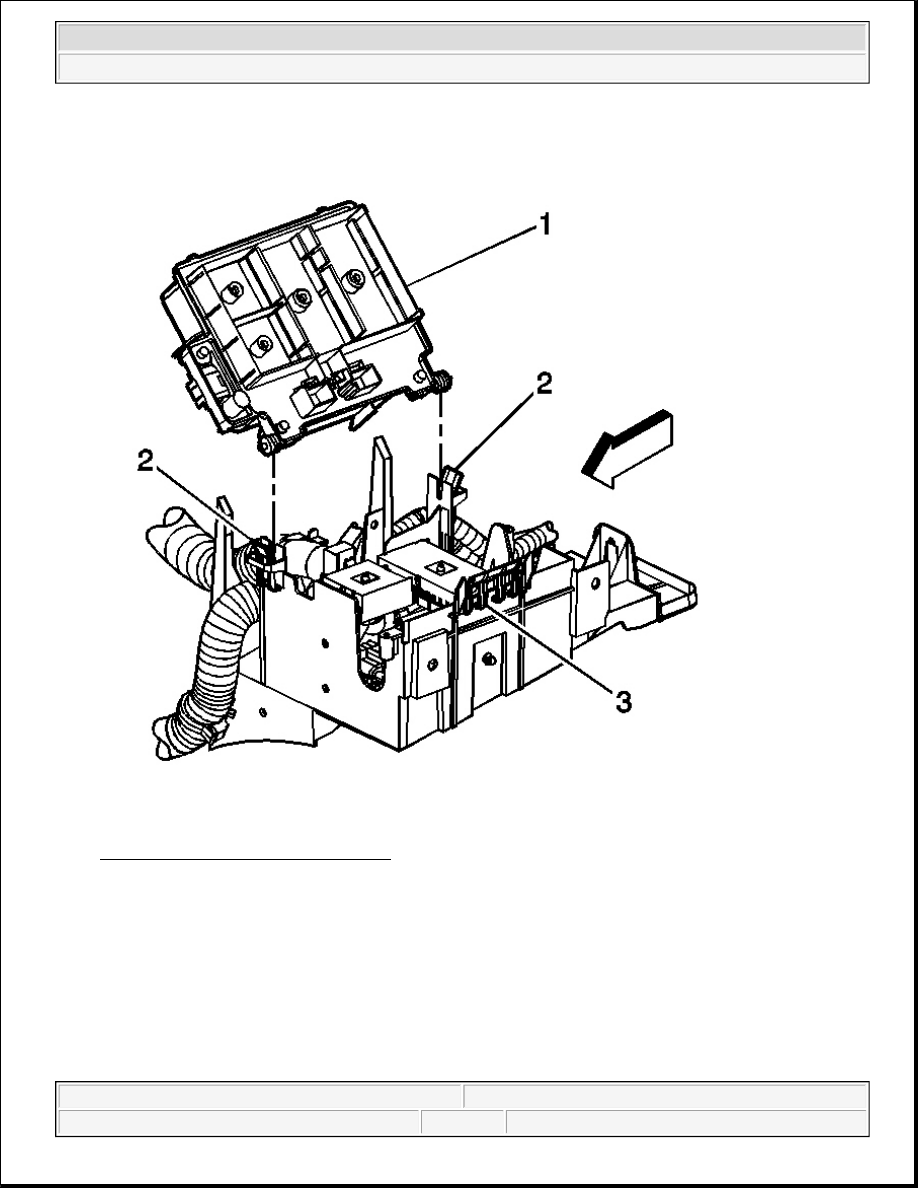

Fig. 117: Electrical Center & Housing
Courtesy of GENERAL MOTORS CORP.

8. Push on the tabs (2) in order to lift the electrical center (1) out of the housing.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2

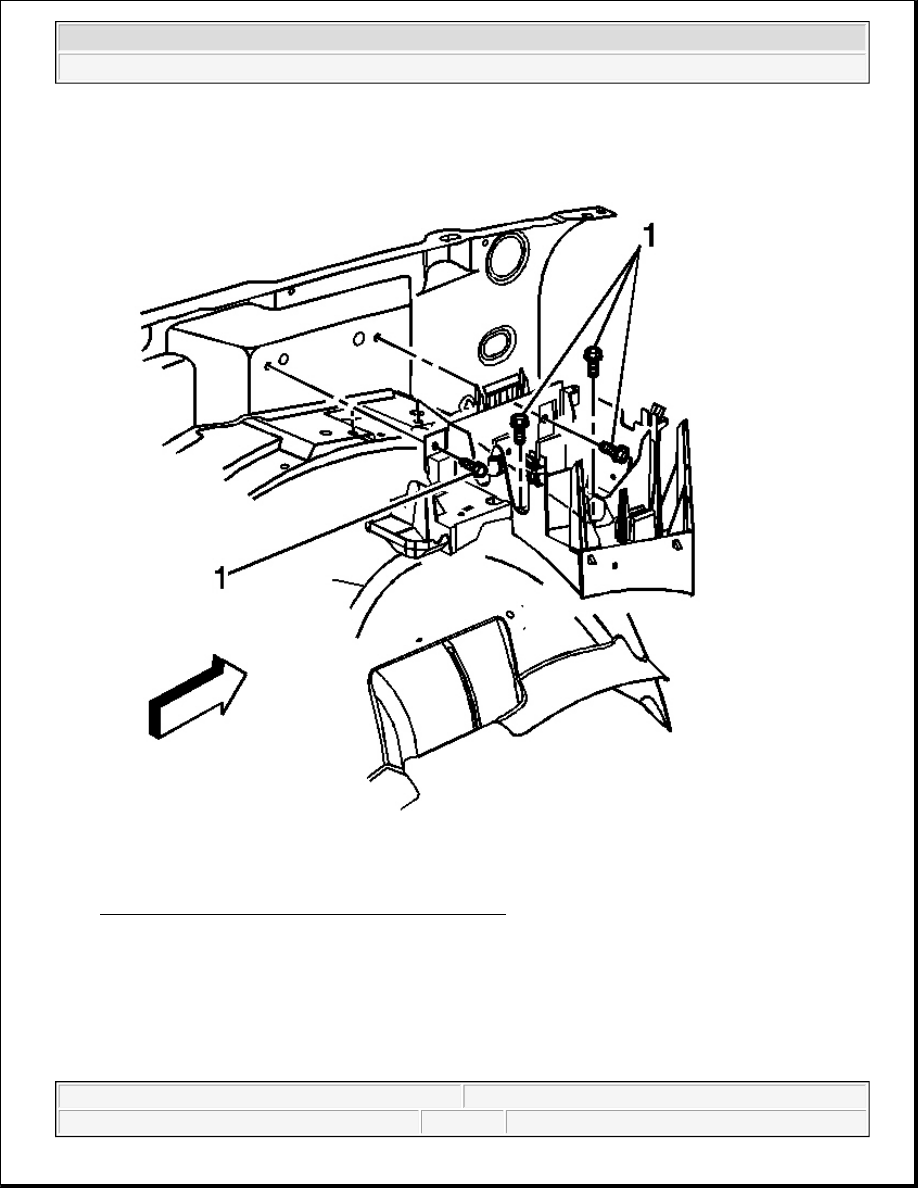

Fig. 118: Engine Electrical Center Bracket Assembly
Courtesy of GENERAL MOTORS CORP.

9. To replace the engine electrical center bracket remove the 4 retaining bolts (1).

10. Remove the engine electrical center bracket assembly from the fender.

Installation Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



Fig. 119: Engine Electrical Center Bracket Assembly
Courtesy of GENERAL MOTORS CORP.

1. Install the engine electrical center bracket assembly to the front fender.

2. Install the 4 retaining bolts (1).

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



Tighten: Tighten the 4 retaining bolts (1) to 9 N.m (80 lb in).

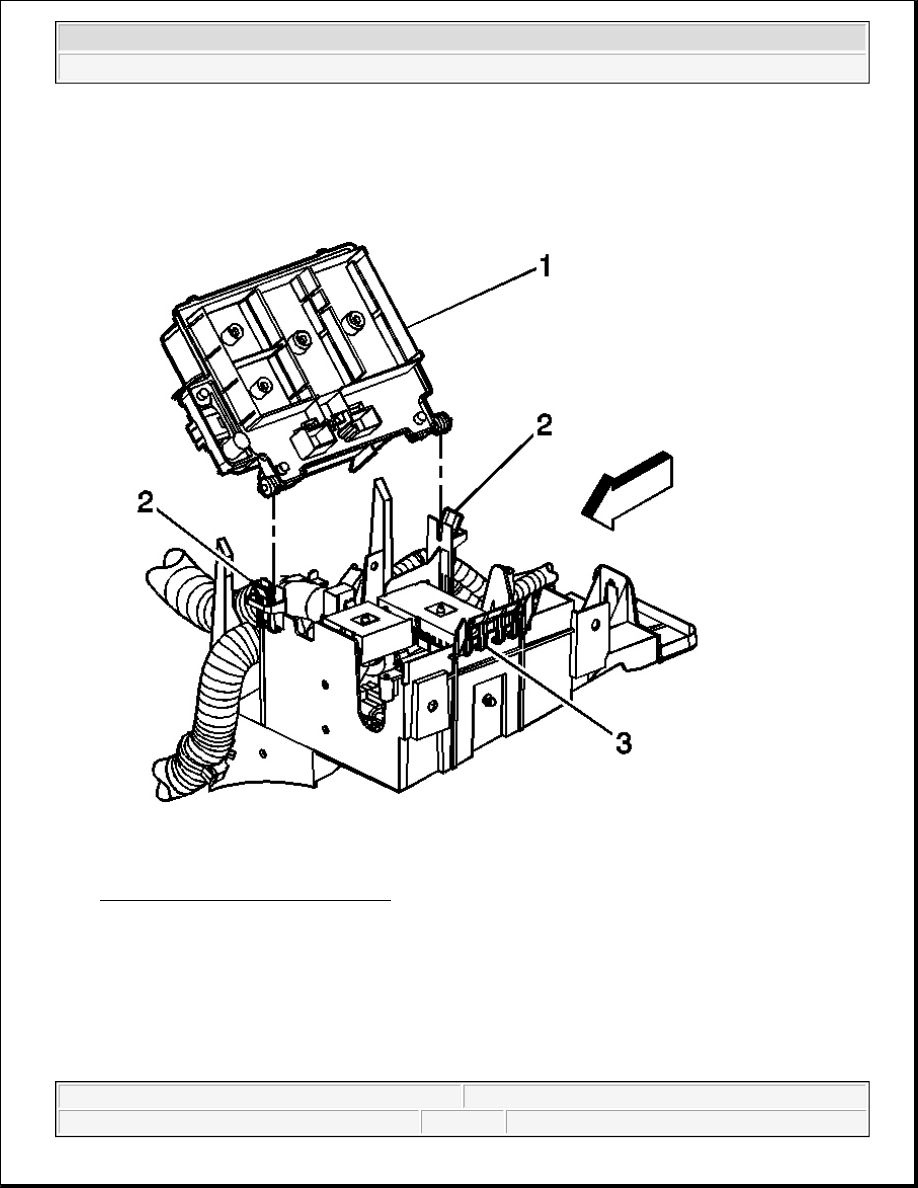

Fig. 120: Electrical Center & Housing
Courtesy of GENERAL MOTORS CORP.

3. Align the electrical center block (1) stubs in the slots so that the tabs (2) retains it in place.
