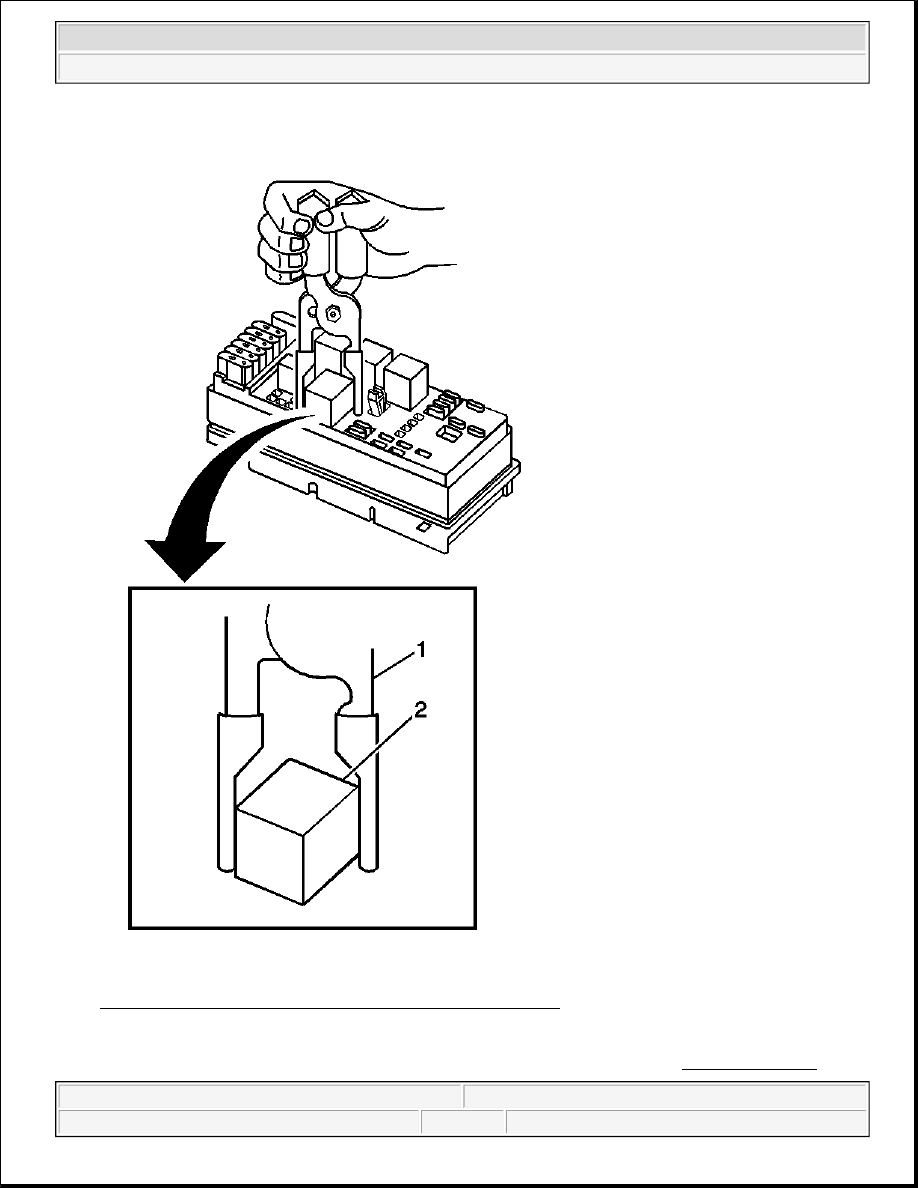

Fig. 110: Removing Or Installing Relay In Electrical Center
Courtesy of GENERAL MOTORS CORP.

3. Using the J 43244 (1) position the tool on opposing corners of the relay (2). See Special Tools and



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



Equipment .

4. Remove the relay (2) from the electrical center.

Installation Procedure

NOTE:

Use J43244 to pull the relay straight out from the electrical center
terminals. The use of pliers or a flat bladed tool could damage the
electrical center.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



Fig. 111: Removing Or Installing Relay In Electrical Center
Courtesy of GENERAL MOTORS CORP.

1. Install the relay (2) in the same position as removed.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



2. Install the electrical center cover.

RELAY REPLACEMENT (ATTACHED TO WIRE HARNESS)

Removal Procedure

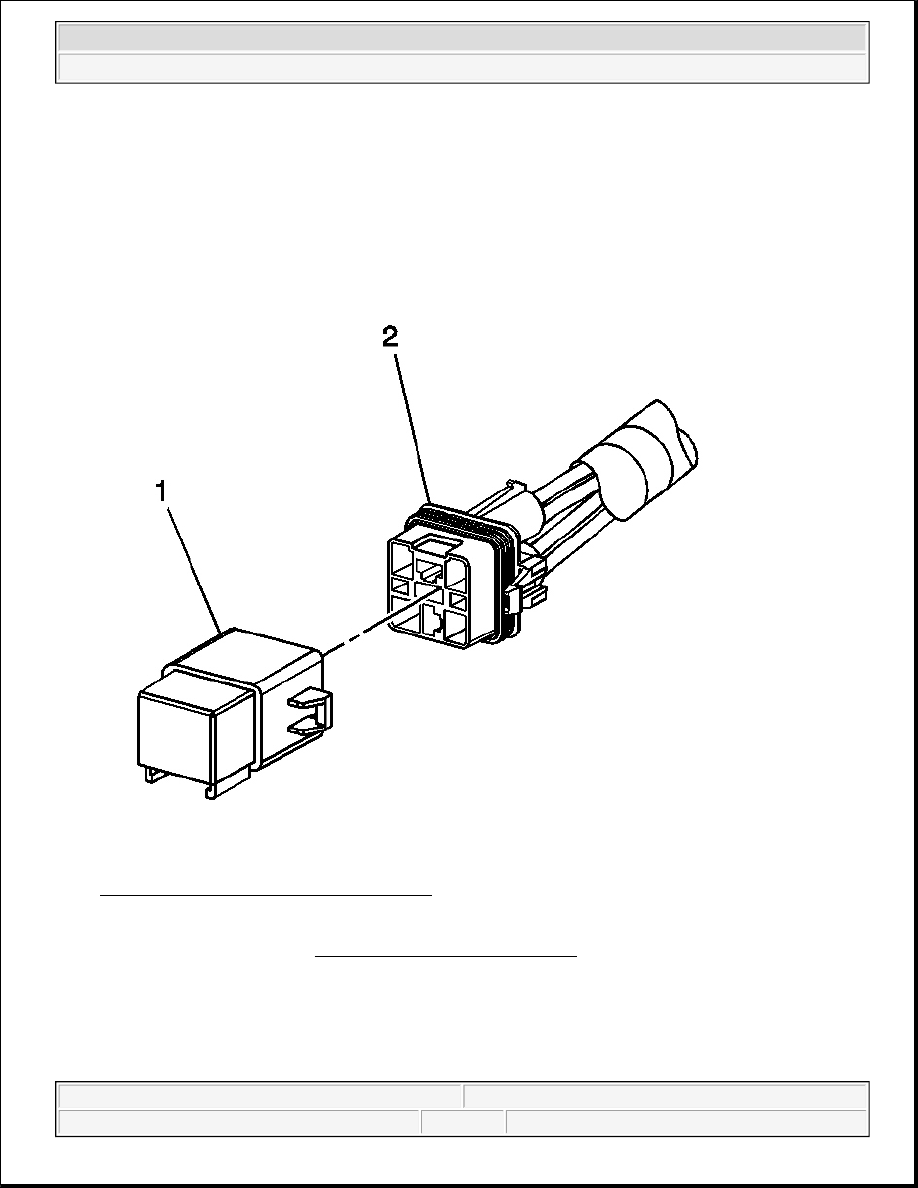

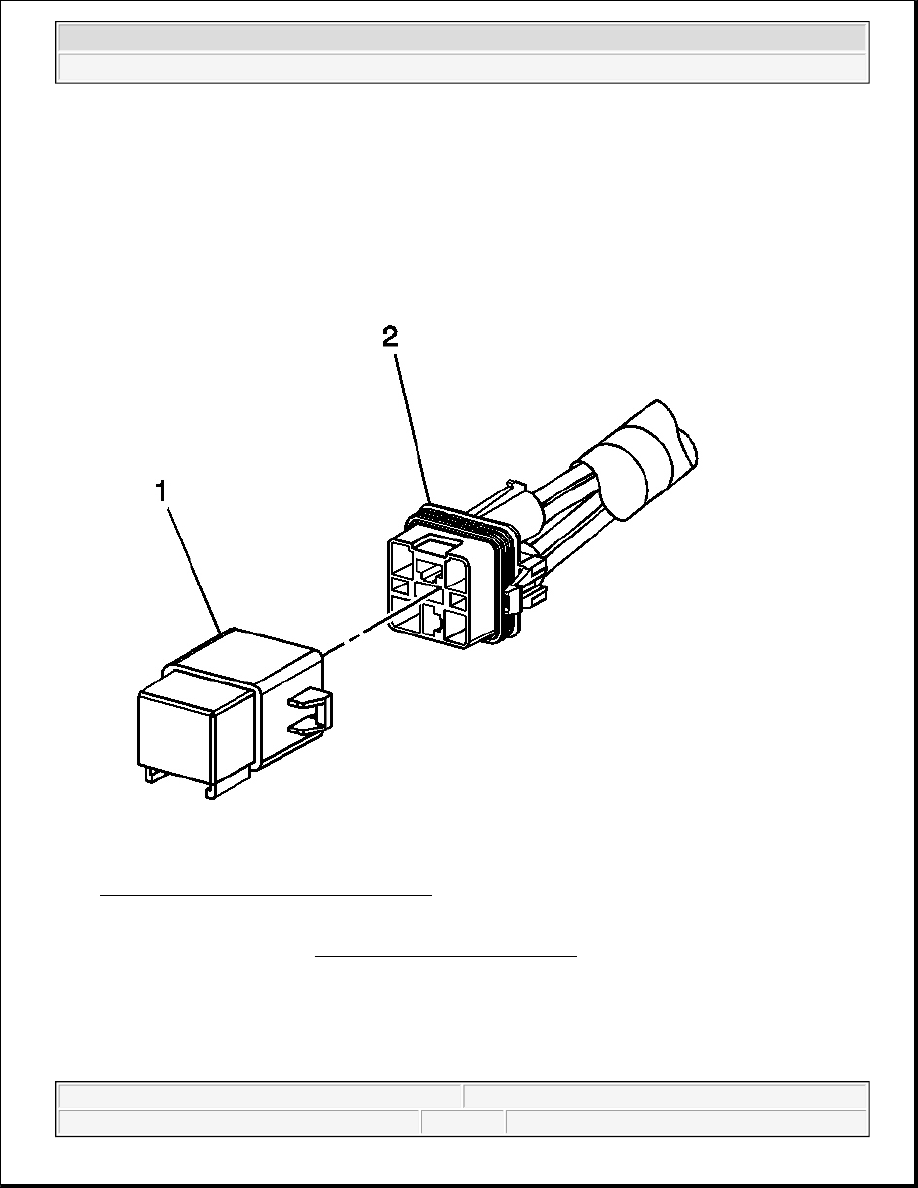

Fig. 112: Relay & Wire Harness Connector
Courtesy of GENERAL MOTORS CORP.

1. Locate the relay. Refer to the Master Electrical Component List to locate the relay in the vehicle.

2. Remove any fasteners which hold the relay in place.

3. Remove any connector position assurance (CPA) devices or secondary locks.

IMPORTANT: Use care when removing a relay in a wiring harness when the relay is

secured by fasteners or tape.
