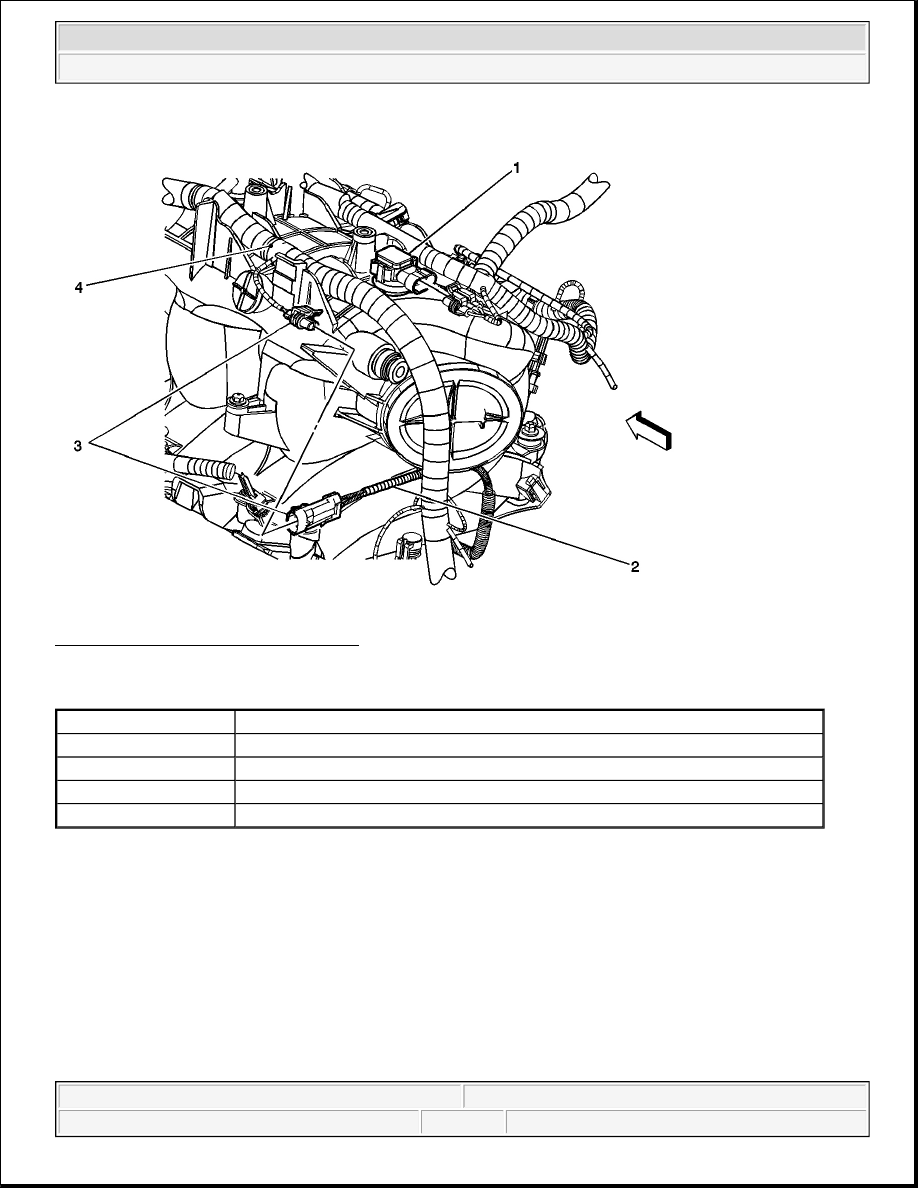

Fig. 103: Splice S102 Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 103

Callout

Component Name

1

MAP Sensor

2

Knock Sensor Pigtail

3

C115-Knock Sensors Inline

4

Engine Harness



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



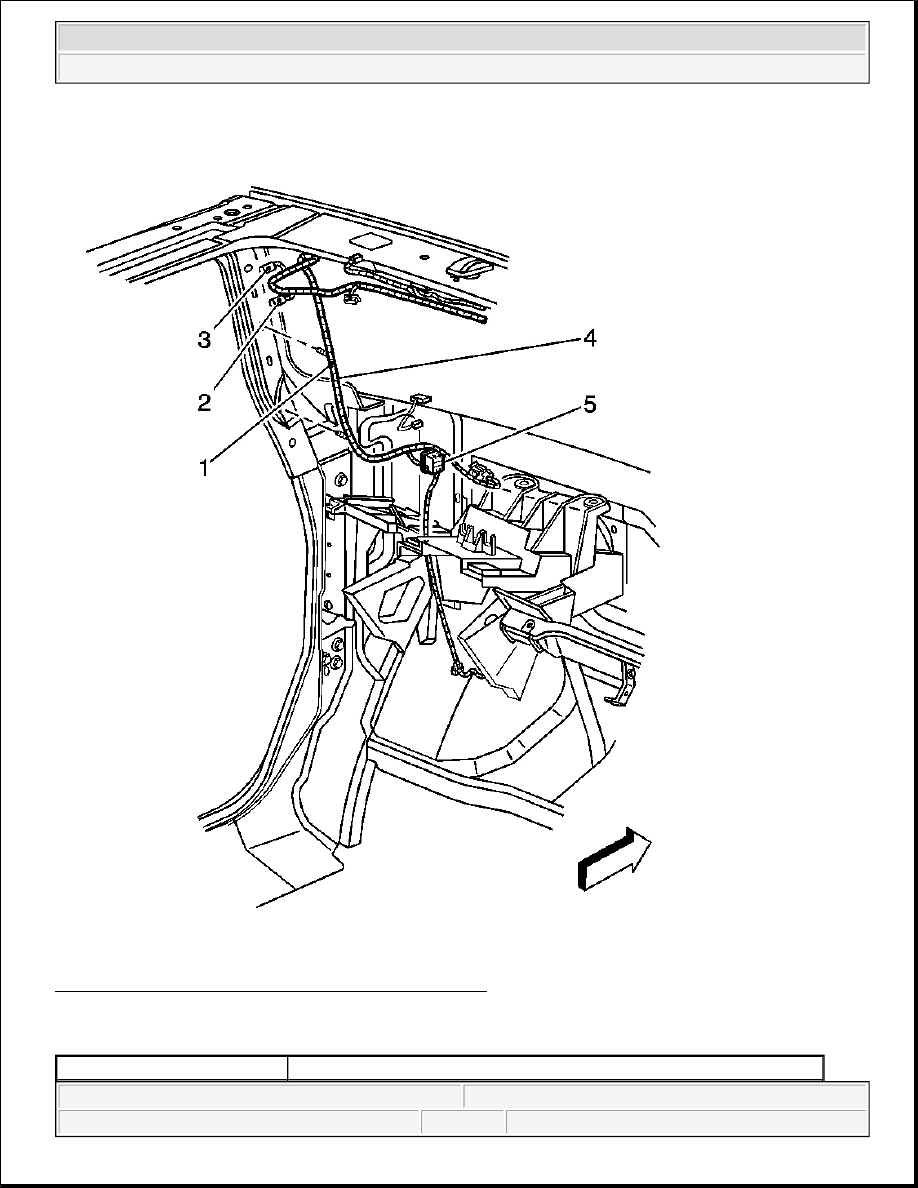

Fig. 104: Splices S301, S302 and S305 Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 104

Callout

Component Name



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



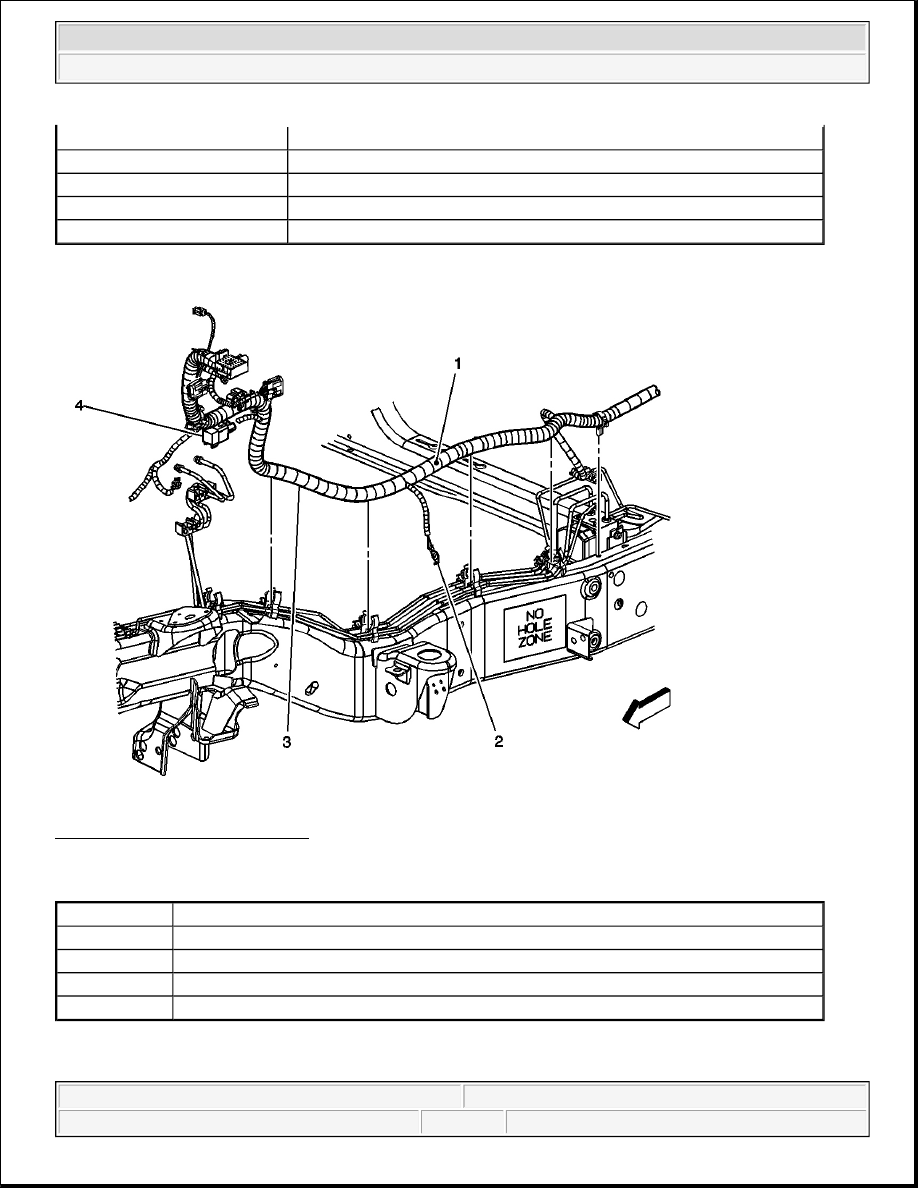

Fig. 105: S304 Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 105

1

S302

2

S305

3

S301

4

Headliner Harness

5

Sunroof Relay

Callout

Component Name

1

S304

2

G300

3

Chassis Harness

4

Electronically Controlled Air Suspension Relay



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



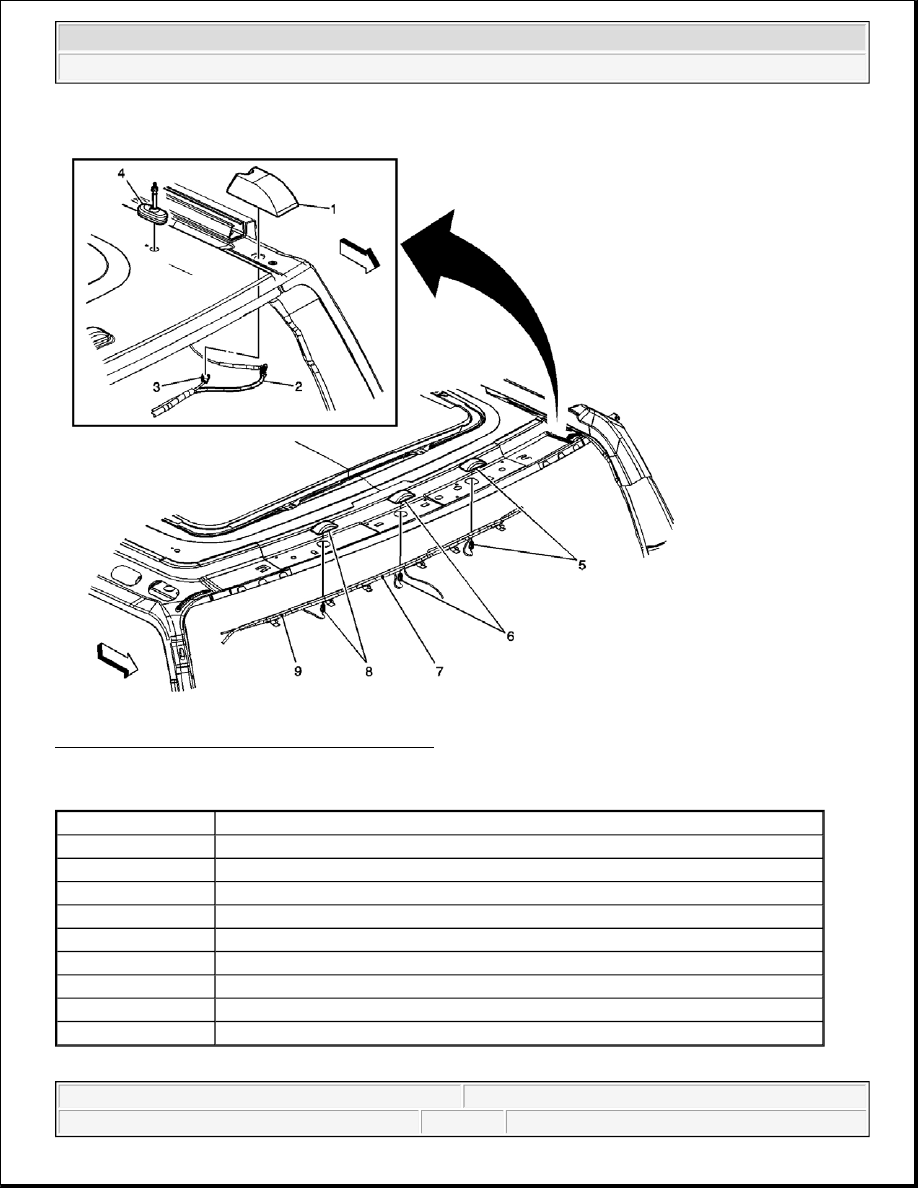

Fig. 106: Splice S303 and S345 Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 106

Callout

Component Name

1

Clearance Lamp - LF

2

Roof Marker Lamp Harness

3

Clearance Lamp Connector - LF

4

Cell Phone/GPS Antenna

5

Roof Lamp - Center Front

6

Roof Lamp - Center Front

7

Splice S345

8

Roof Lamp - Center Front

9

Splice S303
