Fig. 107: Splices S350 and S351 Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 107

Callout

Component Name

1

Console Harness

2

Floor Shifter

3

S350

4

S351



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



Fig. 108: S391 and S392 Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 108

Callout

Component Name

1

Fuel Tank Pressure (FTP) Sensor Connector

2

Air Suspension Sensor Connector - RR

3

G308

4

S391

5

S392



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



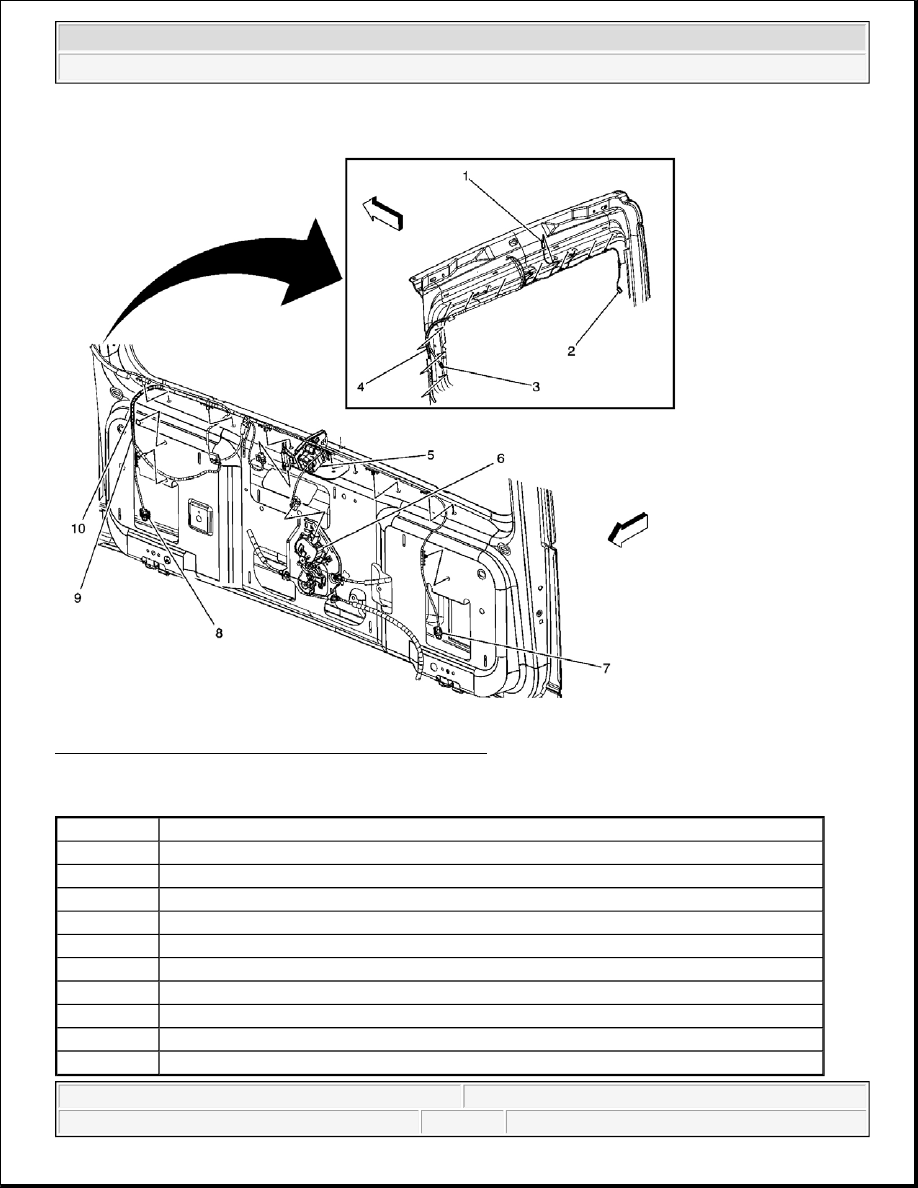

Fig. 109: Splices S900, S901 and S902 Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 109

Callout

Component Name

1

Center High Mounted Stop Lamp (CHMSL) Connector

2

Rear Window Defogger Grid Connector

3

Rear Window Defogger Grid Connector

4

Splice S900

5

Rear Window Wiper Module - w/Motor

6

Door Lock Actuator - Liftgate

7

Liftgate Ajar Switch - Left

8

Liftgate Ajar Switch - Right

9

Splice S902

10

Splice S901



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



REPAIR INSTRUCTIONS

RELAY REPLACEMENT (WITHIN AN ELECTRICAL CENTER)

Tools Required

J 43244 Relay Puller Pliers. See Special Tools and Equipment .

Removal Procedure

1. Remove the electrical center cover.

2. Locate the relay. Refer to Electrical Center Identification Views to locate the electrical center where the

relay exists.

IMPORTANT:

z

Always note the orientation of the relay.

z

Ensure that the electrical center is secure, as not to put added stress
on the wires or terminals.
