Hummer H2. Manual - part 1302

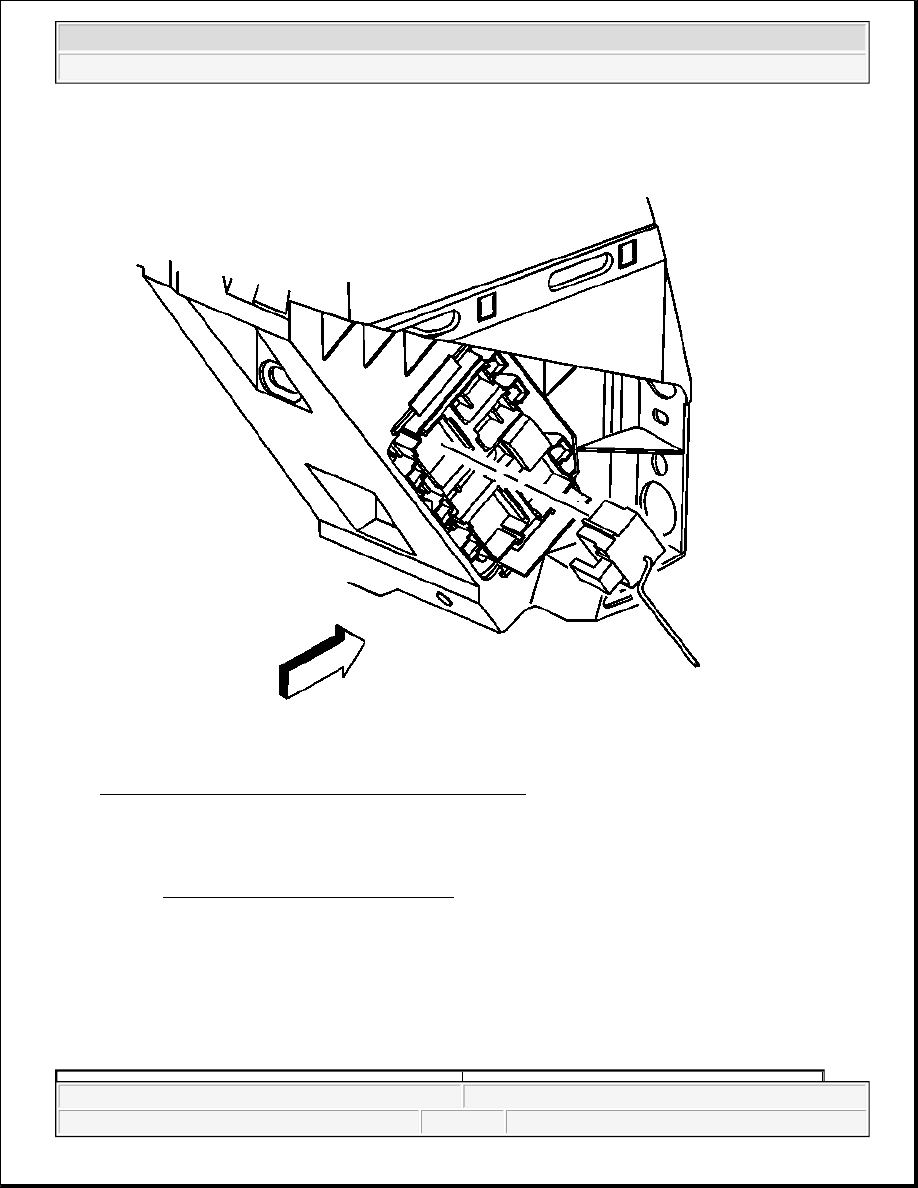

Fig. 128: Connecting Wiring Connectors To Fuse Block
Courtesy of GENERAL MOTORS CORP.

4. Connect the wiring connectors to the fuse block.

Refer to Electrical Center Identification Views to ensure the right connections are made.

5. Install the right side end panel.

SPECIAL TOOLS AND EQUIPMENT

SPECIAL TOOLS

Special Tools



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



Illustration

Tool Number/Description

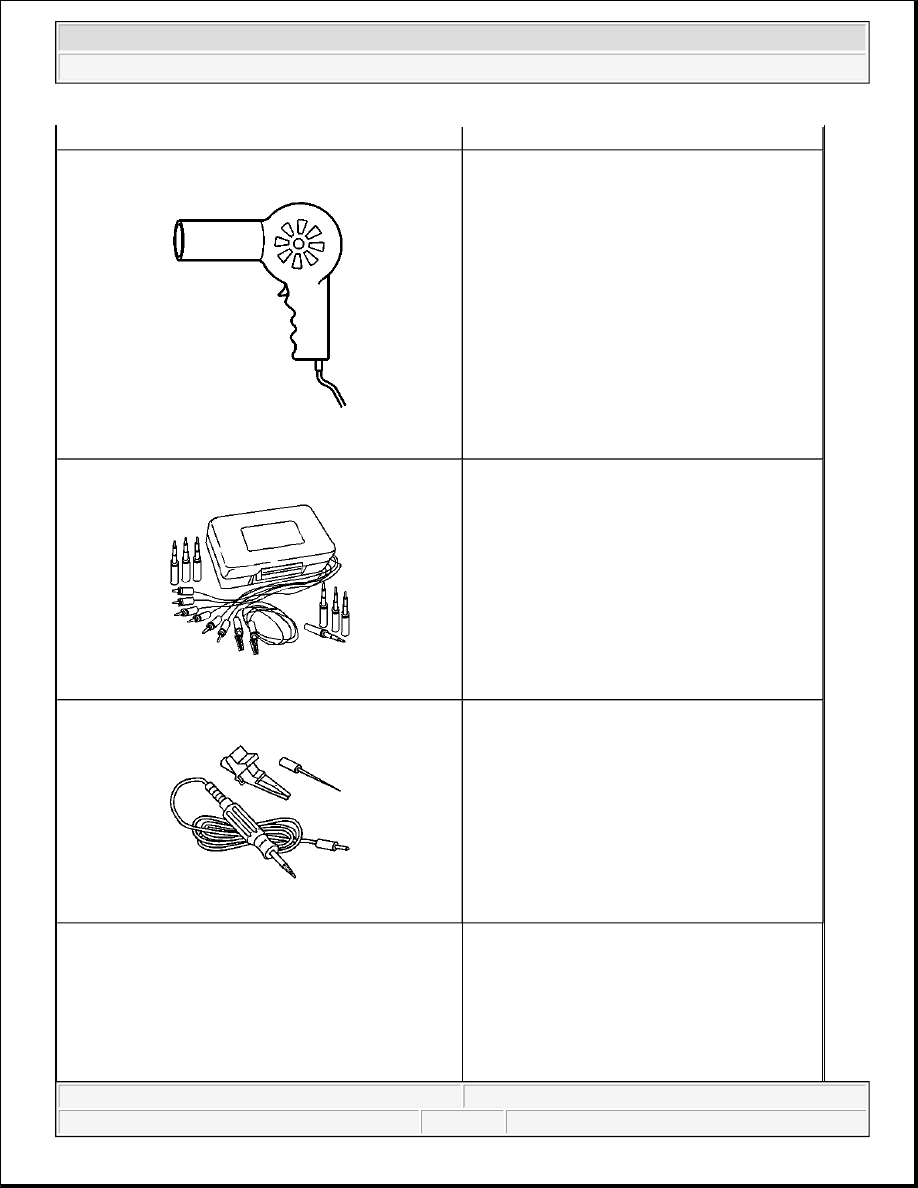

J 25070

Heat Gun 500-700 F

J 35616

GM Terminal Test Kit

J 35616-200

Test Light - Probe Kit

J 36169-A

Fused Jumper Wire



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



J 38125

Terminal Repair Kit

J 38125-5

Ultra Torch

J 39200

Digital Multimeter



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



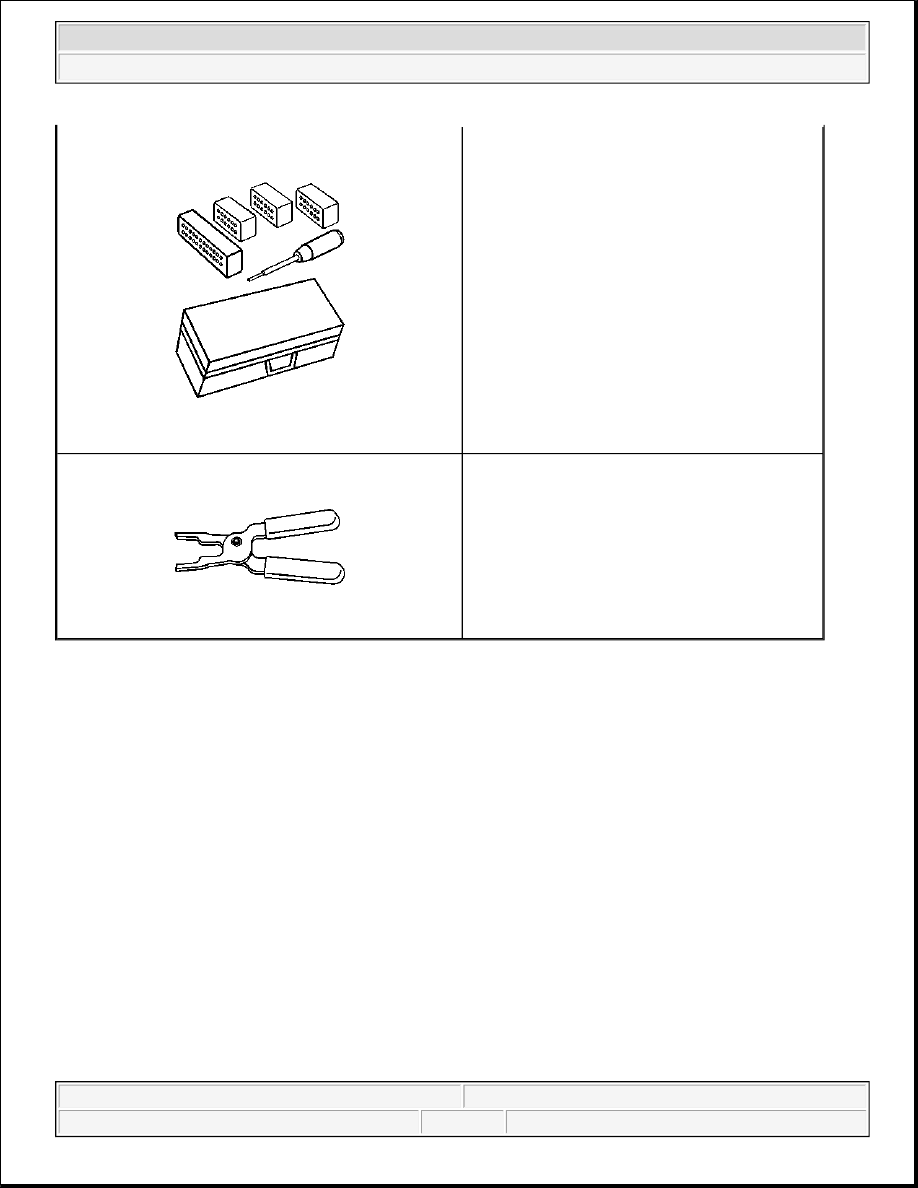

J 42675

Flat-Wire Probe Adapter

J 43244

Relay Puller Pliers



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2
