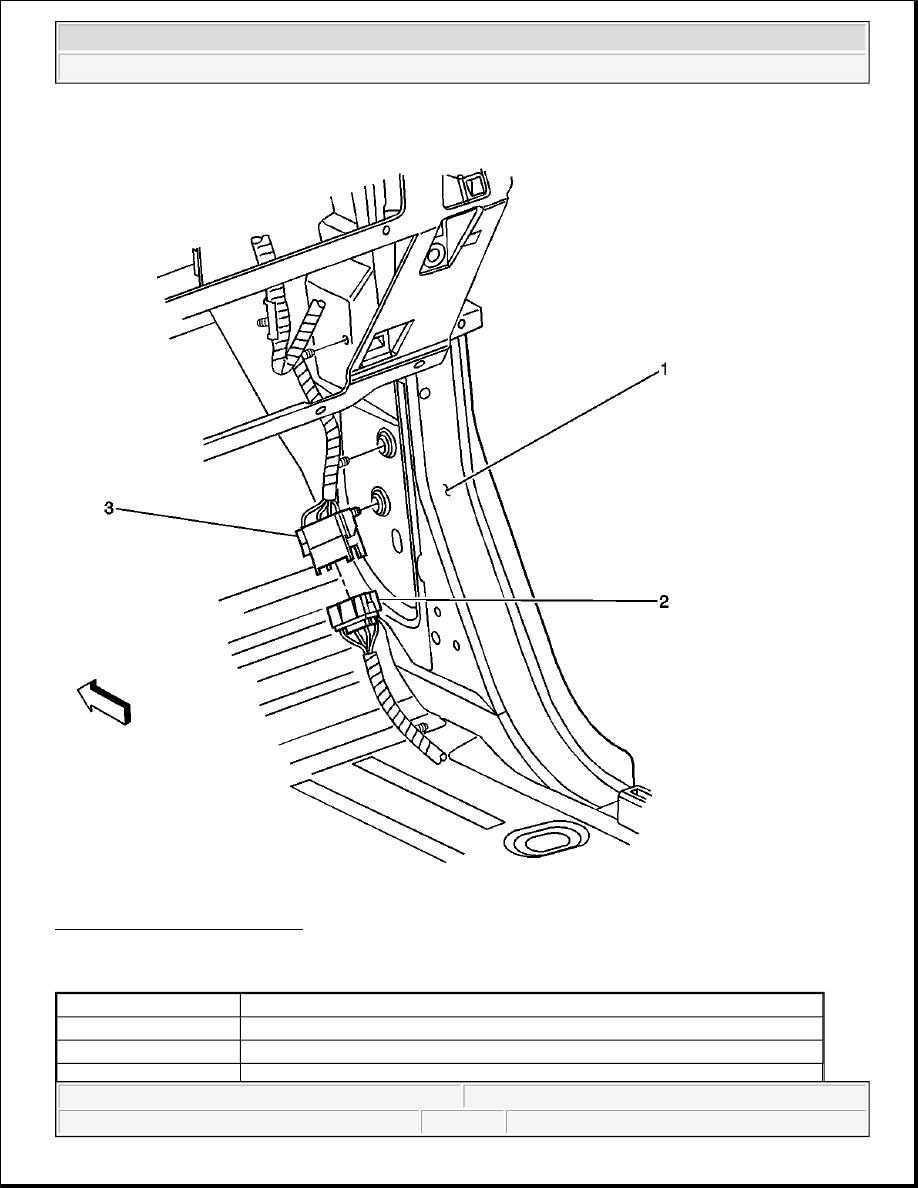

Fig. 87: C298 Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 87

Callout

Component Name

1

RH Cowl Panel

2

C298 - Body Harness Side



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



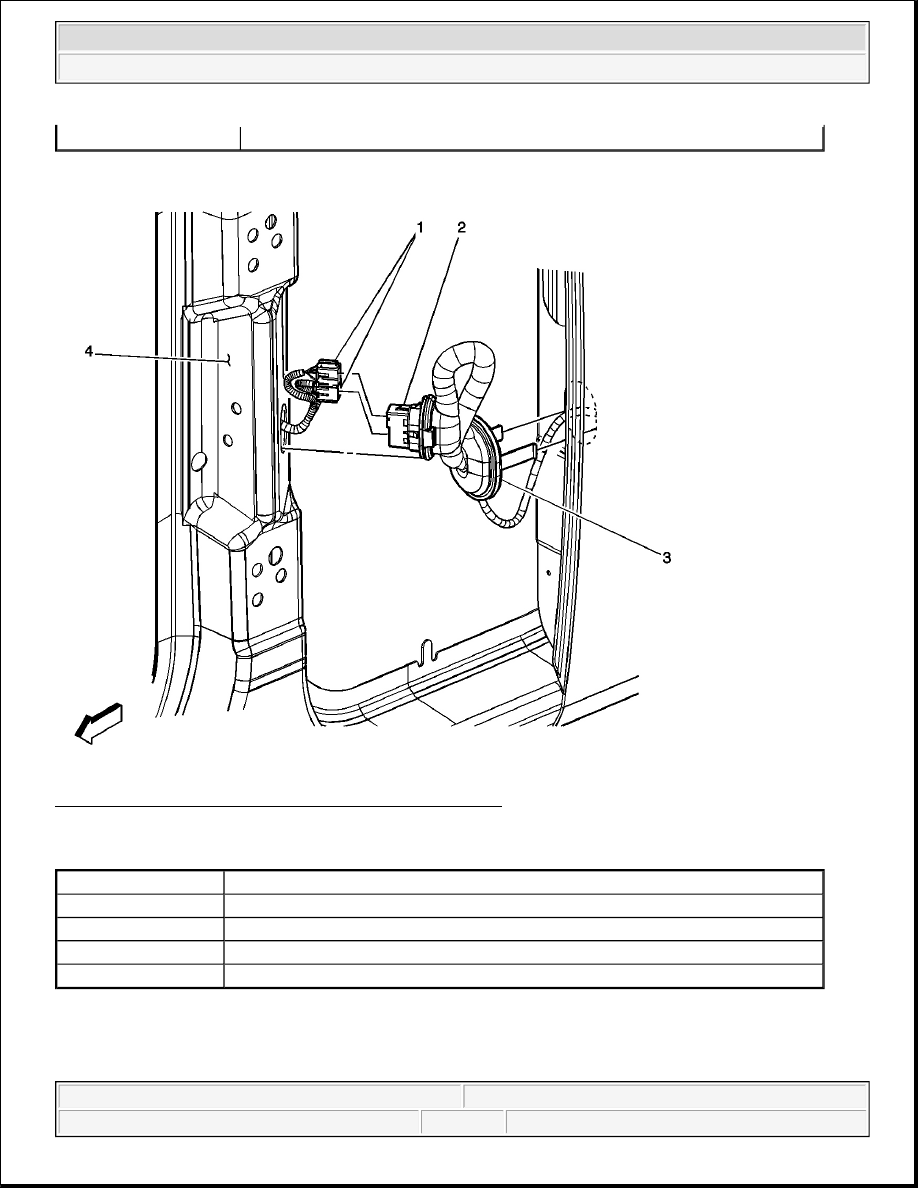

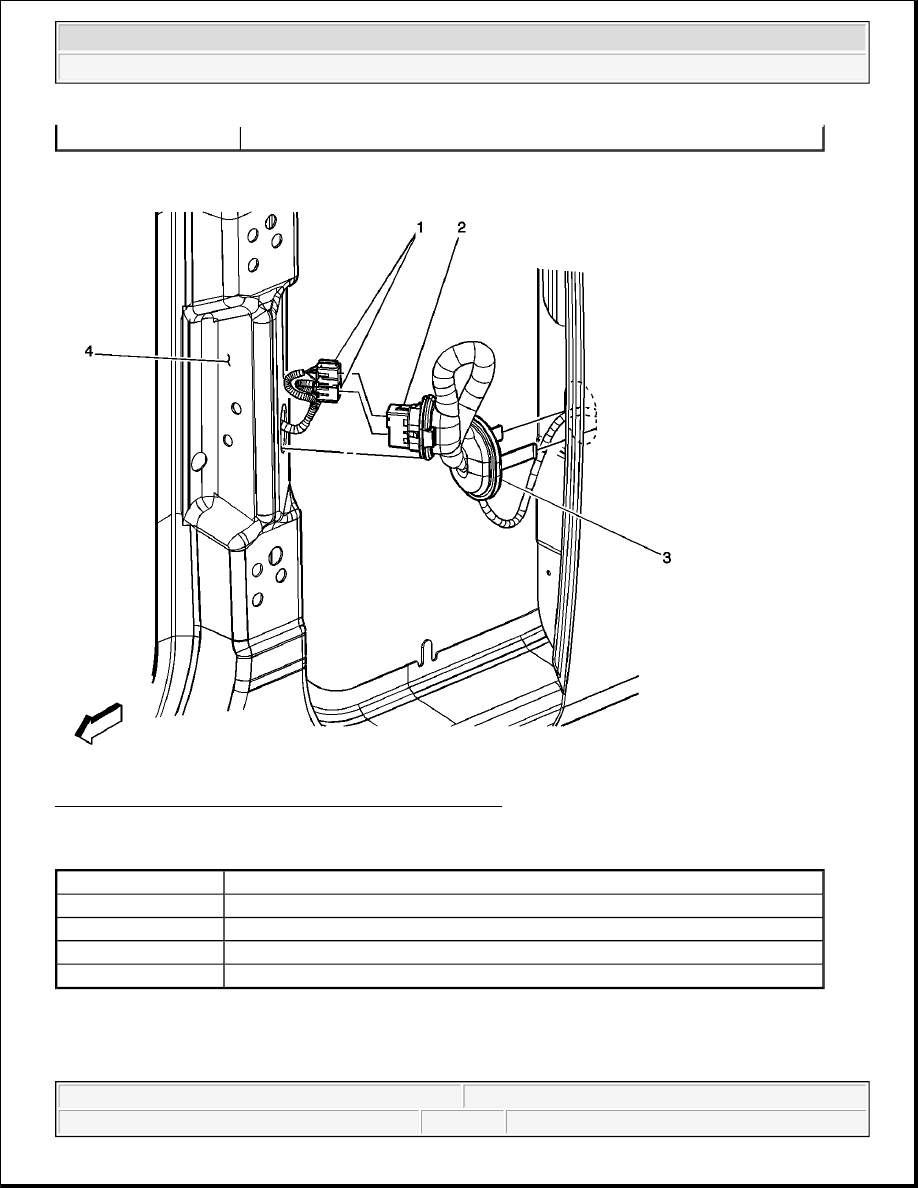

Fig. 88: C310 - LR Shown - RR Similar Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 88

3

C298 - I/P Harness Side

Callout

Component Name

1

C310 - Body Harness Side

2

C310 - LR Door Harness Side

3

Passthrough Grommet

4

B Pillar



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



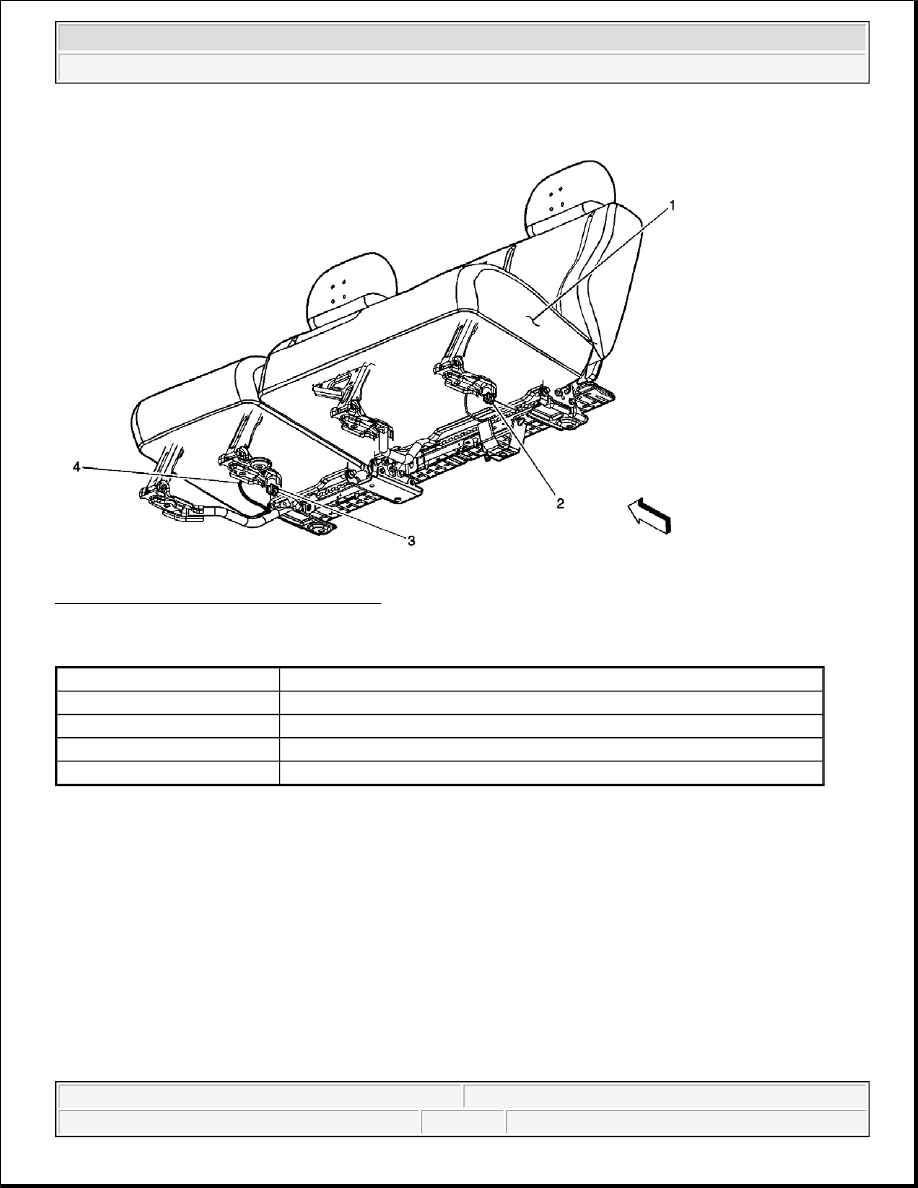

Fig. 89: C320 and C380 Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 89

Callout

Component Name

1

Rear Seat Assembly

2

C320

3

C380

4

Body Harness



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



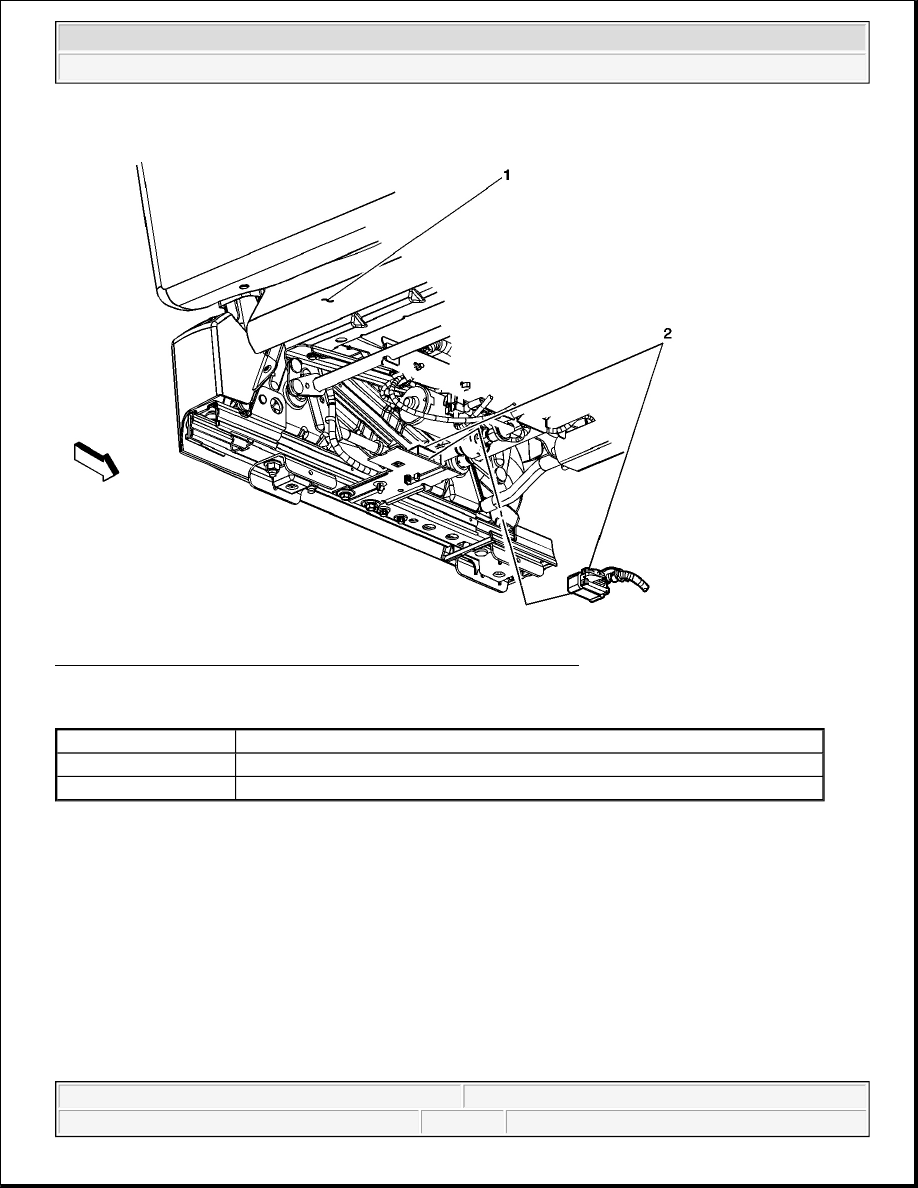

Fig. 90: C325 - Driver Shown - Passenger Similar Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 90

Callout

Component Name

1

Driver Seat

2

C325 - Driver Seat Harness



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2
