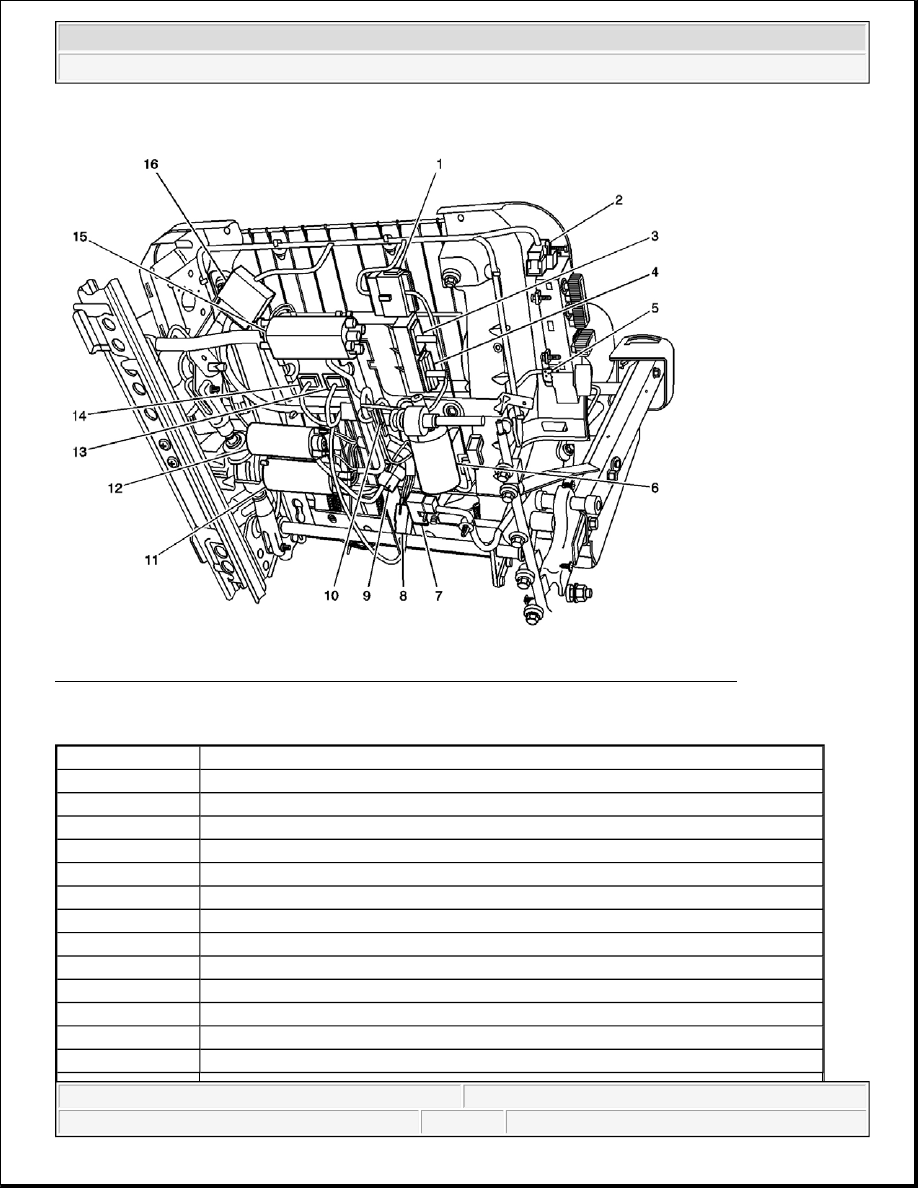

Fig. 91: C325, C326, C327, C328, C329 and C330 - Driver Seat Inlines Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 91

Callout

Component Name

1

C327

2

Seat Adjuster Switch - Driver

3

Memory Seat Module - C4

4

Memory Seat Module - C3

5

Seat Bolster/Lumbar Switch - Driver

6

Seat Recline Motor - Driver

7

C325

8

C329

9

C330

10

C328

11

Seat Rear Vertical Motor - Driver

12

Seat Front Vertical Motor - Driver

13

Memory Seat Module - C2



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



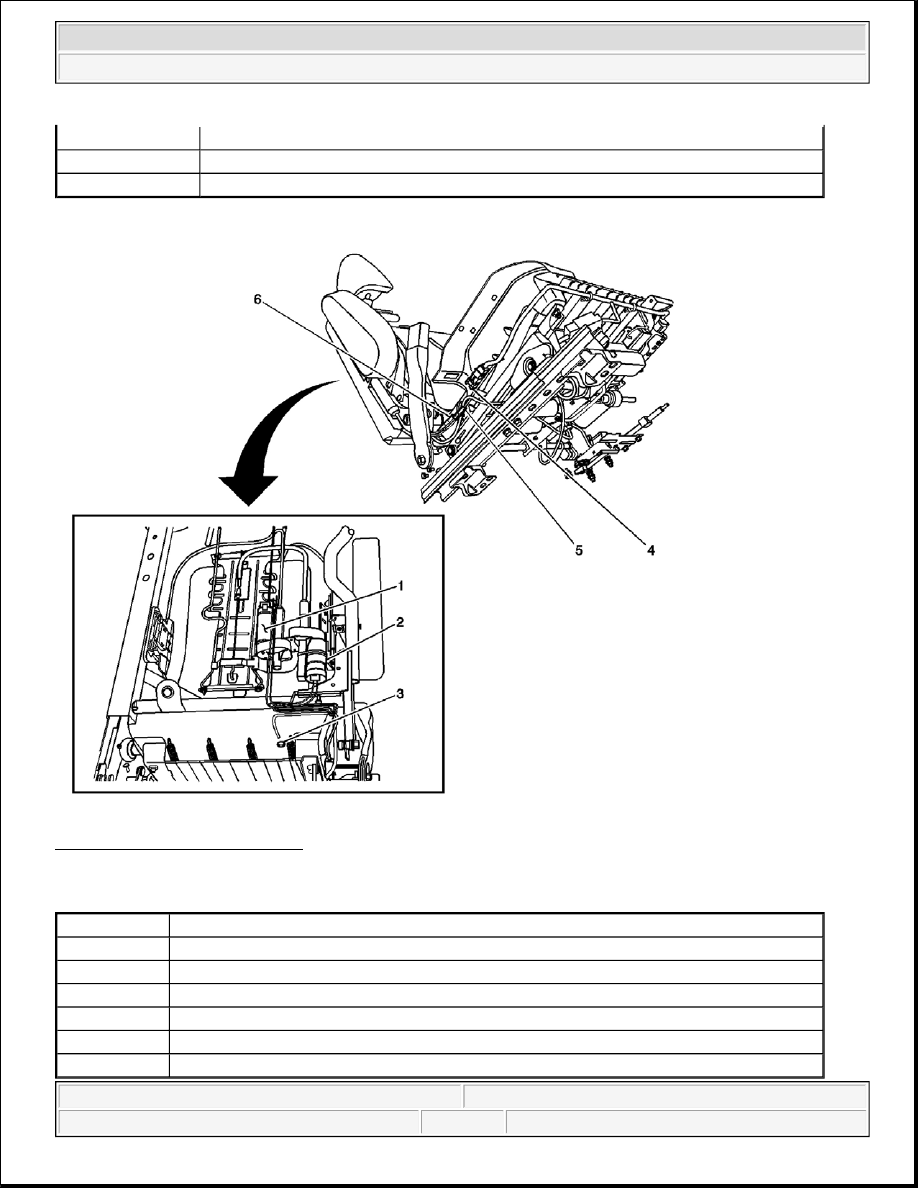

Fig. 92: C333 Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 92

14

Memory Seat Module - C1

15

Seat Horizontal Motor - Driver

16

C326

Callout

Component Name

1

Seat Bolster Motor - Driver

2

Seat Lumbar Motor - Driver

3

Heated Seat Element - Driver Cushion

4

C333

5

Seat Belt Switch Connector

6

Heated Seat Element - Driver Cushion Connector



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



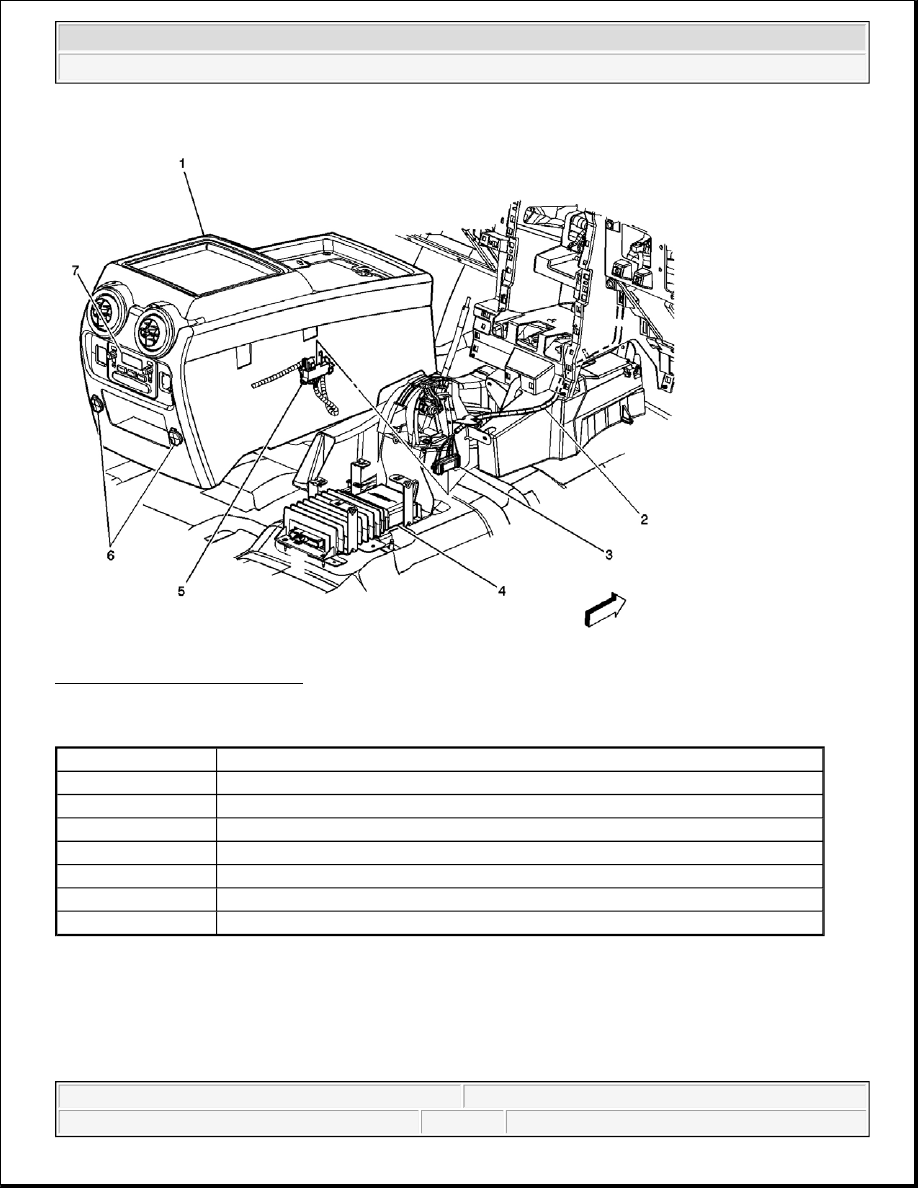

Fig. 93: C350 Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 93

Callout

Component Name

1

Front Floor Console

2

I/P Harness

3

C350 - I/P Harness Side

4

Audio Amplifier

5

C350 - Console Harness Side

6

Accessory Power Outlets - Rear

7

Rear Seat Audio (RSA)



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



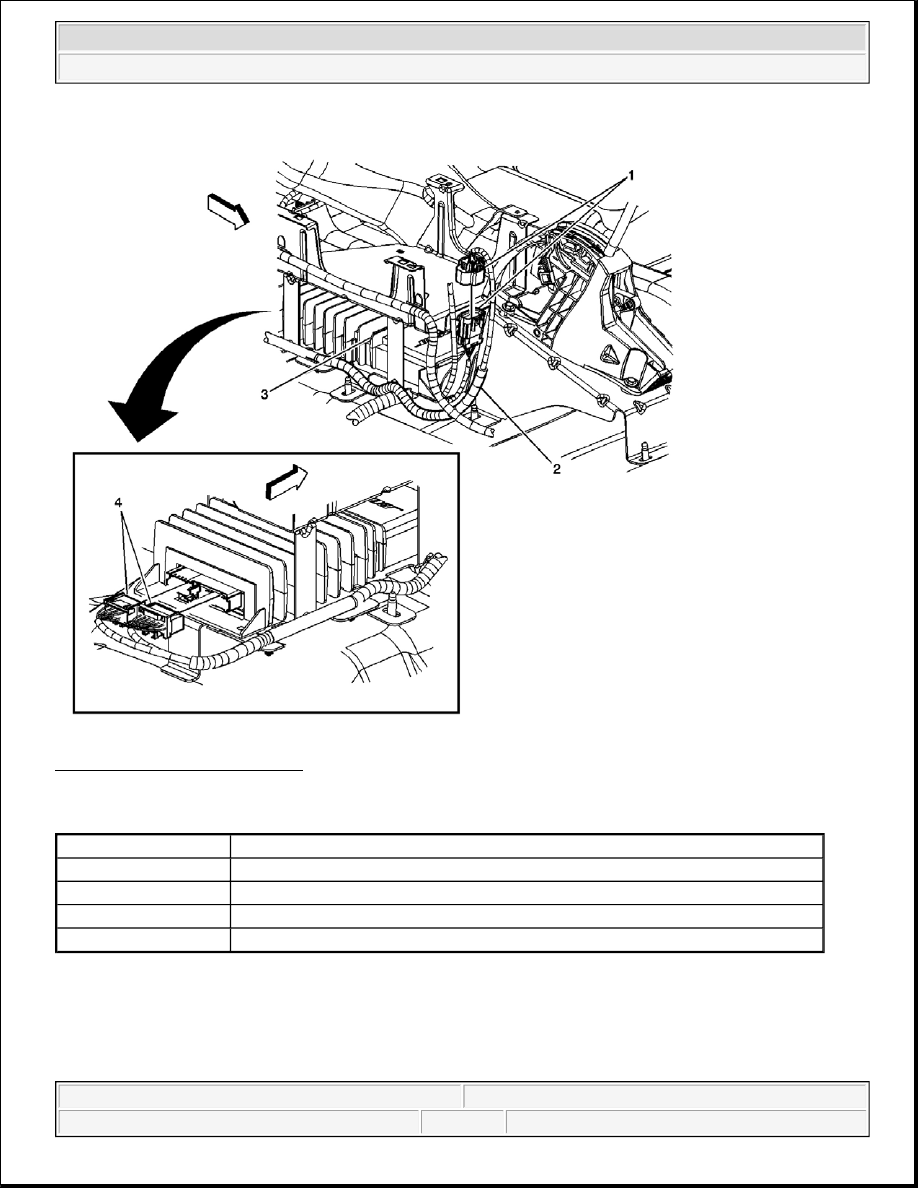

Fig. 94: C355 Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 94

Callout

Component Name

1

C355

2

Body Harness

3

Audio Amplifier

4

Audio Amplifier Connectors
