Hummer H2. Manual - part 1275

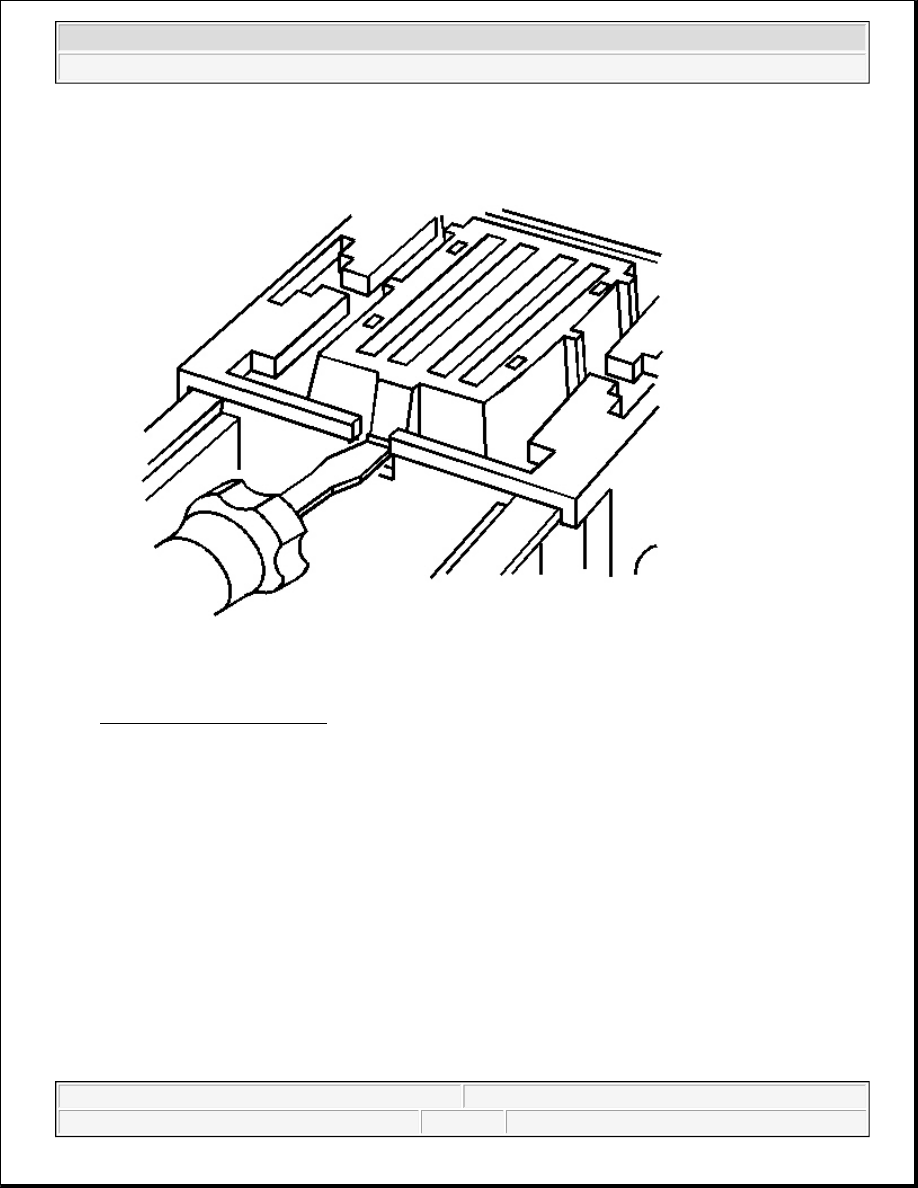

Fig. 30: Releasing Locking Tabs
Courtesy of GENERAL MOTORS CORP.

3. Locate the dress cover locking tabs at the front of the connector. Using a small flat-blade tool push down

on one of the locking tabs and pull the cover up until the dress cover releases. Repeat this procedure for
the other locking tab.

4. Once the front 2 locks are unlocked, lift the front of the dress cover and pull it forward.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2

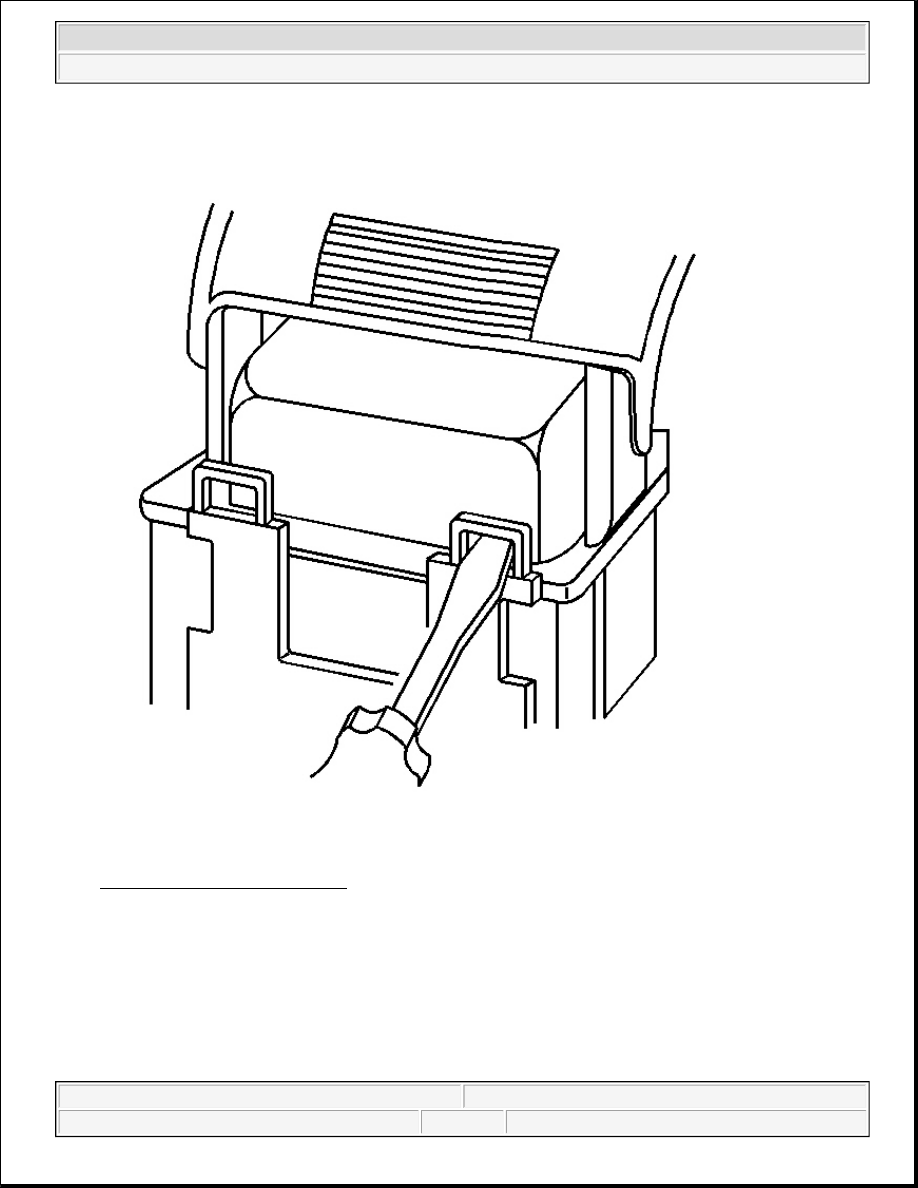

Fig. 31: Removing Nose Piece
Courtesy of GENERAL MOTORS CORP.

5. If the connector has a nose piece, use a small flat-blade tool to remove the nose piece by inserting the

blade into the slot on the front of the connector and prying up on the nose piece.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2

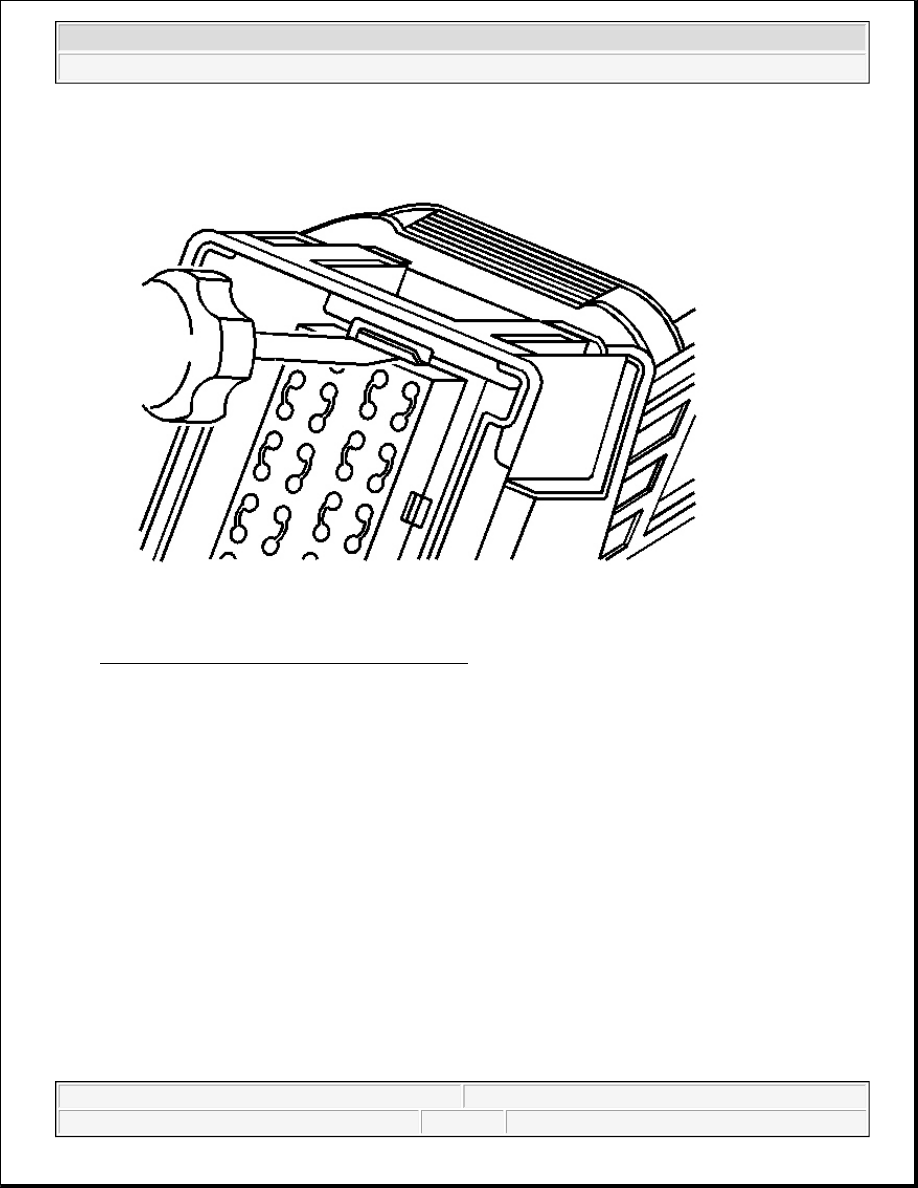

Fig. 32: Removing Terminal Position Assurance
Courtesy of GENERAL MOTORS CORP.

6. Remove the TPA by inserting a small flat-blade tool into the small slot on the TPA and pushing down

until the TPA releases. Gently pry the TPA out of the connector.

IMPORTANT: Always use care when removing a terminal position assurance (TPA) in

order to avoid damaging it.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2

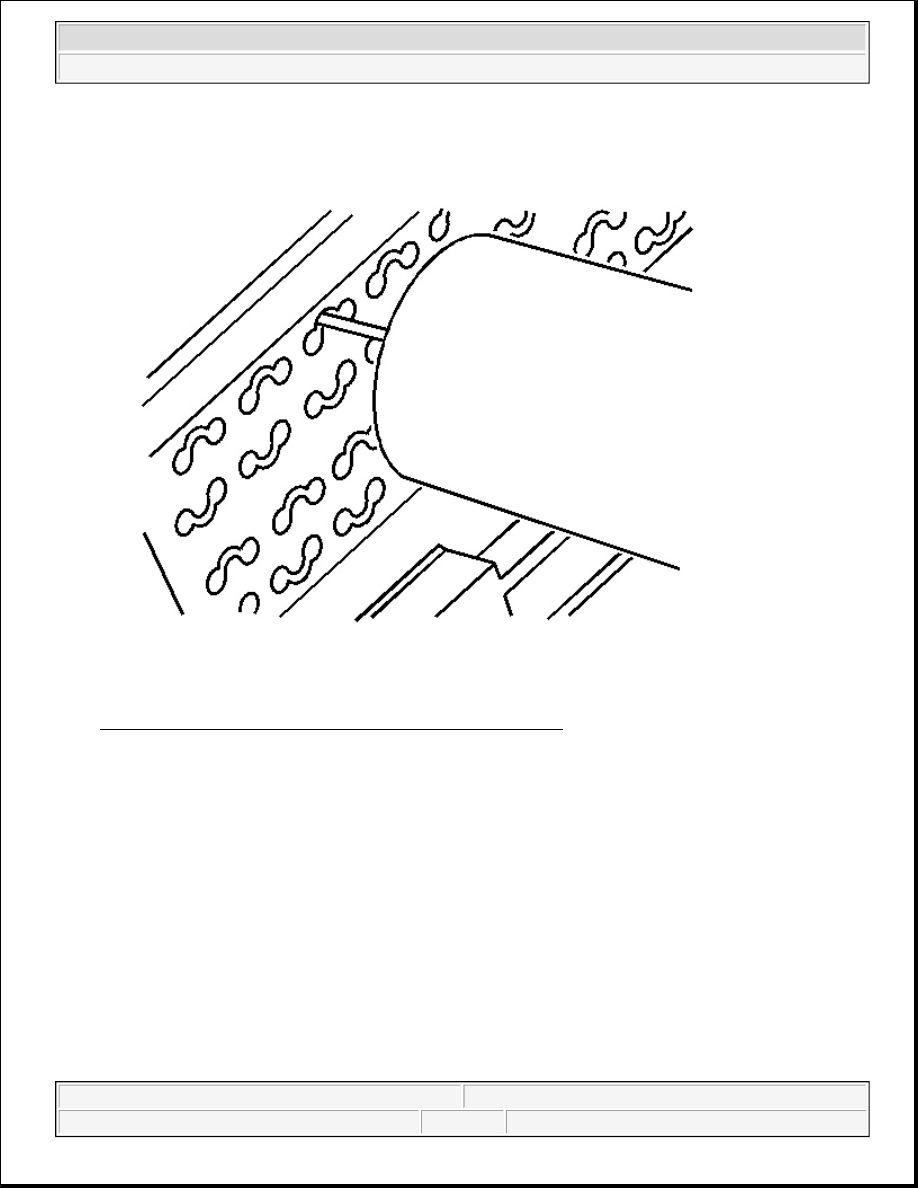

Fig. 33: Inserting J 38125-13A Into Terminal Cavities Canal
Courtesy of GENERAL MOTORS CORP.

7. Insert the J 38125-13A (GM P/N 12031876-1) tool into the round canal between the terminals cavities at

the front of the connector. See the release tool cross reference in the Reference Guide of the Terminal
Repair Kit to ensure that the correct release tool is used.

IMPORTANT: Be careful not to angle or rock the J 38125-13A tool when inserting it into

the connector or the tool may break.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2
