Hummer H2. Manual - part 1268

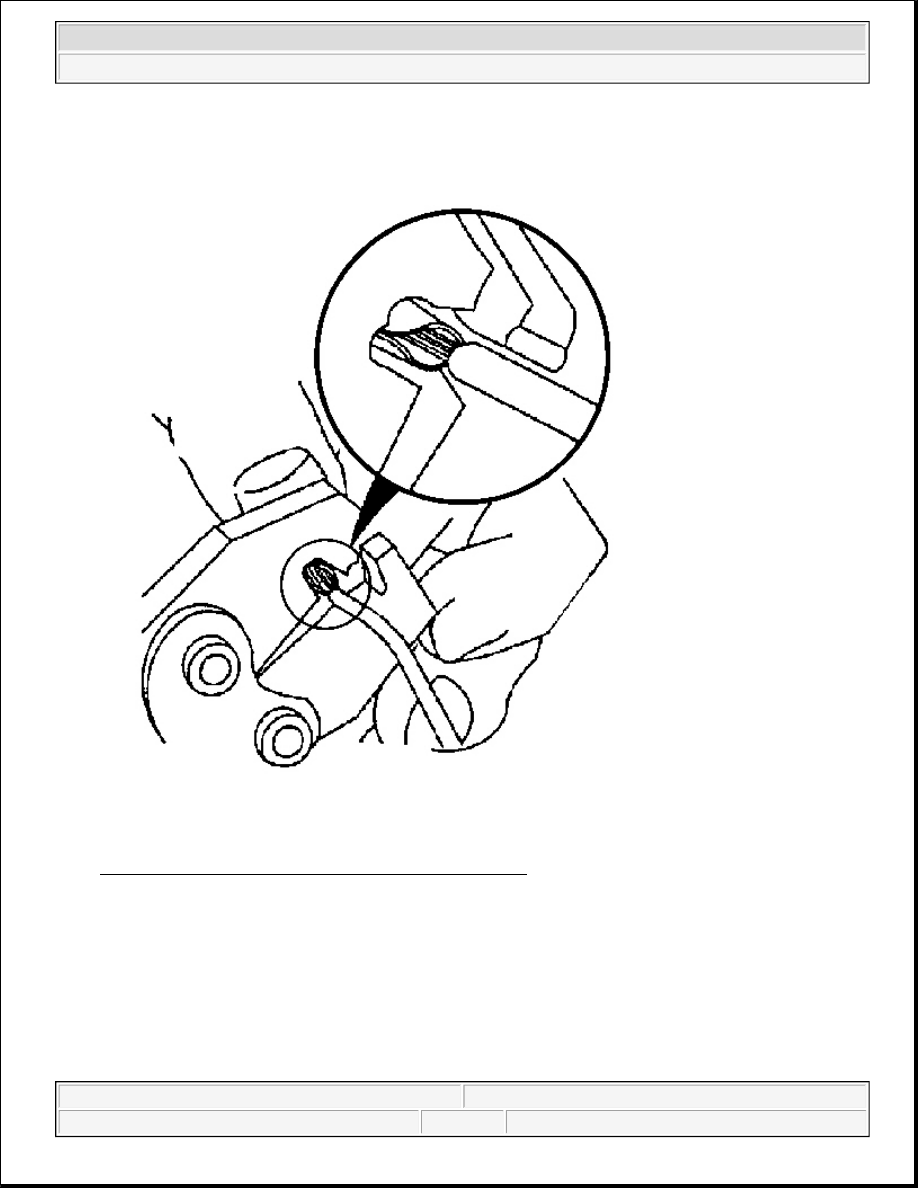

Fig. 5: Centering Crimp Tool Over Splice Clip & Wires
Courtesy of GENERAL MOTORS CORP.

8. Center the crimp tool over the splice clip and wires.

9. Apply steady pressure until the crimp tool closes.

Ensure that no strands of wire are cut.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



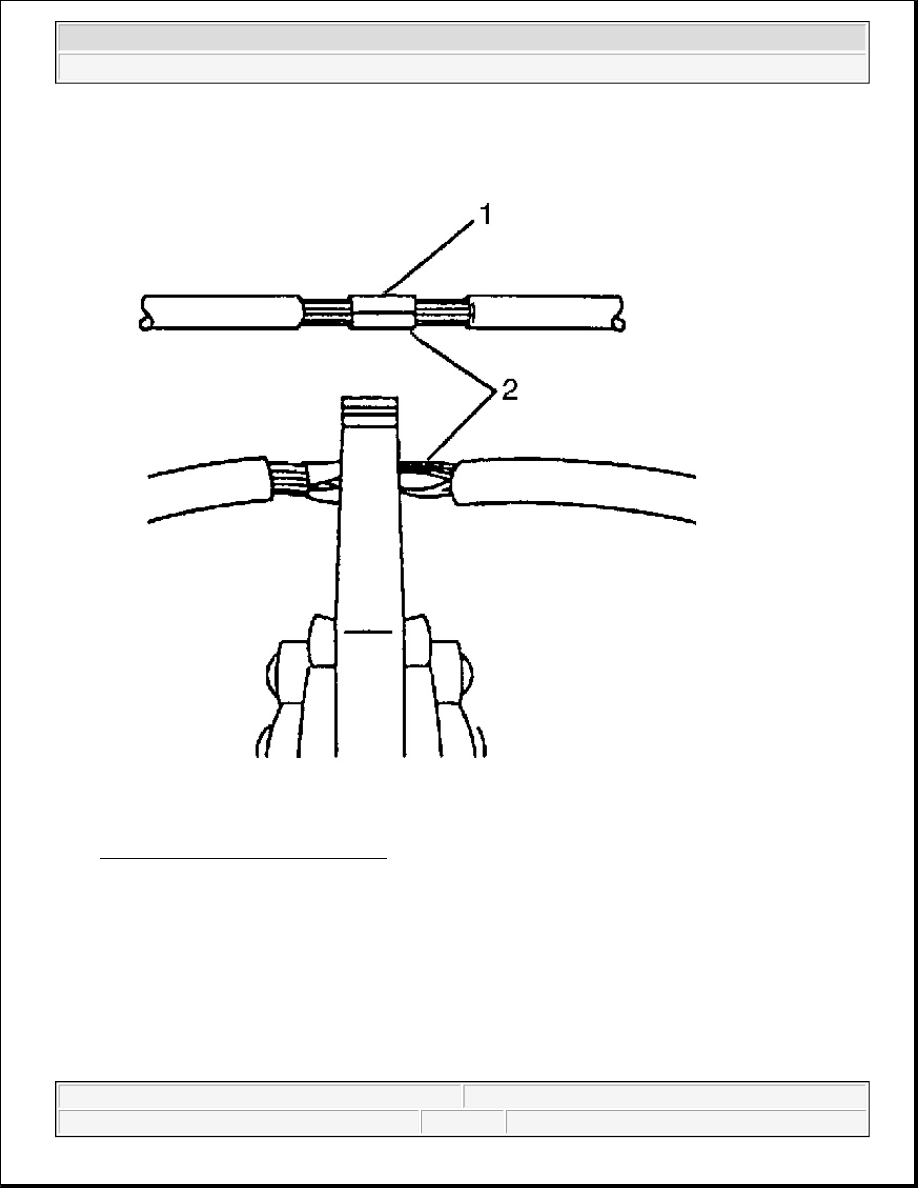

Fig. 6: Crimping Splice Clip & Wires
Courtesy of GENERAL MOTORS CORP.

10. Crimp the splice on each end (2).



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



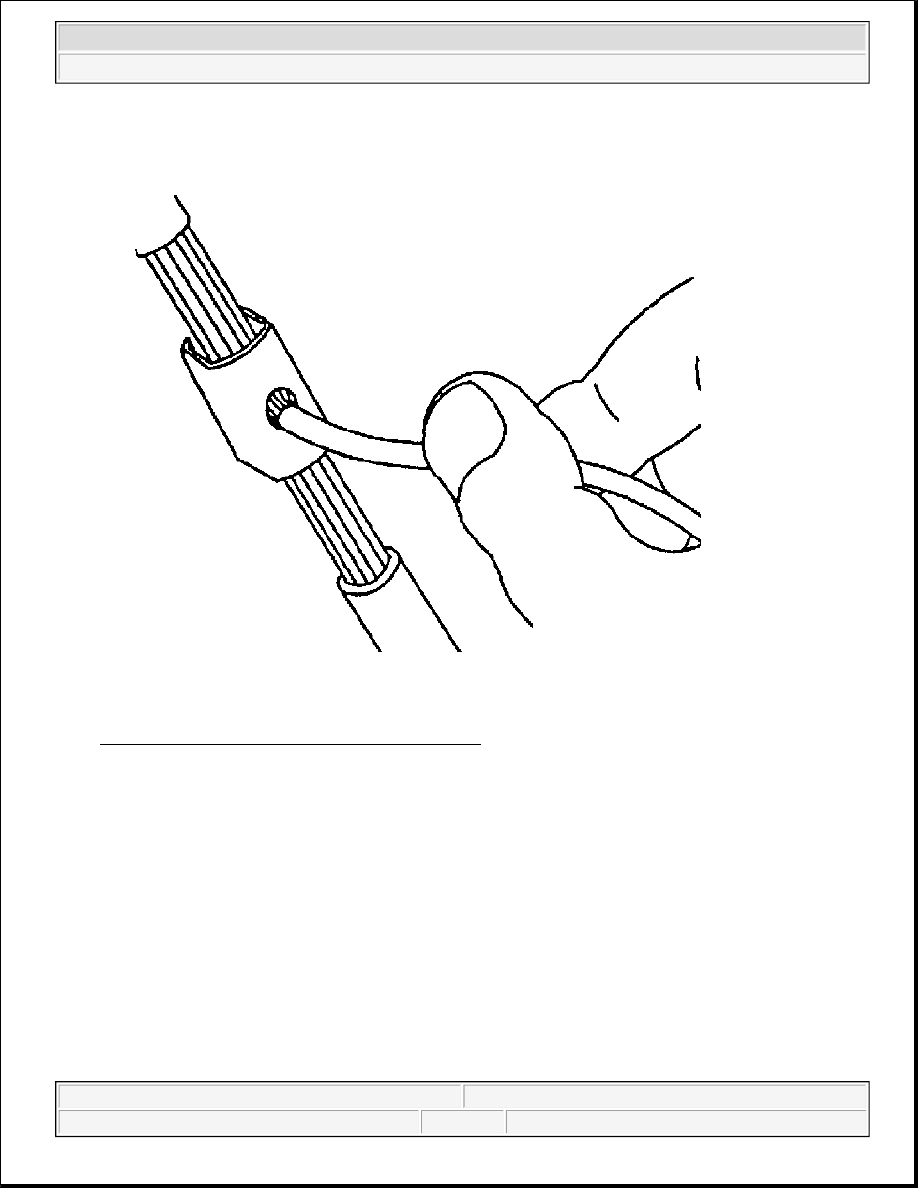

Fig. 7: Applying Solder To Back Of Clip Opening
Courtesy of GENERAL MOTORS CORP.

11. Apply 60/40 rosin core solder to the opening in the back of the clip. Follow the manufacturer's

instructions for the solder equipment.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2

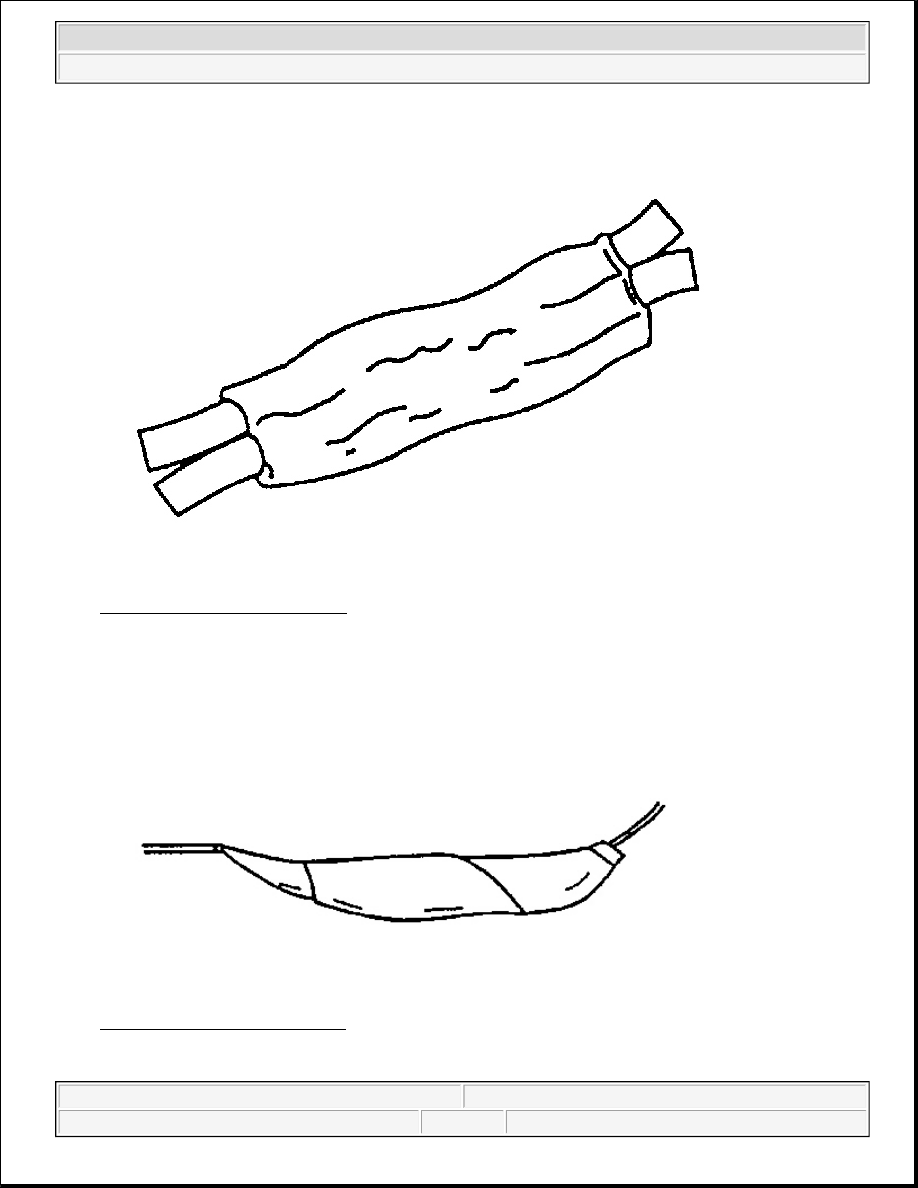

Fig. 8: Applying Electrical Tape
Courtesy of GENERAL MOTORS CORP.

12. Tape the splice. Roll on enough tape in order to duplicate the thickness of the insulation on the existing

wires.

Fig. 9: Additional Splice Taping
Courtesy of GENERAL MOTORS CORP.
