REPAIRING DAMAGED WIRE INSULATION

If the conductive portion of the wire is not damaged, locate the problem and apply tape around the wire. If the
damage is more extensive, replace the faulty segment of the wire. Refer to Splicing Copper Wire Using Splice
Clips and follow the instruction to repair the wire.

Wire Size Conversion

FLAT WIRE REPAIRS

HEATED OXYGEN SENSOR (HO2S) WIRING REPAIRS

Tools Required

Metric Wire Sizes (mm 2)

AWG Sizes

0.22

24

0.35

22

0.5

20

0.8

18

1.0

16

2.0

14

3.0

12

5.0

10

8.0

8

13.0

6

19.0

4

32.0

2

50.0

1/0

NOTE:

The flat wire within the flex wiring harness is not serviceable. If an open or short
exists within the flex wiring harness the complete harness must be replaced.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



J-38125 Terminal Repair Kit. See Special Tools and Equipment .

Heated Oxygen Sensor (HO2S) Wiring Repairs

If the heated oxygen sensor pigtail wiring, connector, or terminal is damaged the entire oxygen sensor assembly
must be replaced. Do not attempt to repair the wiring, connector, or terminals. In order for the sensor to function
properly it must have a clean air reference. This clean air reference is obtained by way of the oxygen sensor
signal and heater wires. Any attempt to repair the wires, connectors or terminals could result in the obstruction
of the air reference and degrade oxygen sensor performance.

The following guidelines should be used when servicing the heated oxygen sensor:

z

Do not apply contact cleaner or other materials to the sensor or vehicle harness connectors. These
materials may get into the sensor, causing poor performance. Also, the sensor pigtail and harness wires
must not be damaged in such a way that the wires inside are exposed. This could provide a path for
foreign materials to enter the sensor and cause performance problems.

z

Neither the sensor nor vehicle lead wires should be bent sharply or kinked. Sharp bends, kinks, etc., could
block the reference air path through the lead wire.

z

Do not remove or defeat the oxygen sensor ground wire (where applicable). Vehicles that utilize the
ground wire sensor may rely on this ground as the only ground contact to the sensor. Removal of the
ground wire will also cause poor engine performance.

z

To prevent damage due to water intrusion, be sure that the peripheral seal remains intact on the vehicle
harness connector.

The engine harness may be repaired using the J-38125 . See Special Tools and Equipment .

SPLICING COPPER WIRE USING SPLICE CLIPS

Tools Required

J-38125 Terminal Repair Kit. See Special Tools and Equipment .

Splicing Copper Wire Using Splice Clips

1. Open the harness.

z

If the harness is taped, remove the tape.

z

To avoid wiring insulation damage, use a sewing ripper in order to cut open the harness.

z

If the harness has a black plastic conduit, pull out the desired wire.

NOTE:

Do not solder repairs under any circumstances as this could result in the air
reference being obstructed.

IMPORTANT: When making a splice in an area that may be exposed to moisture use a crimp

and seal splice sleeve instead of a Splice Clip. Refer to Splicing Copper Wire
Using Splice Sleeves



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2



2. Cut the wire.

z

Cut as little wire off the harness as possible.

z

Ensure that each splice is at least 40 mm (1.5 in) away from other splices, harness branches and
connectors. This helps prevent moisture from bridging adjacent splices and causing damage.

3. Select the proper size and type of wire.

z

The wire must be of equal or greater size than the original (except fusible link).

z

The wire's insulation must have the same or higher temperature rating.

„

Use general purpose insulation for areas that are not subject to high temperatures.

„

Use a cross-linked polyethylene insulated wire for areas where high temperatures are
expected.

4. Strip the insulation.

z

Select the correct size opening in the wire stripper or work down from the largest size.

z

Strip approximately 7.5 mm (5/16 in) of insulation from each wire to be spliced.

5. Select the proper clip to secure the splice. Follow the instructions in the J-38125 in order to determine the

proper clip size crimp tool and anvil. See Special Tools and Equipment .

6. Overlap the 2 stripped wire ends and hold them between thumb and forefinger.

IMPORTANT: Use cross-linked polyethylene wire to replace PVC, but do not

replace cross-linked polyethylene with PVC.
Cross-linked polyethylene wire is not fuel resistant. Do not use
to replace wire where there is the possibility of fuel contact.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2

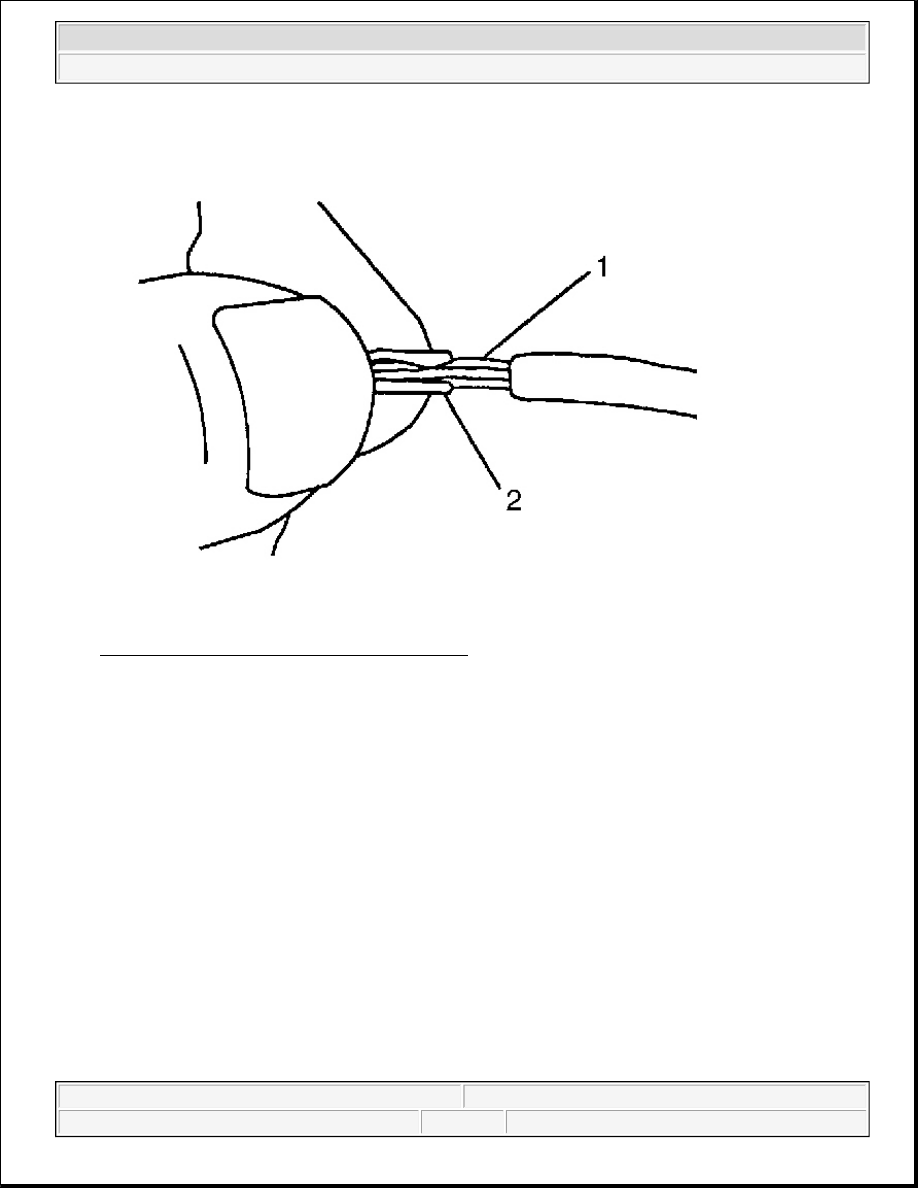

Fig. 4: Identifying Splice Clip & Stripped Wires
Courtesy of GENERAL MOTORS CORP.

7. Center the splice clip (2) over the stripped wires (1) and hold the clip in place.

z

Ensure that the wires extend beyond the clip in each direction.

z

Ensure that no insulation is caught under the clip.
