Hummer H2. Manual - part 1227

Fig. 3: Compressor Circuit

ANTI-LOCK BRAKES

2004 Hummer H2

SYSTEM WIRING DIAGRAMS Hummer - H2

2004 Hummer H2

SYSTEM WIRING DIAGRAMS Hummer - H2

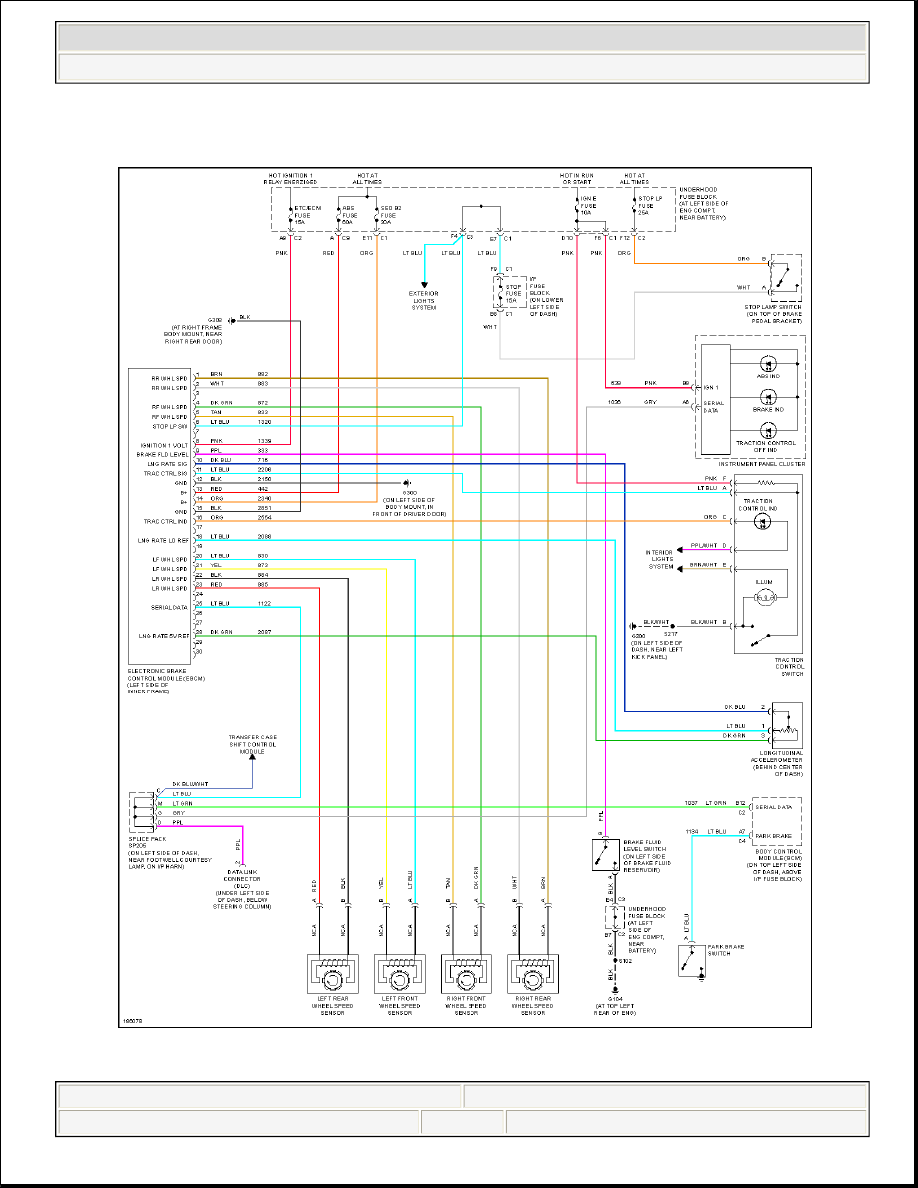

Fig. 4: Anti-lock Brakes Circuit

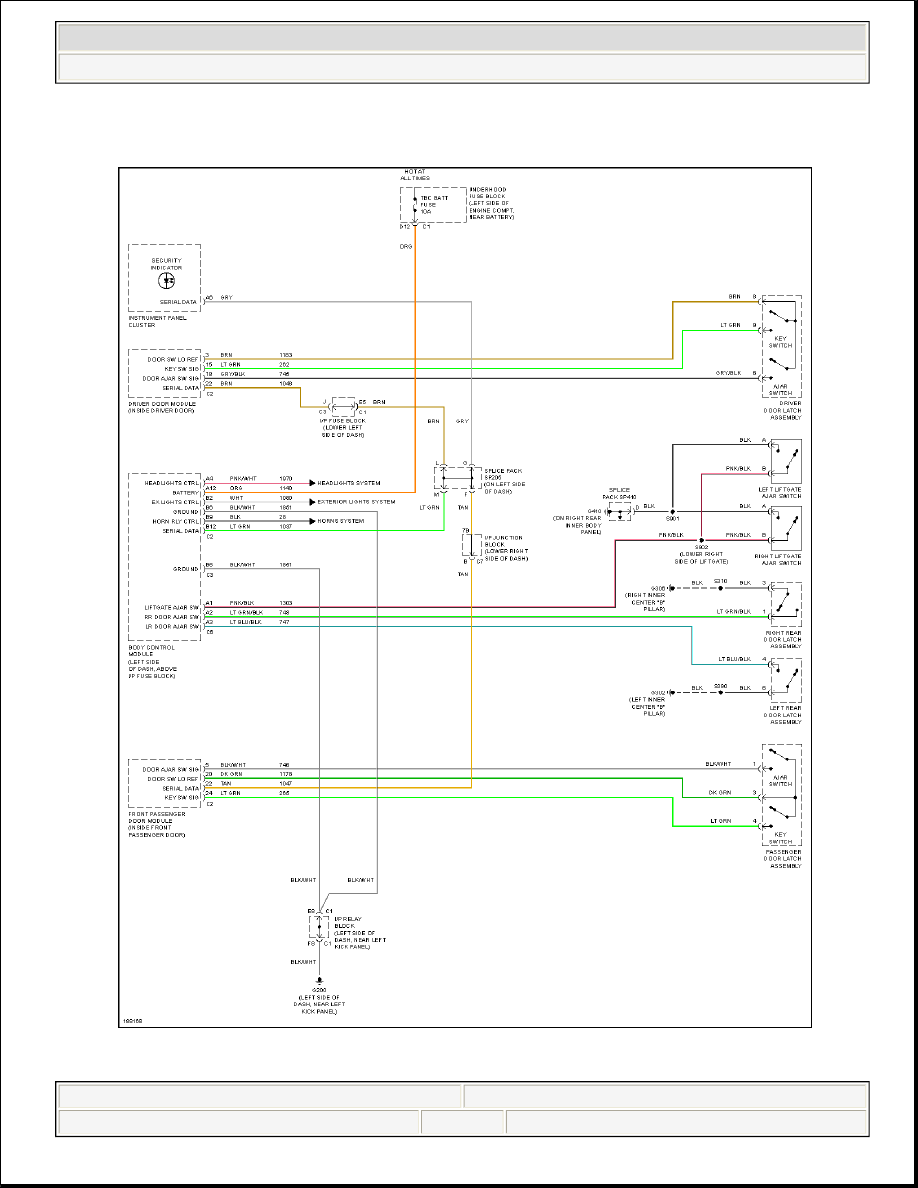

ANTI-THEFT

2004 Hummer H2

SYSTEM WIRING DIAGRAMS Hummer - H2

2004 Hummer H2

SYSTEM WIRING DIAGRAMS Hummer - H2
