Hummer H2. Manual - part 1225

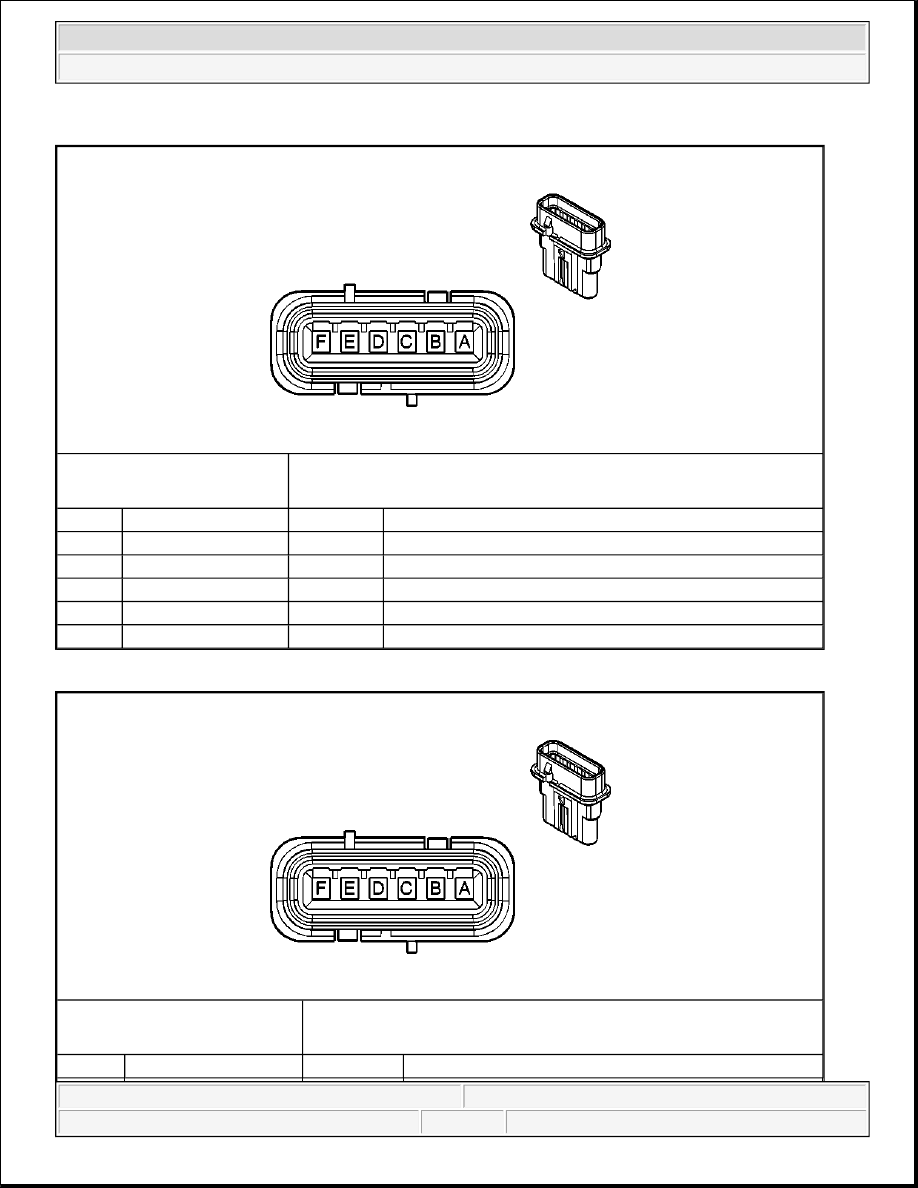

Splice Pack Terminal Identification SP206

Splice Pack Terminal Identification SP207

Connector Part Information

z

12191910

z

6-Way F GT 150 Splice Saver Sealed 4.0 (BK)

Pin

Wire Color

Circuit No.

Function

A-B

-

-

Not Used

C

L-BU

2288

RSA Class 2 Serial Data

D

D-BU

2272

Audio Amplifier Class 2 Serial Data w/ Class 2 Amplifier

E

YE

1127

VCIM Class 2 Serial Data

F

PK

1045

Serial Communications Circuit - Splice Pack SP205

Connector Part Information

z

12191910

z

6-Way F GT 150 Splice Saver Sealed 4.0 (BK)

Pin

Wire Color

Circuit No.

Function



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems (Connector End Views) - Hummer H2



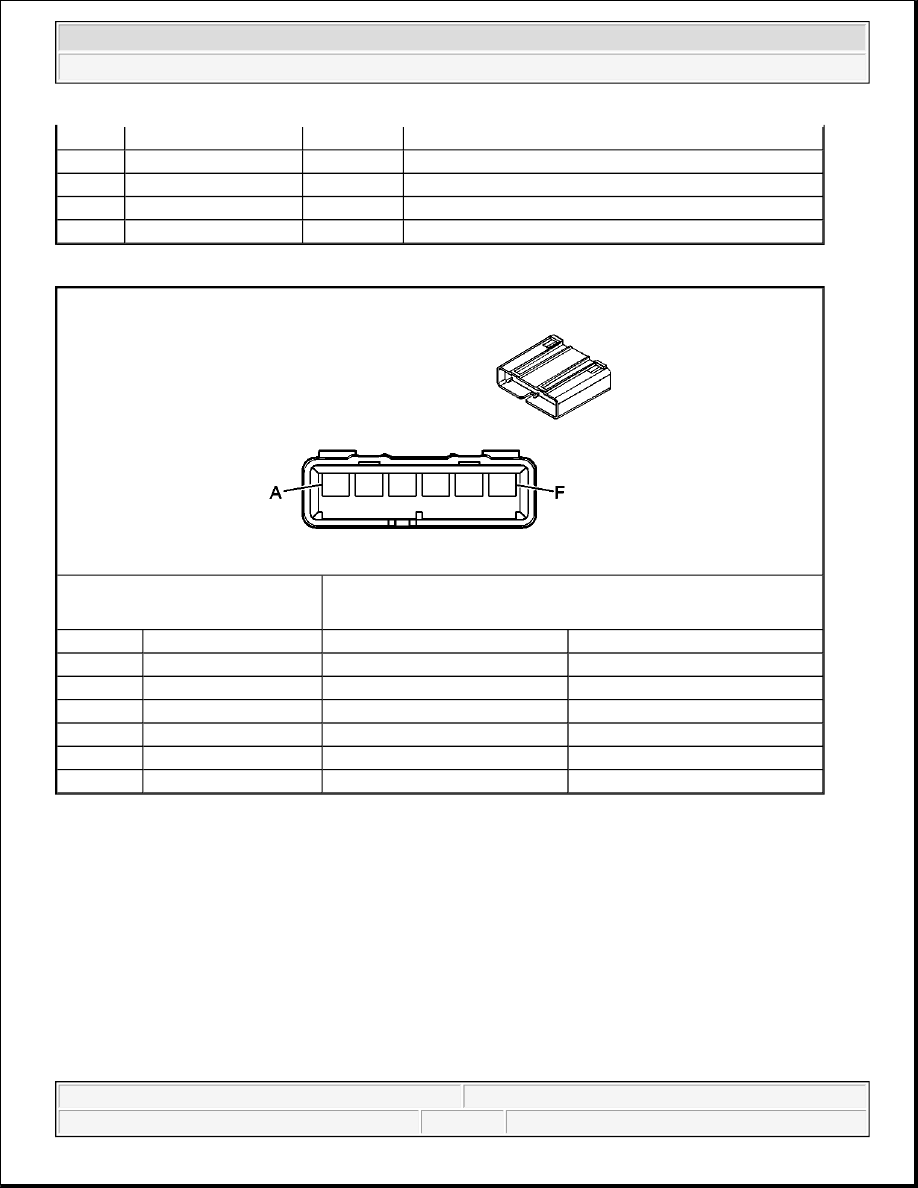

Splice Pack Terminal Identification SP410

A

-

-

Not Used

B

D-BU

1128

SDM Class 2 Serial Data

C

BN/WH

1048

SCM (Seat) Class 2 Serial Data

D-E

-

-

Not Used

F

D-BU/WH

2218

Serial Communications Circuit - Splice Pack SP205

Connector Part Information

z

12176491

z

6-Way F Metri-Pack 280 Splice Saver (BK)

Pin

Wire Color

Circuit No.

Function

A

-

-

Not Used

B

BK

1450

Ground

C

BK

1450

Ground

D

BK

1450

Ground

E

-

-

Not Used

F

BK

1450

Ground



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems (Connector End Views) - Hummer H2

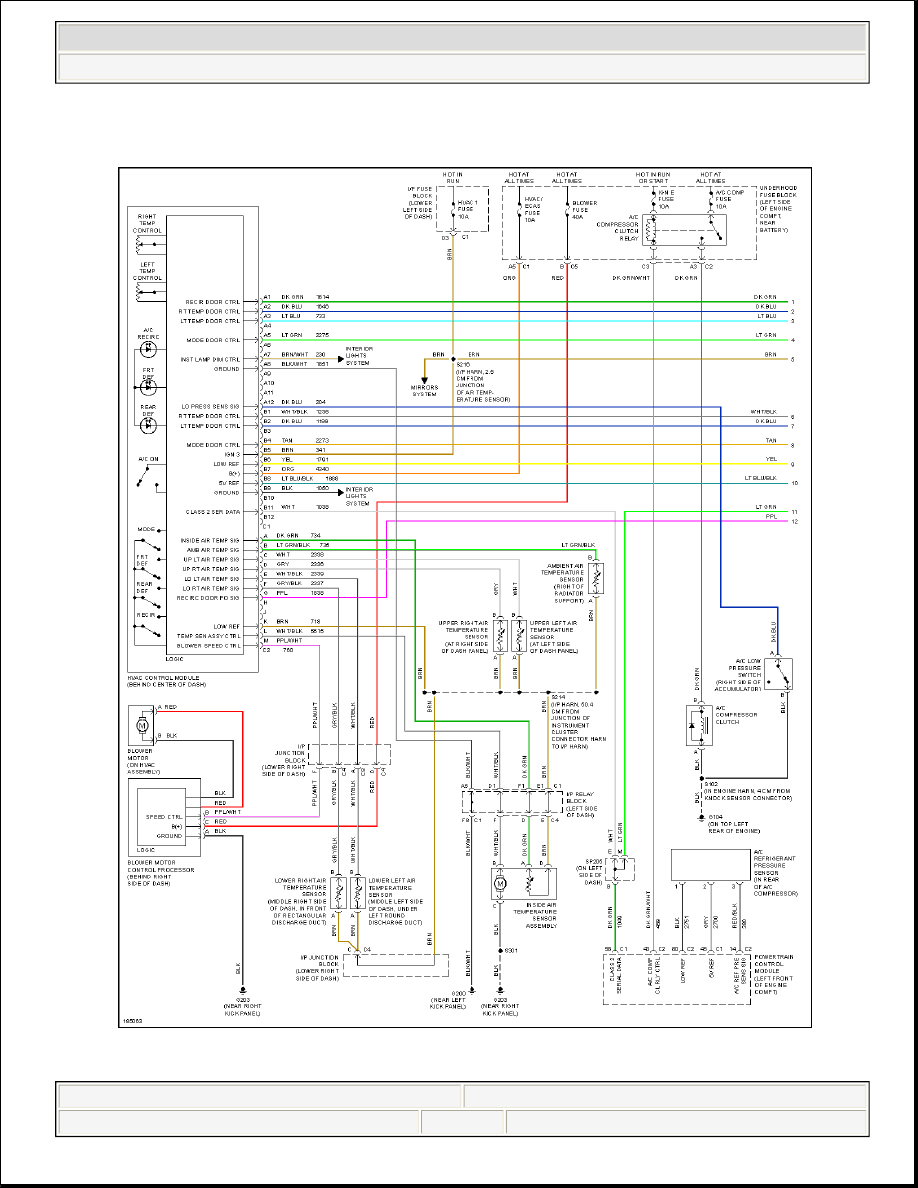

SYSTEM WIRING DIAGRAMS

Hummer - H2

AIR CONDITIONING



2004 Hummer H2

SYSTEM WIRING DIAGRAMS Hummer - H2





2004 Hummer H2

SYSTEM WIRING DIAGRAMS Hummer - H2





2004 Hummer H2

SYSTEM WIRING DIAGRAMS Hummer - H2
