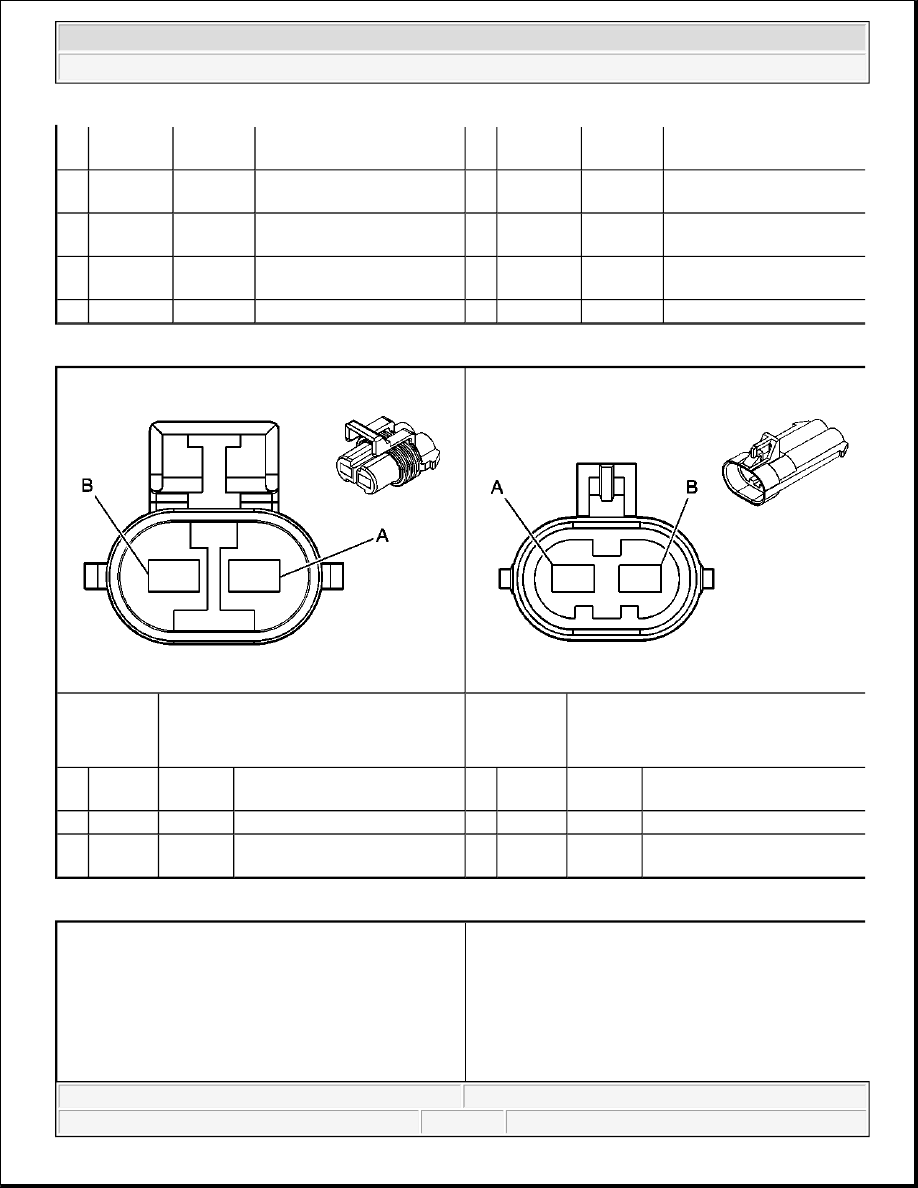

C450 Terminal Identification Chassis Harness to Air Suspension Harness (w/ZM6)

C451 Chassis Harness to Air Suspension Harness (w/ZM6)

H

BN/WH

2609

Right License Lamp Supply
Voltage

H

BN/WH

2609

Right License Lamp Supply
Voltage

J

WH

393

Rear Window Washer
Switch Signal

J

WH

393

Rear Window Washer
Switch Signal

K

GY

391

Rear Window Wiper
Switch Signal

K

GY

391

Rear Window Wiper
Switch Signal

L

PU

293

Rear Defog Element Supply
Voltage

L

PU

293

Rear Defog Element Supply
Voltage

M

OG

2040

Battery Positive Voltage

M

OG

2040

Battery Positive Voltage

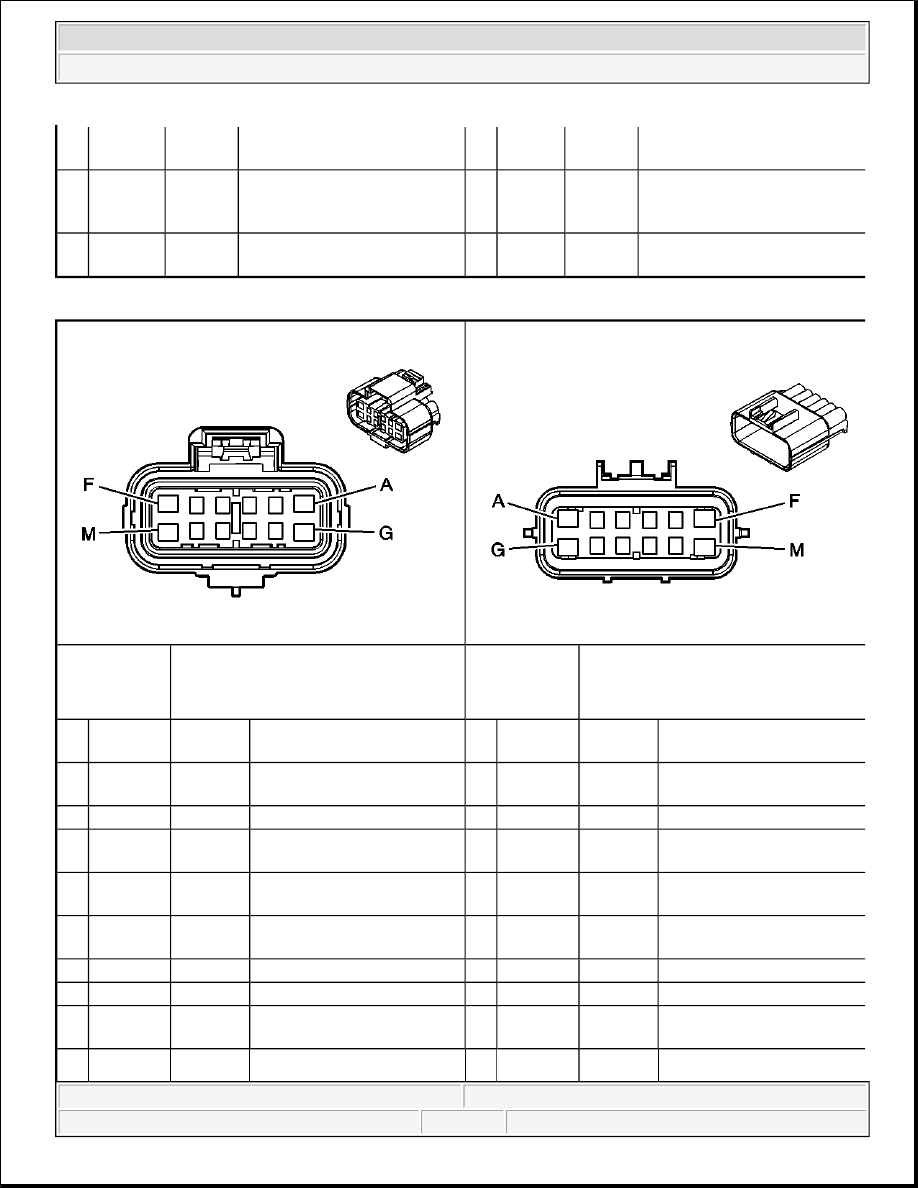

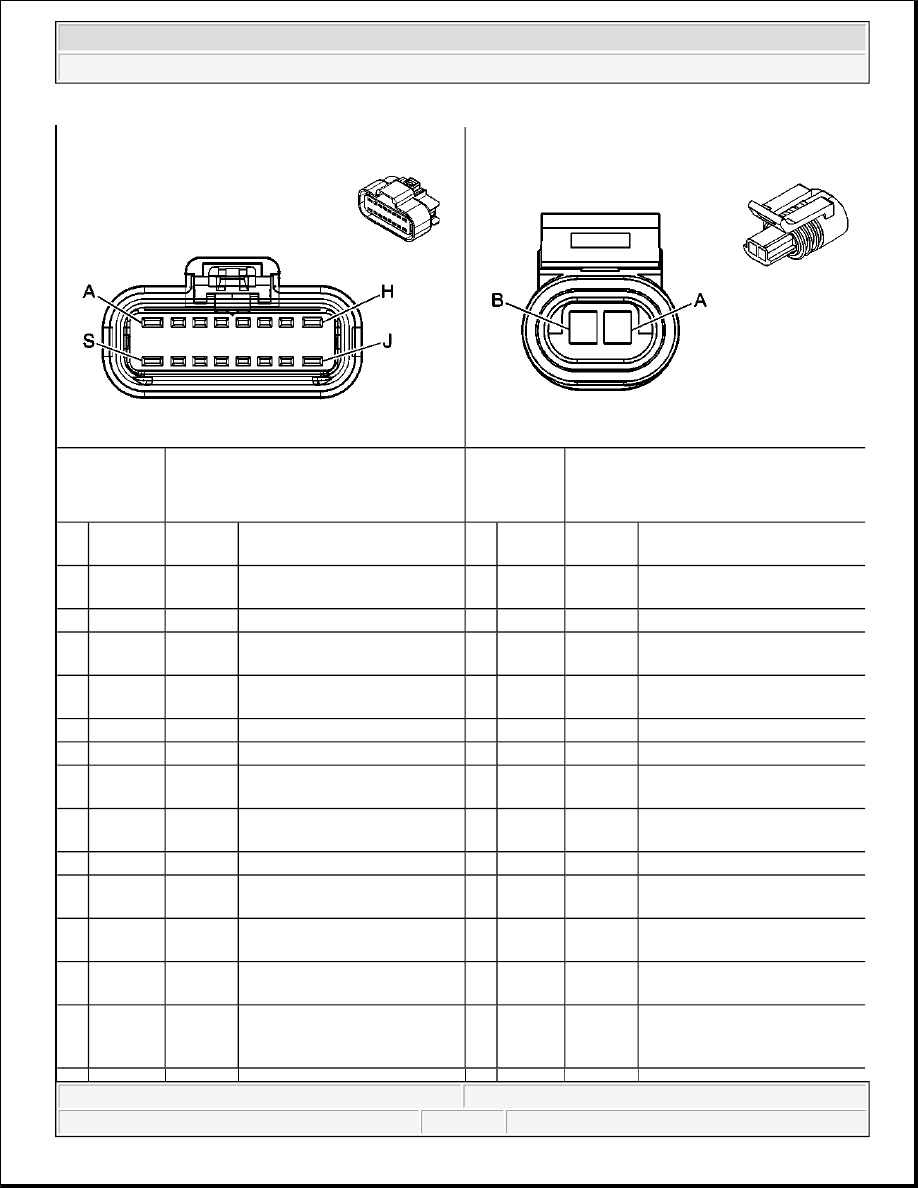

Connector

Part

Information

z

12052613

z

2-Way F Metri-pack 480 Series
Sealed (BK)

Connector

Part

Information

z

12065863

z

2-Way M Metri-pack 480 Series
Sealed (BK)

Pin

Wire

Color

Circuit

No.

Function

Pin

Wire

Color

Circuit

No.

Function

A

BK

2950

Ground - w/ZM6

A

BK

2A

Ground - w/ZM6

B

D-GN

322

Air Suspension Compressor
Motor Control - w/ZM6

B

RD

1A

Air Suspension Compressor
Motor Control - w/ZM6



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems (Connector End Views) - Hummer H2



Connector

Part

Information

z

15326084

z

16-Way F GT 150 280 Sealed
4.0 5.8 (BK)

Connector

Part

Information

z

15326085

z

16-Way M GT 150 280 Sealed 4.0
5.8 (BK)

Pin

Wire

Color

Circuit

No.

Function

Pin

Wire

Color

Circuit

No.

Function

A

OG

4340

Battery Positive Voltage -
w/ZM6

A

YE

1B

Battery Positive Voltage -
w/ZM6

B

BN

241

Ignition 3 Voltage - w/ZM6

B

YE

2F

Ignition 3 Voltage - w/ZM6

C

PU

5523

Inflator Switch Signal -
w/ZM6

C

YE

3H

Inflator Switch Signal - w/ZM6

D

OG

5524

Inflator Switch Supply
Voltage - w/ZM6

D

YE

3D

Inflator Switch Supply Voltage
- w/ZM6

E

L-GN

5522

Low Reference - w/ZM6

E

YE

2C

Low Reference - w/ZM6

F

-

-

Not Used

F

-

-

Not Used

G

WH

5520

Ride Height Active Indicator
Control - w/ZM6

G

YE

3E

Ride Height Active Indicator
Control - w/ZM6

H

L-BU

5521

Ride Height Switch Signal -
w/ZM6

H

YE

3G

Ride Height Switch Signal -
w/ZM6

J

-

-

Not Used

J

-

-

Not Used

K

D-

BU/WH

1126

SCM - Suspension Class 2
Serial Data - w/ZM6

K

YE

3J

SCM (Suspension) Class 2
Serial Data - w/ZM6

L

GY

2672

Air Suspension Relay Control
- w/ZM6

L

YE

3M

Air Suspension Relay Control -
w/ZM6

M

YE

321

Air Suspension Relay Ground
- w/ZM6

M

YE

3R

Air Suspension Relay Ground -
w/ZM6

N

GY

2165

Air Suspension Position
Sensor 5-Volt Reference -
w/ZM6

N

YE

3A

Air Suspension Position Sensor
5-Volt Reference - w/ZM6



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems (Connector End Views) - Hummer H2



C900 Terminal Identification Liftgate Harness to Liftgate Jumper Harness

P

BN

2184

Air Suspension Position
Sensor Signal - LR - w/ZM6

P

YE

3B

Air Suspension Position Sensor
Signal - LR - w/ZM6

R

PU

2185

Air Suspension Position
Sensor Low Reference -
w/ZM6

R

YE

2D

Air Suspension Position Sensor
Low Reference - w/ZM6

S

BN

2227

Air Suspension Sensor - RR -
w/ZM6

S

YE

3C

Air Suspension Sensor - RR -
w/ZM6

Connector

Part

Information

z

15336205

z

12-Way F GT Series Mixed
(BK)

Connector

Part

Information

z

15336209

z

12-Way M GT Series Mixed
(BK)

Pin

Wire

Color

Circuit

No.

Function

Pin

Wire

Color

Circuit

No.

Function

A

TN

294

Door Lock Actuator Unlock
Control

A

TN

294

Door Lock Actuator Unlock
Control

B

PK/BK

1303

Liftgate Ajar Switch Signal

B

PK/BK

1303

Liftgate Ajar Switch Signal

C

WH

393

Rear Window Wiper Motor
Wash Signal

C

WH

393

Rear Window Wiper Motor
Wash Signal

D

GY

391

Rear Window Wiper Switch
Signal

D

GY

391

Rear Window Wiper Switch
Signal

E

BN/WH

2609

Right Rear License Lamp
Supply Voltage

E

BN/WH

2609

Right Rear License Lamp
Supply Voltage

F

BK

1450

Ground

F

BK

1450

Ground

G

OG

2040

Battery Positive Voltage

G

OG

2040

Battery Positive Voltage

H

BN

2409

Interior Park Lamps Supply
Voltage

H

BN

2409

Interior Park Lamps Supply
Voltage

J

GY

295

Door Lock Actuator Lock

J

GY

295

Door Lock Actuator Lock



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems (Connector End Views) - Hummer H2



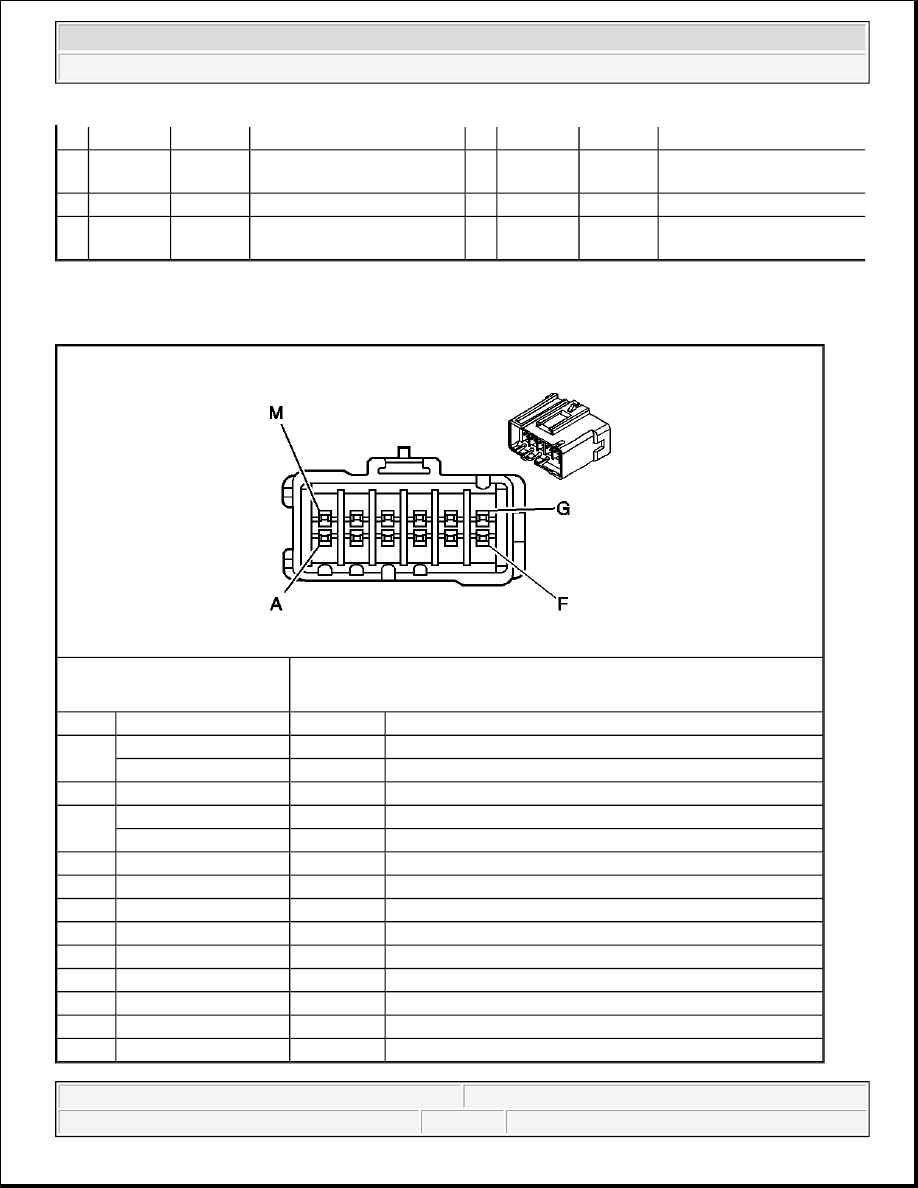

SPLICE PACK CONNECTOR END VIEWS

Splice Pack Terminal Identification SP205

Control

Control

K

BN/WH

2509

Left Rear License Lamp
Supply Voltage

K

BN/WH

2509

Left Rear License Lamp
Supply Voltage

L

L-BU

1620

CHMSL Supply Voltage

L

L-BU

1620

CHMSL Supply Voltage

M

PU

293

Rear Defog Element Supply
Voltage

M

PU

293

Rear Defog Element Supply
Voltage

Connector Part Information

z

15305291

z

12-Way F Metri-Pack Splice Saver SGL (BK)

Pin

Wire Color

Circuit No.

Function

A

PK

1045

Class 2 Serial Data - Splice Pack SP206

OR

1044

Radio Class 2 Serial Data - Radio

B

D-GN

1049

PCM Class 2 Serial Data

C

L-BU

1122

ABS/TCS Class 2 Serial Data - EBCM

D-GN/WH

1133

ATC Class 2 Serial Data - Transfer Case Control Module

D

PU

1132

DLC Class 2 Serial Data

E

WH

1038

HVAC Class 2 Serial Data

F

TN

1047

PDM Class 2 Serial Data

G

GY

1036

IPC Class 2 Serial Data

H

D-BU/WH

2218

Serial Communications Circuit - Splice Pack SP207

J

D-BU/WH

1126

SCM (Suspension) Class 2 Serial Data

K

-

-

Not Used

L

BN

1046

DDM Class 2 Serial Data

M

L-GN

1037

BCM Class 2 Serial Data
