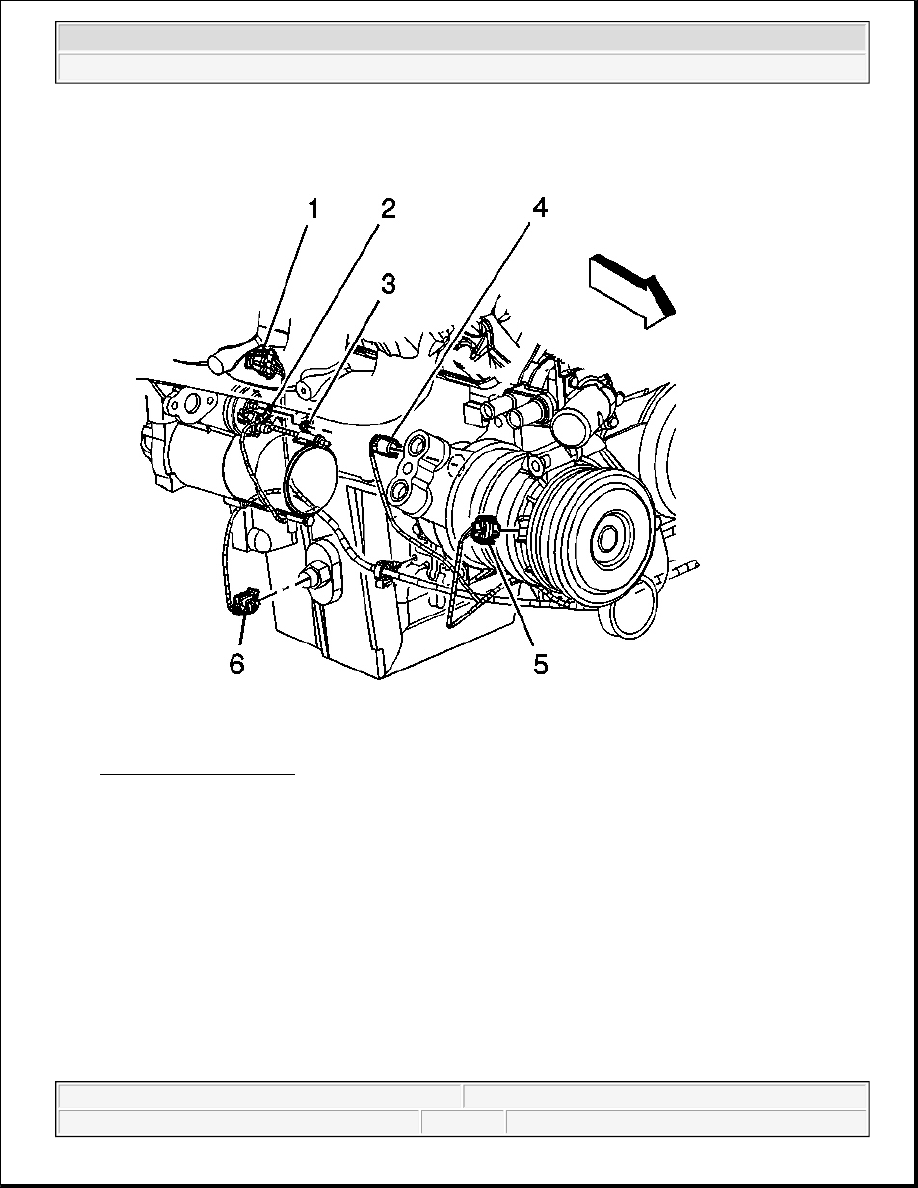

Fig. 51: Starter Lead Nut
Courtesy of GENERAL MOTORS CORP.

5. Install the starter lead (2) to the starter.

6. Install the starter lead nut (3).

Tighten: Tighten the starter lead nut to 3.4 N.m (30 lb in).



2004 Hummer H2

2004 ELECTRICAL Engine Electrical - Hummer H2



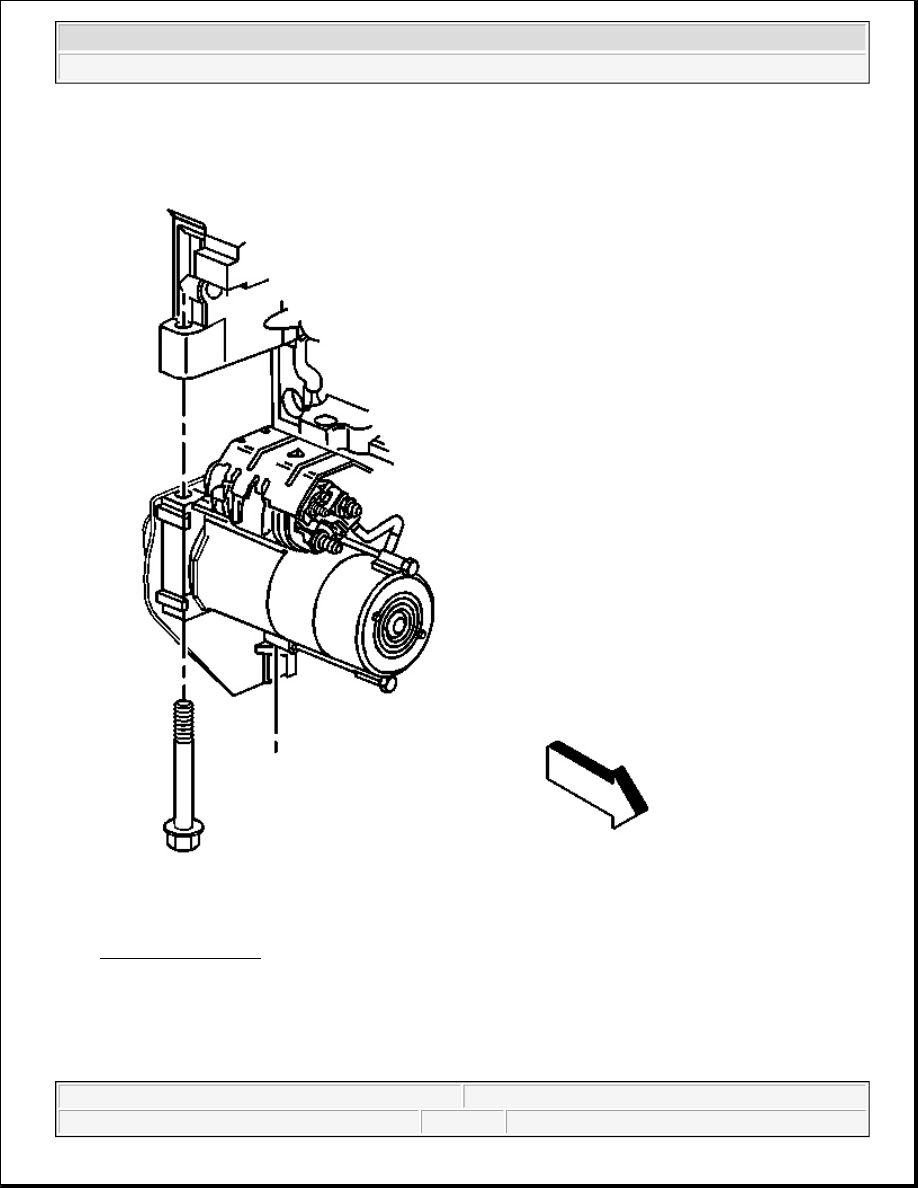

Fig. 52: Starter Bolts
Courtesy of GENERAL MOTORS CORP.

7. Position the starter into place.

8. Install the starter bolts.



2004 Hummer H2

2004 ELECTRICAL Engine Electrical - Hummer H2



Tighten: Tighten the starter bolts to 50 N.m (37 lb ft).

9. Connect the oil level sensor electrical connector.

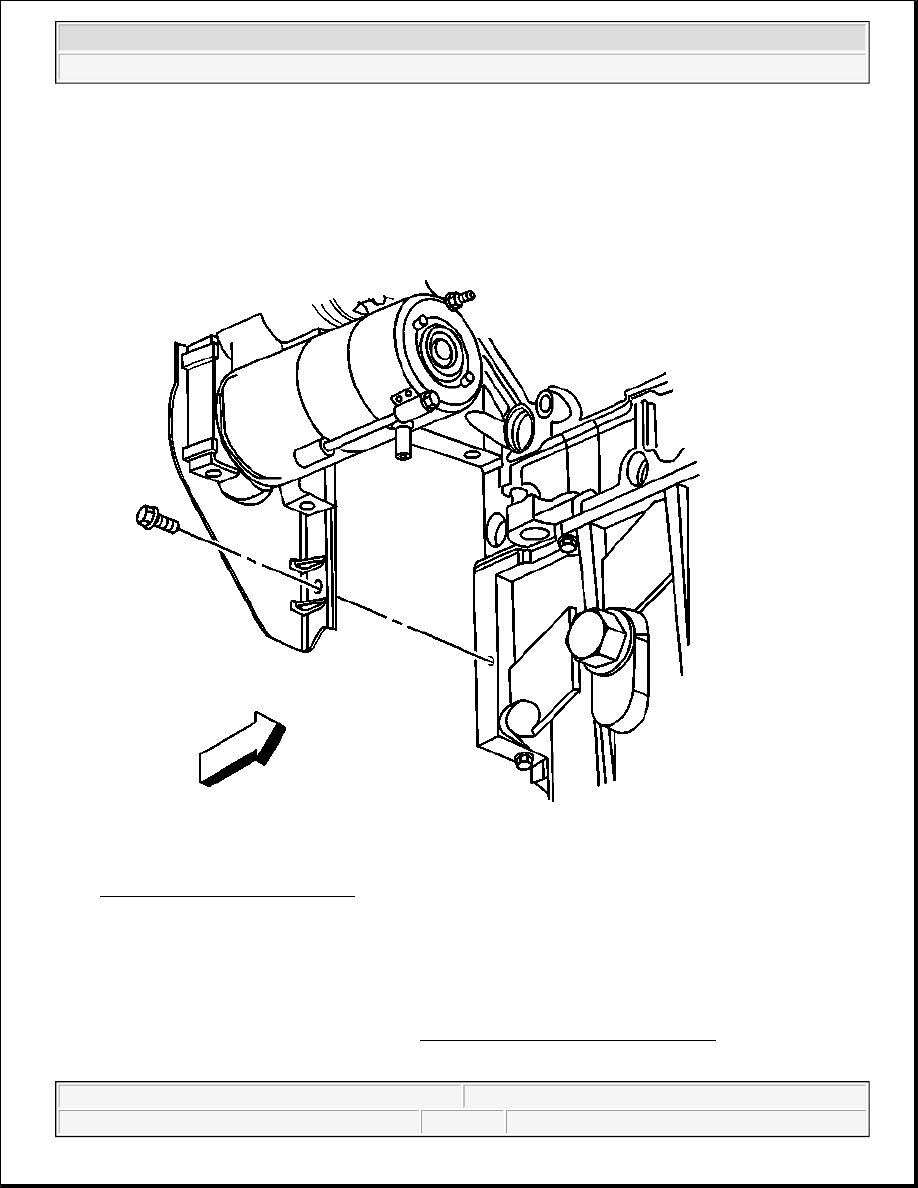

Fig. 53: Transmission Cover Bolt
Courtesy of GENERAL MOTORS CORP.

10. Install the transmission cover bolt.

Tighten: Tighten the transmission cover bolt to 9 N.m (80 lb in).

11. Install the engine protective shield. Refer to Engine Protection Shield Replacement .

12. Lower the vehicle.



2004 Hummer H2

2004 ELECTRICAL Engine Electrical - Hummer H2



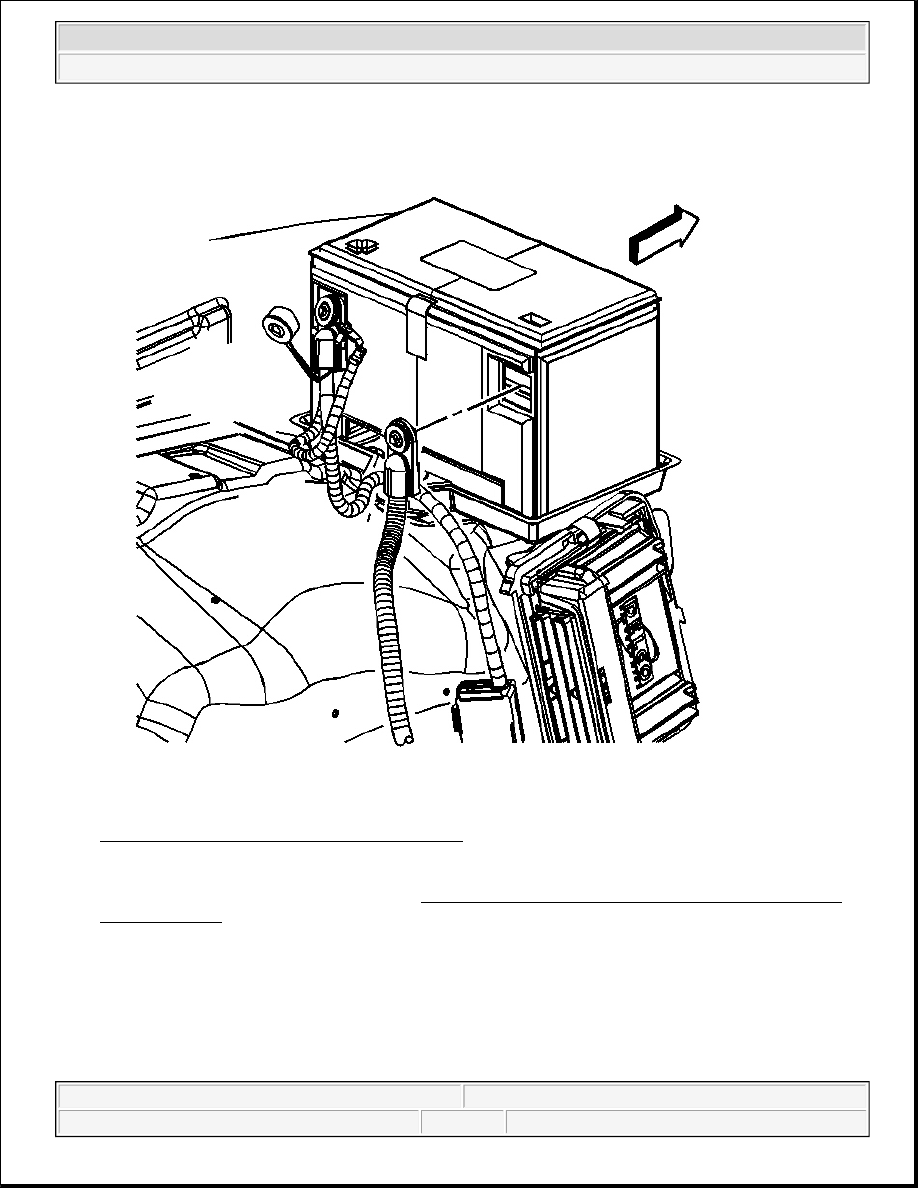

Fig. 54: Battery Ground Negative Cable & Bolt
Courtesy of GENERAL MOTORS CORP.

13. Connect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure

(Single Battery) .

GENERATOR BRACKET REPLACEMENT

Removal Procedure
