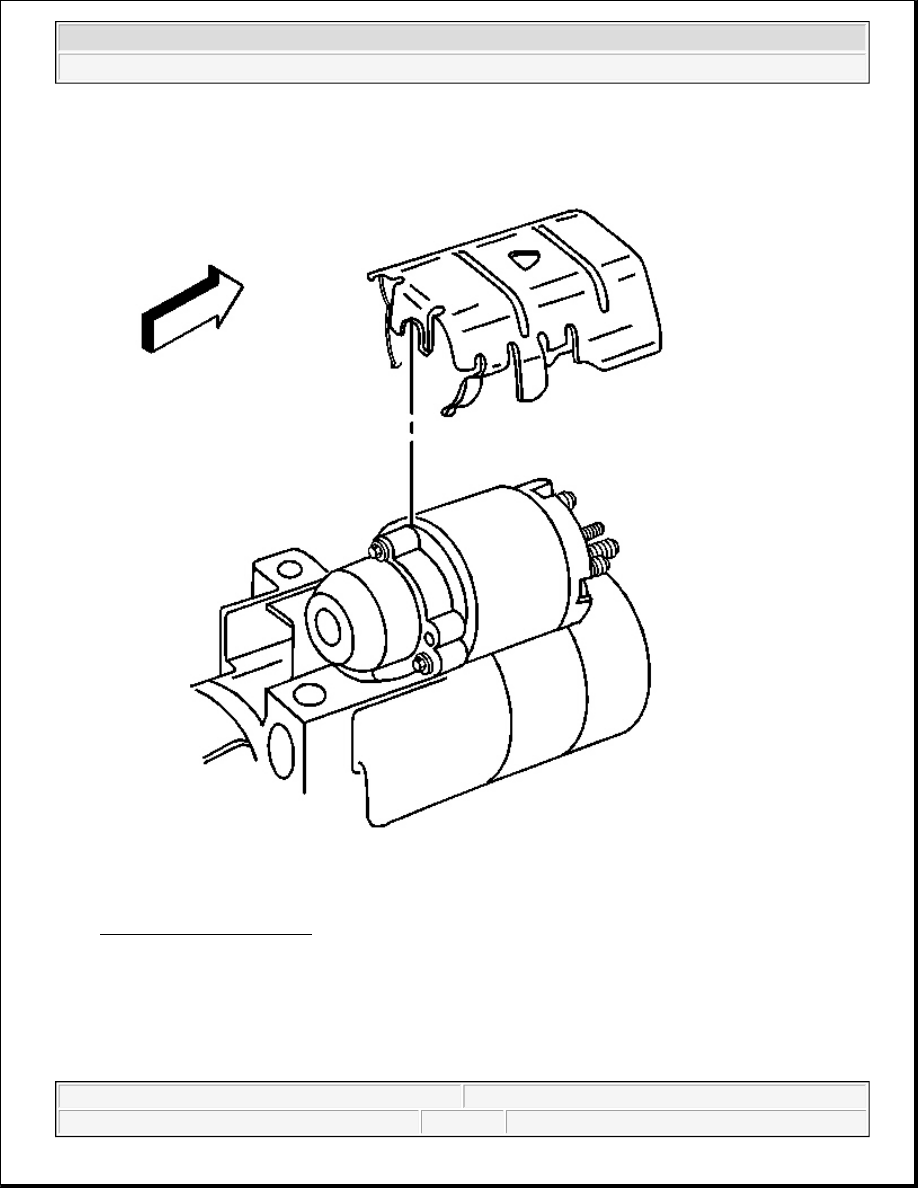

Fig. 47: Starter Heat Shield
Courtesy of GENERAL MOTORS CORP.

14. Remove the starter heat shield.

Installation Procedure



2004 Hummer H2

2004 ELECTRICAL Engine Electrical - Hummer H2



Fig. 48: Starter Heat Shield
Courtesy of GENERAL MOTORS CORP.

1. Install the starter heat shield.



2004 Hummer H2

2004 ELECTRICAL Engine Electrical - Hummer H2



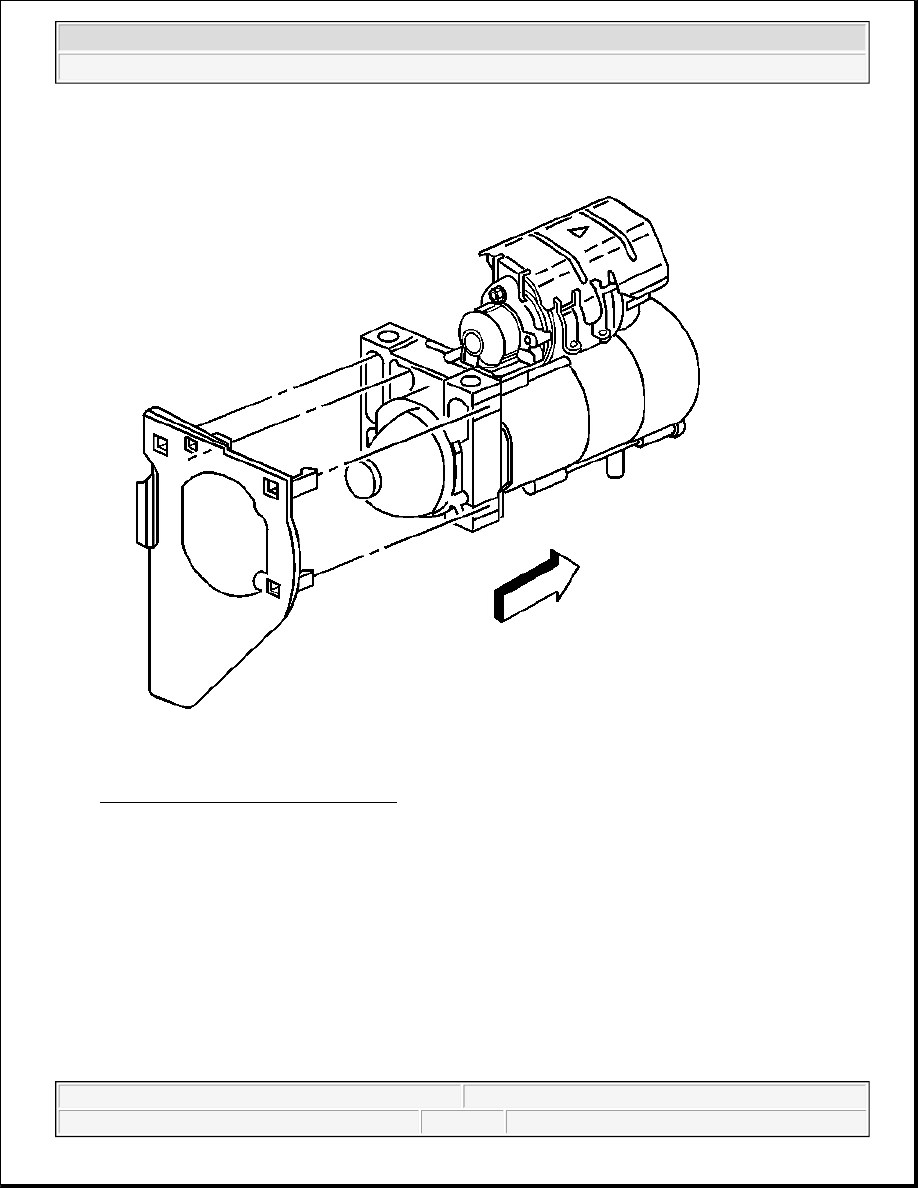

Fig. 49: Transmission Cover & Starter
Courtesy of GENERAL MOTORS CORP.

2. Snap the transmission cover to the starter.



2004 Hummer H2

2004 ELECTRICAL Engine Electrical - Hummer H2



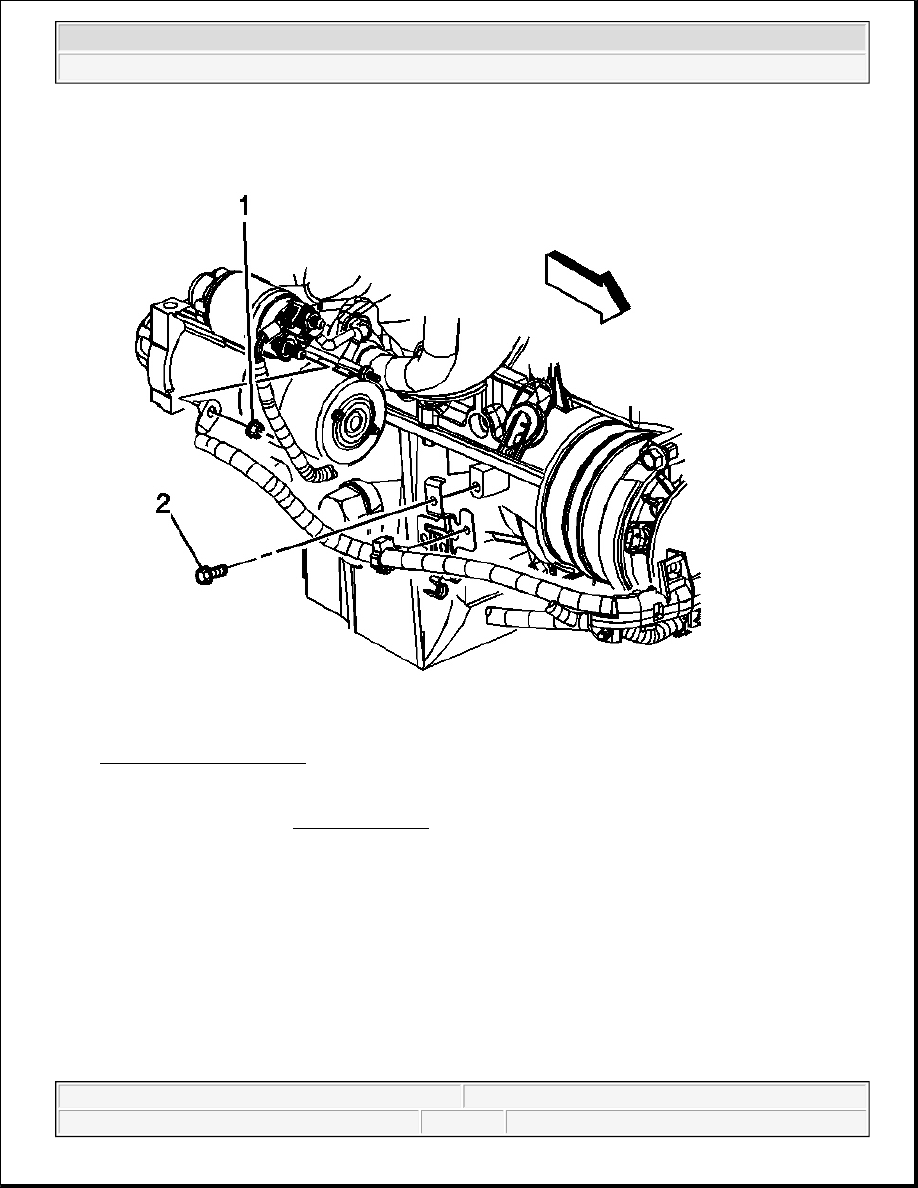

Fig. 50: Positive Cable Nut
Courtesy of GENERAL MOTORS CORP.

3. Install the positive cable to the starter.

4. Install the positive cable nut (2).

Tighten: Tighten the positive cable nut to 9 N.m (80 lb in).

NOTE:

Refer to Fastener Notice in Cautions and Notices.
