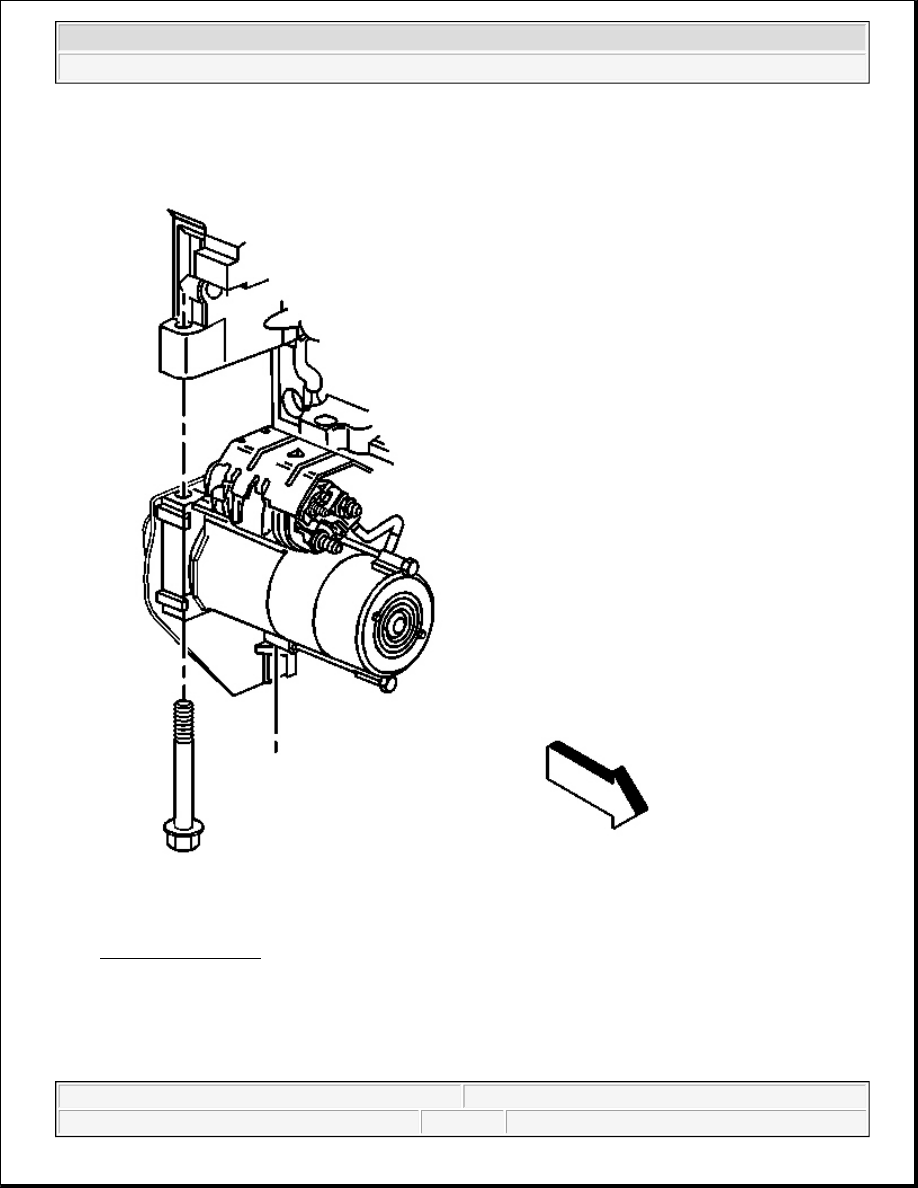

Fig. 43: Starter Bolts
Courtesy of GENERAL MOTORS CORP.

5. Remove the starter bolts.

6. Disconnect the oil level sensor electrical connector.

7. Slide the starter forward until the starter clears the transmission.



2004 Hummer H2

2004 ELECTRICAL Engine Electrical - Hummer H2



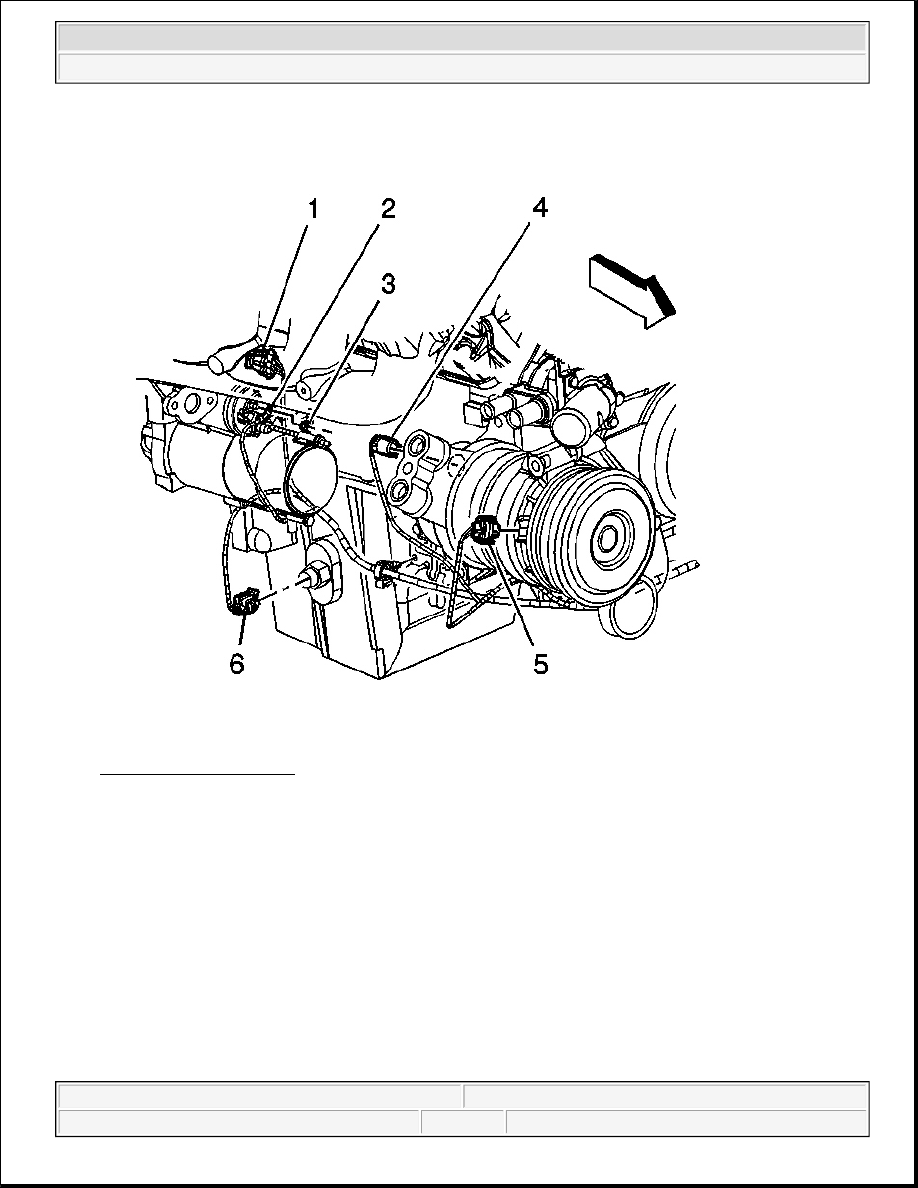

Fig. 44: Starter Lead Nut
Courtesy of GENERAL MOTORS CORP.

8. Remove the starter lead nut (3).

9. Remove the starter lead (2) from the starter.



2004 Hummer H2

2004 ELECTRICAL Engine Electrical - Hummer H2



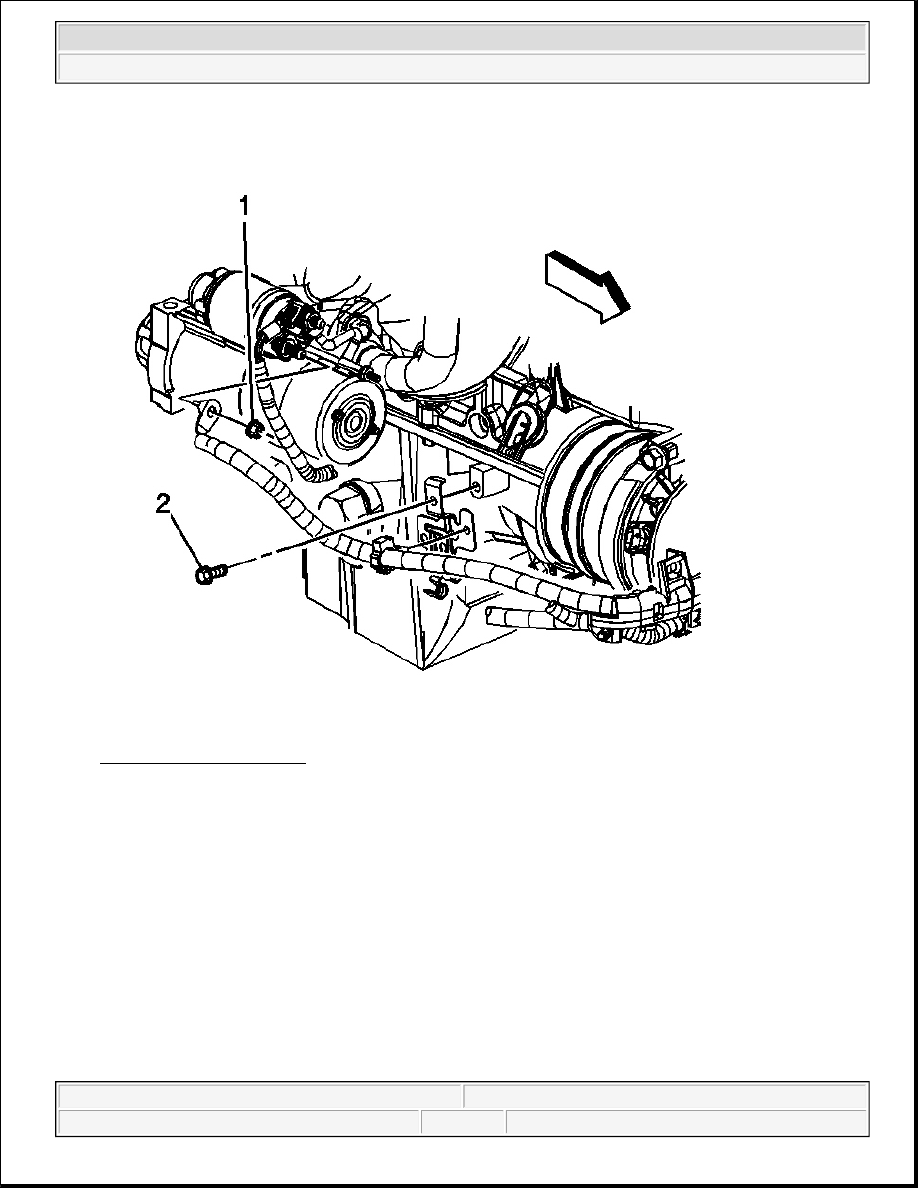

Fig. 45: Positive Cable Nut
Courtesy of GENERAL MOTORS CORP.

10. Remove the positive cable nut (2).

11. Remove the positive cable from the starter.



2004 Hummer H2

2004 ELECTRICAL Engine Electrical - Hummer H2



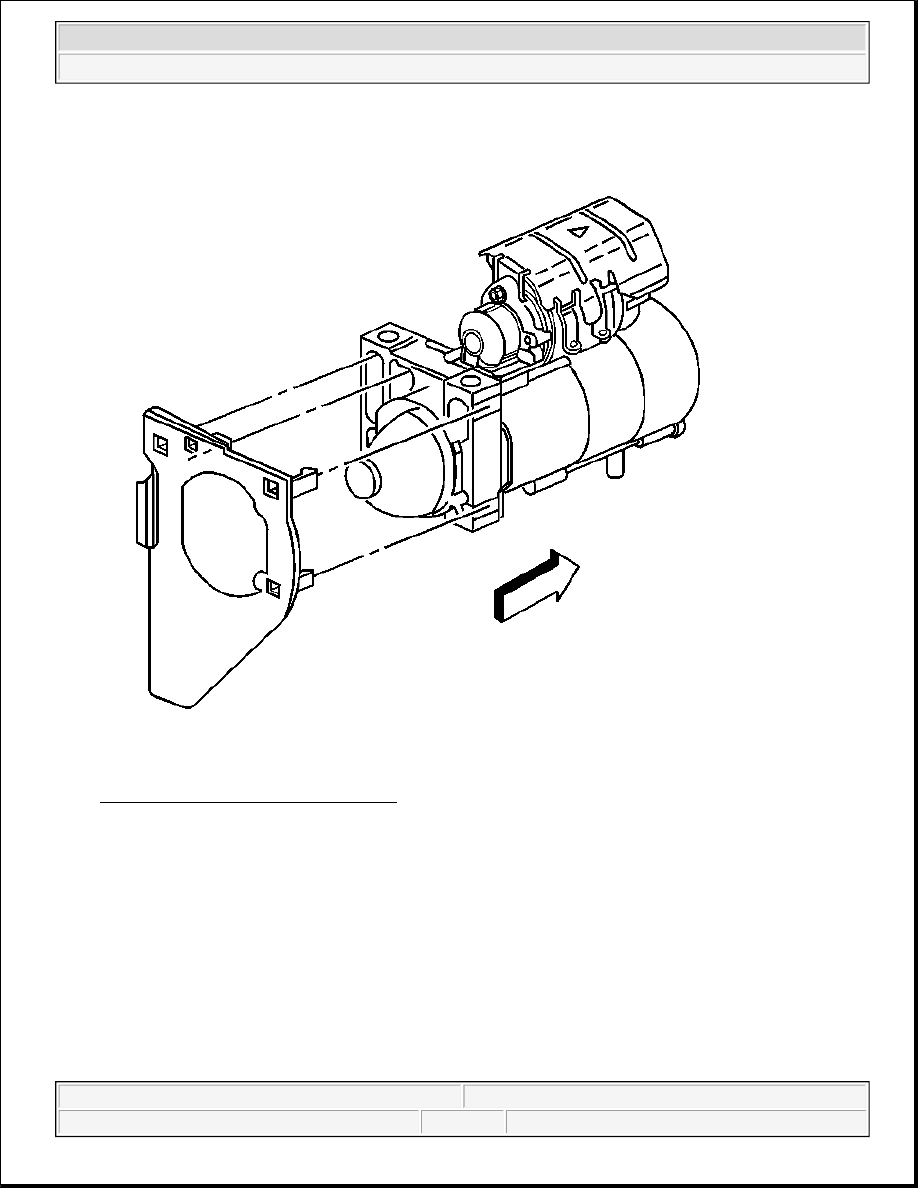

Fig. 46: Transmission Cover & Starter
Courtesy of GENERAL MOTORS CORP.

12. Place the starter on a workbench.

13. Unsnap the transmission cover from the starter.
