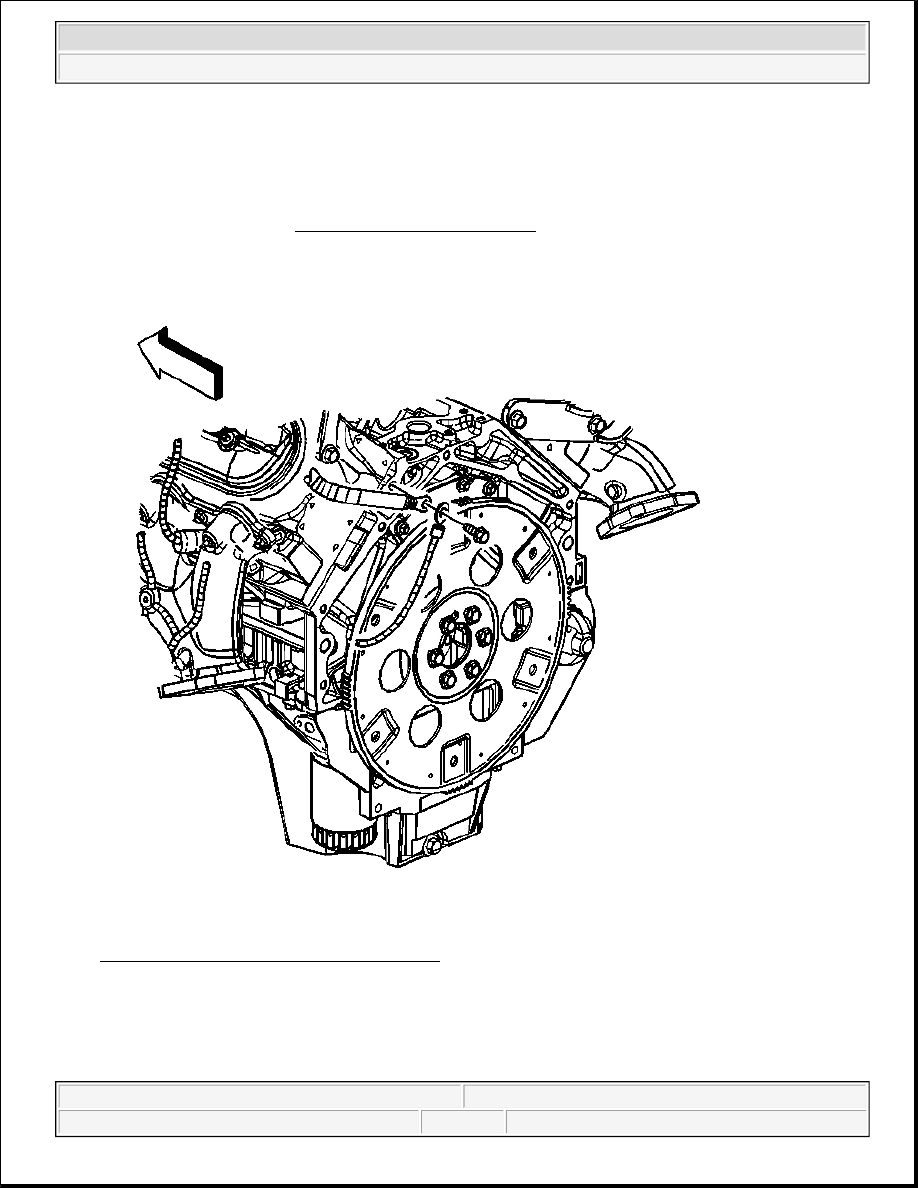

Fig. 35: Ground Cable Bolt At Engine Block
Courtesy of GENERAL MOTORS CORP.

2. Remove the engine wiring harness ground bolt.

3. Lower the vehicle.



2004 Hummer H2

2004 ELECTRICAL Engine Electrical - Hummer H2

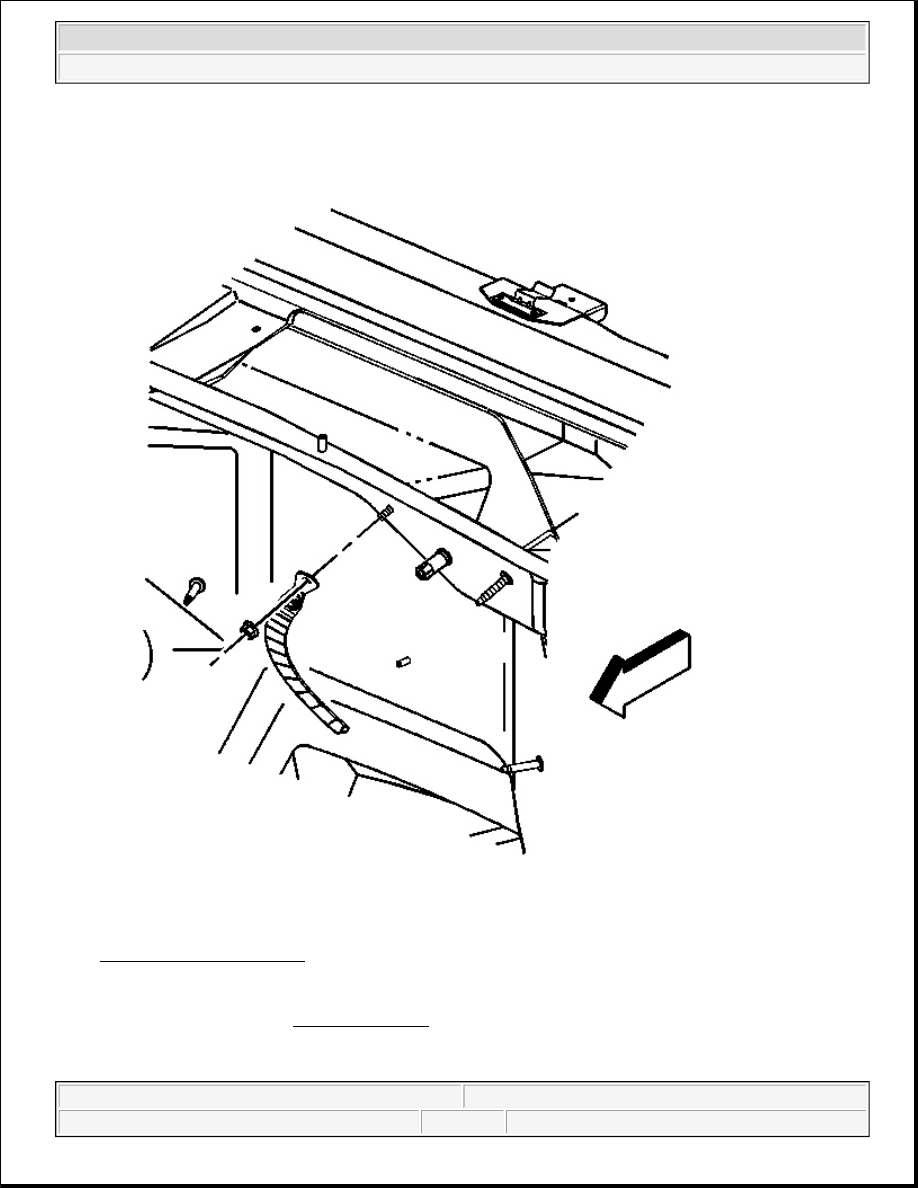

Fig. 36: Ground Strap Nut
Courtesy of GENERAL MOTORS CORP.

4. Remove the ground strap nut from the stud at the front of dash.

5. Remove the ground strap from the stud.

Installation Procedure



2004 Hummer H2

2004 ELECTRICAL Engine Electrical - Hummer H2

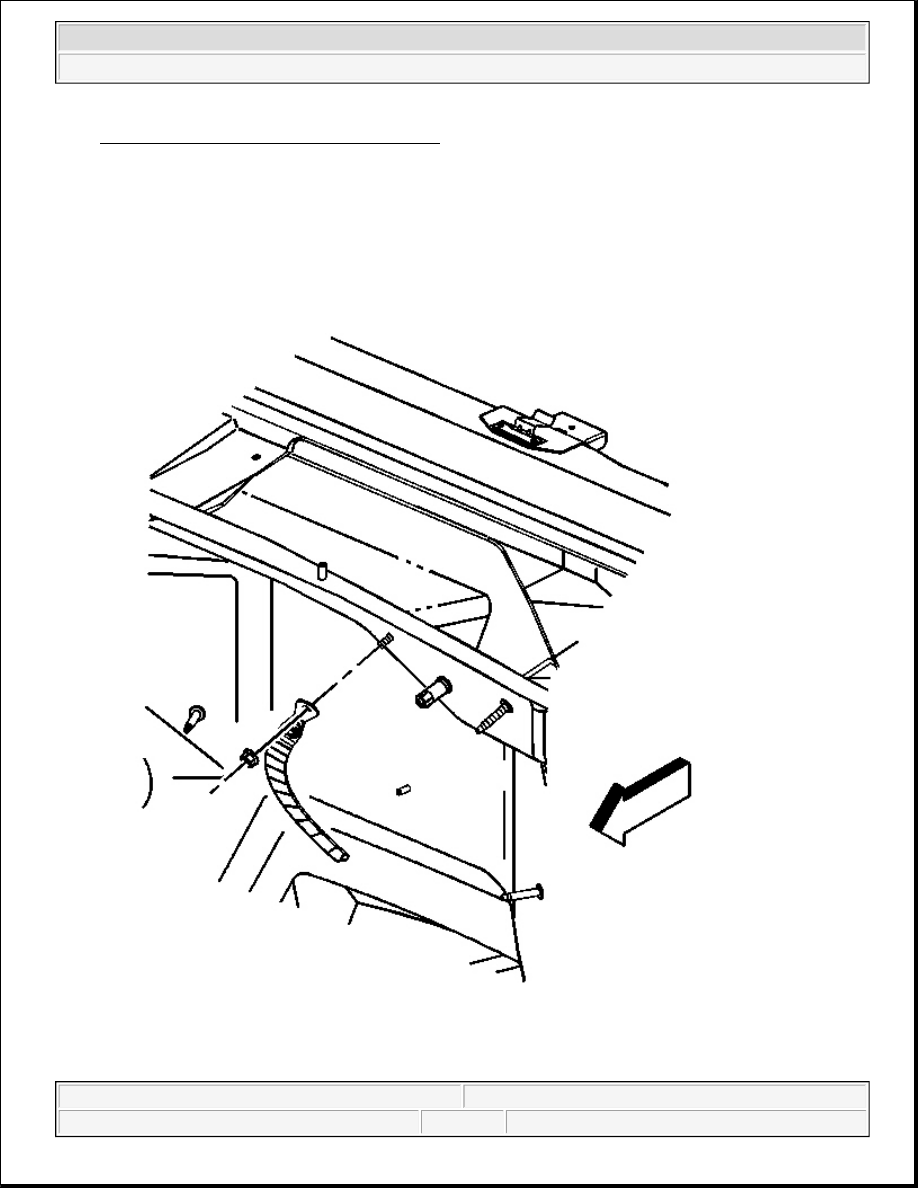

Fig. 37: Ground Strap Nut
Courtesy of GENERAL MOTORS CORP.

1. Install the ground strap to the stud.

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ELECTRICAL Engine Electrical - Hummer H2



2. Install the ground strap nut to the stud at the front of dash.

Tighten: Tighten the nut to 9 N.m (80 lb in).

3. Raise the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.

Fig. 38: Ground Cable Bolt At Engine Block
Courtesy of GENERAL MOTORS CORP.

4. Position the ground strap and engine wiring harness ground.

5. Install the engine wiring harness ground bolt.
